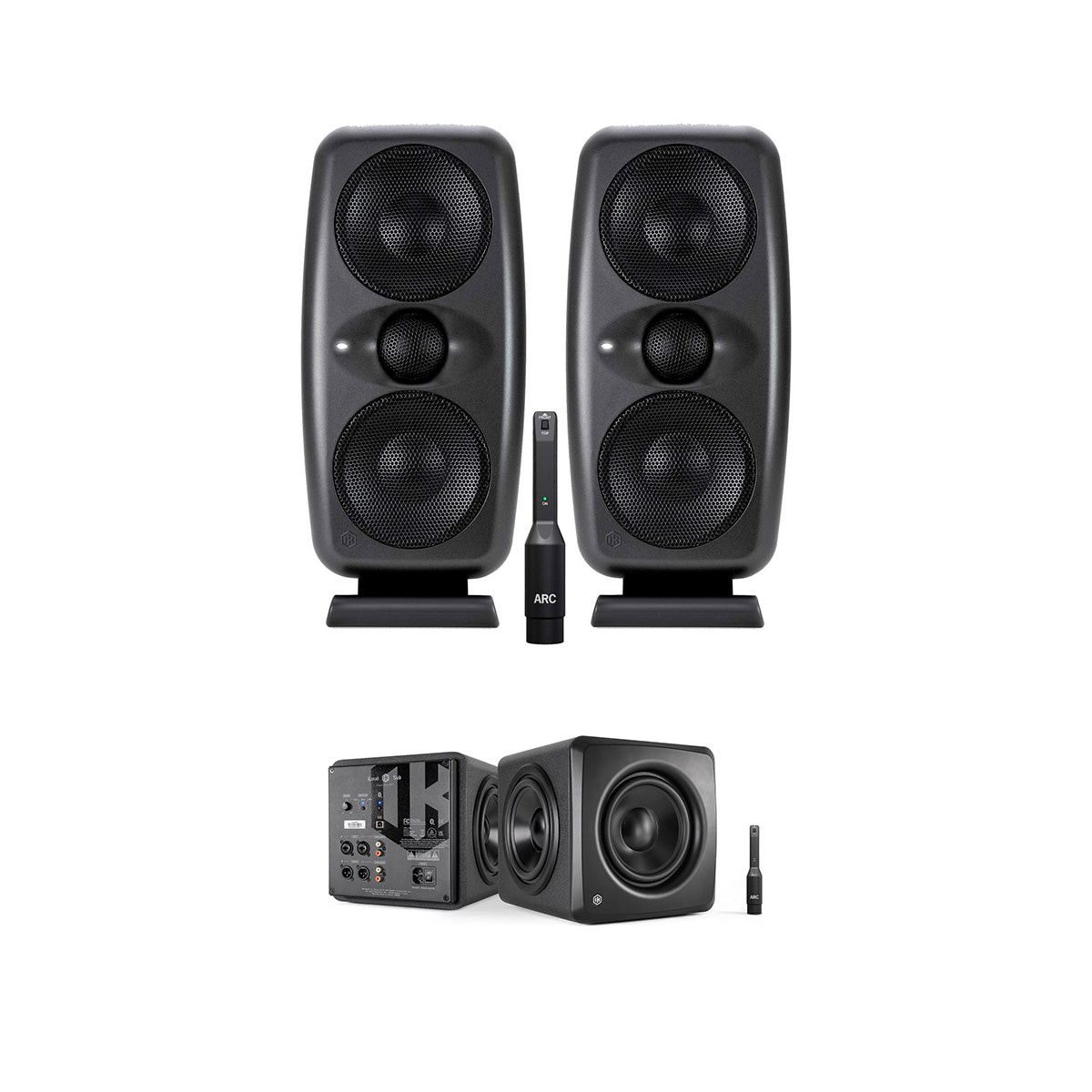

IK Multimedia iLoud MTM MKII + iLoud Sub
Choose options
The IK Multimedia iLoud MTM MKII + iLoud Sub is an ultra-advanced, professional 2.1 studio monitoring system designed for mixing engineers, producers, and creators working in critical or immersive audio environments. At the heart of the bundle are two innovative iLoud MTM MKII monitors featuring a symmetrical Midrange-Tweeter-Midrange design (two 3.5-inch composite woofers flanking a 1-inch silk-dome tweeter). This unique architecture acts as a true point-source, delivering incredibly precise stereo imaging, time alignment, and a perfectly flat phase response. Each monitor is bi-amped with high-efficiency Class-D amplifiers generating 100W RMS, capable of pushing a maximum sound pressure level of 112.5dB with zero listener fatigue.
The system's low end is powerfully anchored by the dedicated active iLoud Sub. This ultra-compact unit is equipped with a high-performance 6.5-inch aluminum woofer working in tandem with two 6.5-inch passive radiators, producing a deep, punchy, and tightly controlled bass response with a max SPL of 106dB at 40Hz. The 2.1 system is designed for absolute seamless integration. Thanks to built-in bass management and linear-phase crossovers, the acoustic transition between the subwoofer and the MTM satellite monitors is flawlessly coherent, meaning there is no phase smearing or frequency masking in the critical crossover regions.
What elevates this bundle to a world-class standard is its massive onboard DSP and the advanced ARC acoustic calibration system. An included MEMS measurement microphone allows the system to automatically analyze and correct any problematic room acoustics in seconds, ensuring your mix translates perfectly outside your studio. Furthermore, the free X-MONITOR control software allows users to physically emulate the exact frequency and phase response of over 20 iconic studio monitors and playback systems. This feature lets engineers A/B their mixes across different reference profiles instantly, directly from the listening position.
KEY FEATURES
- Complete 2.1 monitoring bundle with built-in ARC room calibration (MEMS microphone included)
- Symmetrical MTM (Midrange-Tweeter-Midrange) design ensuring a perfect point-source acoustic performance
- Monitors feature custom 2x 3.5" mid-woofers and a 1" low-distortion silk-dome tweeter
- Subwoofer features a 6.5" active aluminum driver and dual 6.5" aluminum passive radiators
- Linear-phase crossovers and precise time-alignment for an incredibly accurate soundstage
- Double the internal DSP processing power compared to the original MTM generation
- X-MONITOR software integration allows for the emulation of 20+ legendary studio monitors
- Integrated tilting isolation stands for precise desktop angling up to 20°
TECHNICAL SPECIFICATIONS
- System Type: DSP-controlled active 2.1 studio monitoring system
- Monitor Power (each): 100W RMS (70W LF + 30W HF) Bi-amped Class-D
- Monitor Frequency Response: 48 Hz to 28 kHz (±2 dB)
- Monitor Crossover Frequency: Linear-phase at 2.8 kHz
- Monitor Max SPL: 112.5 dB
- Subwoofer Max SPL: 106 dB peak at 40Hz
- Bass Management: Fully integrated with linear-phase crossover filters
- Monitor Connectivity: XLR/TRS combo input, ARC mic input, USB port for X-MONITOR
- Subwoofer Connectivity: XLR and RCA analog I/O, USB input, Bluetooth audio
