Heritage Audio

Heritage Audio OST-8 ADAT

€1.114,54
Sold out

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 50516

Contact

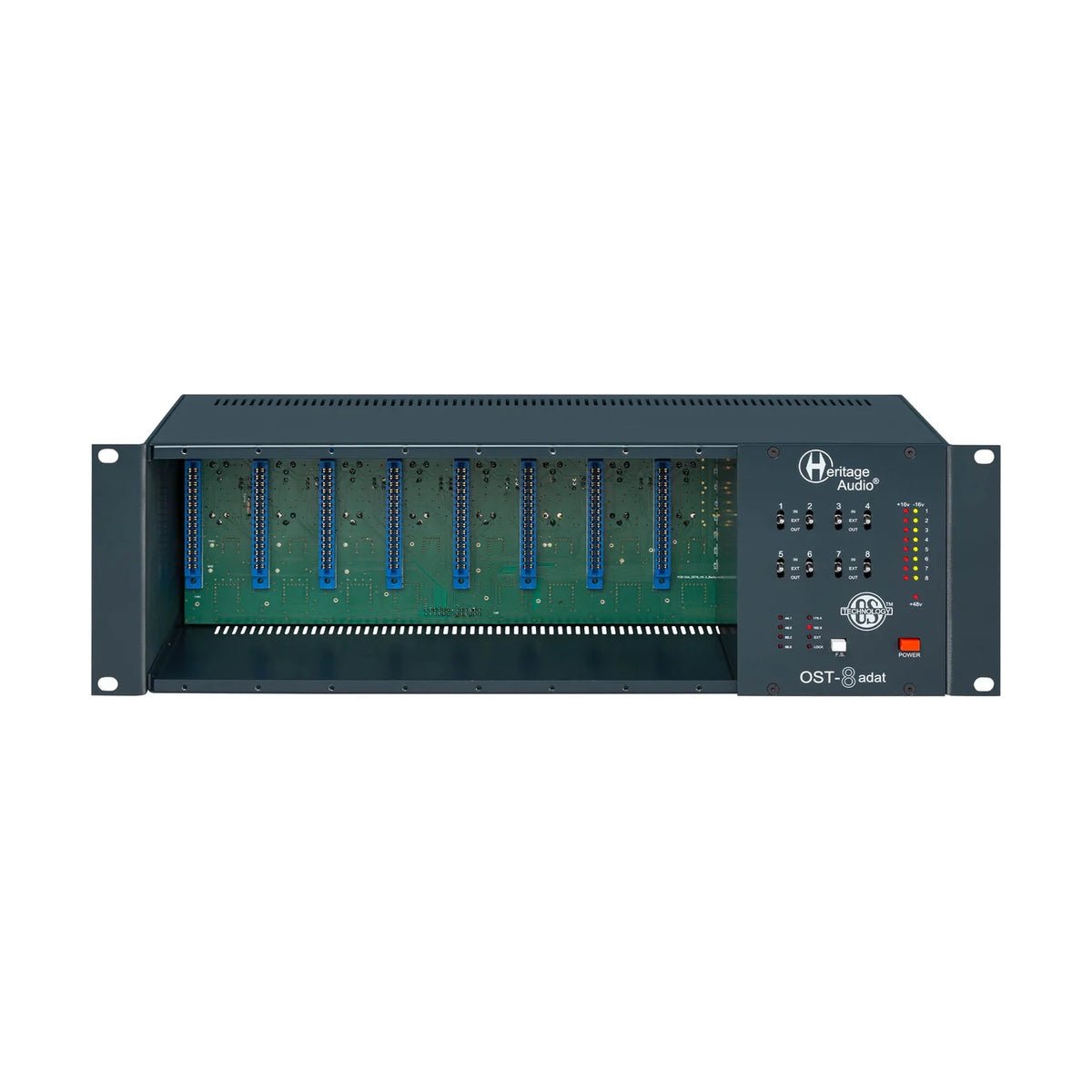

The Heritage Audio OST 8 ADAT is an 8-slot rack case for 500 series modules with ADAT output, On Slot Technology, World Clock In/Out, 3 x DB25 connectors, 8 x XLR Inputs, and 8 x XLR Outputs.

The OST-8 ADAT is an 8-slot 500-series rackmount unit designed to maximize the potential of your audio interface. Featuring a built-in premium 24-bit/192kHz ADC, this unit seamlessly integrates analog 500-series processing with your digital workflow via ADAT connectivity.

The OST-8 ADAT offers superior signal path protection and isolation for each of its eight slots, ensuring optimal performance from your 500-series modules. Each module receives individually regulated power, guaranteeing maximum performance. Dual indicator lights per slot confirm correct voltage (±16V). A unique "LINK" button allows for internal connection between adjacent modules without patch cables.

You can select the input routed to the ADC on a per-channel basis, choosing between the direct input signal, the signal after passing through a 500-series module, or an external input signal. The ADC can operate as a master or slave unit, with a BNC Word Clock connector for stable synchronization.

OST 8 ADAT Features

  • 8-Slot 500 Series Rack: Houses up to eight 500-series modules.
  • Premium 24-bit/192kHz ADC
  • ADAT Connectivity
  • On Slot Technology (OST)
  • Individually Regulated Power
  • Per-Channel Input Selection
  • Word Clock Synchronization (BNC)
  • Gold-Plated XLR and DB25 Connectors
  • Internal Module Linking ("LINK" Button)
  • Dual Voltage Indicators per Slot
  • Robust Construction
  • Supports Multiple Sample Rates: 44.1, 48, 88.2, 96, 176.4, and 192 kHz.

OST 8 ADAT Specifications

ANALOG I/O

  • XLR Inputs & Outputs: Gold Plated Balanced +4 dB Connectors.
  • DB25: 25 Pin Balanced +4 dB Eight Channel Connectors.
  • On Slot Technology.
  • Maximum audio rails current: 1.8 A per rail, or 400 mA per slot, whichever is reached first.
  • Maximum phantom power current: 140 mA.
  • Operating voltage: Universal 100-240 V AC.

WORD CLOCK

  • Connector Type: BNC.
  • Word Clock Input Termination: 75 Ω, switchable.

ADAT

  • Connector Type: Optical TOSLINK JIS F05.
  • Format: ADAT Digital Lightpipe with S/MUX.
  • Supported Sample rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192.
  • Channel Assignments @ 44.1 kHz, 48 kHz: Port 1 = Channels 1 – 8.
  • Channel Assignments @ 88.2 kHz, 96 kHz: Port 1 = Channels 1 – 4, Port 2 = Channels 5 – 8.
  • Channel Assignments @ 176.4 kHz, 192 kHz: Port 1 = Channels 1 – 2, Port 2 = Channels 3 – 4.

DIMENSIONS/WEIGHT

  • Dimensions (W x H x L): 200 mm x 134 mm (3U) x 482 mm.
  • Weight: 4.715 Kg.
