Heritage Audio

Heritage Audio OST-10 v2.0

Sale price€841,71
SPECIAL ORDER

Tax included. Shipping calculated at checkout

SKU: 42540
Quantity:

This item is available on a custom order basis only. Please contact us for more details. Contact us

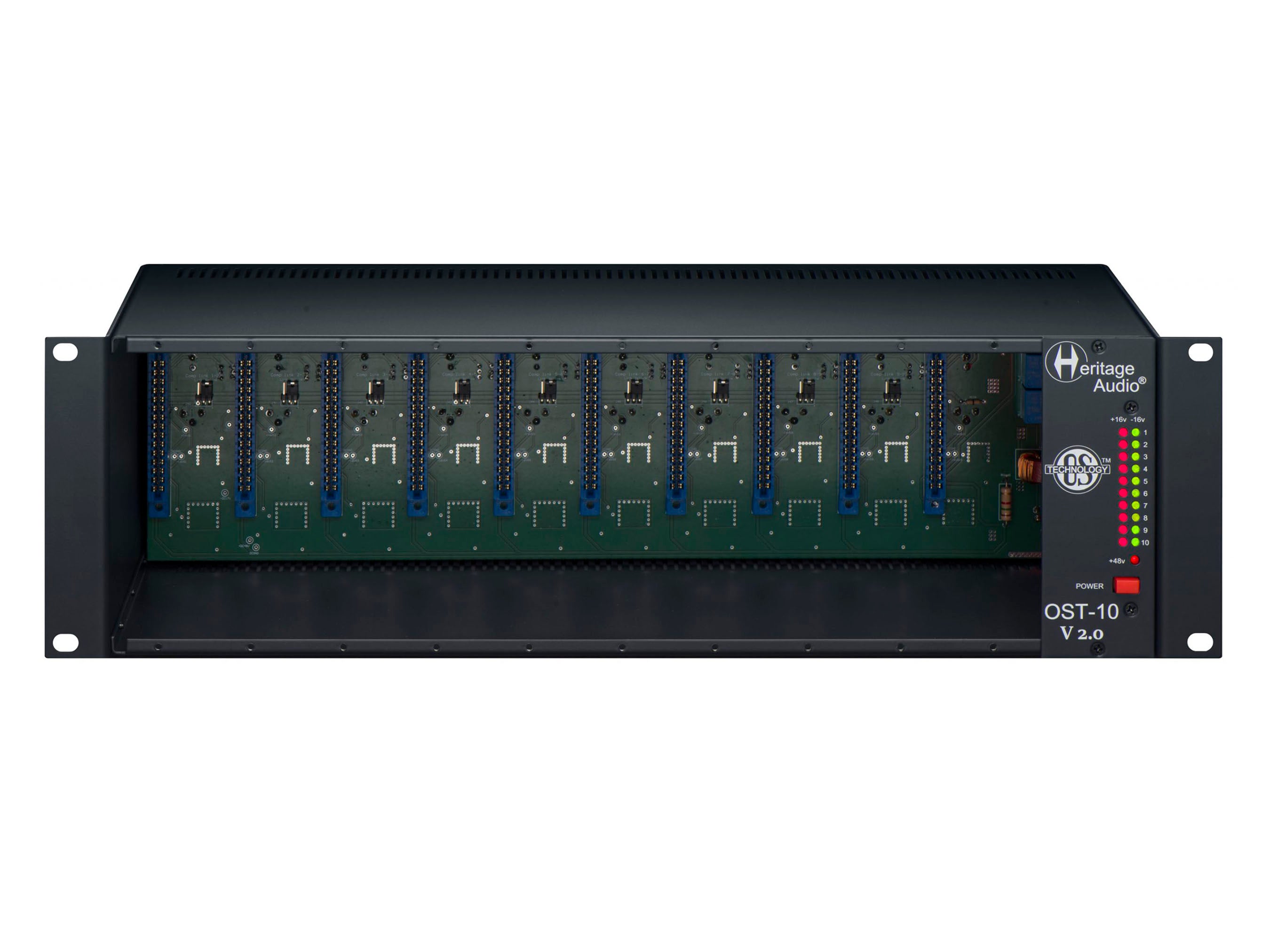

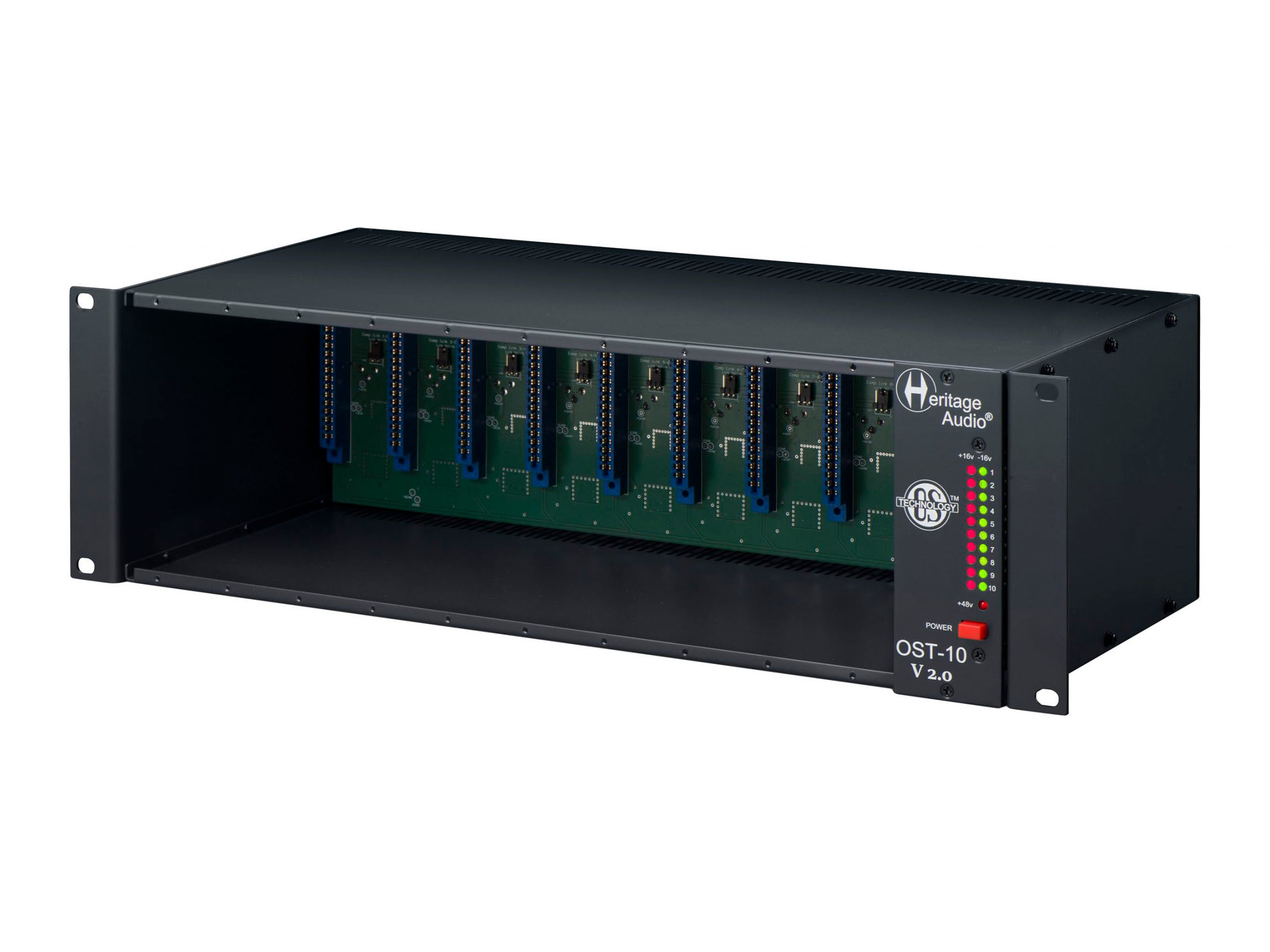

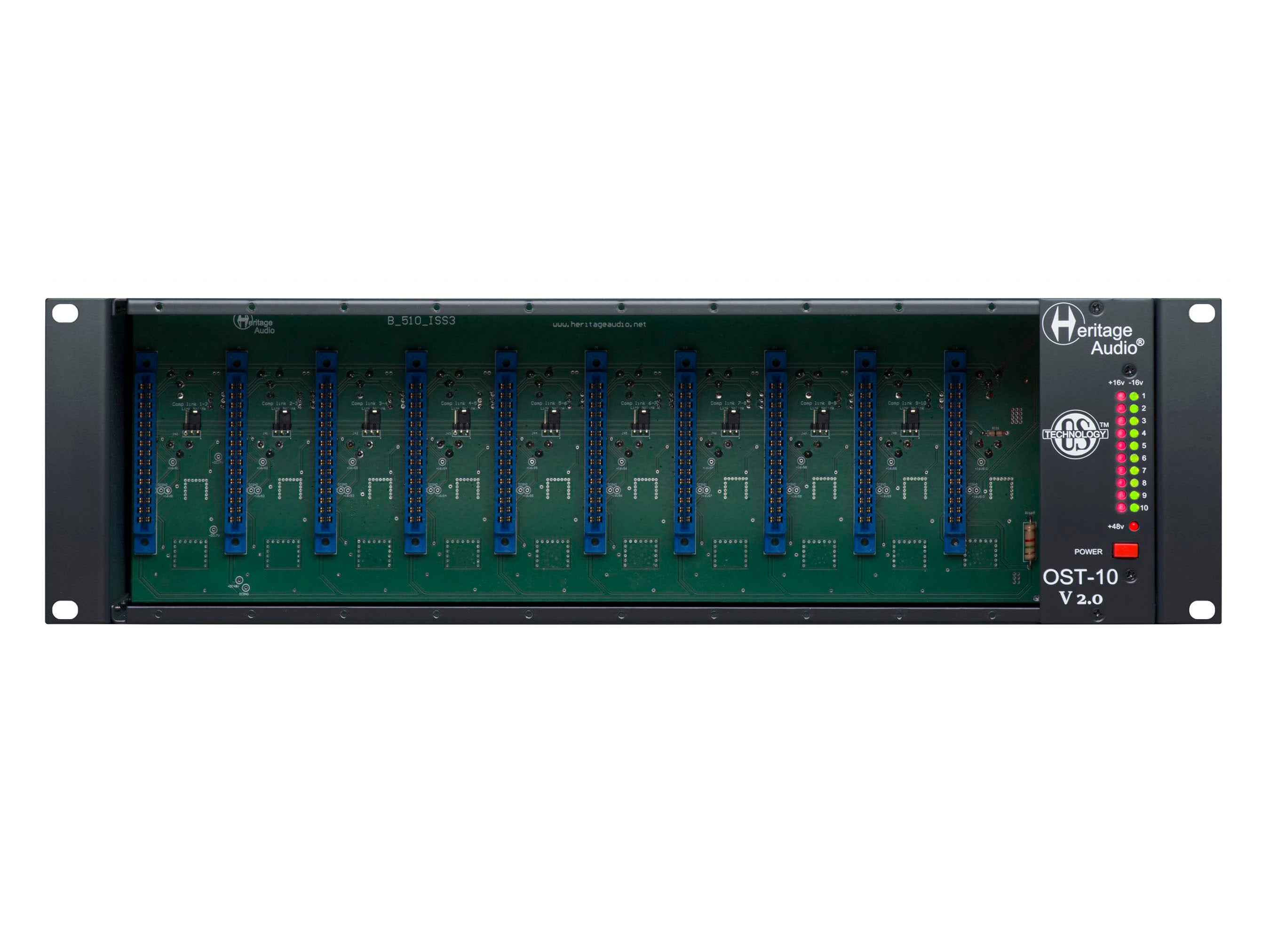

Heritage Audio OST-10 v2.0 is a rack case with 10 slots for housing 500 series modules, 10 x XLR Inputs, 10 x XLR Outputs, rackmountable.

The OST-10 V2.0 by Heritage Audio enclosure is designed for racking any and all 500-series modules and devices, including ‘double wide’ modules and even the most demanding class-A and vacuum tube designs. The device enclosure features Heritage Audio’s On Slot Technology, providing maximum protection, filtering, and isolation to each channel. This ensures that no ‘power hungry’ or even a faulty module will compromise the performance of another. In addition to reducing interference, many 500-series devices actually exhibit lower self-noise and better performance when racked in the OST-10 V2.0 enclosure, especially mic preamps. The Link feature allows each channel to be linked over to the next at the push of a button on the back panel.

OST-10 v2.0 Features

  • On Slot Technology
  • Individual power per slot
  • Gold Plated Edge Connectors
  • Gold Plated XLRs
  • Gold Plated XLR5 Power Input
  • Compressor Links: Jumpers used to determine the Compression Linking between adjacent slots

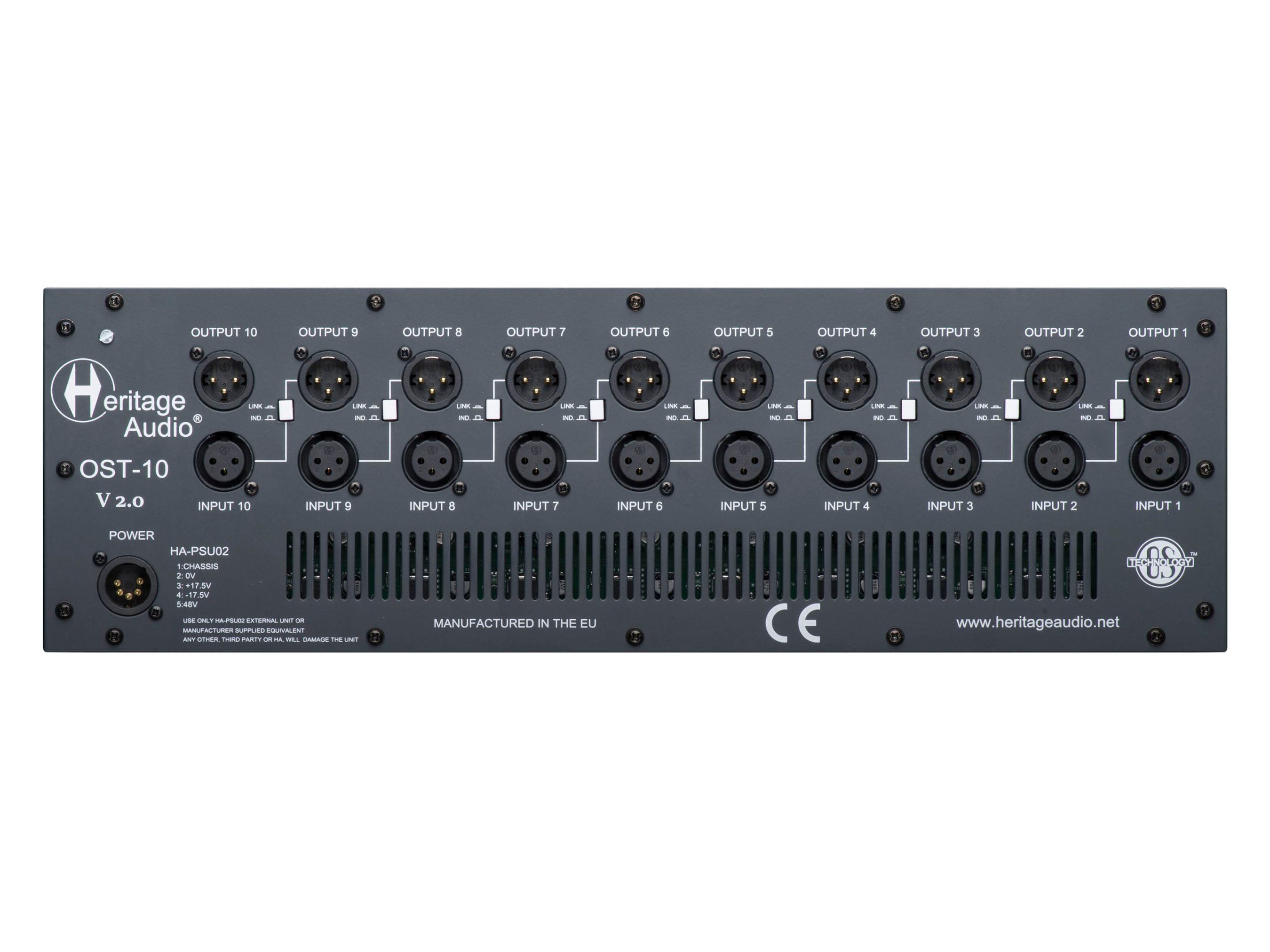

  • Link Output With Input of Adjacent Slot
  • Power Switch on front panel for easy access
  • Voltage LEDs to verify that the correct voltage is arriving at each slot (±16 V) as well as +48 V

OST-10 v2.0 Specifications

  • Maximum audio rails current: 1.8 A per rail, or 400 mA per rail per slot, whichever is reached first.
  • Maximum phantom power current: 140 mA.
  • Operating voltage: Universal 100-240 V AC.
  • Dimensions (W x H x L): 482 mm x 134 mm x 185 mm.
  • Weight: 2.5 Kg.
