Heritage Audio MCM 32
This item is available on a custom order basis only. Please contact us for more details. Contact us
Heritage Audio MCM32 is a 32-channel summing mixer with subgroups and auxiliary outputs, rack-mountable.

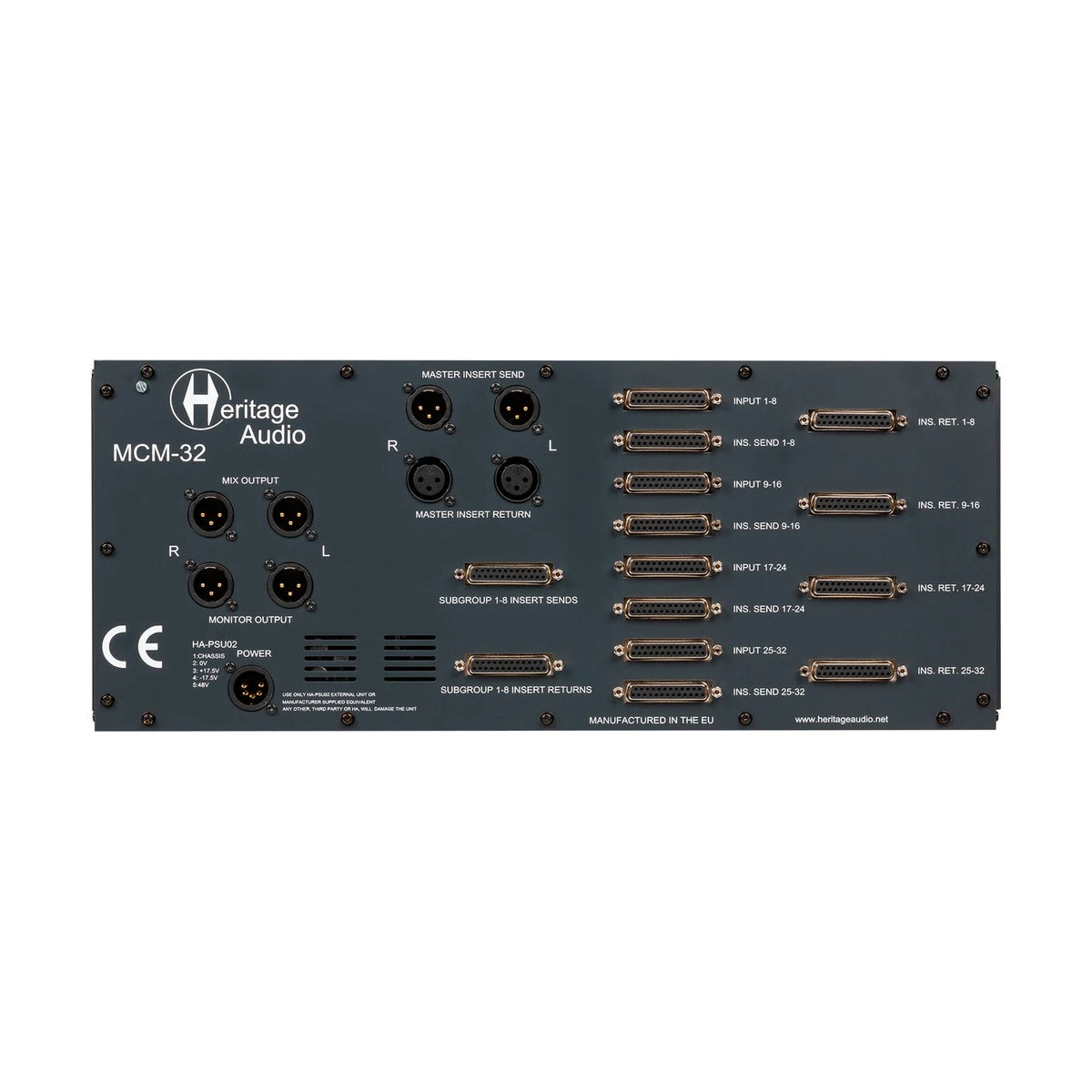

MCM-32 is a mixing console with 32 input channels divided into four subgroups. Each channel has its own pan control for fine-tuning. At the same time, adjustments can be made to all channels in a subgroup simultaneously. All subgroups are directly connected to the main mixer. On the back, there are XLR connectors for both input and output signals, as well as Sub-D25 connectors for each of the subgroups.
MCM-32 Features
- 32-Channel Hybrid Summing Mixer
- Flexible Routing
- High-Quality Components
- Carnhill Transformers
- 73-style Class A Transformer-Coupled Mic Preamp
- Vintage-Inspired Design
- Intuitive Controls
- DB-25 Connectivity
MCM-32 Specifications
- Channel Input Impedance: Greater than 20 kΩ.
- Maximum Channel Input Level: Greater than +26 dBu.
- Maximum Insert Return Input Level: Greater than +26 dBu.
- Maximum Insert Send Level: Greater than +27 dBu, able to drive 600 Ω.
- Maximum Output Level: Greater than +26 dBu into 600 Ω.
- Frequency Response: ±0.5 dB 20Hz to 20 kHz.
- THD + N: Not more than 0.07% from 50 Hz to 10 kHz at +20 dBu output (22 Hz to 22 kHz bandwidth) into 600 Ω.
- Noise, all faders up, all subgroups in, measured at the main output, better than -80 dBu.
