Heritage Audio

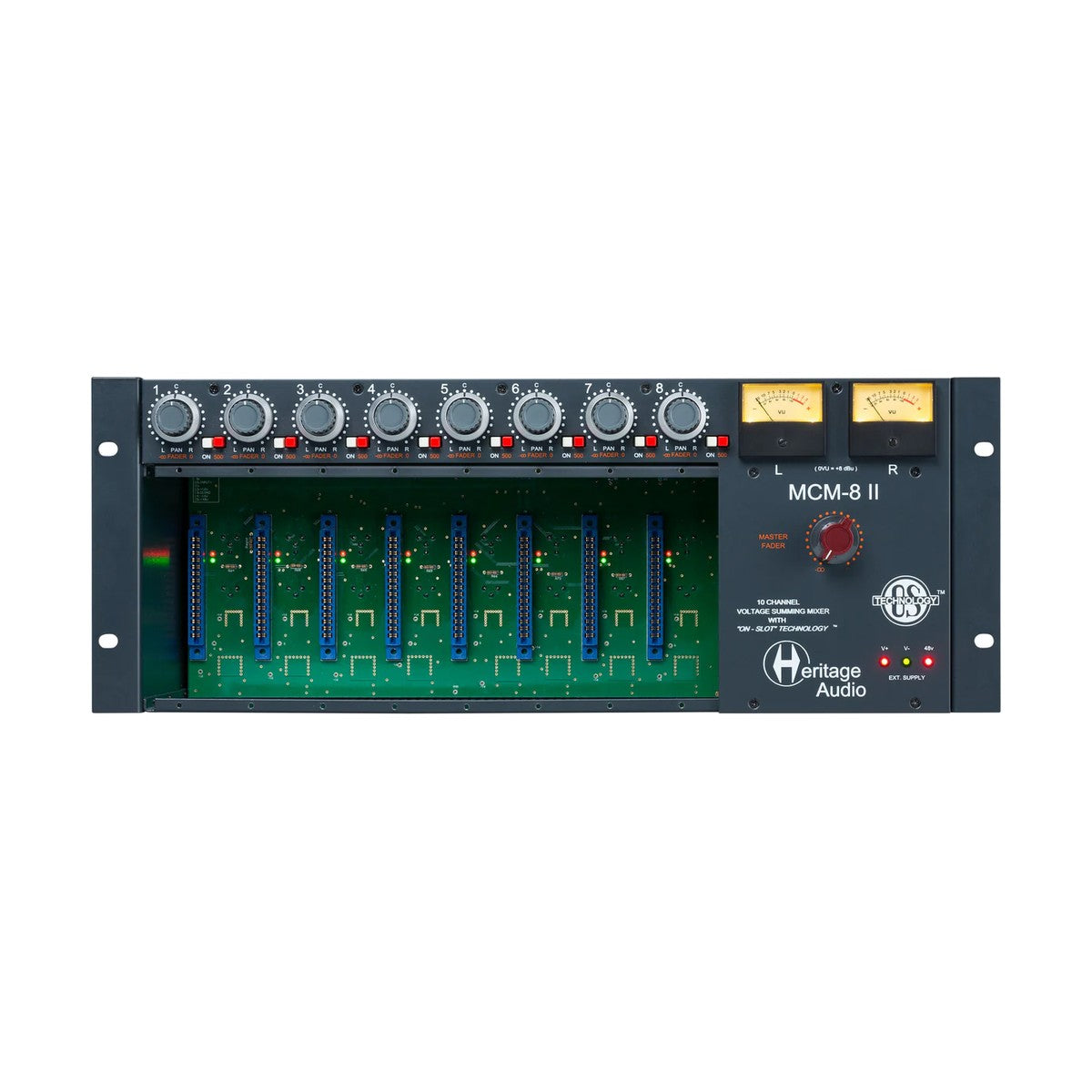

Heritage Audio 8 Slot 500 Series OST Enclosure with 10 Channel mixer

€1.569,25
Sold out

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 52298

Contact

The Heritage Audio MCM-8 II is a high-quality 10-channel professional audio mixer designed for seamless integration with 500 Series modules, offering robust features for mixing and processing sound in studio or live environments.

MCM-8 is an eight-slot chassis designed for 500 Series modules, equipped with a ten-channel mixer. Each of the eight slots includes its own linear power regulation stage, ensuring that a complete rack of various modules operates reliably.

On the back of the unit, you'll find both XLR and D SUB 25 connectors for inputs and outputs, providing versatile connectivity options. Additionally, the MCM-8 includes an extra stereo input, allowing you to connect multiple MCM-8 units or integrate signals that don’t need further processing from 500 Series modules.

Key Features of the Heritage Audio MCM-8 II

  • 8-Slot 500 Series Chassis
  • Integrated 10-Channel Summing Mixer
  • Dedicated power supply for each slot, isolating modules and minimizing interference
  • Additional button per channel to bypass 500 Series modules for easy signal comparison
  • Lower Noise Operation
  • Each slot features test LEDs for power operation checks (+16 V in red, -16 V in green)
  • 400 mA per rail per slot maximum, with a total of 1.4 A per rail (1.6 A non-continuous)
  • Phantom Power Available
  • Durable Construction
  • Pan and Fader Controls
  • Enables assignment of each channel to the Mix Bus for stereo summing

MCM-8 II Specifications

Mixer Section

  • Channel Input Impedance: 20 kΩ
  • Maximum input level: Over +27 dBu
  • Maximum output level: Greater than +26 dBu into 600 Ω
  • Frequency response: ±0.5 dB 20 Hz to 20 kHz
  • THD + N: Not more than 0.07% from 50 Hz to 10 kHz at +20 dBu output (80 kHz bandwidth) into 600 Ω
  • Self-noise: -90 dBu

Enclosure Section Specifications

  • On Slot Technology
  • Maximum audio rails current: 1.8 A per rail, or 400 mA per rail per slot, whichever is reached first
  • Maximum phantom power current: 140 mA
  • Operating voltage: Universal 100-240 V AC
  • Dimensions (W x H x L): 482 mm x 220 mm (5 Rack units) x 185 mm
