H2 Audio
H2 Audio 002
Choose options

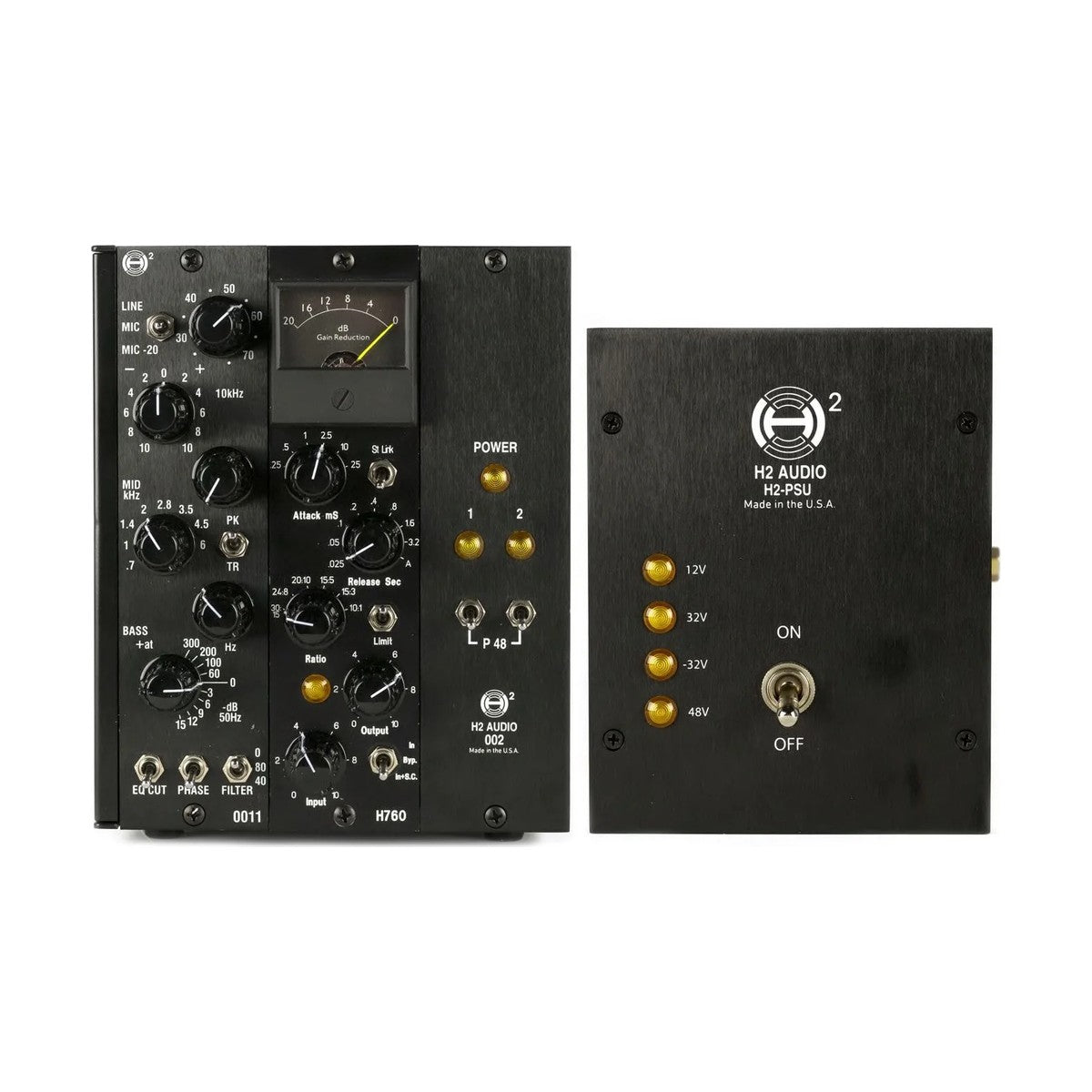

H2 Audio 002 is a two-slot rack with an integrated power supply, built for 0011 series modules. The enclosure is small enough to sit on the desktop next to the console and needs no space in a rack cabinet.
Two slots, three useful configurations
The rack takes any pair of modules. One 0011 alongside one H760 gives a complete Helios channel: preamp, equalizer and FET compressor. Two 0011 modules make a ready-made pair for stereo tracking. Two H760 units linked together work as drum bus compression.
Power matched to the modules, no improvising
0011 modules need 32 V rails and will not run in a 500 series rack. The 002 delivers the correct voltage and current through internal bus rails, so there is no hunting for a supply or modifying an existing chassis. Note the compatibility limit: the 002 accepts 0011 series modules only, not 500, 200 or 80 series formats. Modules are sold separately and the rack ships empty.
KEY FEATURES
- Two slots for H2 Audio 0011 series modules
- Power supply integrated into the enclosure
- Desktop footprint, no rack cabinet required
- Accepts 0011 modules and the H760 compressor
- Internal power and signal bus rails
- Ships unloaded, modules purchased separately
TECHNICAL SPECIFICATIONS
- Type: module rack with power supply
- Slots: 2
- Compatibility: H2 Audio 0011 series modules, including the 0011 and H760
- Not compatible with: 500, 200 and 80 series modules
- Power: integrated power supply
- Construction: steel chassis with internal bus rails
- In the box: rack only, no modules
