Grace Design ROXi
Grace Design ROXi
Grace Design ROXi
Grace Design ROXi
Grace Design ROXi

Grace Design

Grace Design ROXi

Sale price€992,00

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 51342
Quantity:
Delivery within 8-12 weeks

Contact

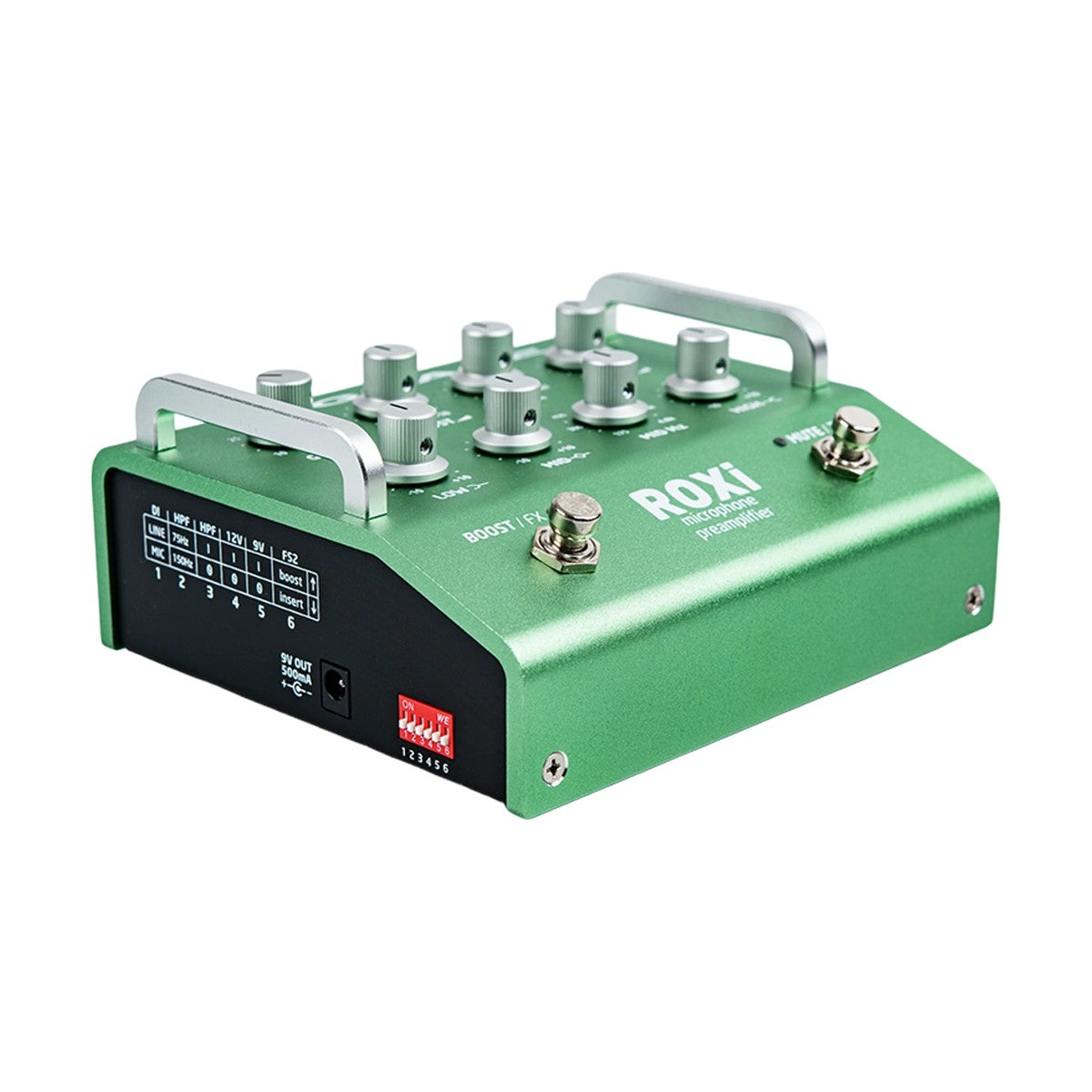

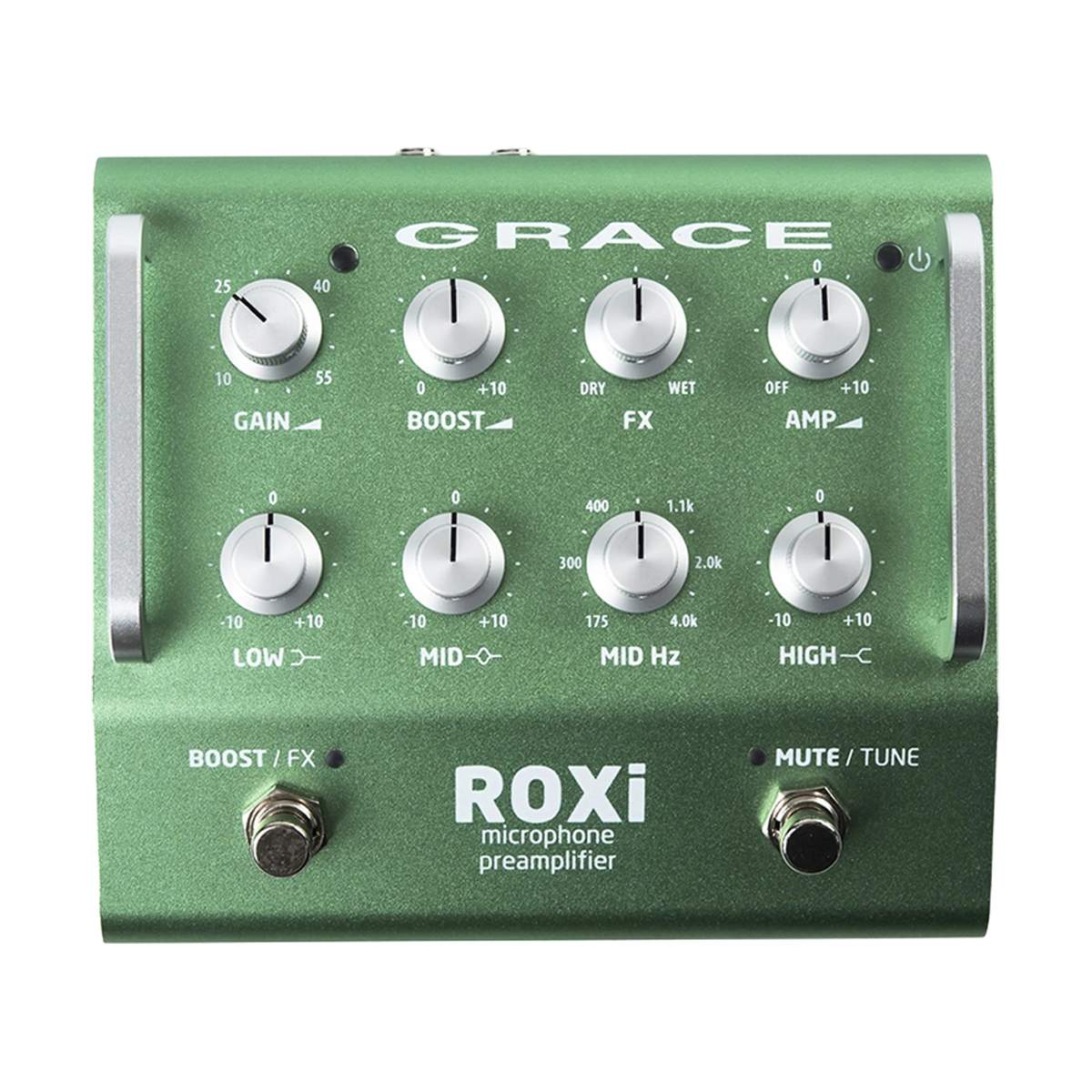

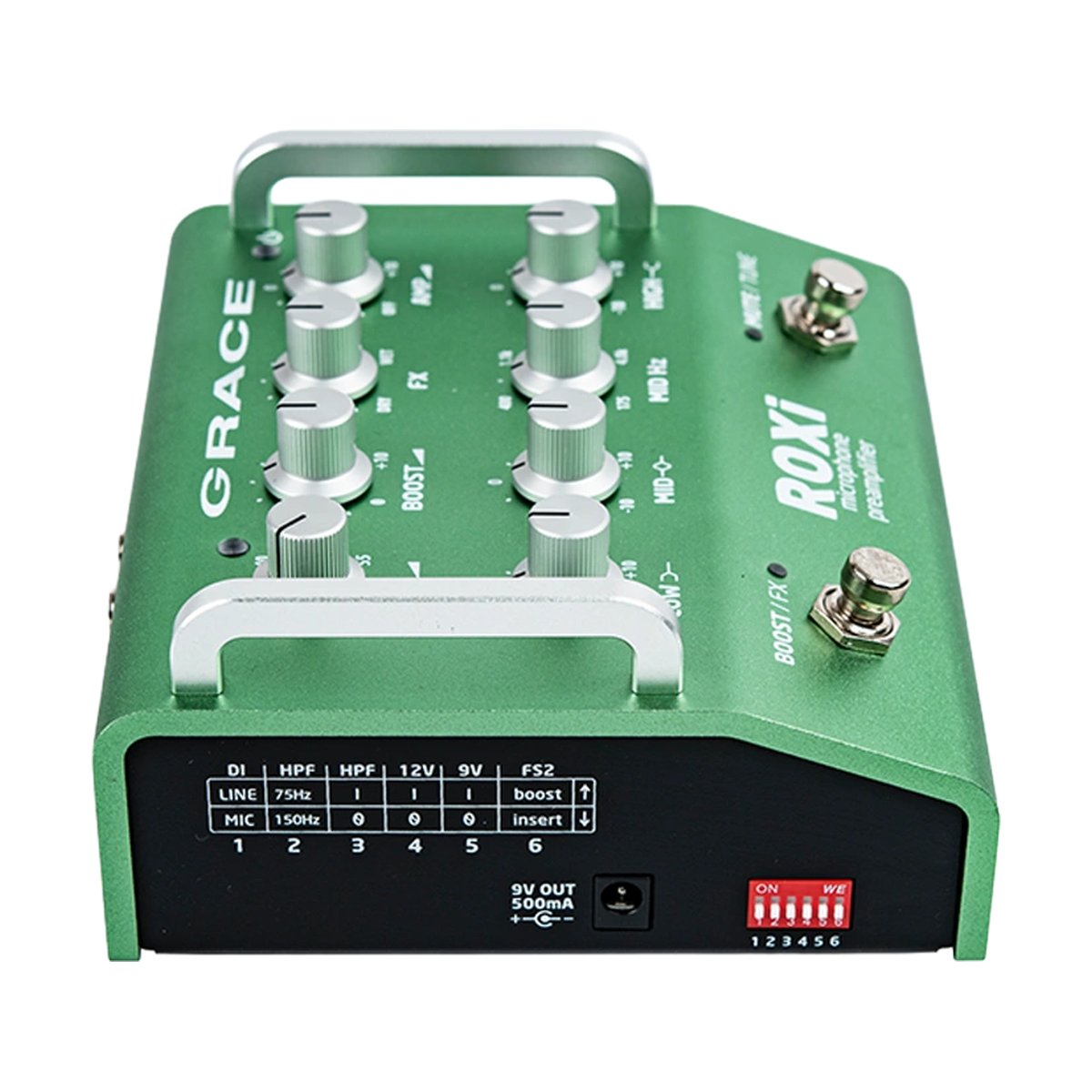

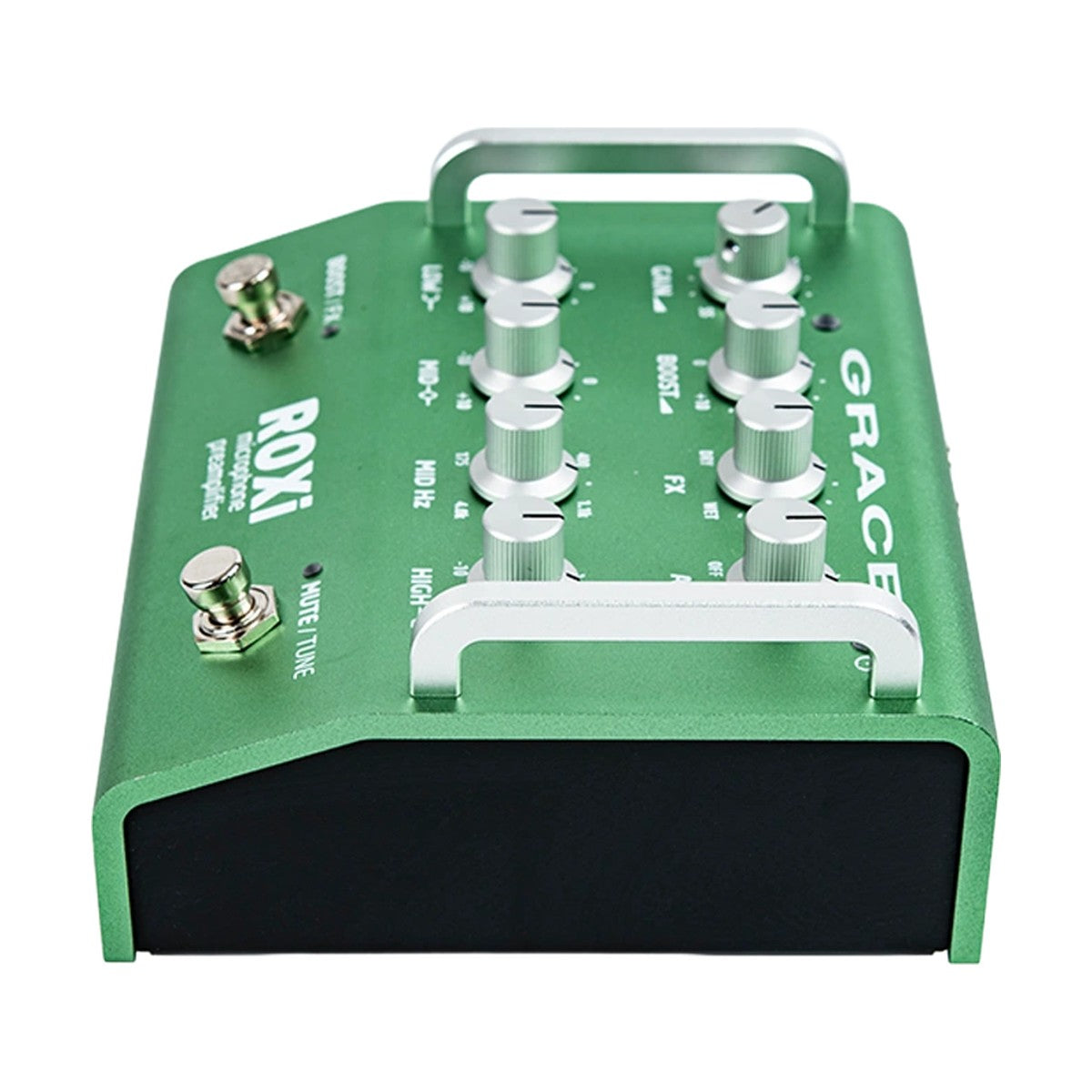

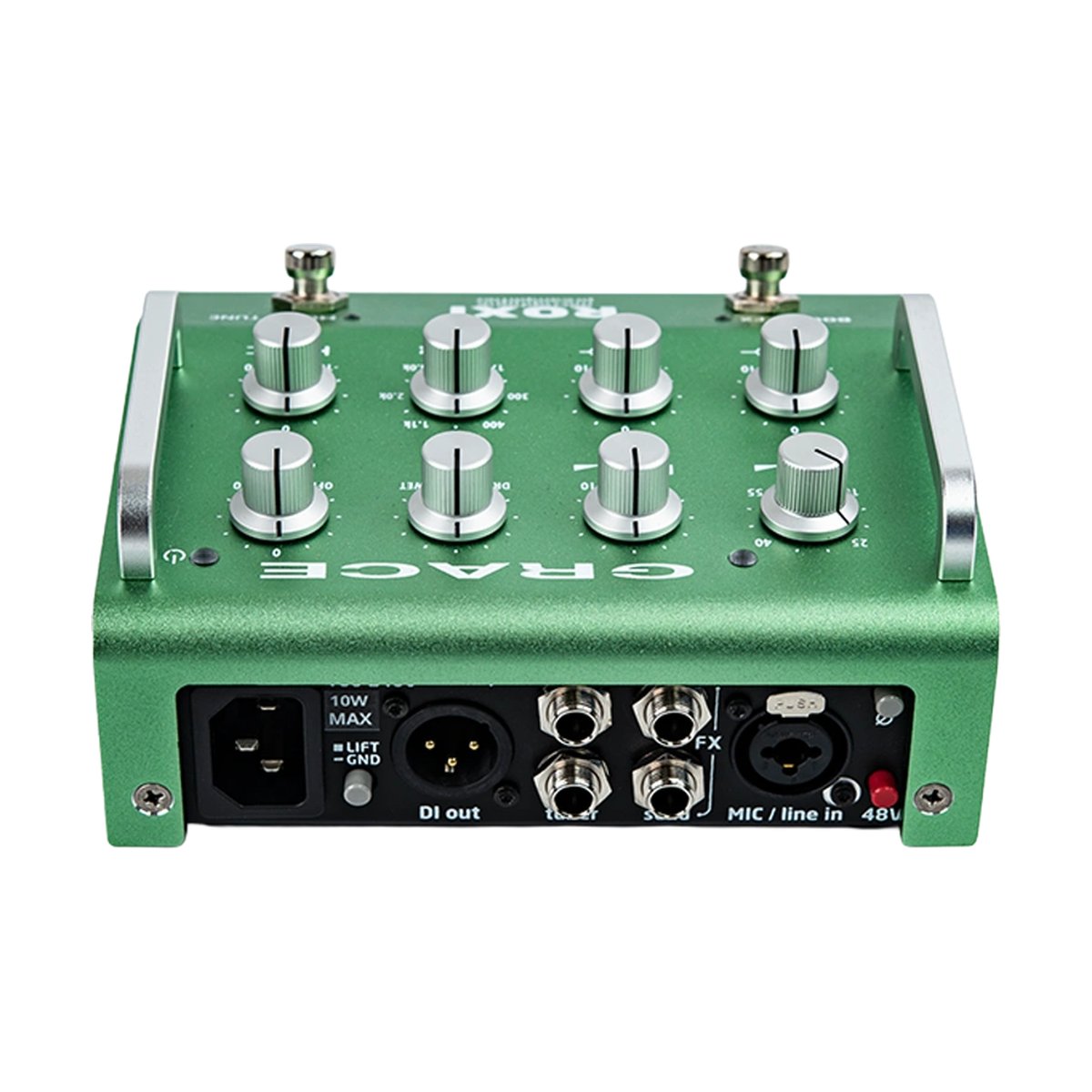

Grace Design ROXi is a single-channel microphone and instrument preamp, EQ and DI in a rugged, floor-based chassis, combining the studio Grace Design preamp path with extensive stage functionality. Larger and more feature-rich than the REX, the ROXi adds an instrument input, a mid EQ band and a blended FX loop, giving vocalists and instrumentalists a complete tool for the stage and pedalboard.

A studio preamp for mic and instrument

A musician playing live often needs one pedal handling both a microphone and a pickup-equipped instrument. The ROXi has an XLR/TRS combo input accepting mic or instrument signal: up to 60 dB of gain for the mic and 40 dB for the jack input, with an additional variable boost up to 10 dB. The transparent Grace Design path draws out the full body even from demanding dynamic mics without an extra booster, and 48 V phantom power handles condenser mics.

Extensive EQ and full stage control

Tone shaping on stage demands more than two bands. The ROXi has an EQ with Low and High shelving plus a sweepable mid (175 Hz to 4 kHz), and a switchable high-pass filter operating at 75 or 150 Hz. The FX loop gains a dry/wet mix control, and a dedicated tuner output stays active even when muted, letting you tune silently during a performance. The unbalanced amp output has independent level control, and a set of DIP switches configures the filter, DI level and left footswitch function.

KEY FEATURES

  • Single-channel mic and instrument preamp, EQ and DI
  • Studio Grace Design preamp path
  • XLR/TRS combo input: up to 60 dB (mic), 40 dB (instrument)
  • 48 V phantom power and variable boost up to 10 dB
  • EQ: Low and High shelving plus sweepable mid 175 Hz-4 kHz
  • Switchable high-pass filter 75 or 150 Hz
  • FX loop with dry/wet mix control
  • Dedicated tuner output active when muted
  • Unbalanced amp output with independent level control
  • DIP switches for filter, DI and footswitch configuration

TECHNICAL SPECIFICATIONS

  • Manufacturer: Grace Design
  • Type: single-channel mic / instrument preamp / EQ / DI, floor chassis
  • Input: XLR/TRS combo (mic or instrument)
  • Gain range: up to 60 dB (mic), up to 40 dB (instrument jack)
  • Phantom power: 48 V switchable
  • Filter: HPF switchable 75 or 150 Hz
  • EQ: Low and High shelving, sweepable mid 175 Hz-4 kHz
  • Boost: variable up to 10 dB, footswitch controlled
  • FX loop: separate send and return with dry/wet mix control
  • Outputs: transformer isolated XLR DI, unbalanced 1/4" with level control, tuner out
  • Output operation: XLR and 1/4" simultaneously (signal split)
  • Footswitches: Boost and Mute
  • Configuration: DIP switches (filter, DI level, footswitch function)
  • Ground lift: yes
  • Power: 9 V DC
  • Manufacturer warranty: 5 years
