Grace Design m908 AD16
Grace Design m908 AD16

Grace Design

Grace Design m908 AD16

Sale price€11.496,00

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 55950
Quantity:
Delivery within 8-12 weeks

Contact

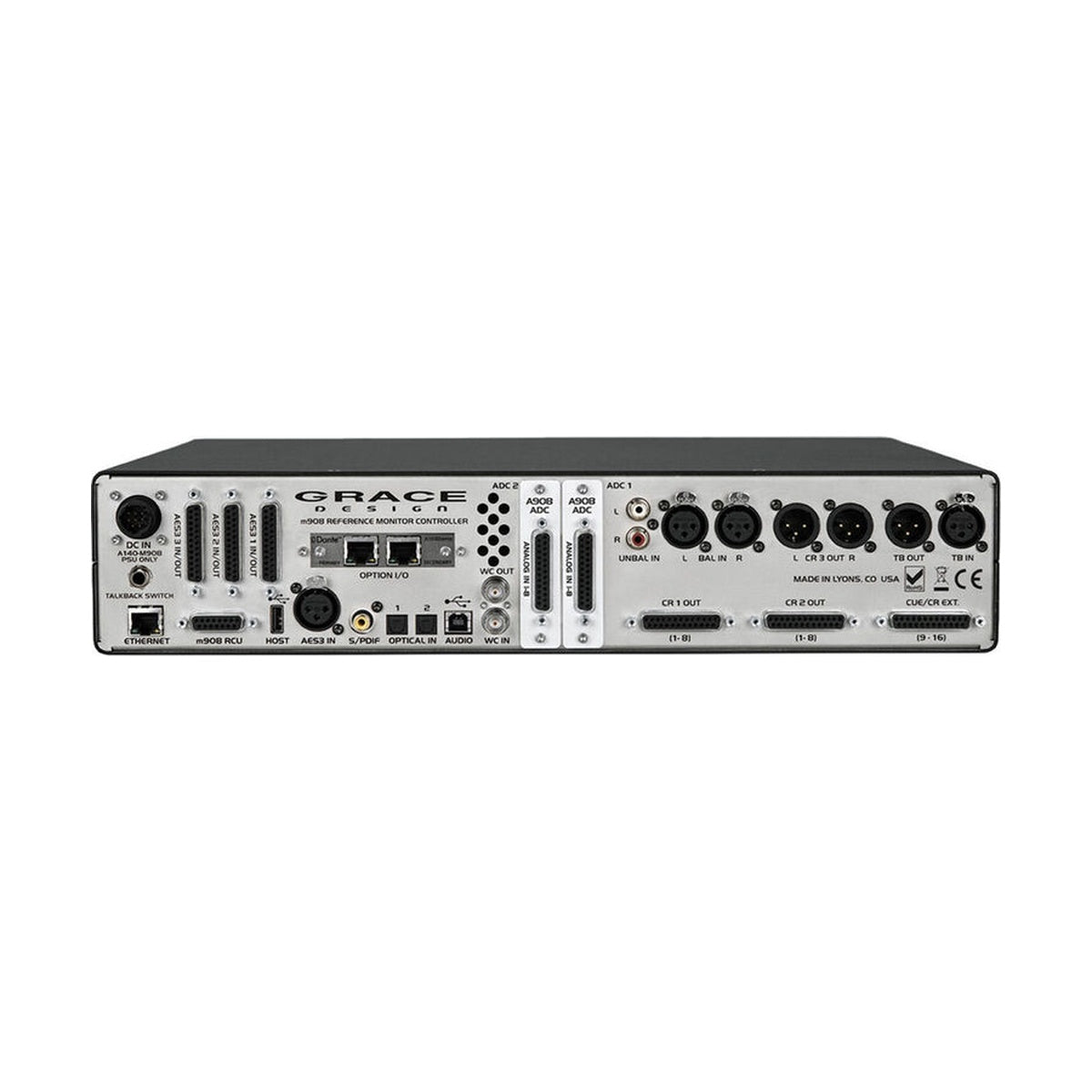

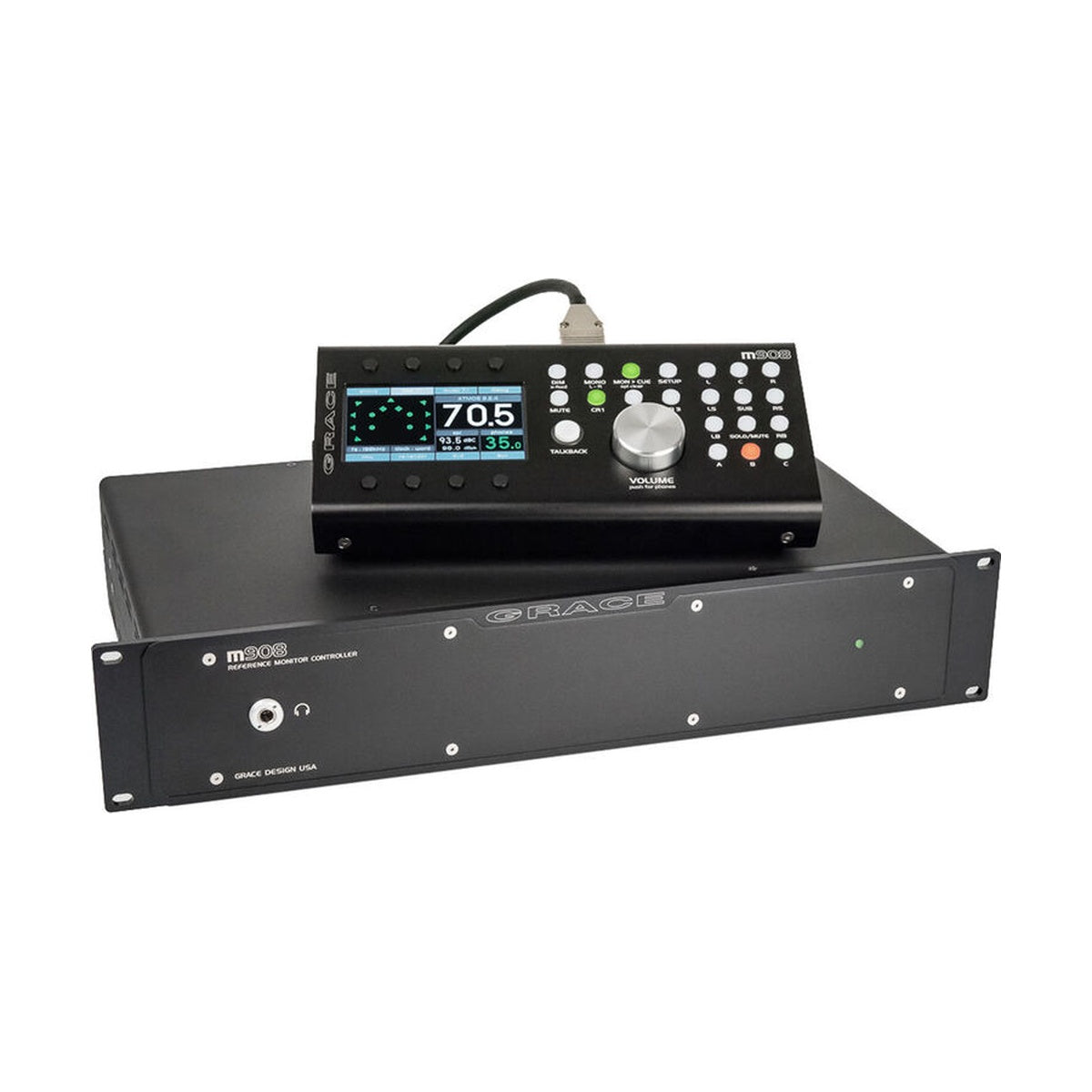

Grace Design m908 AD16 is a multi-channel monitor controller with 16-channel A/D conversion, supporting formats from stereo to Dolby Atmos and Sony 360RA, up to 22.2. The configuration without a network module provides a full complement of analog inputs and outputs plus digital I/O in AES3, ADAT and USB standards, making it a reference, self-contained multi-channel monitoring system for recording studios and post-production facilities that do not require audio-over-IP infrastructure or Pro Tools|HD connectivity.

Reference immersive monitoring with 16 analog inputs

An engineer working in Dolby Atmos or Sony 360RA needs a controller handling 24 channels simultaneously with minimal jitter and precise room correction. The m908 AD16 delivers this in one system: the latest generation A/D and D/A converters, a fourth-generation s-Lock PLL and 12 bands of parametric room correction EQ across each of 24 channels — 288 bands in total in 64-bit fixed-point filters. Two 8-channel ADC modules provide 16 analog mic and line inputs, supporting a full setup with external preamps or an analog console.

Extensive I/O and full session control

Standard digital inputs cover 68 channels via AES3, ADAT, USB, S/PDIF and TOSLINK, providing flexible integration with DAWs, converters and digital players. 16-channel balanced analog outputs and 24-channel AES3 Out handle both active monitors and external processors. Sonarworks SoundID Reference integration, a driver-free browser-based web interface and an RCU remote with talkback, SPL meter and up to 8 CUE paths give full session control without leaving the control room. The option slot remains free, allowing a Dante, Ravenna or Digilink card to be added in the future.

KEY FEATURES

  • Multi-channel monitor controller from stereo to 22.2, Dolby Atmos, Sony 360RA
  • 16 analog input channels A/D (2x 8-channel ADC module)
  • Fourth-generation s-Lock PLL for vanishingly low jitter
  • 12 bands of parametric room correction EQ per channel, 288 bands total
  • 64-bit fixed-point filters for room correction and bass management
  • Standard I/O: AES3, ADAT, USB, S/PDIF, TOSLINK
  • Free option slot for future Dante, Ravenna or Digilink card
  • Sonarworks SoundID Reference integration (firmware 2.2.2+)
  • Driver-free web interface, RCU remote with talkback and SPL meter
  • Up to 8 CUE paths and dual-redundant power supply

TECHNICAL SPECIFICATIONS

  • Manufacturer: Grace Design
  • Type: multi-channel immersive / stereo to 22.2 monitor controller
  • Configuration: m908 AD16 (ACU + RCU + PSU), no option module
  • Standard digital inputs: 24-channel AES3, 16-channel ADAT, 24-channel USB, AES3/S/PDIF/TOSLINK stereo
  • Analog inputs: 16 channels A/D (2x ADC module)
  • Option slot: free (Dante, Ravenna or Digilink card addable)
  • Standard outputs: 16-channel balanced analog, 24-channel AES3, 24-channel USB2
  • DSP processor: 24 channels simultaneously, up to 192 kHz / 24 bit
  • Room EQ: 12 bands per channel, 64-bit fixed-point filters, 288 bands total
  • Clocking: 4th-generation s-Lock PLL, word clock BNC In/Thru-Out
  • Control: web interface, RCU remote, GPIO
  • Talkback: built-in mic in RCU, external 1/4" TRS input
  • Power supply: dual-redundant, 100-240 V AC
