Grace Design m701 32x32 Digilink is a modular audio interface and A/D-D/A converter in a 2U chassis, offering 32 analog input channels, 32 analog output channels and a 32x32 Digilink interface for Avid Pro Tools|HD systems. The maximum analog configuration of the m701 platform gives a recording studio a complete, high-grade conversion complement integrated directly into Pro Tools without external converters or additional cabling.

Reference 32-channel I/O in the Pro Tools ecosystem

A large recording studio working with an analog console and Pro Tools|HD needs massive, reference-quality conversion I/O in one unit. The m701 32x32 Digilink provides 32 channels of A/D and 32 channels of D/A conversion with THD+N of 0.0002% and 0.00055% respectively, with a 32x32 Digilink card supporting Pro Tools|HD Accel, HDX and HD Native. In Sound On Sound testing the m701 outperformed the Prism Sound Dream ADA-128 by over 2 dB in both measurements, and its analog path is built on the same design principles as Grace Design preamps and converters developed over more than 25 years.

Modularity and GraceNet in a large studio environment

Eight ADC and DAC card slots populated with four 8-channel ADC modules and four 8-channel DAC modules provide 32 inputs and 32 analog outputs, reconfigurable in any combination to match changing studio needs. A built-in 32x8 low-latency mixer supports up to 8 independent cue mixes for musicians via GraceNet without loading the computer. A third option slot accepts a 24-channel AES3 module, word clock distribution or future monitoring functions, and onboard I/O (8-channel AES3, 8-channel ADAT, 2-channel S/PDIF) provides additional routing flexibility.

KEY FEATURES

  • Modular audio interface and A/D-D/A converter in a 2U chassis
  • 32 channels of reference-quality A/D and 32 channels of D/A conversion
  • 32x32 Digilink card for Pro Tools|HD Accel, HDX and HD Native
  • THD+N: 0.0002% (ADC) and 0.00055% (DAC)
  • Built-in 32x8 low-latency mixer with up to 8 cue mixes
  • GraceNet: browser-based control, m108 integration via Dante

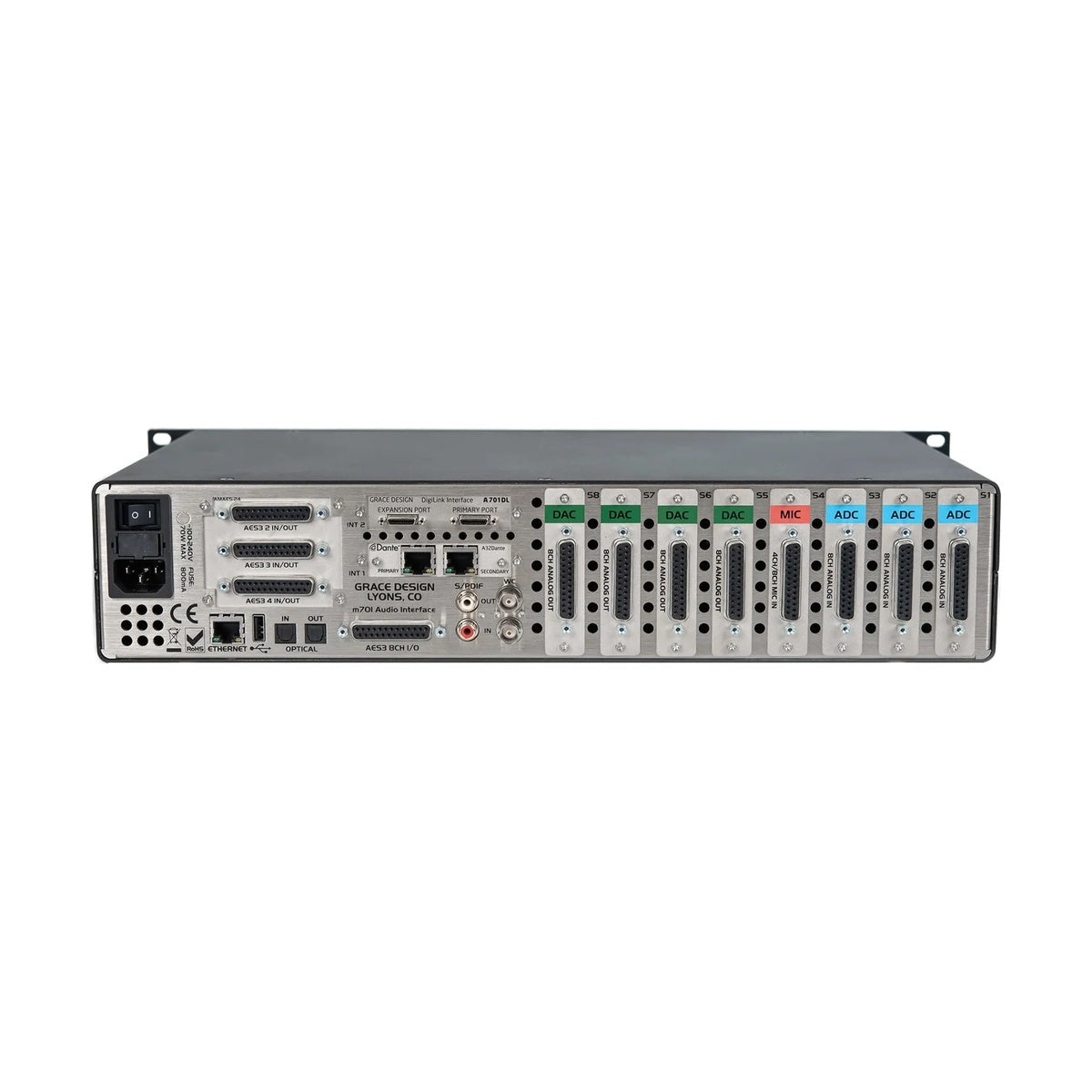

  • 8 ADC/DAC card slots, 2x 32-channel digital slots, 1 option slot
  • Onboard I/O: 8-channel AES3, 8-channel ADAT, 2-channel S/PDIF
  • Preamp cards installable in any of the 8 slots

TECHNICAL SPECIFICATIONS

  • Manufacturer: Grace Design
  • Type: modular audio interface / A/D-D/A converter, 2U
  • 32x32 Digilink configuration: 32x ADC, 32x DAC, 32x32 Digilink card
  • THD+N: 0.0002% (ADC), 0.00055% (DAC)
  • A/D-D/A slots: 8x (8-channel ADC, DAC or 4-channel preamp modules)
  • Digital slots: 2x 32-channel (Digilink, Dante, Ravenna/AES67/ST2110, USB2)
  • Option slot: 1x (24-channel AES3, word clock distribution)
  • Onboard I/O: 8-channel AES3, 8-channel ADAT, 2-channel S/PDIF, word clock
  • Mixer: built-in 32x8, low-latency, up to 8 CUE mixes

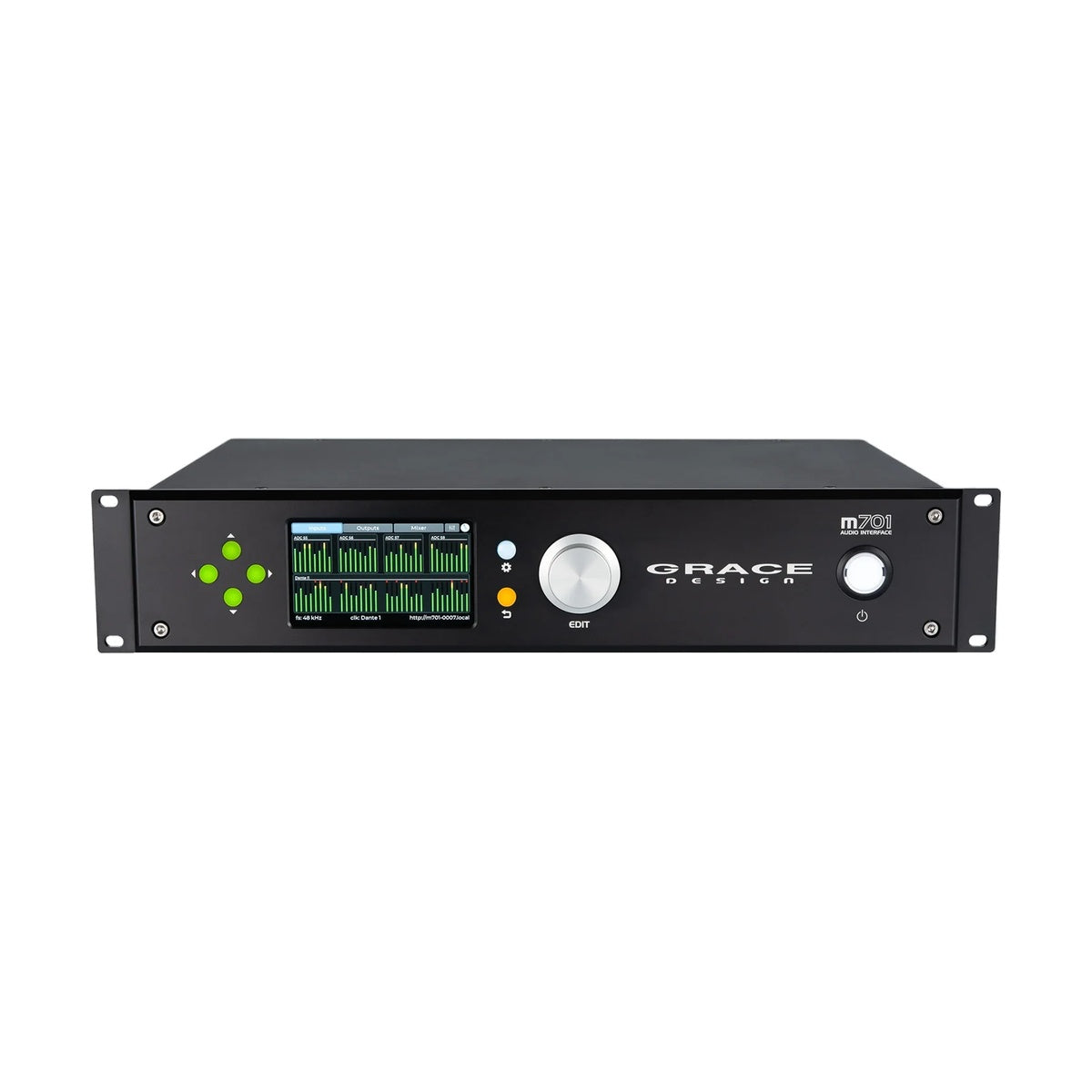

  • Control: front panel (WVGA display), GraceNet (browser), m108 integration
  • Sample rates: 44.1 kHz to 192 kHz
  • Chassis: 2U rack
