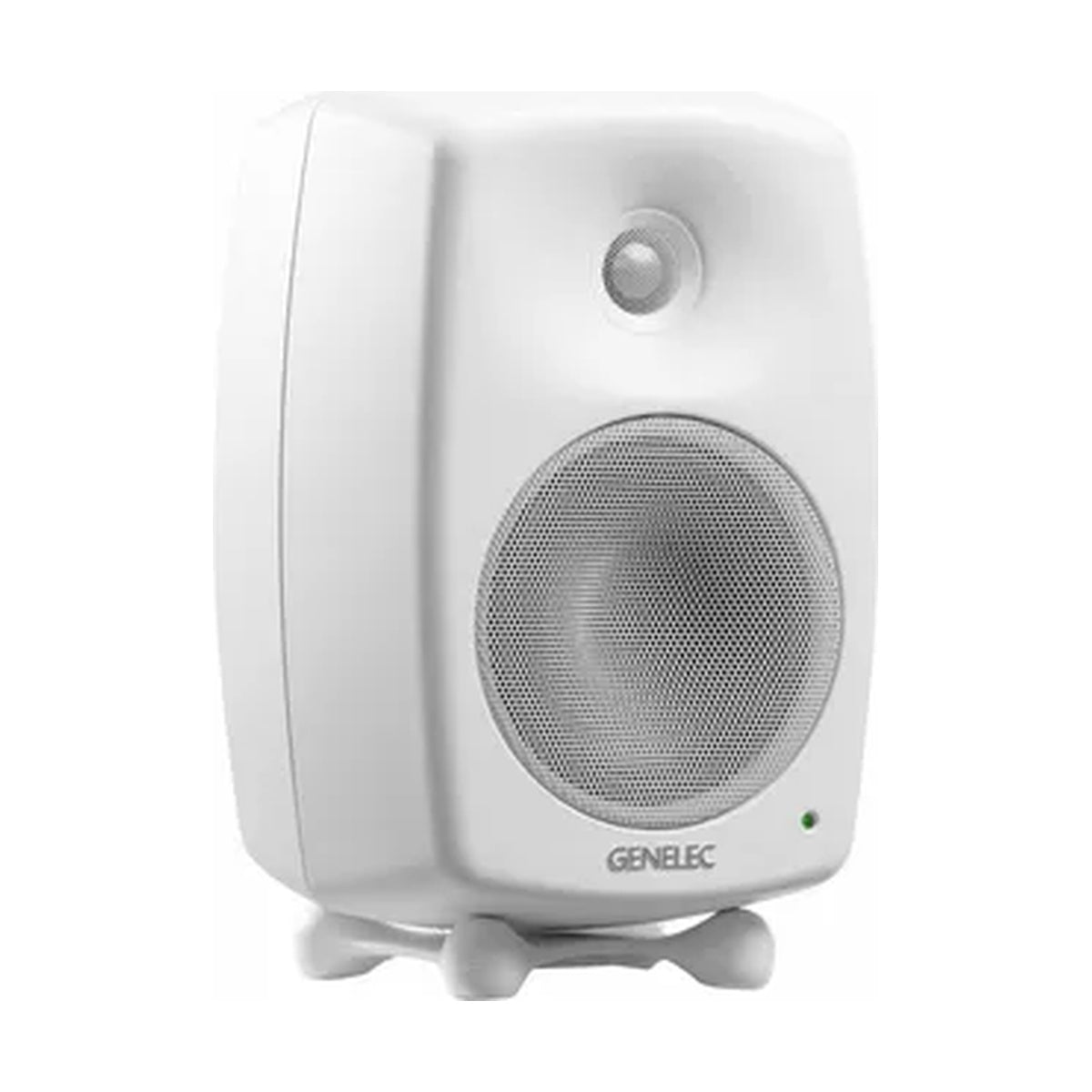

GENELEC 8030CW Monitor 8030C white
This item is available on a custom order basis only. Please contact us for more details. Contact us
Genelec 8030CW – Compact 2-way active nearfield monitor with 50 W bass & 50 W treble Class D amplifiers, Directivity Control Waveguide™, and Iso-Pod™ stand.
The Genelec 8030CW delivers 104 dB SPL and a flat 47 Hz – 25 kHz (–6 dB) response in a small footprint. Its DCW™ waveguide ensures consistent off-axis dispersion, while rear-panel Room Response Compensation switches let you tailor bass and treble to your room. Intelligent Signal Sensing (ISS™) powers the monitor on/off automatically, and MMC™ enclosure design minimizes diffraction for pristine imaging. The included Iso-Pod™ stand isolates the monitor from its surface and allows tilt adjustment.
KEY FEATURES
- 50 W Class D bass & 50 W Class D treble amplification
- Frequency response: 47 Hz – 25 kHz (–6 dB), ±2 dB (54 Hz – 20 kHz)
- Maximum short-term SPL: ≥104 dB @ 1 m
- DCW™ Directivity Control Waveguide for stable imaging
- Room Response Compensation switches (bass ± 2 dB, treble ± 2 dB)
- Intelligent Signal Sensing (ISS™) auto on/off
- Minimum Diffraction Enclosure (MDE™) design
- Reflect Port for extended low-end output
- Iso-Pod™ stand for decoupling and tilt adjustment
- XLR analog input (10 kΩ balanced)
TECHNICAL SPECIFICATIONS
- Drivers: 130 mm bass cone; 19 mm metal-dome treble
- Amplifier power: 50 W bass; 50 W treble
- Dimensions (H×W×D): 299 × 189 × 178 mm (with Iso-Pod™)
- Weight: 5 kg (11.0 lb)
- Enclosure: Die-cast aluminium, reflex port
- Input connector: XLR female, balanced 10 kΩ
- Power consumption:
- ISS active: ≤ 0.5 W
- Idle: ≤ 3 W
- Full output: 60 W
- Self-generated noise: ≤ 5 dB SPL @ 1 m (A-weighted)
- Directivity: H ± 2 dB to ± 10 kHz; see DCW curves
