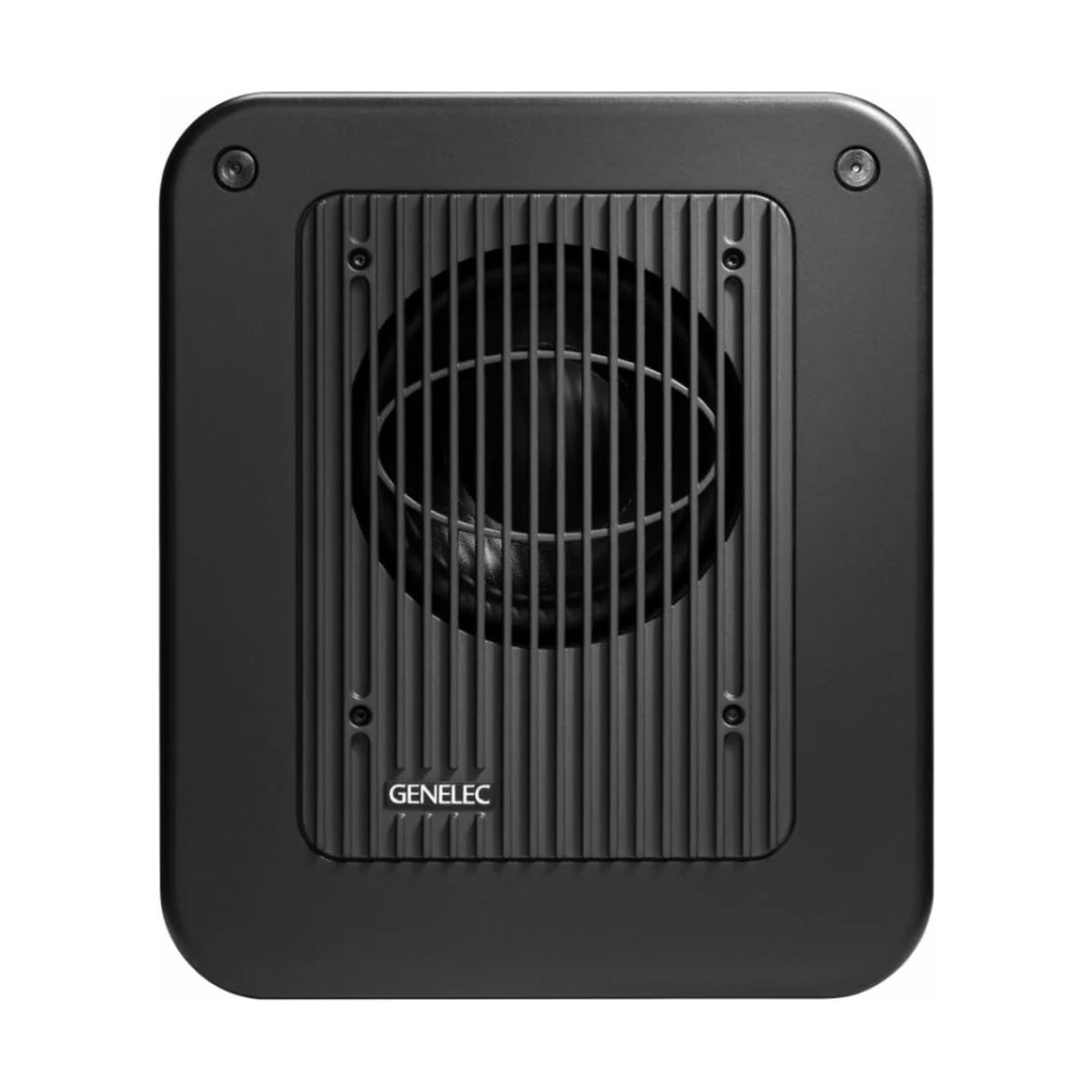

GENELEC 7050CPM Subwoofer 7050C black
Quantity:
Genelec 7050C (Black) – Compact active studio subwoofer with 130 W Class D amplification, Laminar Spiral Enclosure™ for extended low-end, integrated bass management, and 103 dB SPL.
The Genelec 7050C delivers tight, accurate bass down to 24 Hz (–6 dB) in a small footprint. Its 205 mm magnetically shielded driver sits in a laminar spiral enclosure (LSE™) for minimal distortion, while rear-panel bass management (85 Hz filters, +10 dB LFE) and DIP switches (phase, LF roll-off, ISS™) let you tailor performance. With five stereo XLR inputs plus an LFE input and five XLR outputs, it excels in stereo or multichannel setups.
KEY FEATURES
- 130 W Class D bass amplifier
- Frequency response: 24 Hz – 85 Hz (–6 dB)
- Maximum short-term SPL: ≥ 103 dB @ 1 m
- Laminar Spiral Enclosure™ (LSE™) for low distortion
- Integrated bass management with 85 Hz stereo filters & 120 Hz LFE input
- Room Response Compensation via rear-panel DIP switches
- Intelligent Signal Sensing (ISS™) power-save mode
- Six XLR analog inputs (5 stereo + 1 LFE) and five XLR outputs
- MDF reflex port enclosure for extended LF output
TECHNICAL SPECIFICATIONS
- Driver: 205 mm (8 1/8″) magnetically shielded bass cone
- Amplifier power: 130 W RMS
- Dimensions (H×W×D): 410 × 350 × 319 mm (16 1/8″ × 13 3/4″ × 12 1/2″)
- Weight: 17.3 kg (38.1 lb)
- Frequency response: 24 Hz – 85 Hz (–6 dB)
- SPL: ≥ 103 dB short-term @ 1 m
- Self-generated noise: ≤ 5 dB SPL @ 1 m (A-weighted)
- Inputs: 5× XLR stereo inputs, 1× XLR LFE input (10 kΩ balanced)
- Outputs: 5× XLR stereo outputs
- Power consumption: ISS active ≤ 0.5 W; idle ≤ 11 W; full output 150 W
- Enclosure: MDF, reflex-ported
