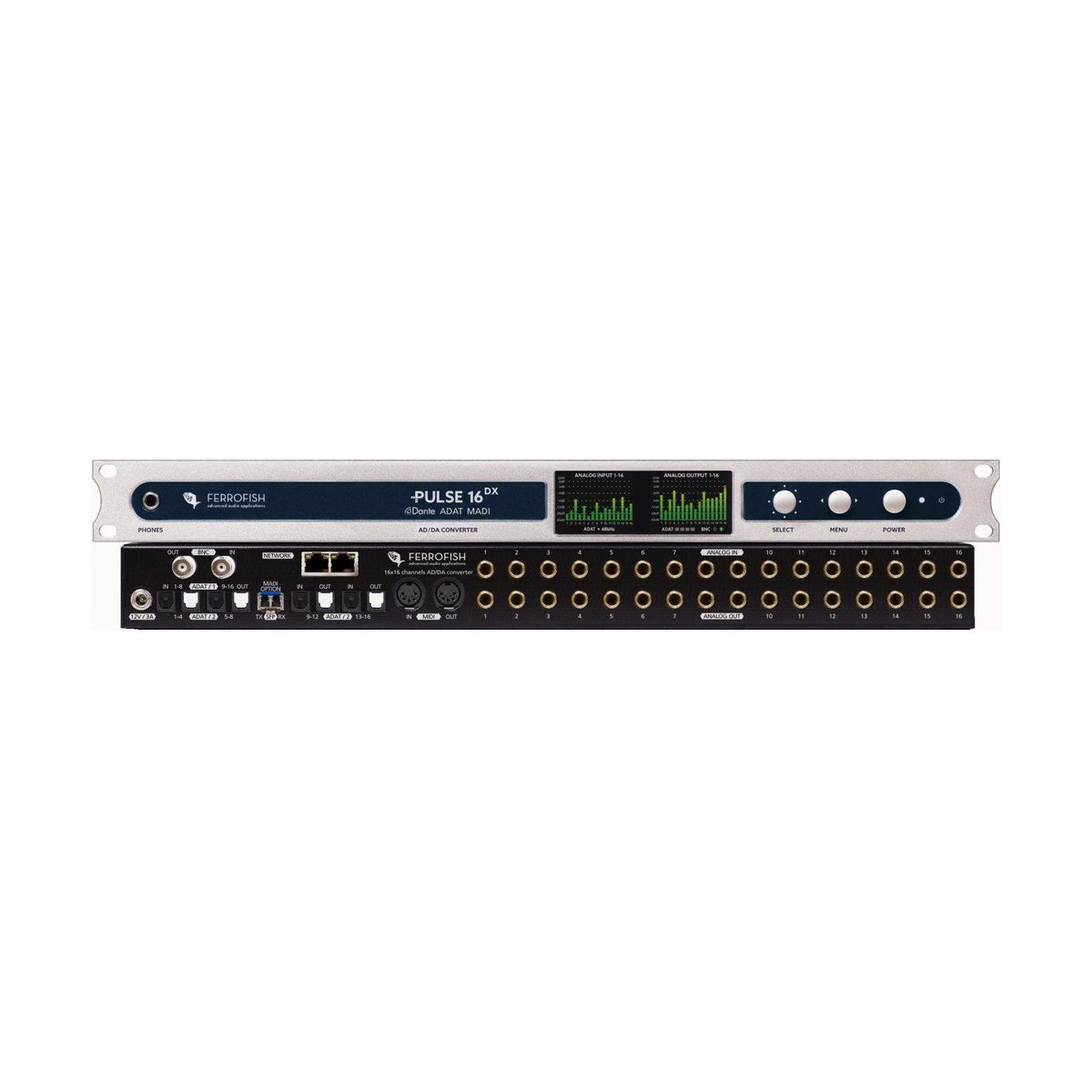

Ferrofish Pulse16 DX

Ferrofish Pulse16 DX – compact AD/DA converter with 16 analog I/Os, supporting ADAT up to 96 kHz, MADI and Dante up to 192 kHz. Features high-quality Cirrus Logic converters, SteadyClock FS for low jitter, and routing matrix. Ideal for studios, live, and broadcast, with Dante redundancy and SFP for optical MADI. Externally powered, 1U rack, with RemoteFish app for control.

The device excels in neutral sound, flexibility, and low THD+N, ensuring crystal-clear audio quality.

MAIN FEATURES

• 16 x 16 balanced TRS I/O with +20 dBu adjustment in 1 dB steps
• ADAT: 32 channels up to 96 kHz (SMUX/2), 16 up to 192 kHz
• MADI: 64 optical (SFP) or coaxial channels up to 192 kHz
• Dante: 64 x 64 channels with redundancy (2x RJ45)
• Word Clock I/O (BNC) and MIDI I/O
• Routing matrix for all I/O in 8-channel groups
• RemoteFish app (USB) for configuration and presets
• SteadyClock FS and PLL for stable clocking

TECHNICAL SPECIFICATIONS

• Analog I/O: 16 x TRS balanced (+20 dBu max, 1 dB steps), SNR >115 dB, THD+N <0.0003%
• Digital: ADAT (TOSLINK, up to 192 kHz), MADI (SFP/BNC, up to 192 kHz), Dante (2x RJ45, 64x64 @48 kHz), Word Clock BNC
• Converters: Cirrus Logic, 24-bit, up to 192 kHz
• Clocking: SteadyClock FS, jitter <1 ps
• Power: External 12V DC, <15W consumption
• Dimensions: 19" 1U (482 x 44 x 235 mm)
• Weight: Approx. 2.5 kg
• Included: Power supply, manual
