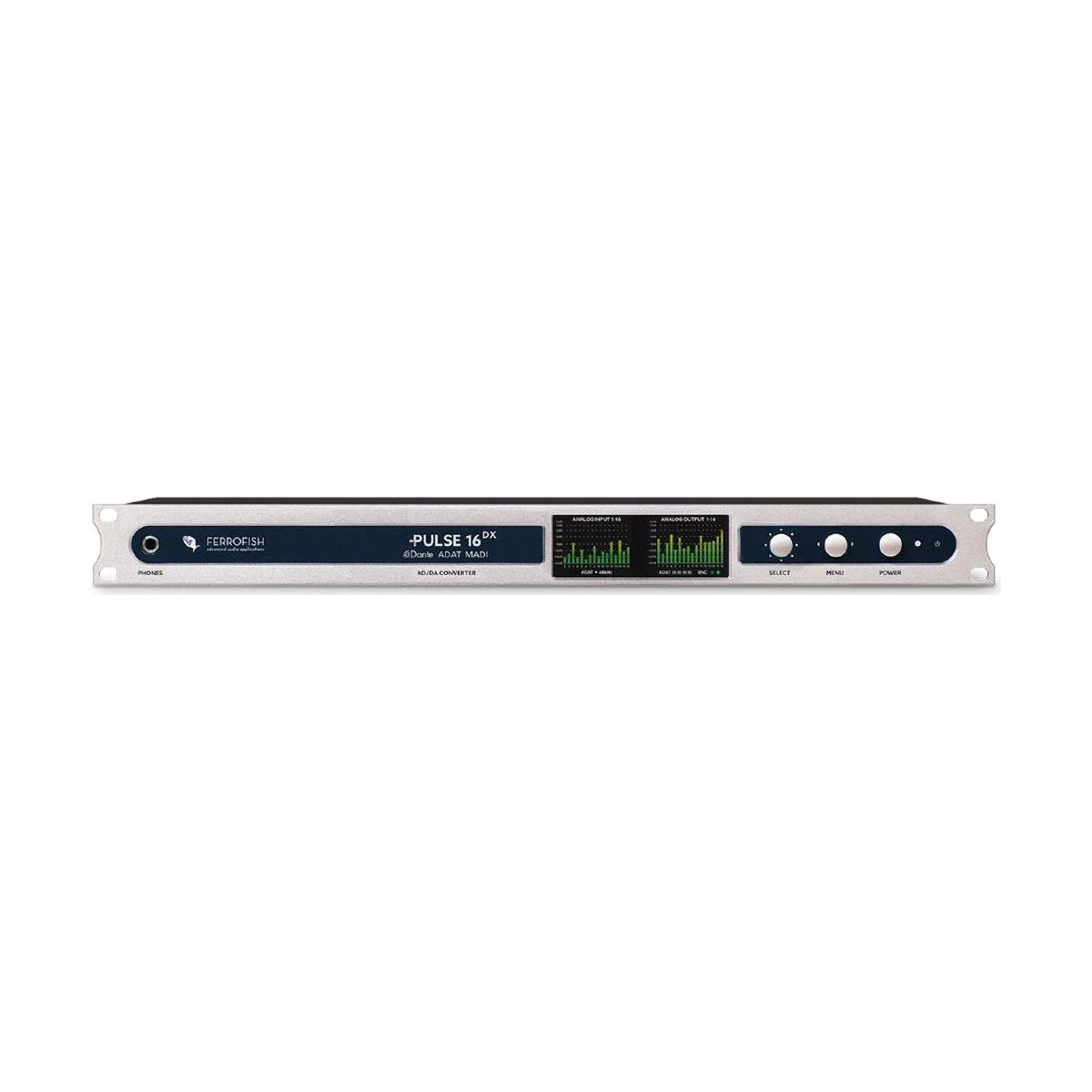

Ferrofish Pulse 16DX with Dante and Multimode

Ferrofish Pulse16 DX is a versatile AD/DA/ADAT/MADI/DANTE converter that delivers high-quality audio processing up to 192 kHz with flexible routing options. With 16 balanced analog TRS inputs and outputs, ADAT, MADI, and DANTE interfaces, the Pulse16 DX is an ideal solution for professional recording studios and live sound systems. The unit ensures transparent signal conversion and seamless integration with various audio production environments.

KEY FEATURES OF FERROFISH PULSE16 DX

• Professional AD/DA Conversion: 16 balanced TRS inputs and outputs with adjustable levels up to +20 dBu in 1 dB steps.
• Advanced Digital Processing: 32x32 ADAT channels (4x inputs and 4x outputs) allow full 16x16 channel conversion at 96 kHz.
• 64x64 MADI Channels: Optical multimode SFP connection (coaxial module available optionally) ensures stable MADI transmission.
• 64x64 DANTE Channels: Dual redundant Primary/Secondary network connections for reliable audio streaming.
• Flexible Monitoring Matrix: Enables monitoring of nearly any analog or digital input or output via the stereo headphone output.
• Customizable Signal Routing: Freely assignable routing for all analog and digital inputs and outputs in groups of 8 channels.
• Preset Management: Store and recall settings for different configurations.
• Word Clock: Built-in generator and input with advanced jitter reduction circuitry.
• Dual TFT Displays: Provide an intuitive interface for monitoring signal levels and configuring the unit without needing a manual.
• Remote Control: The free RemoteFish app (Mac & Windows) enables control via MIDI or Ethernet.

TECHNICAL SPECIFICATIONS OF FERROFISH PULSE16 DX

• Analog Inputs: 16 x TRS, balanced
• Analog Outputs: 16 x TRS, balanced
• Conversion: Up to 192 kHz / 24-bit
• ADAT Inputs/Outputs: 4 x input, 4 x output (Toslink, ADAT), 32x32 channels
• MADI Inputs/Outputs: 64x64 channels via optical SFP module (optional coaxial module available)
• DANTE Inputs/Outputs: 64x64 channels in redundant Primary/Secondary configuration
• Headphone Output: 6.3 mm TRS with monitoring matrix
• Word Clock: Generator and input with jitter reduction
• Displays: 2 x TFT for real-time signal monitoring
• Routing Matrix: Yes, flexible assignment in groups of 8 channels
• Remote Control: RemoteFish app (Mac & Windows) via Ethernet and MIDI
• Dimensions: 19 × 48 × 4.4 cm (1U rack)
• Weight: 5 kg

Ferrofish Pulse16 DX is the perfect choice for professionals seeking a flexible and high-quality solution for signal conversion and routing. With extensive connectivity options and an intuitive interface, this converter is an essential tool for any professional audio setup.
