Ferrofish A32 Pro MM

Ferrofish

Ferrofish A32 Pro MM

€0,00
Sold out

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 48403

Contact

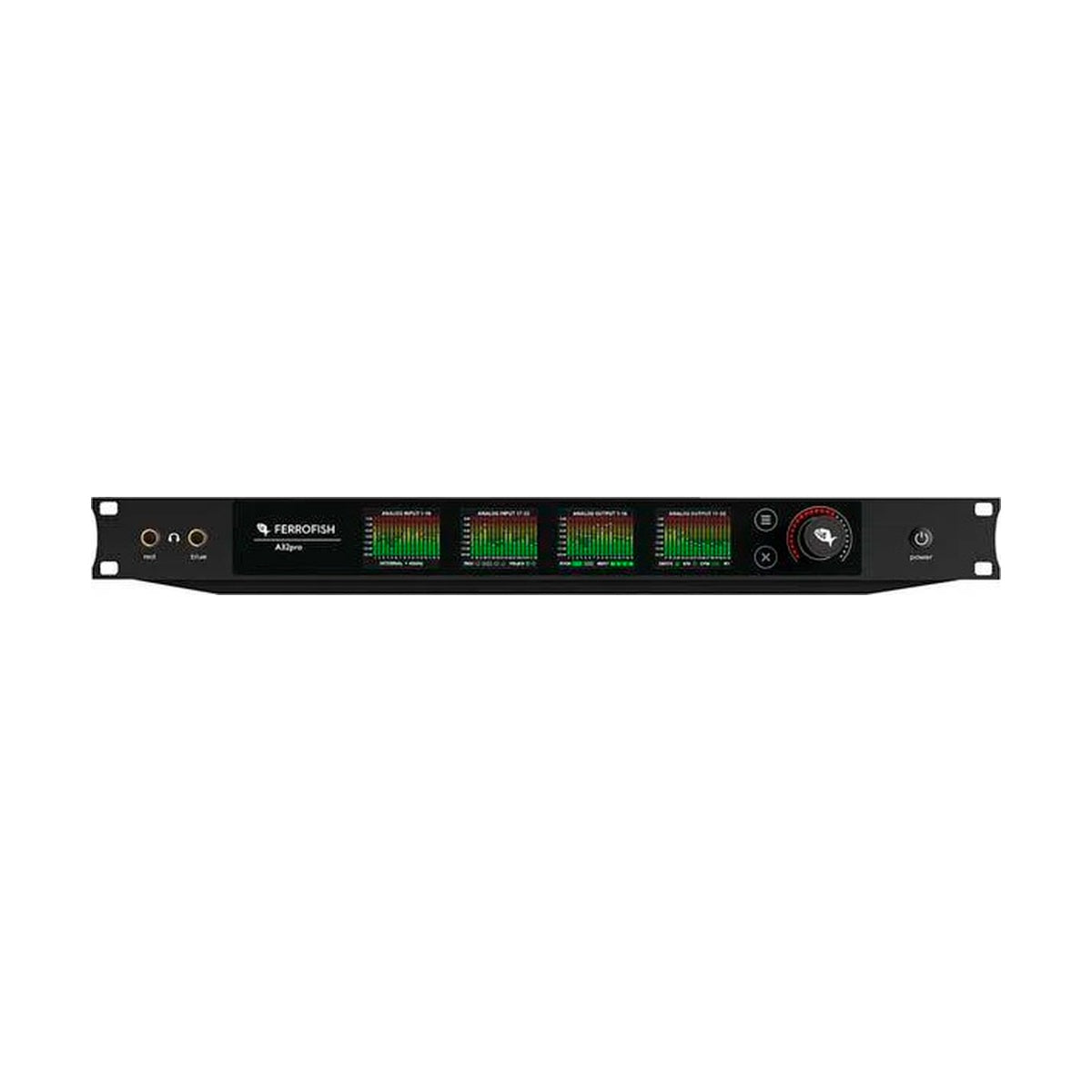

Ferrofish A32 Pro MM — a 64-channel analog-to-digital converter with 32x32 I/O and dual MADI connectivity (optical and coaxial) in a 1U chassis.

Built for studios and live installations where a single digital link failure can mean losing an entire session. A32 Pro MM pairs high analog channel density with redundant MADI, making it a natural fit anywhere transmission stability matters as much as conversion quality.

Redundancy Without Sacrificing Channel Count

Many multi-channel converters force a trade-off between failover protection and signal capacity. A32 Pro MM avoids this with two independent MADI ports — optical and coaxial — that can either run in parallel for full 32+32 channel transmission or switch automatically if one link drops. Power redundancy works the same way: two independent supplies are continuously monitored, switching without interruption to the signal and flagging any failure directly on the display.

Flexible Routing Without an External Computer

With a high channel count across analog, ADAT, and MADI, manually managing signal paths becomes unwieldy, especially mid-show or during a live session. An internal architecture built around two 400MHz cores with a floating-point unit handles routing, mixing, and processing for all channels simultaneously, with no computer required for basic operation. Four multitouch TFT screens display levels for all 64 channels in real time, and dedicated remote software for PC and Mac allows deeper configuration over USB, MIDI, or MIDI-over-MADI.

KEY FEATURES

  • 32 balanced analog inputs and 32 balanced analog outputs on D-Sub25 connectors (Tascam format)
  • Resolution up to 24-bit / 192kHz across all formats
  • Dual MADI: optical and coaxial (BNC) ports, redundant or parallel operation
  • 32x32 ADAT channels via Toslink, SMUX mode up to 96kHz
  • Internal dual-core 400MHz processor with floating-point unit for routing and mixing
  • Redundant power supplies with seamless automatic switchover
  • Four multitouch TFT screens for monitoring all channel levels
  • Balanced 6.3mm stereo main output with a separate DAC monitoring path
  • Remote control via USB, MIDI, and MIDI-over-MADI
  • Conversion latency of 3 samples

TECHNICAL SPECIFICATIONS

  • Analog inputs/outputs: 32 x 32, balanced, D-Sub25 (Tascam)
  • Resolution / sample rate: up to 24-bit / 192kHz
  • MADI: 2 ports (optical + coaxial BNC), redundant or independent 32+32 channel operation
  • ADAT: 32x32 channels via Toslink, SMUX up to 96kHz
  • Converters: ESS, latest low-latency generation
  • Internal processor: 2 cores at 400MHz with floating-point unit
  • Power: two independent supplies with automatic, uninterrupted switchover
  • Displays: 4 x TFT touchscreen
  • Headphone output: balanced 6.3mm stereo with independent DAC path
  • Remote control: USB, MIDI, MIDI-over-MADI
  • Latency: 3 samples
  • Chassis format: 1U rack
