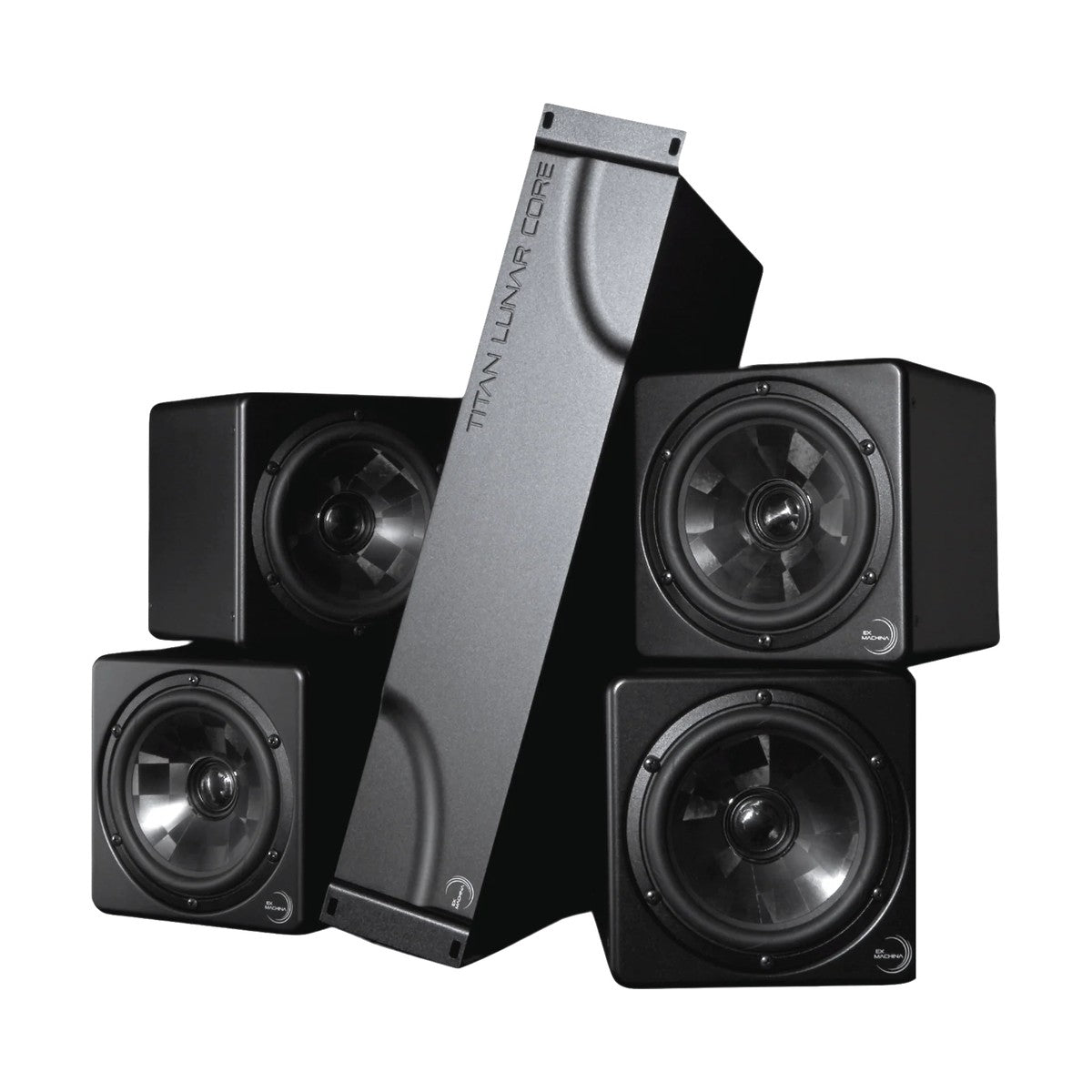

The Ex Machina Titan represents an ultra-compact yet tremendously powerful ecosystem of studio monitors engineered specifically for critical Dolby Atmos and immersive audio deployments. Rather than loading walls and ceilings with heavy, internally amplified cabinets, the Titan system utilizes two-way passive coaxial satellites driven by the Lunar Core—a remote 2RU amplifier and DSP module. This decoupled architecture radically simplifies studio integration and cable management, requiring only a single 4-pole SpeakON cable per speaker to deliver perfectly timed, bi-amplified power to the overhead or surround positions.
Point-Source Accuracy and Phase Linearity

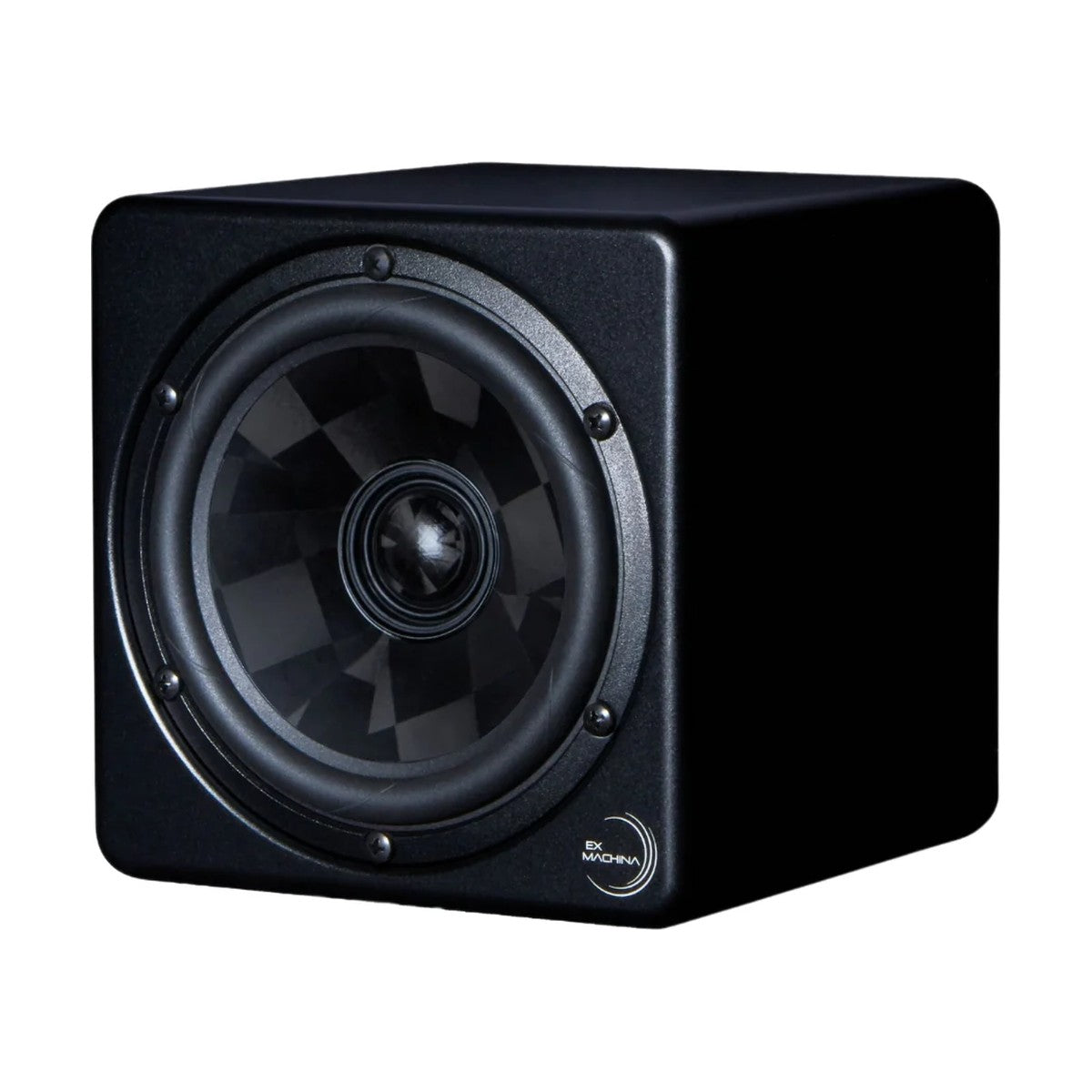

Pinpoint spatial translation is the absolute foundation of modern immersive mixing. At the heart of the Titan is a custom 5.5-inch coaxial driver developed alongside SEAS, utilizing ultra-stiff, resonance-suppressing Composite Sound Metamodal TX diaphragms. When paired with the 5th generation SHARC DSP computing inside the Lunar Core pack, the system achieves textbook phase and magnitude linearity. A perfectly symmetrical 90-degree conical dispersion guarantees that panning between objects feels continuous and natural, while drastically widening the usable sweet spot for multi-seat mixing environments.
Overcoming Immersive Installation Hurdles

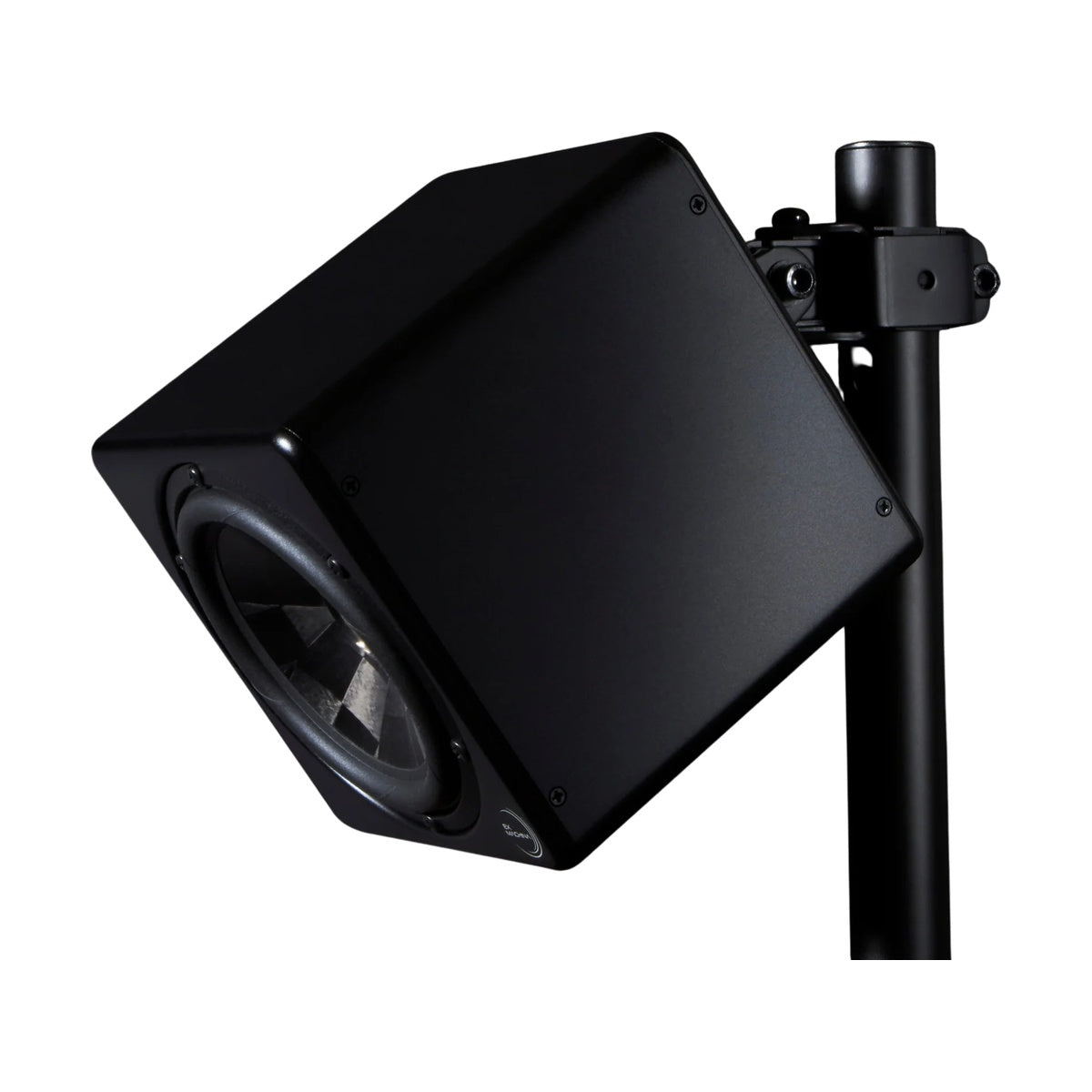

Retrofitting a control room for 7.1.4 or larger formats often introduces severe structural challenges and comb-filtering reflections from bulky enclosures. The Titan solves these physical bottlenecks with acoustically dead, seamlessly extruded aluminum cabinets that form a perfect 6.5-inch cube. Weighing only 12 lbs each, these inert enclosures prevent unwanted sympathetic resonances. Built-in 75x75mm and 100x100mm VESA MIS-D mounting points eliminate the need for expensive custom hardware, allowing engineers to effortlessly articulate overhead and surround modules to exact Dolby guidelines.
KEY FEATURES
- Optimized format for overhead and surround channels in professional immersive mixing rooms.

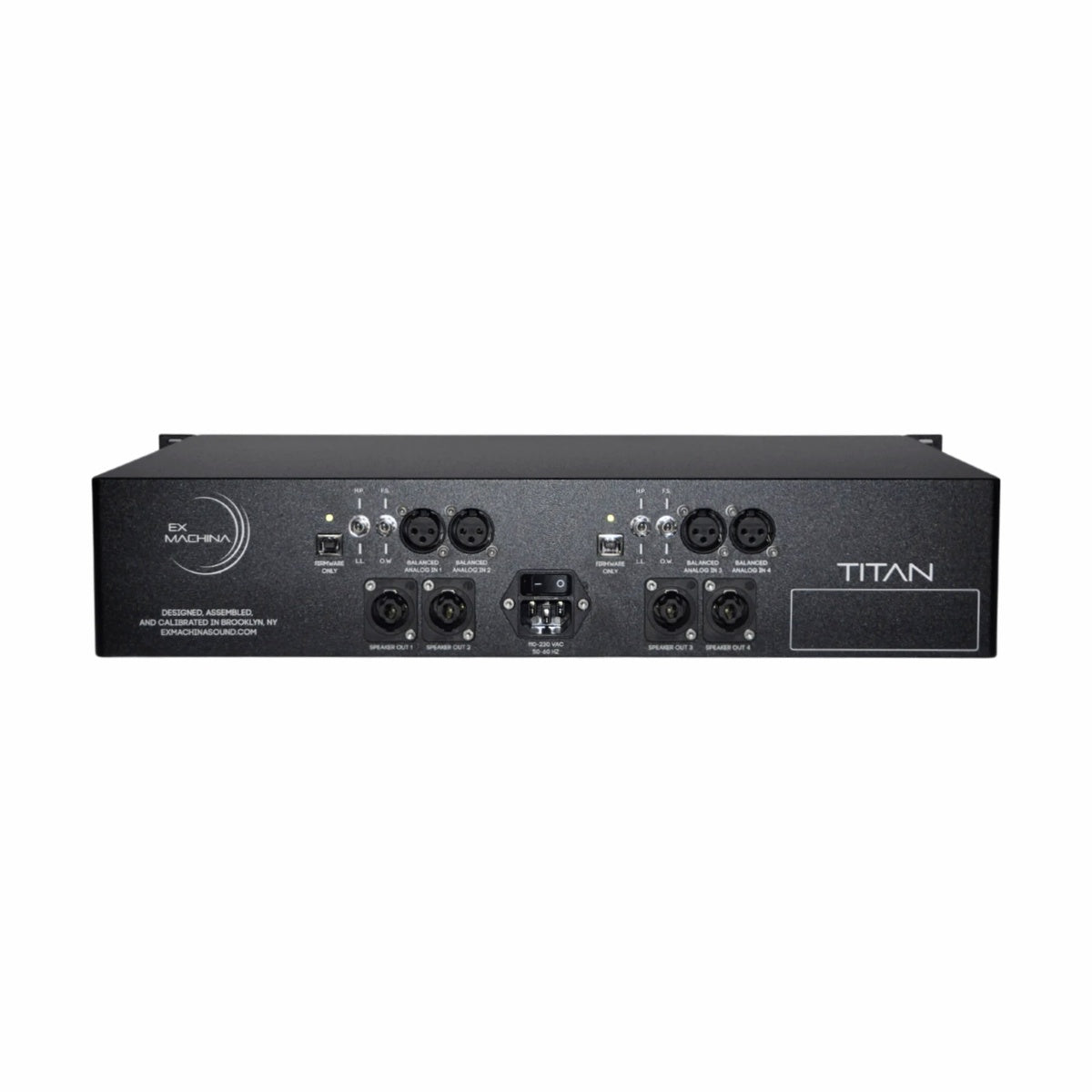

- Remote Lunar Core 2RU module housing flagship AKM AD/DA conversion and 5th-gen SHARC DSP processing.

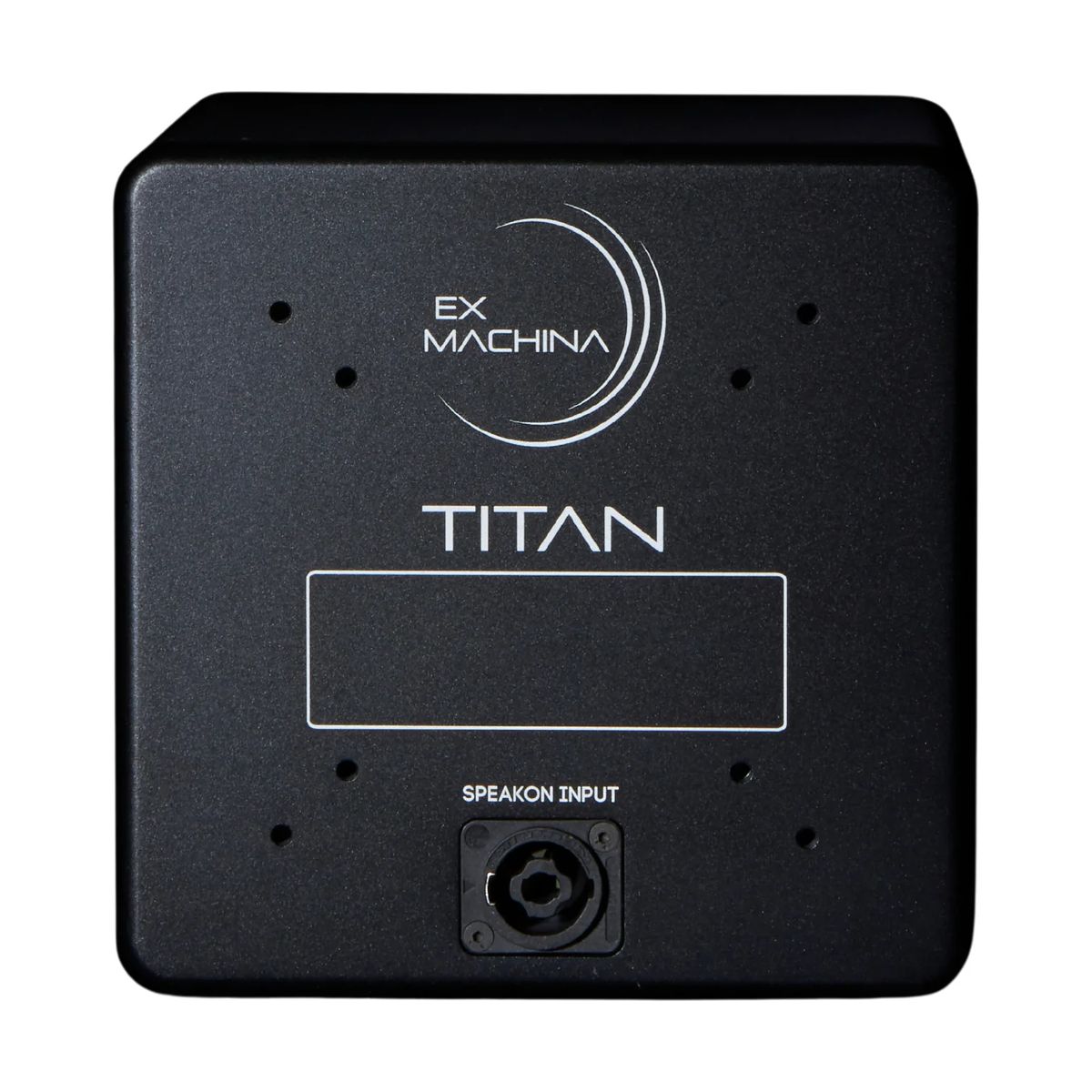

- Remote bi-amping over a single 4-pole SpeakON cable streamlines complex ceiling and wall cable runs.
- Custom 5.5" SEAS coaxial driver featuring resonance-canceling Metamodal TX carbon fabrics.
- Ultra-wide, symmetrical 90-degree conical dispersion for a massive and consistent sweet spot.
- Rigid extruded aluminum cabinet equipped with integrated VESA mounting points for highly flexible rigging.
TECHNICAL SPECIFICATIONS
- Acoustic Design: 2-way, coaxial, sealed enclosure, remote-active.
- Drivers: 5.5" (146mm) woofer, 1" (25mm) tweeter (Custom SEAS / Metamodal TX).
- Frequency Response: 80Hz - 30kHz (±1dB, measured at 30cm calibration position).
- Low Frequency Cutoff: -6dB at 58Hz.
- Maximum SPL: 106dB continuous at 1 meter.
- Crossover: 2kHz (Digital 8th order, phase-corrected natively via Lunar Core DSP).
- Amplification (per channel via Lunar Core): Hypex NC122MP (100W woofer, 50W tweeter).
- Dimensions: 6.5" x 6.5" x 6.5" (165 x 165 x 165mm) per speaker.
- Weight: 12 lbs (approx. 5.5 kg) per speaker.
