Eventide BD600+

The Eventide BD600+ sets a new standard for content protection in radio broadcasting. With an 80-second delay buffer—double the capacity of other systems—the Eventide BD600+ ensures maximum protection against unwanted content while delivering exceptional audio quality. The adjustable delay buffer, ranging from 4 to 80 seconds, allows users to tailor the system to their specific needs. Additional features like the “sneeze” button for brief muting or the “panic” function for WAV file playback during delay rebuild make the Eventide BD600+ indispensable for professional live broadcasting.

Equipped with MicroPrecision Delay™ technology, the Eventide BD600+ allows precise synchronization of analog and digital signals, making it especially valuable for HD radio stations. With premium analog and digital inputs/outputs (XLR, AES/EBU) and extensive remote control options, the unit combines reliability, flexibility, and user-friendly operation, hallmarks of Eventide products for years.

Key Features of the Eventide BD600+

• MicroPrecision Delay™ Technology – Real-time delay adjustment up to 20 seconds in 100-nanosecond increments.
• 80 Seconds of Delay Protection – Divided into segments ranging from 4 to 10 seconds.
• “Sneeze” Button – Allows momentary muting without interruptions.
• “Panic” Function – WAV file playback during delay rebuild.
• 24-Bit Analog and Digital Inputs/Outputs – Ensures the highest audio quality.

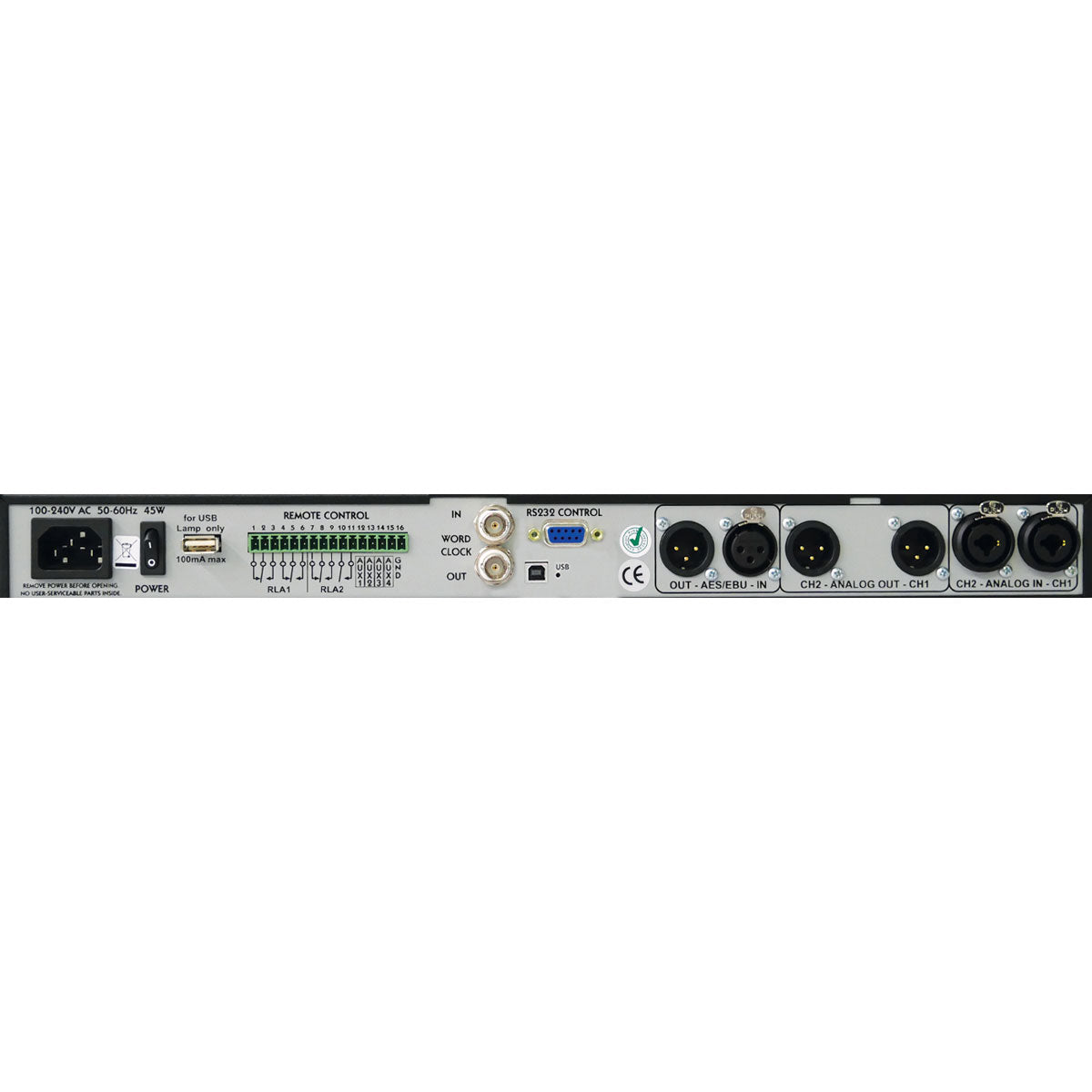

• Comprehensive Remote Control Options – USB, RS-232, and an optional extended module with 16 inputs/outputs.
• Easy Installation and Configuration – Euroblock connectors for simple remote wiring and an intuitive user interface.

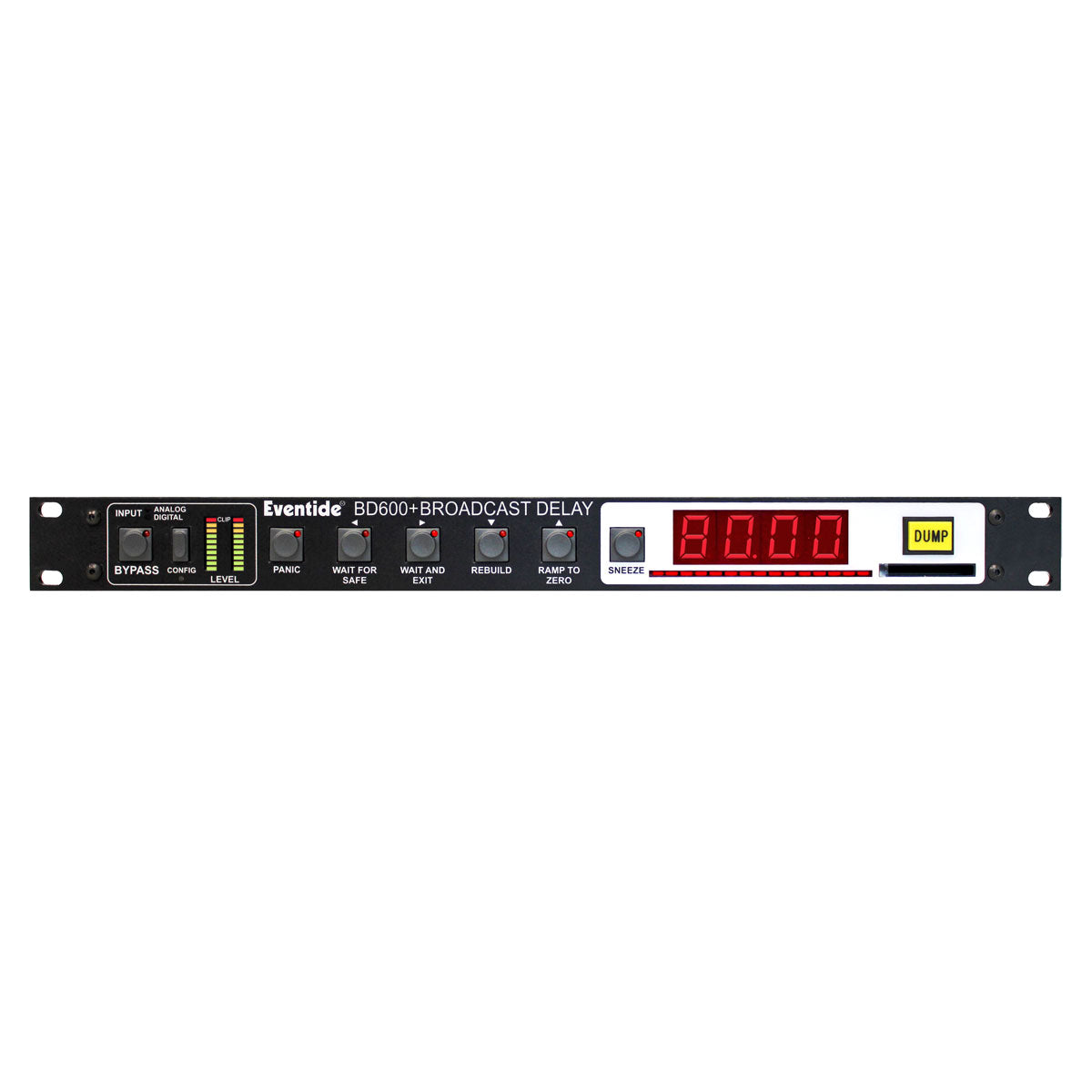

• Multifunction Indicator – Digital delay time display with a quick-view graphical bar.

Technical Specifications of the Eventide BD600+

Analog Inputs/Outputs

• Audio Inputs: XLR, balanced, pin 2 hot, 20 kΩ impedance.
• Audio Outputs: XLR, balanced, pin 2 hot, 20 kΩ impedance.
• THD+N: <0.003% @ 1 kHz, -3 dBFS.
• Dynamic Range: >104 dB.

Digital Inputs/Outputs

• AES/EBU I/O: 24-bit, supporting 44.1/48 kHz sample rates.
• Compact Flash Interface: Supports WAV file playback and software updates.

Dimensions and Weight

• Dimensions (H x W x D): 4.5 x 48.3 x 26.7 cm (1.75 x 19 x 10.5 in).
• Weight: 4.1 kg (9 lbs); shipping weight 6.5 kg (14 lbs).

Power

• Power Consumption: 40 W.
• Voltage: 100-240 VAC, 50/60 Hz.
