elysia xpector
elysia xpector
elysia xpector

elysia

elysia xpector

€1.067,00

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 55318
Quantity:
This item is available on a custom order basis only

Contact

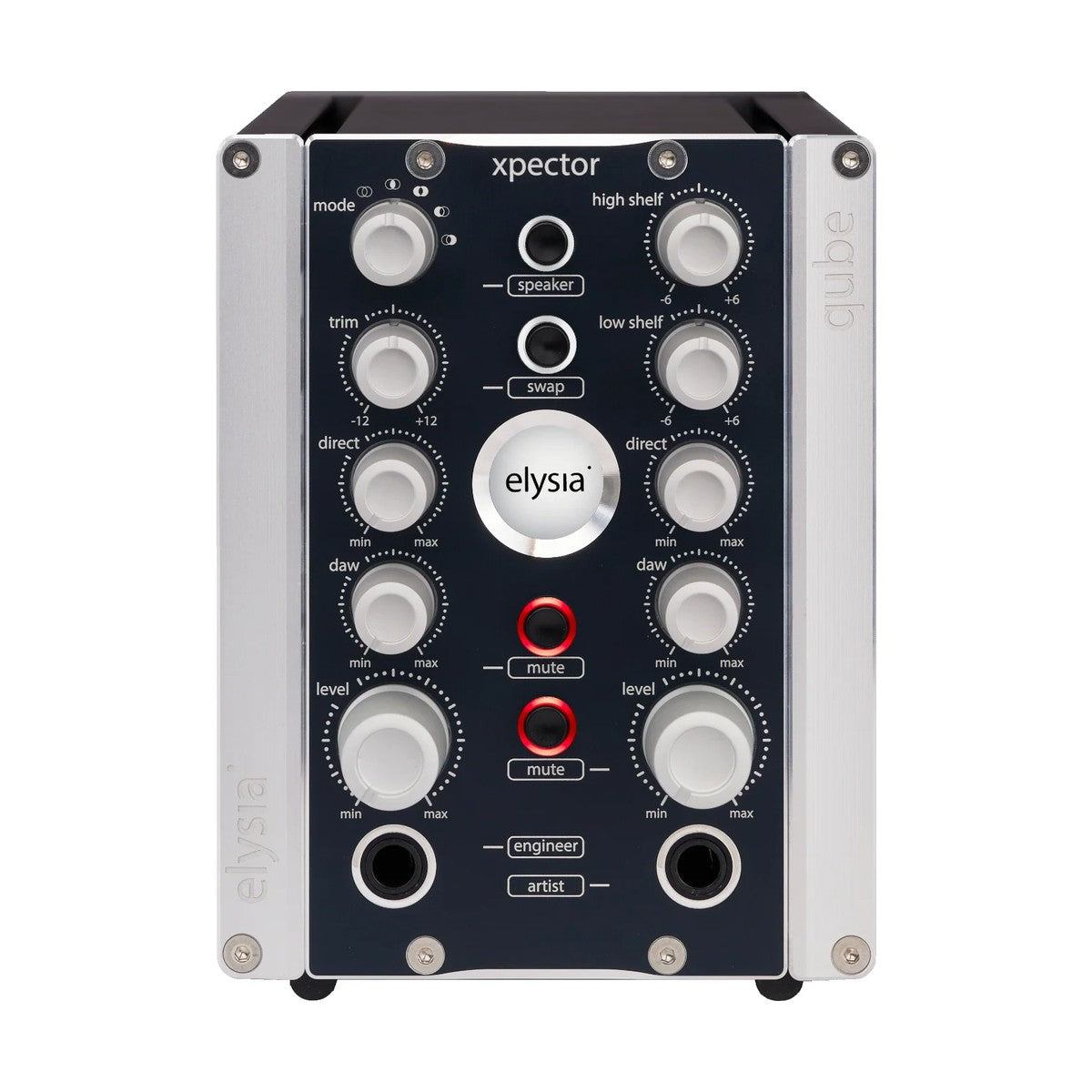

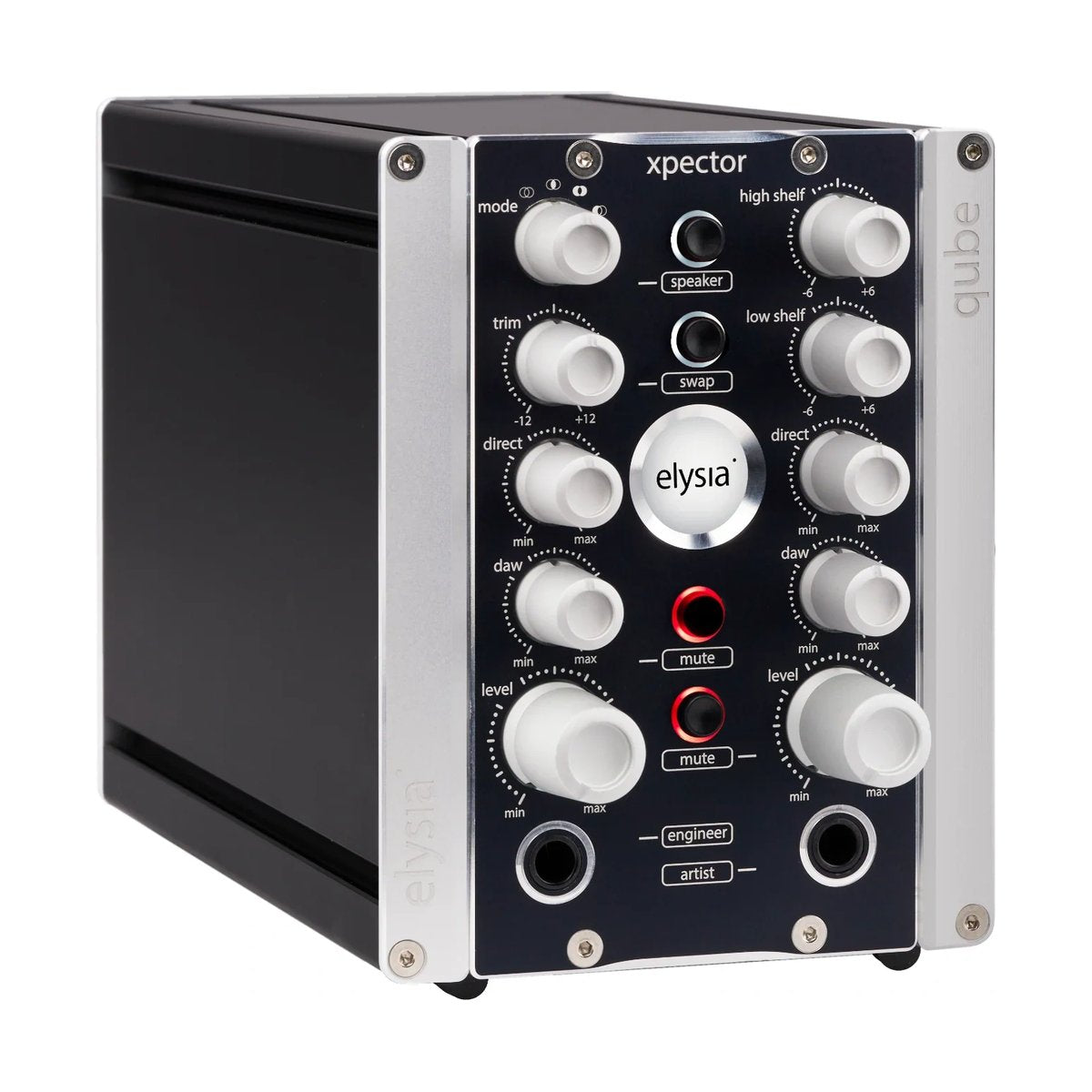

elysia xpector — a dual-channel Class-A headphone amplifier with separate engineer and artist feeds, balanced XLR speaker outputs, and zero-latency monitoring.

Built for recording studios where the engineer and the performer need two completely different headphone mixes at the same time — the engineer evaluating the full stereo mix while the artist wants a simplified, self-focused cue mix for tracking. Xpector solves this split at the hardware level, offering two independent, fully configurable headphone paths in one compact, desktop Class-A enclosure.

Two Distinct Headphone Mixes Without Extra Gear

A common problem in a recording session is that the engineer and the performer need different information in their headphones — the engineer judging overall mix balance, the artist wanting a simple cue mix with their own voice or instrument pushed up. Xpector solves this with two mirrored headphone paths carrying independent, configurable parameters for engineer and artist, with the artist side additionally equipped with a two-band shelf EQ to bring forward exactly what the performer wants to hear while tracking.

Scaling a Session Across Multiple Musicians Without Latency

Recording a rhythm section usually means every musician needs their own personalized mix, which with typical gear means building a complicated distribution system carrying digital latency. Xpector solves this by daisy-chaining multiple units together, each delivering a separate mix to the next musician, while keeping zero latency across the entire analog signal path. A mic preamp looped into the signal path can also feed straight into an audio interface without extra cabling.

KEY FEATURES

  • Two independent Class-A headphone amplifiers
  • Separate, configurable mixes for engineer and artist
  • Two-band shelf EQ on the artist channel
  • Zero-latency monitoring
  • Balanced XLR speaker outputs
  • Daisy-chainable across multiple units
  • Ultra-low noise floor via internal power supply
  • Direct and DAW inputs/outputs for signal loop-through
  • Compact desktop aluminum housing (not compatible with 500 series rack)
  • Manufactured in Germany

TECHNICAL SPECIFICATIONS

  • Type: dual headphone amplifier and monitor controller, Class-A
  • Frequency response: below 10Hz - 400kHz (-3.0dB)
  • Input level: +22dBu
  • Output level (XLR): +22dBu
  • Input impedance: 45kΩ
  • Output impedance: 0.09Ω
  • Max output power: 2 x 150mW (RMS)

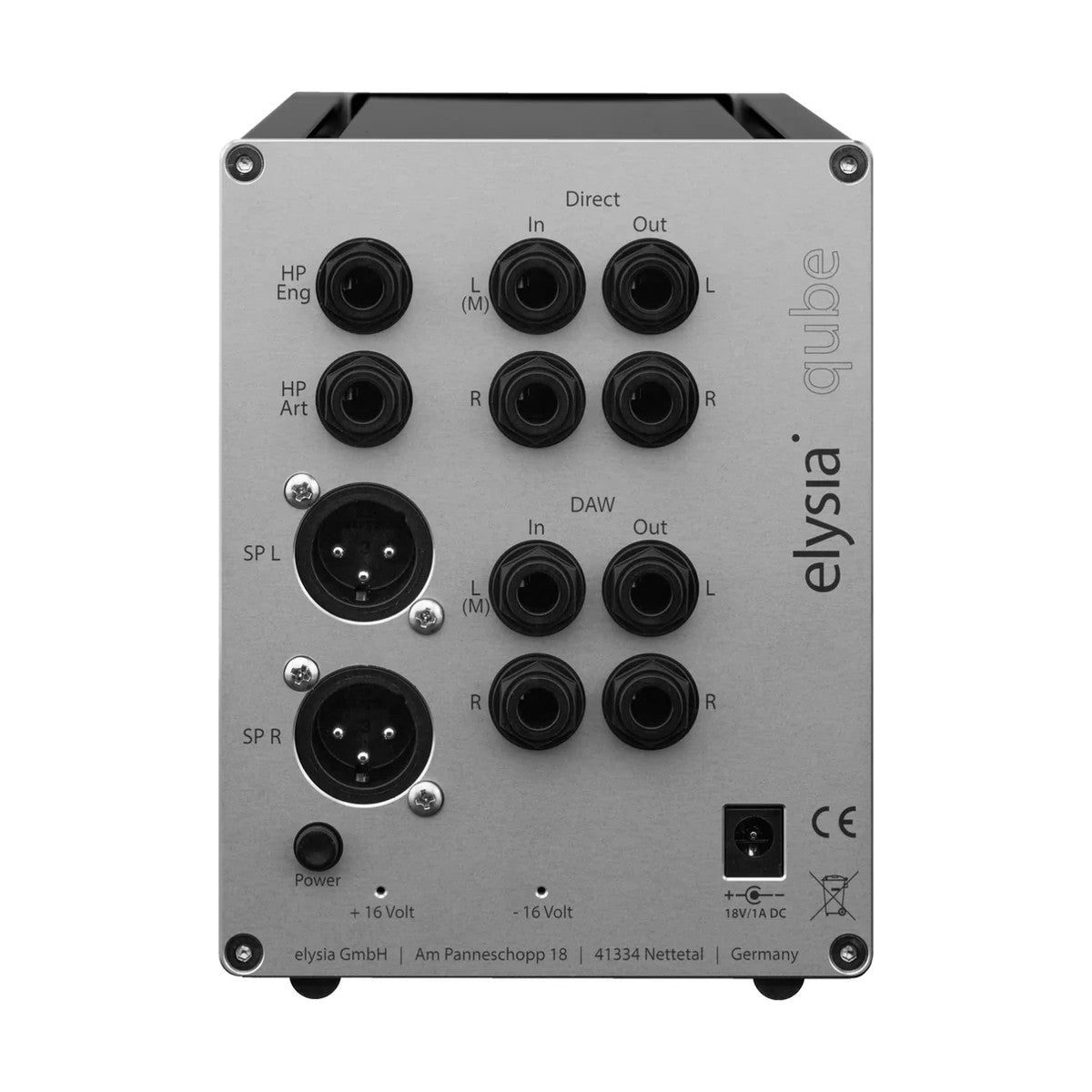

  • Line inputs: 2 x 6.3mm jack
  • Line outputs: 2 x 6.3mm jack
  • Direct inputs/outputs: 2 x 6.3mm jack each
  • Monitor outputs: 2 x balanced XLR
  • Stereo headphone outputs: 2 x 6.3mm jack
  • Dimensions (W x H x D, incl. knobs): 104 x 137 x 212mm
  • Weight: 1.46 kg
  • Power consumption: 9W
