Ecler WARM 4 - DJ Mixer

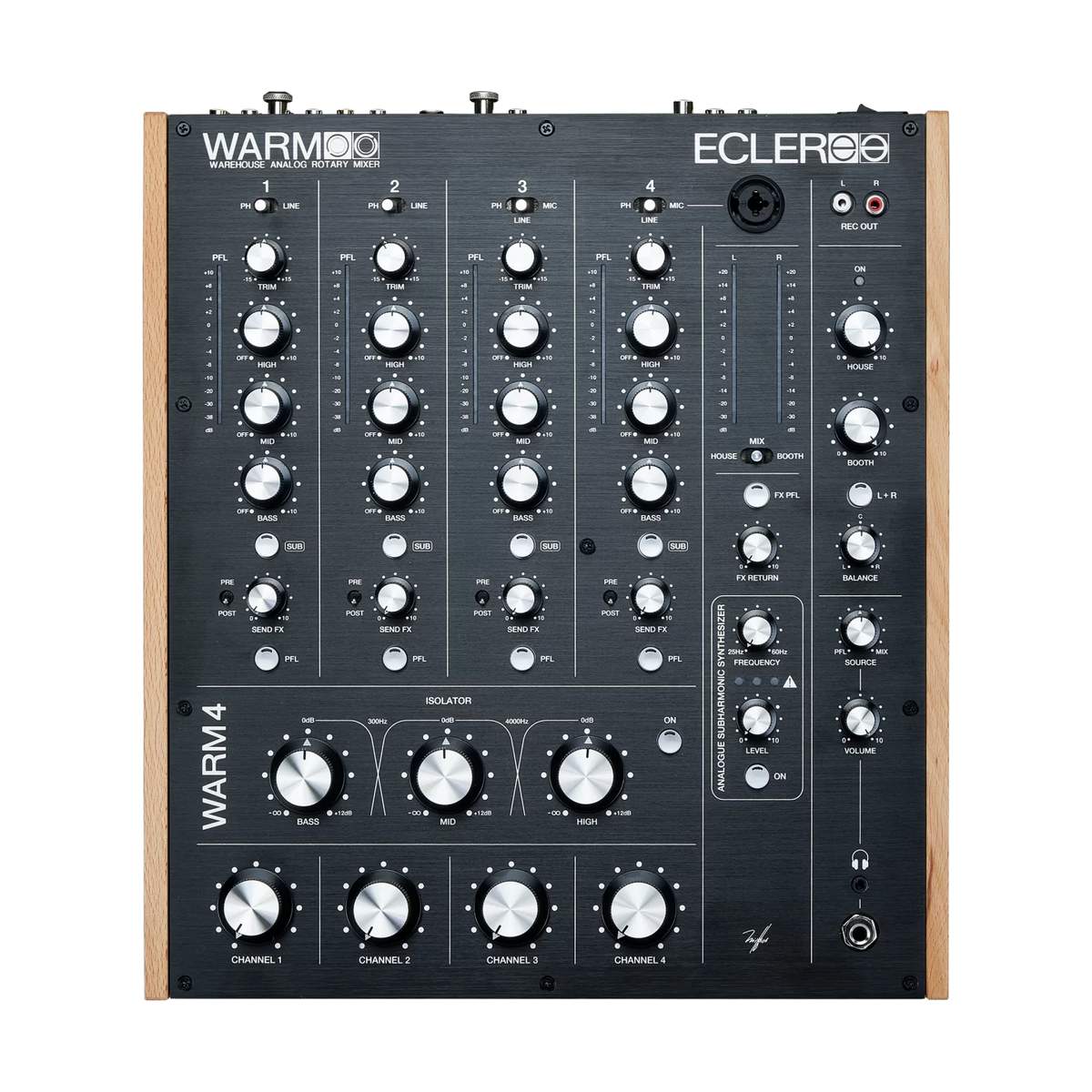

Ecler WARM 4 is a professional four‑channel analogue rotary DJ mixer, designed and built by Ecler in Barcelona. It combines classic rotary ergonomics and sound with modern performance features: four phono/line channels, two microphone inputs, sharp 3‑band filters, a 4th‑order 3‑band isolator and a unique analogue subharmonic synthesizer that reinforces ultra‑low frequencies for truly powerful, warm‑sounding sets.

The WARM 4 offers four full mixing channels, each with PHONO and LINE inputs, 3‑band full‑cut EQ and access to the global 3‑band isolator (with crossover points at around 300 Hz and 4 kHz, −∞ / +12 dB range, 24 dB/oct slope). The analogue subharmonic synthesizer can be engaged per channel to generate and enhance sub‑bass content, allowing you to tailor the low‑end weight to the track and sound system. Every channel also features an FX Send with Pre/Post fader selector, while the FX Return has its own level and PFL control. Master and Booth outputs are provided on both XLR and RCA, a headphone monitor is available on 6.3 mm and 3.5 mm jacks, and the mixer is equipped with high‑quality metal‑shaft ALPS potentiometers, custom one‑piece aluminium knobs and wooden side panels.

KEY FEATURES

• Professional 4‑channel fully analogue rotary DJ mixer
• 4 mixing channels with both PHONO and LINE inputs on each channel
• 2 independent microphone inputs for MCs, announcements or vocal performances
• 3‑band full‑cut EQ on each channel (bass, mid, treble)

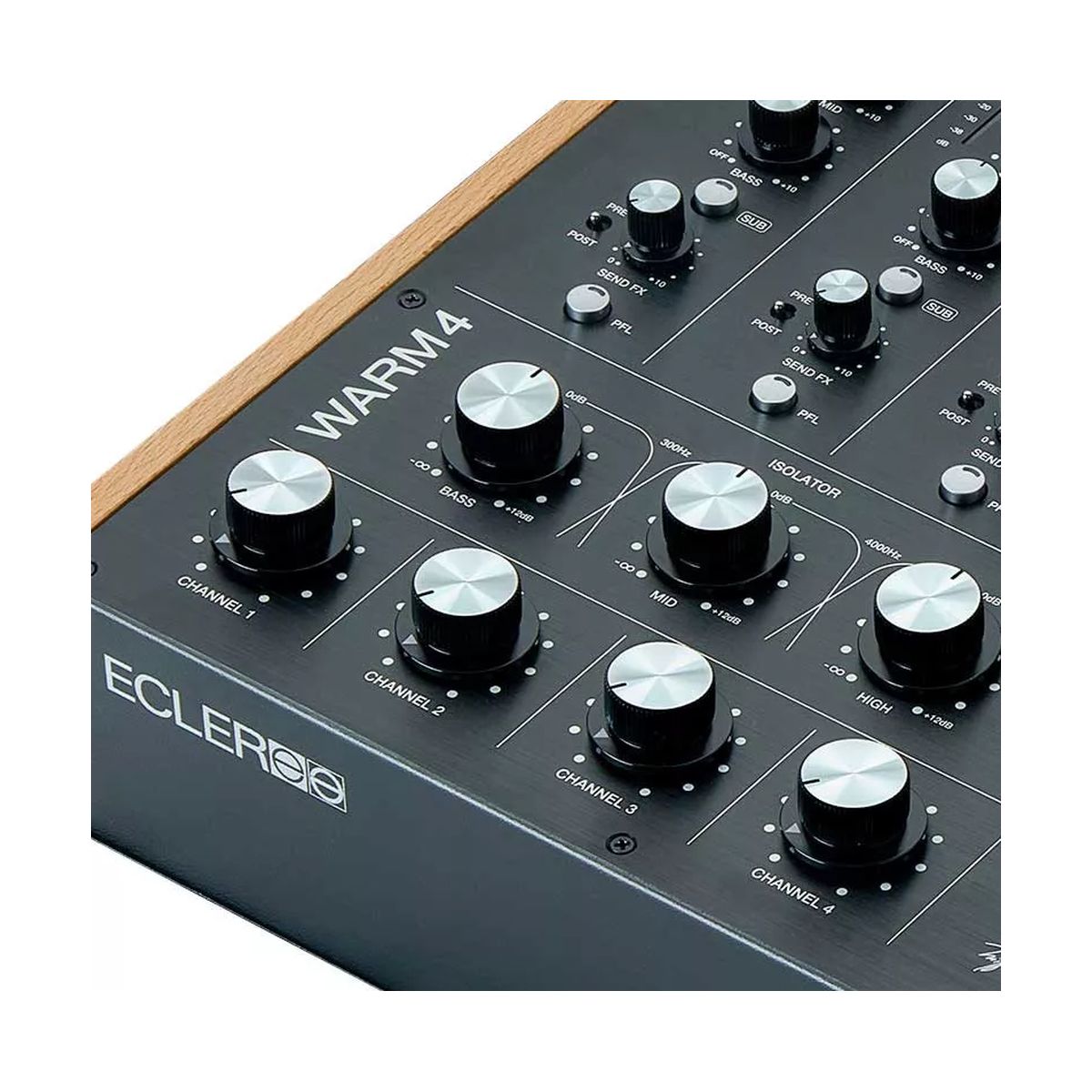

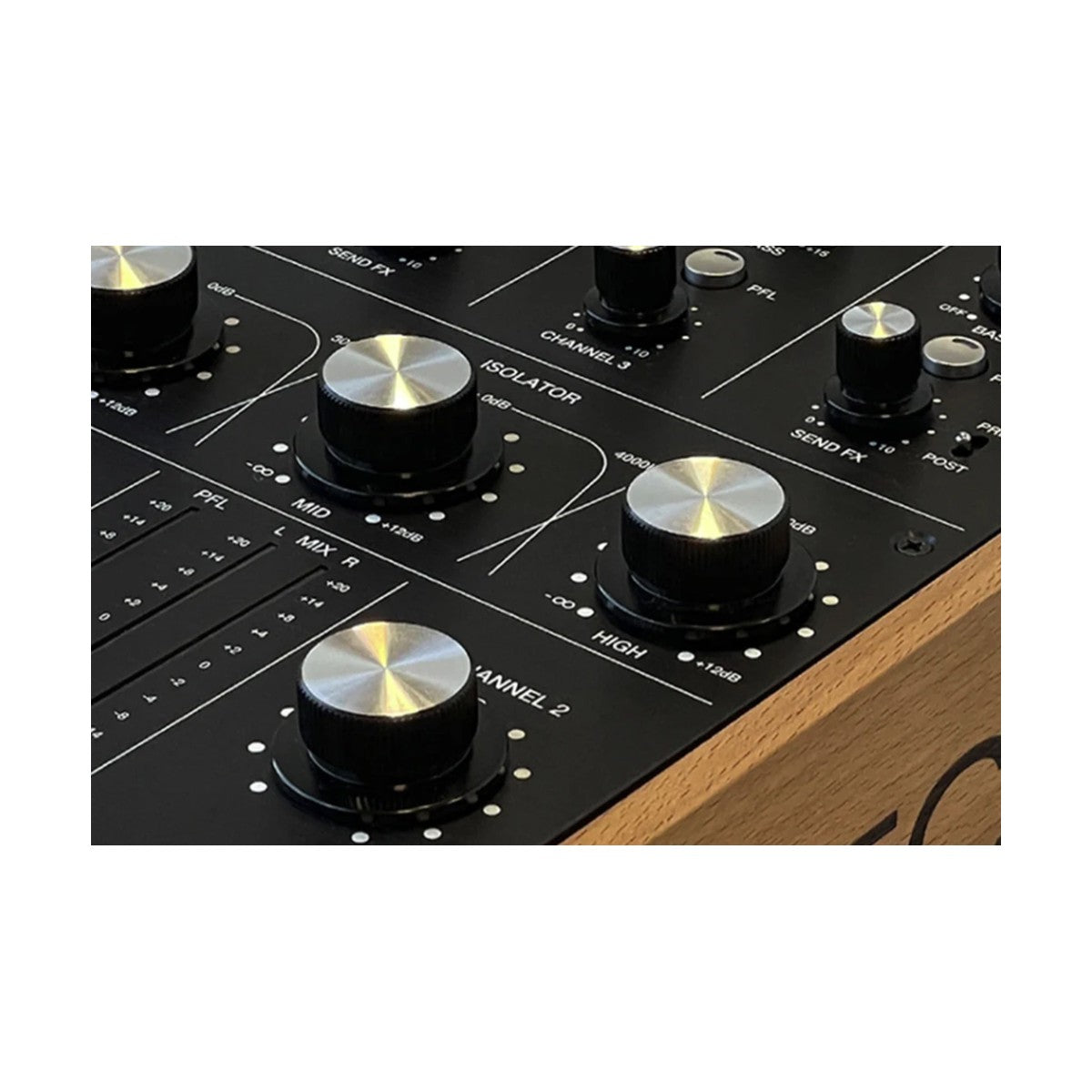

• 3‑band isolator with crossover points at approx. 300 Hz and 4 kHz, −∞ / +12 dB range, 4th‑order 24 dB/oct filters

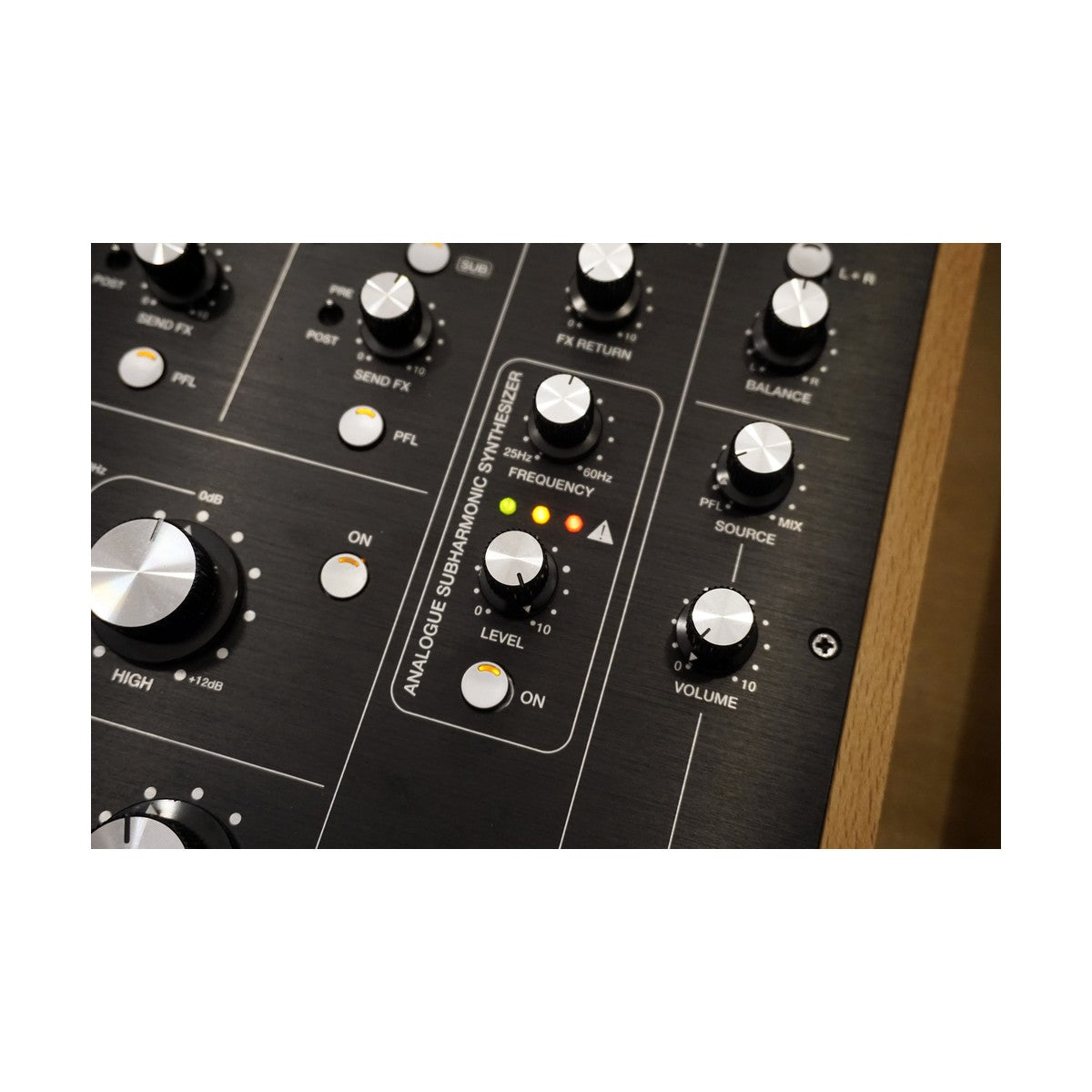

• Analogue subharmonic synthesizer for sub‑bass enhancement, selectable on a per‑channel basis
• Per‑channel FX Send with level control and Pre/Post fader selector
• Dedicated FX Return level control with PFL monitoring
• High‑quality ALPS metal‑shaft potentiometers and machined‑from‑solid aluminium knobs
• Supplied wooden side panels for a premium vintage‑inspired aesthetic

TECHNICAL SPECIFICATIONS

• Inputs: 4 × PHONO (RCA), 4 × LINE (RCA), 2 × MICRO (balanced XLR/TRS), 1 × FX RETURN (stereo RCA)
• Outputs: MASTER on XLR and RCA, BOOTH on XLR and RCA, headphone monitor on 6.3 mm jack and 3.5 mm mini‑jack, FX SEND (stereo RCA)
• Channel EQ: 3‑band full EQ cut on all channels
• Isolator: 3‑band, crossover at approx. 300 Hz and 4 kHz, −∞ / +12 dB range, 4th‑order 24 dB/oct
• Subharmonic synthesizer: analogue, sub‑bass frequency reinforcement, channel‑selectable
• Maximum output without distortion: 21 dBV (23 dBu)
• Meters: 12‑segment LED input VU meter, 12‑segment LED House/Mix/Booth VU meters, 3‑segment subharmonic output VU meter
• Power supply: internal, 90–264 V AC, 47–63 Hz, rated consumption 39 VA
• Dimensions (W × H × D): 340 × 81 × 372 mm (13.39" × 3.19" × 14.65")
• Weight: 5.32 kg (11.73 lb)
