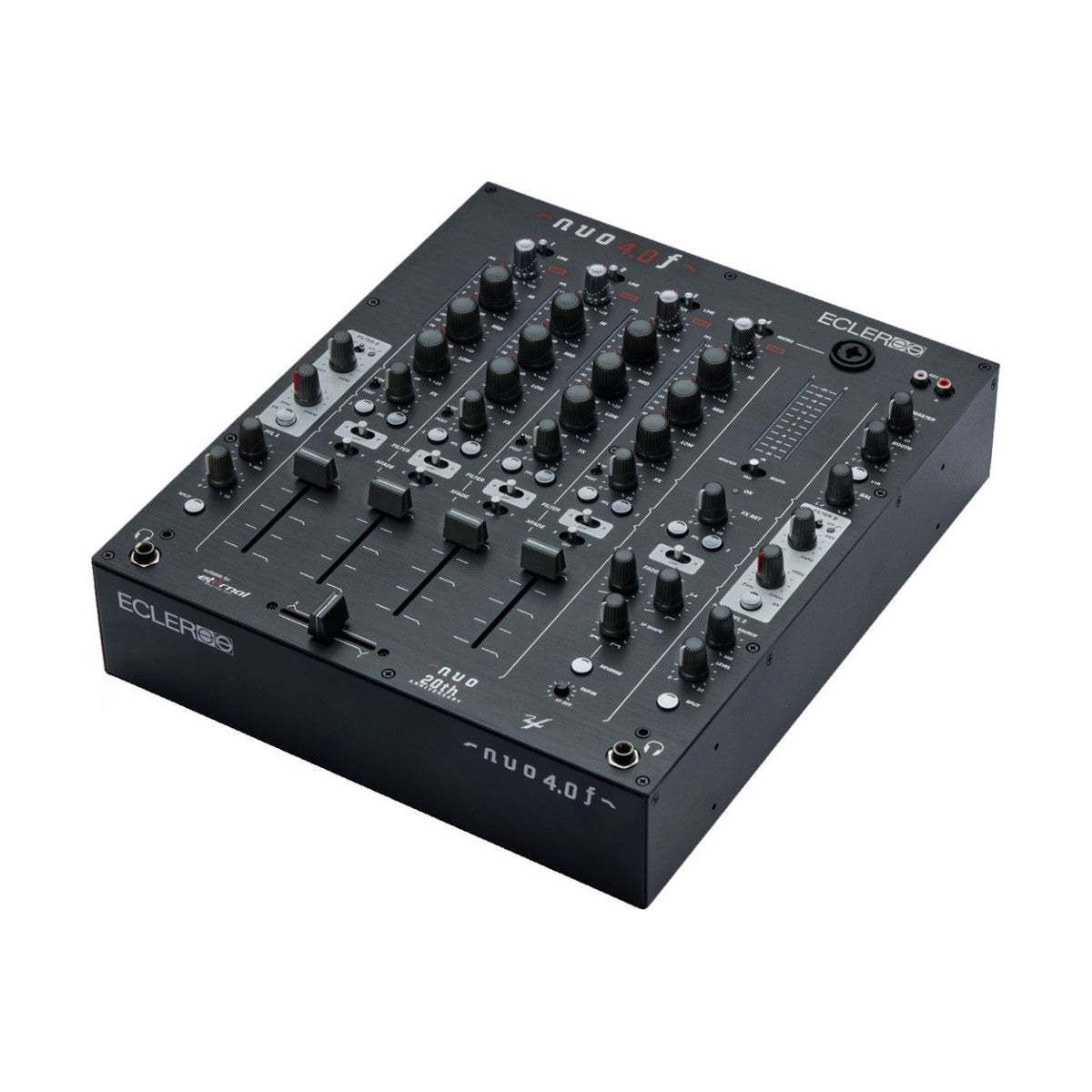

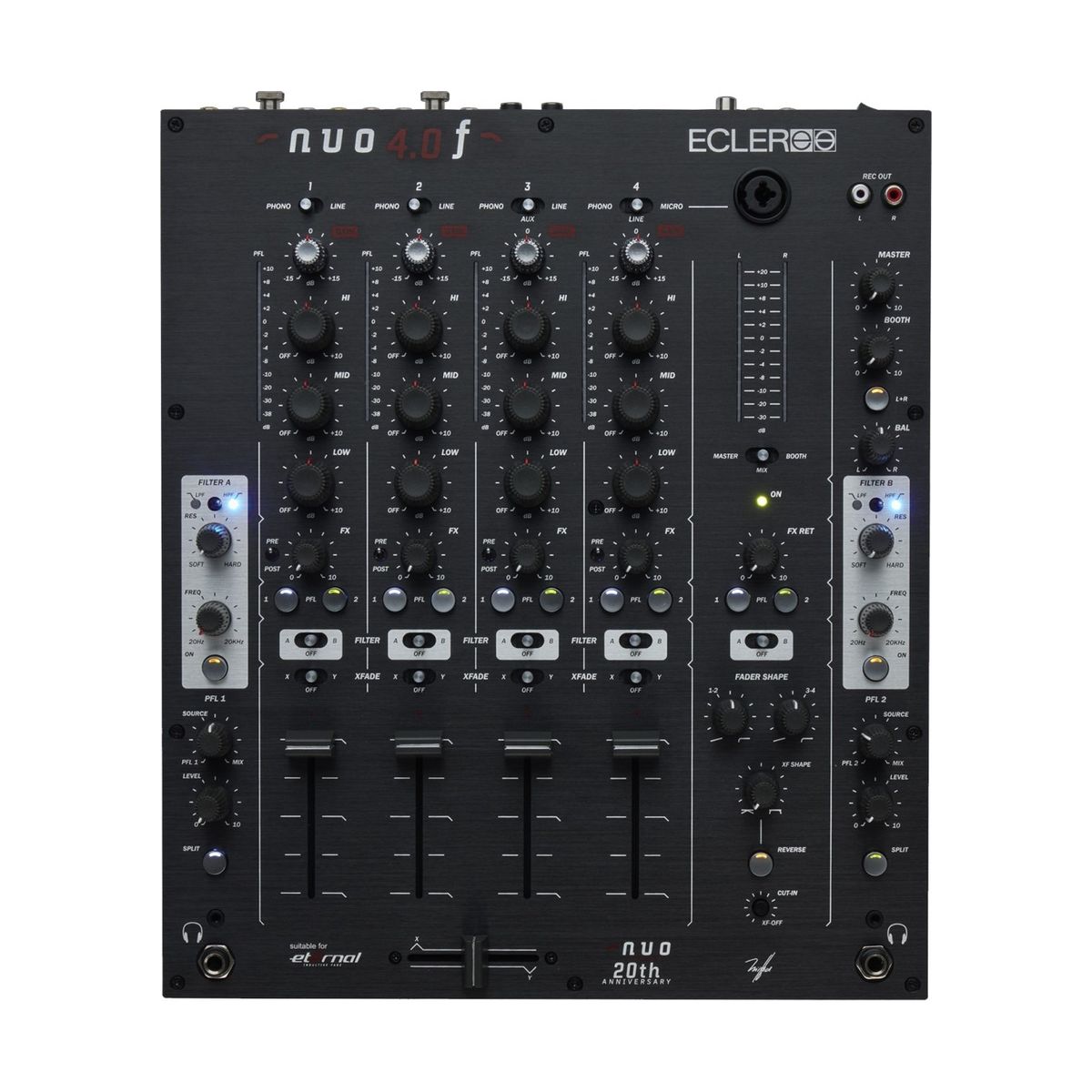

Ecler NUO 4.0F Black is a special‑edition, professional 4‑channel analogue DJ mixer created to celebrate Ecler’s 60th anniversary and 20 years of the iconic NUO series. Compact yet extremely powerful, it combines the classic NUO sound and layout with two onboard analogue VCF filters, dual PFL systems for B2B sets, an extended FX section and flexible routing, making it ideal for clubs, bars, festivals and demanding home or studio setups.

The NUO 4.0F features 4 main channels with switchable PHONO/LINE inputs, an extra AUX input and a dedicated microphone input on an XLR/jack combo. Each channel is equipped with a precise 3‑band full‑cut EQ (Bass +10/‑30 dB, Mid +10/‑25 dB, Treble +10/‑30 dB), an FX Send with Pre/Post fader selection and assign buttons for the two analogue VCF filters (HP/LP) with variable cutoff (approximately 20 Hz–20 kHz) and resonance (up to about +12 dB). Two completely independent PFL systems with four headphone outputs (2 × 6.3 mm, 2 × 3.5 mm) make back‑to‑back DJ sets effortless, while the output section offers MASTER and BOOTH on balanced XLR and unbalanced RCA, a dedicated REC output and a master insert on 1/4" jack for outboard processing.

KEY FEATURES

Professional 4‑channel fully analogue DJ mixer – NUO 4.0F Black special edition
Developed for Ecler’s 60th anniversary and 20 years of the NUO series
4 PHONO/LINE channels plus 1 AUX input and 1 dedicated MIC input (XLR/jack combo)
Two analogue VCF filters (HP/LP) with variable cutoff (20–20 000 Hz) and resonance (up to +12 dB), assignable to any channel and FX return
Two independent PFL headphone systems and 4 headphone outputs (2 × 6.3 mm, 2 × 3.5 mm) – perfect for B2B DJ sets
3‑band full‑cut EQ on all four channels (Bass +10/‑30 dB, Mid +10/‑25 dB, Treble +10/‑30 dB)
Per‑channel FX Send with Pre/Post fader selection, dedicated FX Return control with PFL
60 mm Ecler channel faders with adjustable curve and VCA crossfader compatible with the ETERNAL magnetic crossfader
Master insert on 6.3 mm jack for compressors, limiters or other external processors
Sleek black finish, designed and manufactured in Spain

TECHNICAL SPECIFICATIONS

Type: 4‑channel analogue DJ mixer
Inputs: 4 × PHONO/LINE (RCA), 1 × AUX (RCA), 1 × MIC (XLR/jack combo), FX RETURN (stereo RCA)
Outputs: MASTER and BOOTH on balanced XLR and unbalanced RCA, REC (stereo RCA), FX SEND (stereo RCA), MASTER insert (6.3 mm jack)
Channels: 4 line/phono channels + AUX + MIC
Channel EQ (1–4): 3‑band EQ, Bass +10/‑30 dB, Mid +10/‑25 dB, Treble +10/‑30 dB
Filters: 2 × analogue VCF (HP/LP), cutoff range approx. 20–20 000 Hz, max. resonance approx. +12 dB
Headphones: 4 outputs – 2 × 6.3 mm, 2 × 3.5 mm; dual independent PFL systems with split mode
Meters: 12‑segment LED VU meters for input and HOUSE/MIX/BOOTH levels
Faders: 60 mm Ecler faders with adjustable curve, VCA crossfader with adjustable curve and reverse, compatible with ETERNAL
Max. undistorted output level: approx. 21 dBV (around 23 dBu)
Dimensions (W × H × D): approx. 320 × 79.4 × 372 mm
Weight: approx. 4.7–4.8 kg
Colour: Black, made in Spain
