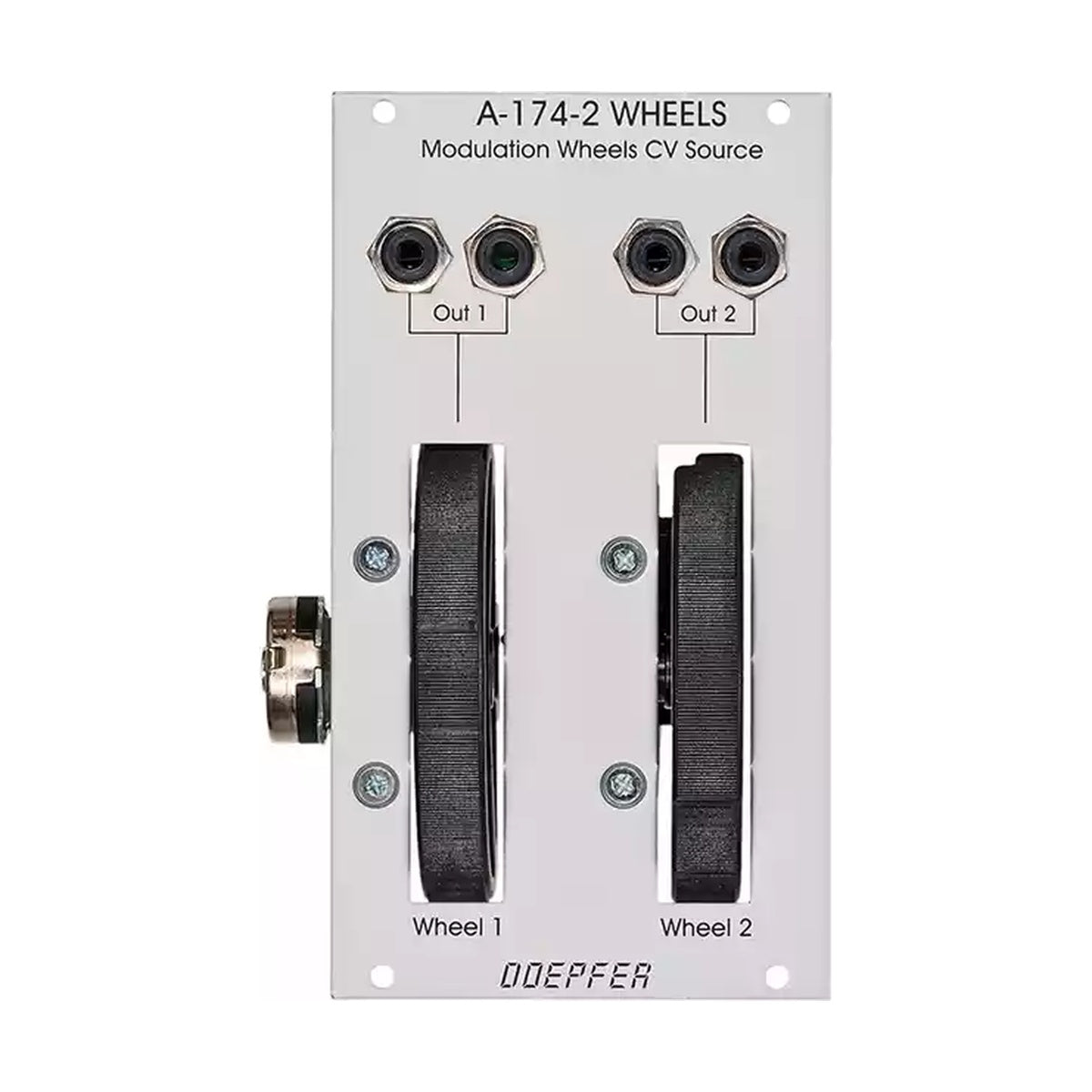

Doepfer A-174-2 Wheels – dual modulation wheel Eurorack module with adjustable bipolar and unipolar voltage outputs, ideal for expressive CV control in modular systems.
The A-174-2 module features two high-quality modulation wheels: the left one is spring-loaded and outputs a bipolar voltage (approx. -5.5 V to +5.5 V), while the right one is unsprung and outputs unipolar voltage (0 to +8 V). The default configuration allows for expressive control, with a small neutral zone around 0 V for the center of the spring-loaded wheel, enabling precise modulation and return-to-zero behavior.
Each wheel's voltage range and center plateau behavior can be modified via onboard jumpers, though mechanical recalibration is required afterward. This makes the A-174-2 a flexible tool for customized control setups in any Eurorack environment. It occupies 14 HP of rack space and consumes minimal current, making it suitable even for compact systems.
KEY FEATURES
- Dual modulation wheels for CV control
- Left wheel: spring-loaded, bipolar voltage output (~ -5.5 V to +5.5 V)
- Right wheel: un-sprung, unipolar output (~ 0 to +8 V)
- Center voltage plateau for spring-loaded wheel
- Customizable via internal jumpers (bipolar/unipolar, plateau on/off)
- Adjustable mechanical configuration (requires technician if modified)
- Can be factory ordered with both wheels sprung or un-sprung (extra fee)
- Compact 14 HP Eurorack format
TECHNICAL SPECIFICATIONS
- Format: Eurorack module
- Width: 14 HP (~70.8 mm)
- Depth: 40 mm
- Current draw: approx. 10–20 mA
- Manufacturer: Doepfer
- Voltage range (default):
- Left wheel: ±5.5 V (bipolar)
- Right wheel: 0–8 V (unipolar)
