Coil Audio CP-448
Coil Audio CP-448
Coil Audio CP-448

Coil Audio

Coil Audio CP-448

€629,00
Special order

Tax included. Shipping calculated at checkout

SKU: 61023
Quantity:

This item is available on a custom order basis only. Please contact us for more details. Contact us

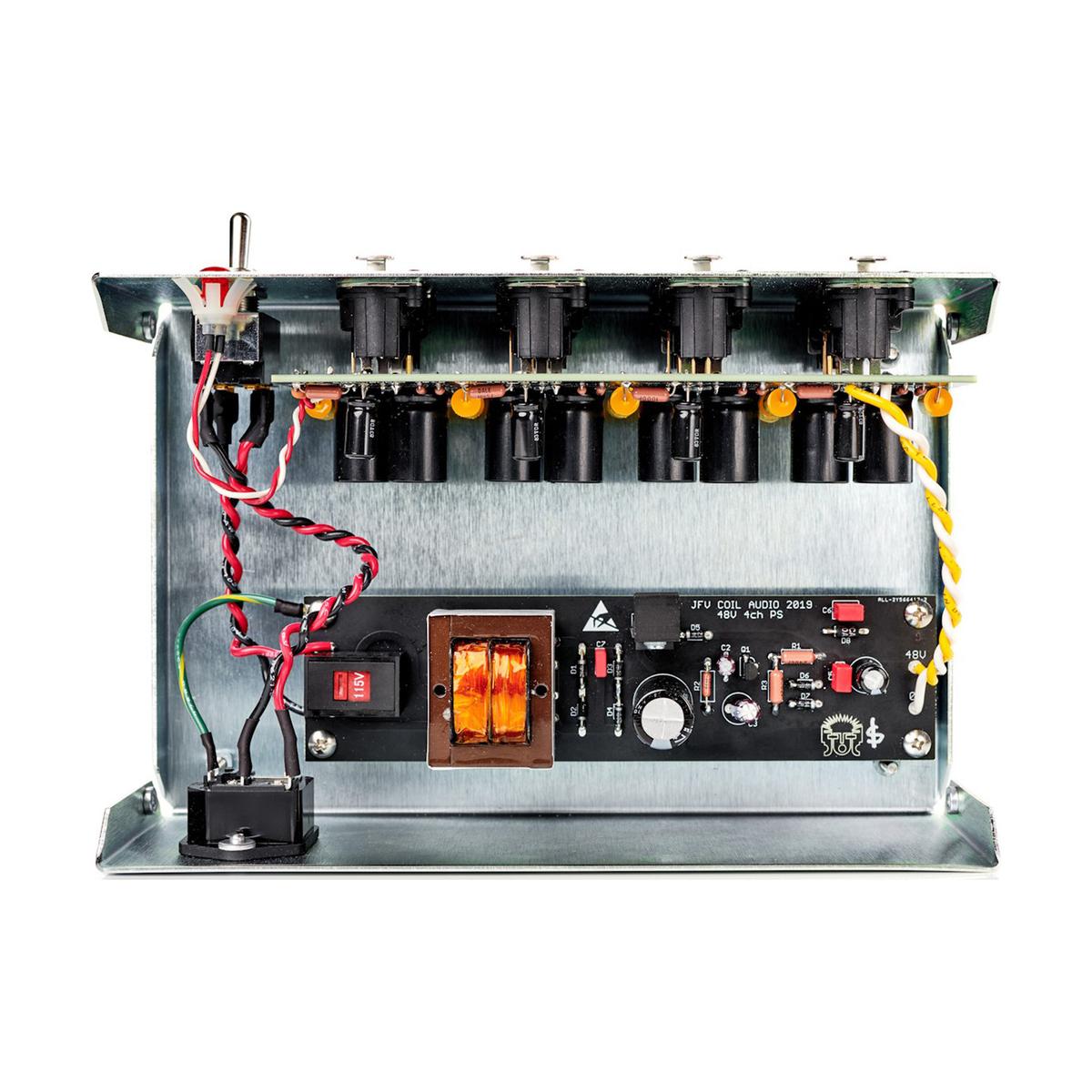

Coil Audio CP-448 is a four-channel, linearly regulated 48V phantom power supply built specifically for compatibility with vintage preamps that do not tolerate modern switching power sources.

Safe power for old and new microphones alike

A DC blocking circuit isolates the phantom voltage from the input transformer, so the unit works with both classic tube preamps and modern gear. A slow ramp on the 48V line at power-on protects the delicate diaphragms of condenser mics from the voltage spike that cheaper supplies can send through as an audible thump in the monitors.

KEY FEATURES

  • Four independent 48V phantom power channels
  • Linear voltage regulation, selectable 120/240VAC
  • DC blocking circuit isolating phantom power from the input transformer
  • Slow voltage ramp at power-on

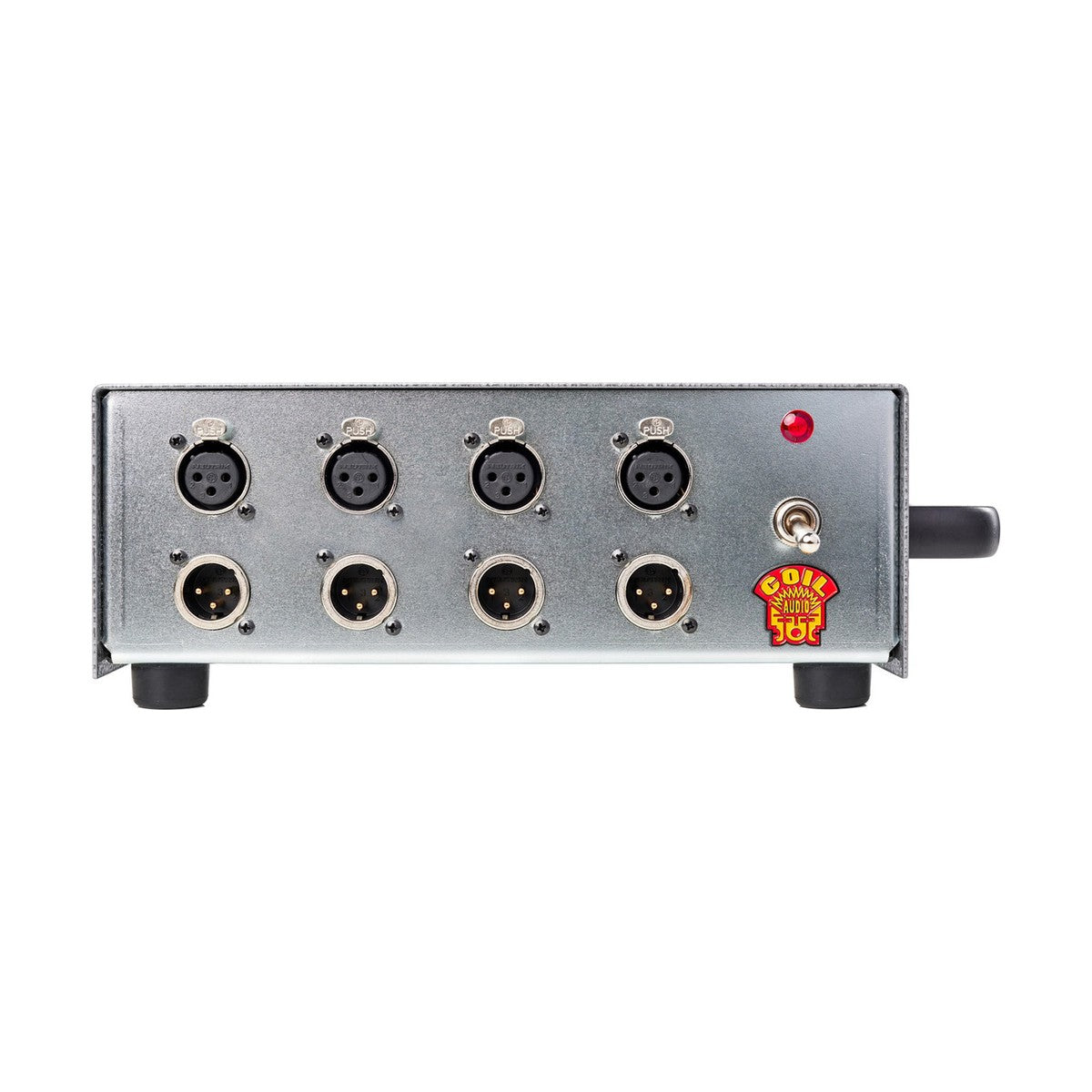

  • Neutrik XLR connectors, all-steel chassis
  • Audiophile-grade parts: Nichicon, Panasonic, and Cornell Dubilier capacitors, Dale resistors

TECHNICAL SPECIFICATIONS

  • Channels: 4
  • Phantom voltage: 48V DC, linearly regulated
  • Output current: over 75mA total across all channels
  • Mains voltage: selectable 120VAC / 240VAC
  • Connectors: Neutrik XLR
