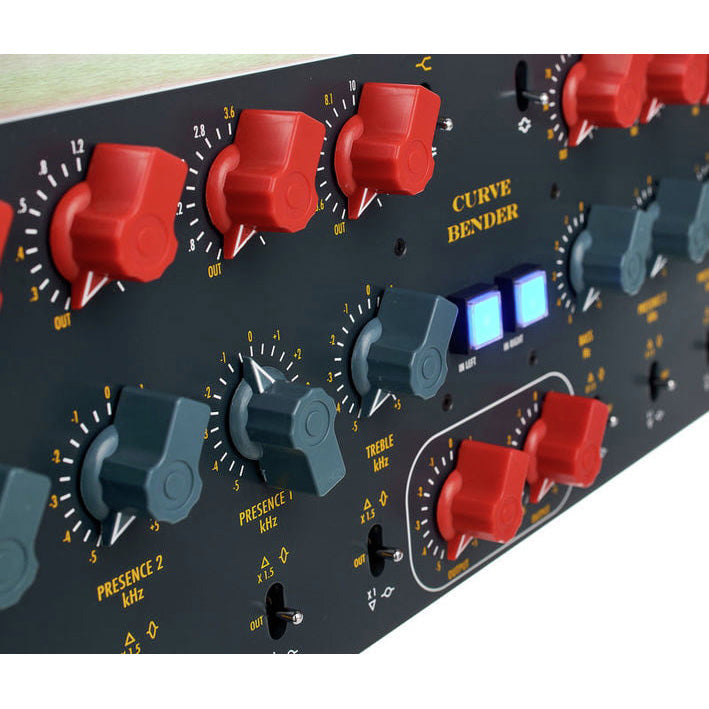

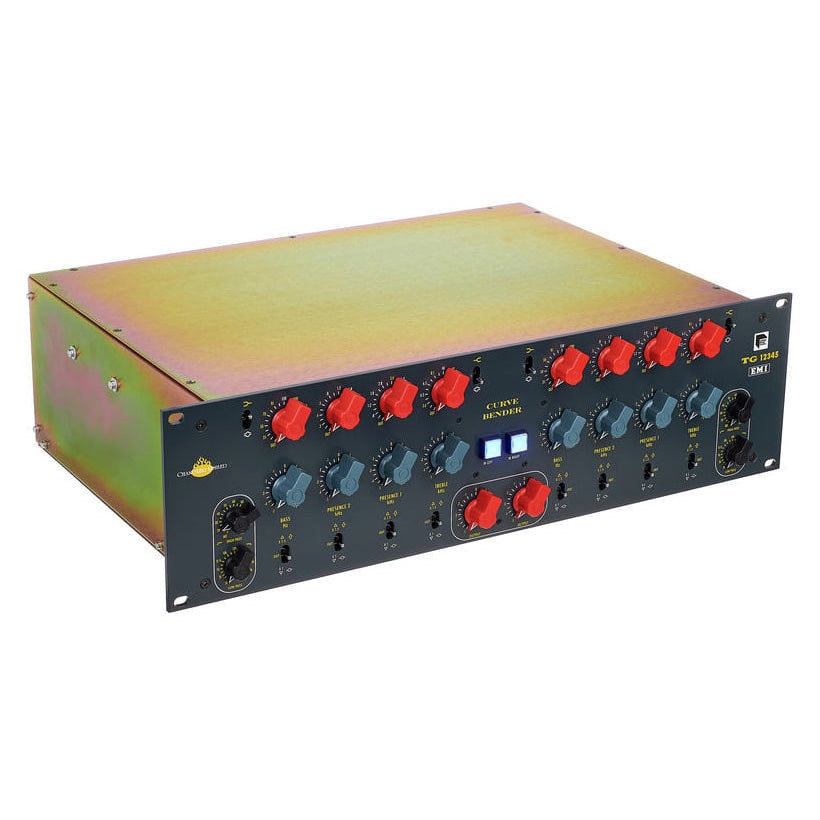

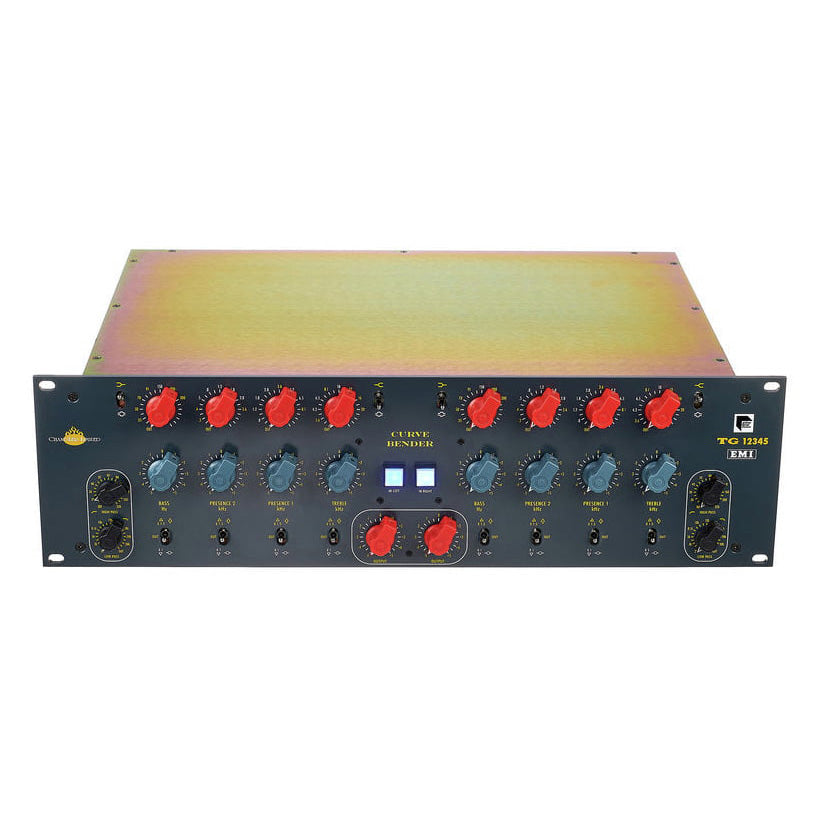

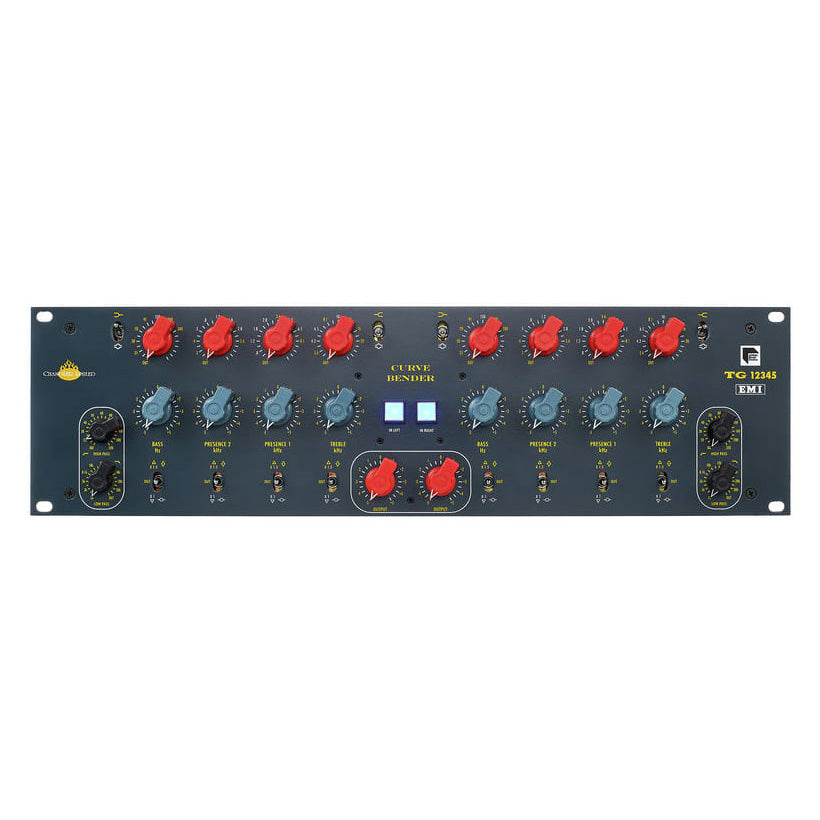

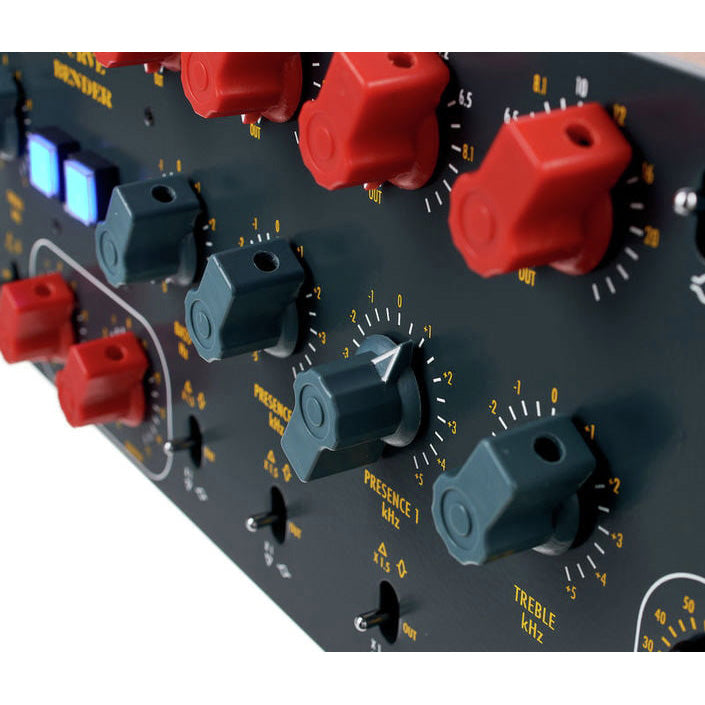

Chandler Limited CURVE BENDER EQ (TG12345)

Chandler Limited TG12345 Curve Bender EQ – dual-channel passive 4-band equalizer inspired by EMI TG12345 from Abbey Road Studios. Delivers musical, rich tone with 51 frequencies and multiply switch for up to 13.5 dB boost/cut. Ideal for mastering, mixing, tracking. 2U enclosure (483 x 89 x 267 mm, 7.7 kg).

Curve Bender uses passive filters with transformers/tube makeup gain, HPF/LPF, bell/shelf on LF/HF. Switches: M/S, bypass. Balanced XLR I/O, VU metering. Hand-soldered in USA.

As EMI tribute, adds depth without compromise.

MAIN FEATURES

• 51 frequencies (LF 20-500 Hz, LM 200-2 kHz, HM 1-10 kHz, HF 5-20 kHz)
• Multiply switch: +6 dB boost/cut, sharper Q
• HPF/LPF filter (12/18 dB/oct)
• Bell/shelf on LF/HF
• M/S processing
• Balanced XLR I/O
• Tube makeup gain
• Portable: 483 x 89 x 267 mm, 7.7 kg

TECHNICAL SPECIFICATIONS

• Bands: 4 (LF 20-500 Hz, LM 200-2 kHz, HM 1-10 kHz, HF 5-20 kHz)
• Boost/Cut: ±9 dB (up to ±13.5 dB with multiply)
• Q: Adjustable, sharper with multiply

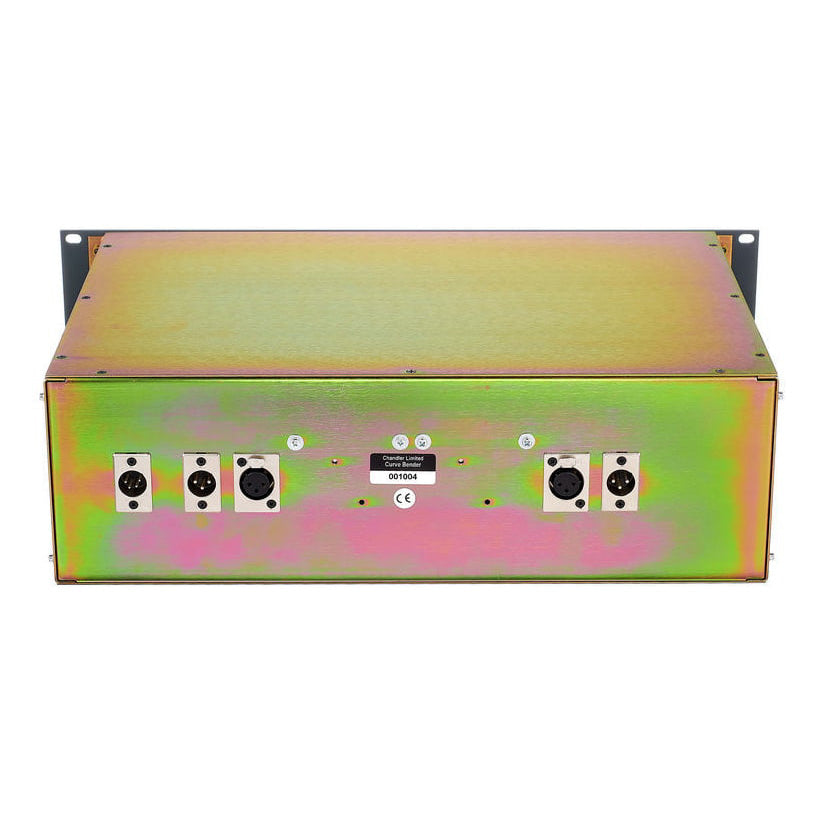

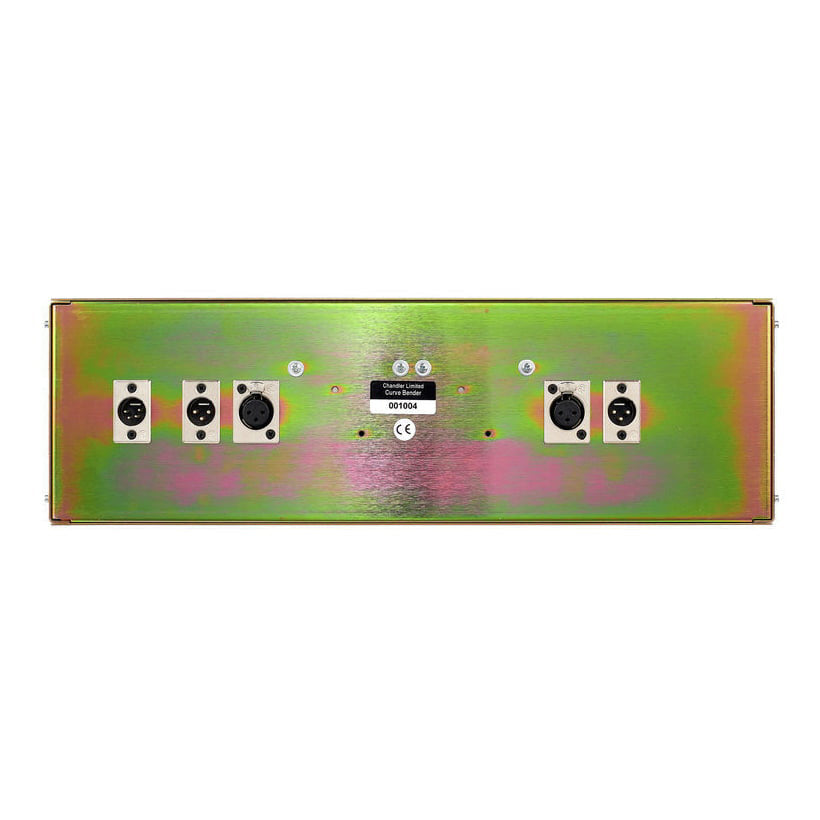

• Inputs/Outputs: Balanced XLR stereo
• Frequency Response: 20 Hz–20 kHz (±0.5 dB)
• THD + N: < 0.1% @ 1 kHz
• Noise EIN: < -90 dBu
• Power Supply: 100-240 V AC
• Dimensions (W × H × D): 483 x 89 x 267 mm (2U)
• Weight: 7.7 kg
• Included: Curve Bender, manual
• Product Code: CHA-TG12345
