Burl Audio B80-BDA16
Burl Audio B80-BDA16

Burl Audio

Burl Audio B80-BDA16

Sale price€2.862,00

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 60152
Quantity:
Delivery within 8-12 weeks

Contact

Burl Audio B80-BDA16 — a 16-channel DAC daughter card from the BURL BLACK line, built for large modular B80 Mothership systems and delivering high channel counts at a lower cost per channel than the BURL GREEN cards. The card is also compatible with the smaller B16 chassis.

The signal path is fully discrete, class-A, built around the BOPA14 NextGen Analog op-amp, with no output transformers. Moving to a smaller-footprint DAC chip made it possible to fit sixteen conversion channels onto a single card without giving up channel density.

Hundreds of channels without sacrificing analog quality

When building a large mix or monitoring system with many channels, engineers usually have to choose between output count and conversion quality. The BDA16 removes that tradeoff by packing sixteen full class-A DAC channels onto one card instead of two 8-channel cards. Eight BDA16 cards in a B80 chassis reach a hundred and twenty-eight DAC channels at 44.1kHz or 48kHz with a BMB2 or BMB3 motherboard, while the same card in a B16 chassis yields thirty-two output channels in a compact format.

Managing multiple cards and Pro Tools compliance

The more AD/DA cards running in a single Mothership system, the harder it gets to track which outputs are active and to keep delay compensation aligned across cards in a Pro Tools HD setup. The BDA16 addresses both: a front-panel signal indicator gives an instant view of activity on each card, and automatic detection of a BMB1 Digilink motherboard triggers Avid delay compensation with no manual setup, even with all ten slots of a B80 chassis fully loaded.

KEY FEATURES

  • 16-channel digital-to-analog conversion (DAC)
  • Discrete class-A signal path, no output transformers
  • BOPA14 NextGen Analog op-amp

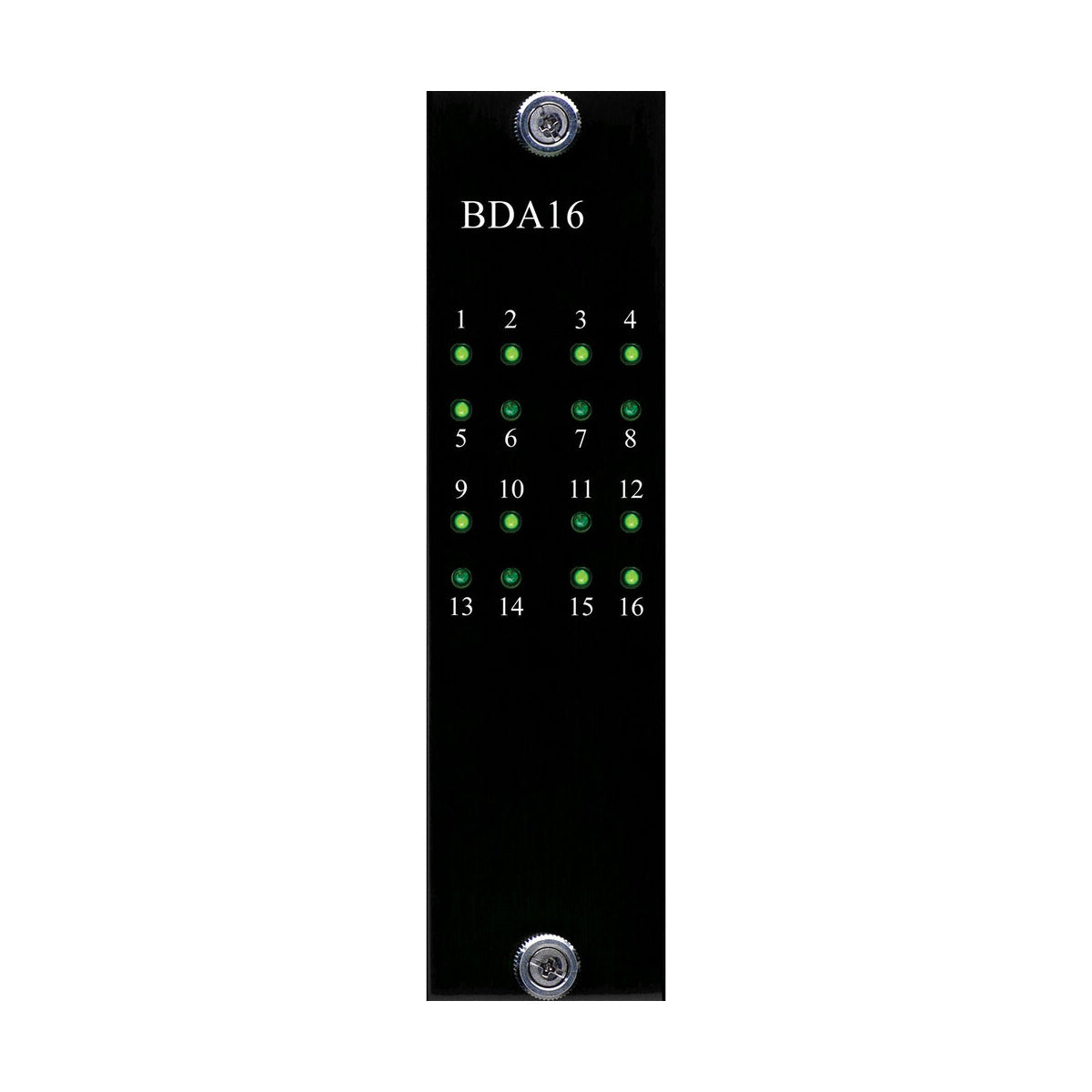

  • Front-panel signal status indicator
  • Automatic Avid delay compensation with a BMB1 motherboard
  • Up to 128 DAC channels in a B80 chassis (8 cards, 44.1/48kHz with BMB2 or BMB3)
  • Up to 32 DAC channels in a B16 chassis (2 cards)
  • MOTHERSHIP 3 compatible

TECHNICAL SPECIFICATIONS

  • Channel count: 16 (DAC)

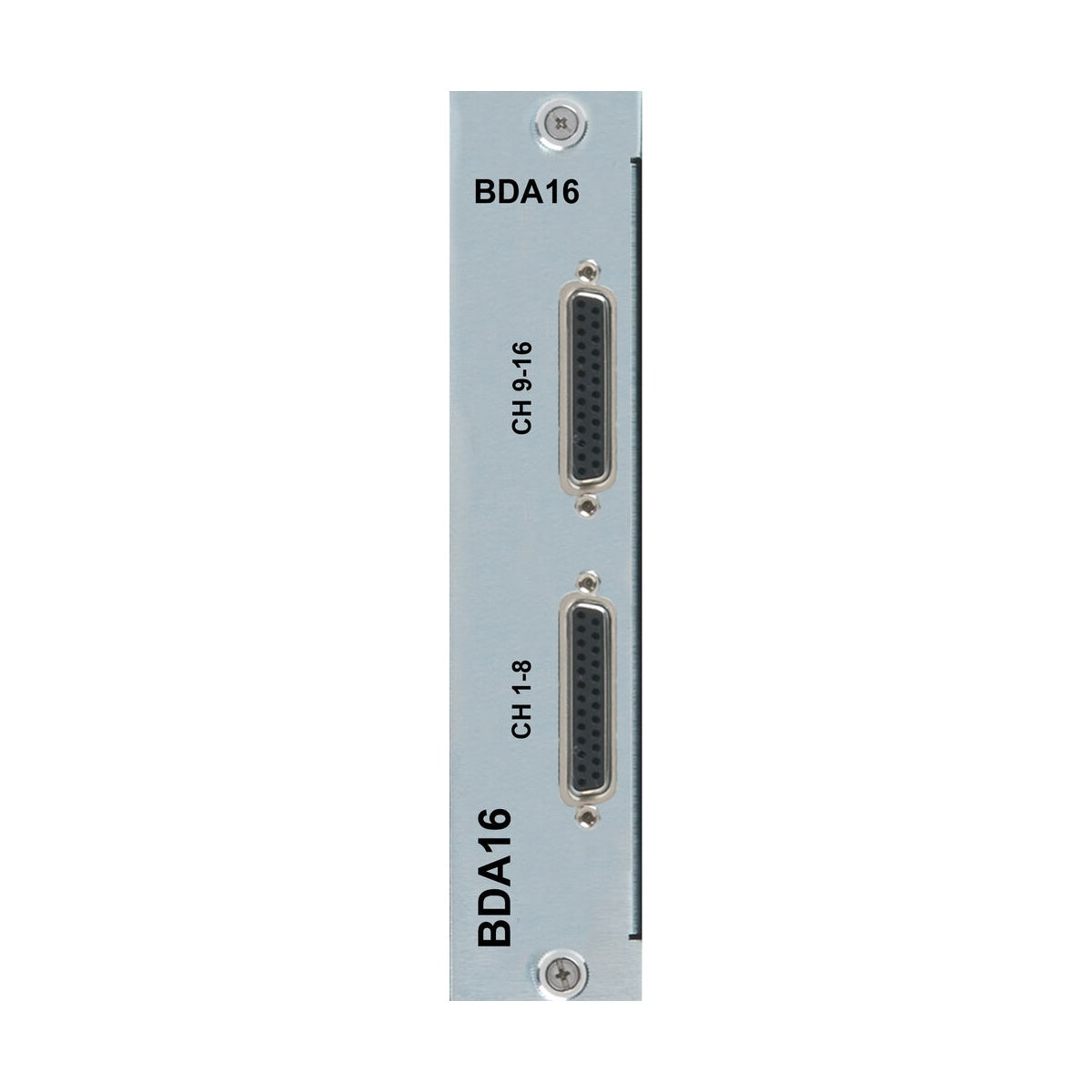

  • Connector: DB25 (DSUB, Tascam pinout)
  • Signal path: discrete, class-A, no capacitors or output transformers
  • Op-amp: BOPA14 (NextGen Analog)
  • Maximum channels in B80: 128 (8x BDA16 at 44.1/48kHz with BMB2/BMB3)
  • Maximum channels in B16: 32 (2x BDA16)
  • Card slots in B80: 10
  • Signal indicator: front-panel LED
  • Delay compensation: automatic with BMB1 Digilink motherboard
  • Power: via B80/B16 backplane
  • Compatibility: MOTHERSHIP 3
