Burl Audio B16-BMB3-M3-1616
Burl Audio B16-BMB3-M3-1616

Burl Audio

Burl Audio B16-BMB3-M3-1616

Sale price€8.217,00

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 60142
Quantity:
Delivery within 8-12 weeks

Contact

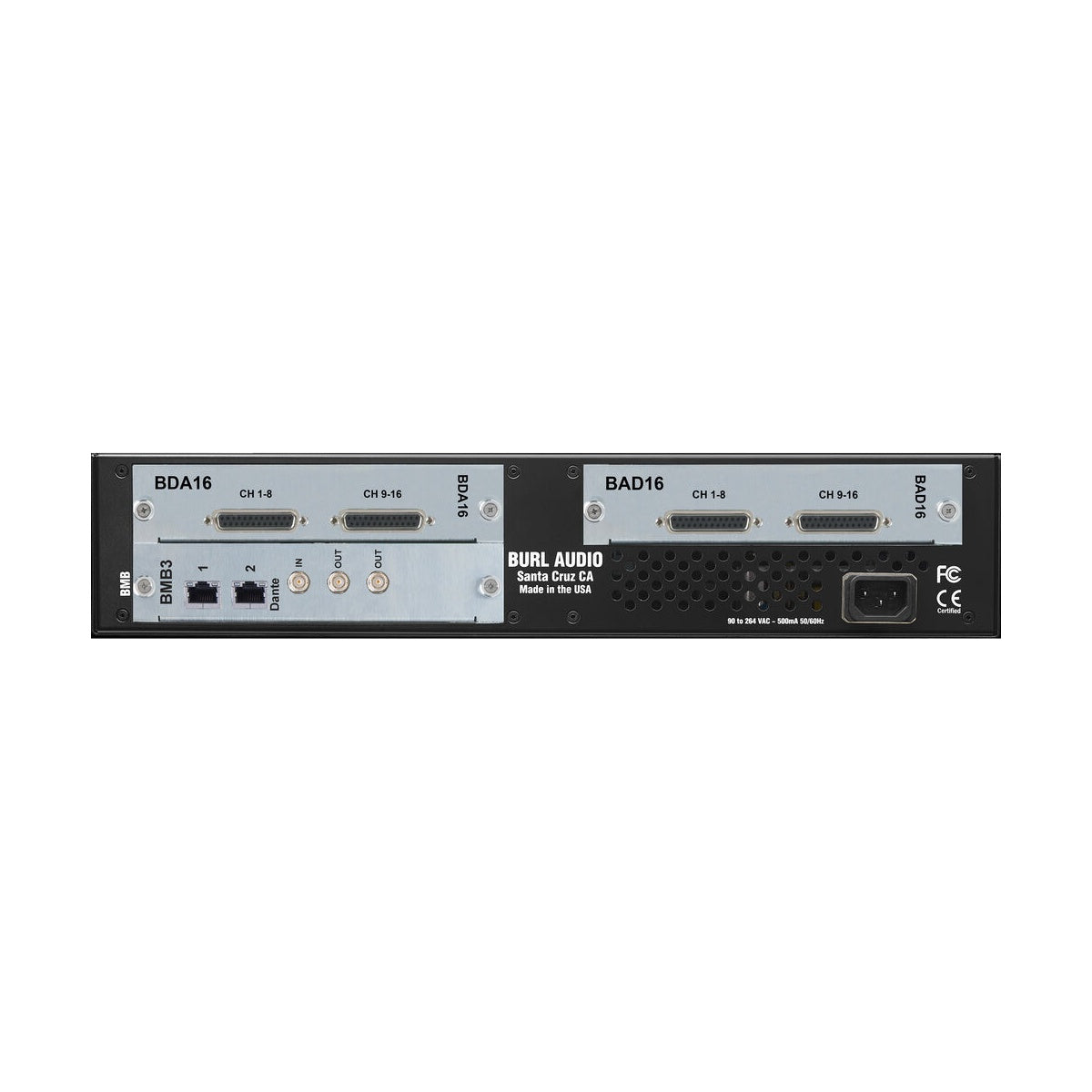

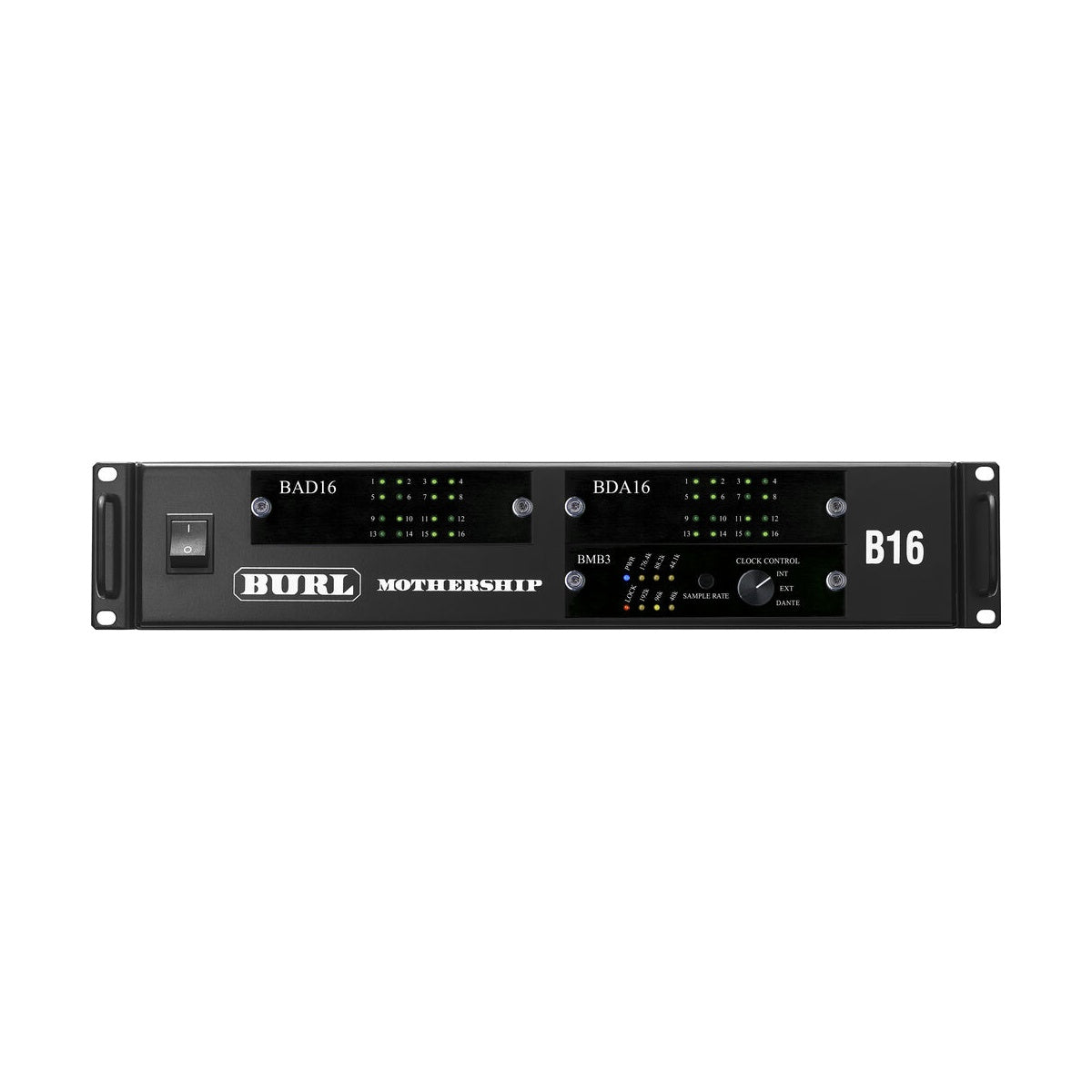

Burl Audio B16-BMB3-M3-1616 — a ready-made AD/DA system in a B16 Mothership 3 chassis, fitted with a BMB3 Dante motherboard and a matched pair of BAD16 and BDA16 cards, giving sixteen analog inputs and sixteen analog outputs in a single two-slot 2U unit.

Input conversion runs through transformer-coupled, discrete class-A circuitry with the BX8 transformer, while output conversion uses a discrete class-A path with the BOPA14 op-amp. The BMB3 motherboard provides two Dante Ethernet ports carrying up to 64 I/O channels at 44.1, 48 or 96kHz, and up to 32 channels at 176.4 or 192kHz.

Native integration with a Dante network

Studios and live systems built around a Dante network usually need a separate converter to bring analog sources and outputs into the existing infrastructure, which complicates routing and adds another link in the chain. The BMB3 addresses this with two direct Dante ports that show up in Dante Controller alongside every other device on the network, with no interfacing card in between. That puts BURL Audio's analog conversion quality straight onto the existing Dante network, keeping the sonic character known from larger Mothership systems.

A ready 16-in, 16-out set with no card shopping

Configuring a Mothership system from scratch means separately selecting a motherboard, input and output cards, and checking they all match up. This set removes that step, combining the B16 chassis, a BMB3 motherboard, and BAD16 and BDA16 cards into one ready sixteen-in, sixteen-out system, housed in two rack units with an internal power supply. It works equally well as a compact project studio interface or as a networked conversion point in a larger Dante installation.

KEY FEATURES

  • Complete set: B16 Mothership 3 chassis, BMB3 motherboard, BAD16 and BDA16 cards
  • 16 ADC input channels and 16 DAC output channels
  • BMB3 motherboard with two Dante Ethernet ports
  • Up to 64 I/O channels at 44.1/48/96kHz, up to 32 at 176.4/192kHz
  • Transformer-coupled inputs with the BX8 transformer
  • Outputs with a discrete class-A BOPA14 op-amp
  • Internal power supply, 2U chassis with two card slots
  • Compatible exclusively with MOTHERSHIP 3 architecture

TECHNICAL SPECIFICATIONS

  • Chassis: B16 Mothership 3, 2U, 2 card slots
  • Motherboard: BMB3 Dante, 2 Ethernet ports
  • I/O channels over Dante: up to 64 at 44.1/48/96kHz, up to 32 at 176.4/192kHz
  • Input card: BAD16, 16-channel ADC, class-A, BX8 transformer
  • Output card: BDA16, 16-channel DAC, class-A, BOPA14 op-amp
  • Card connectors: DB25 (DSUB, Tascam pinout)
  • Word clock: 1 BNC input, 2 BNC outputs
  • Power: internal power supply
  • Compatibility: MOTHERSHIP 3 only
