Burl Audio B16-BMB2-M3-1616
Burl Audio B16-BMB2-M3-1616

Burl Audio

Burl Audio B16-BMB2-M3-1616

Sale price€8.217,00

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 60148
Quantity:
Delivery within 8-12 weeks

Contact

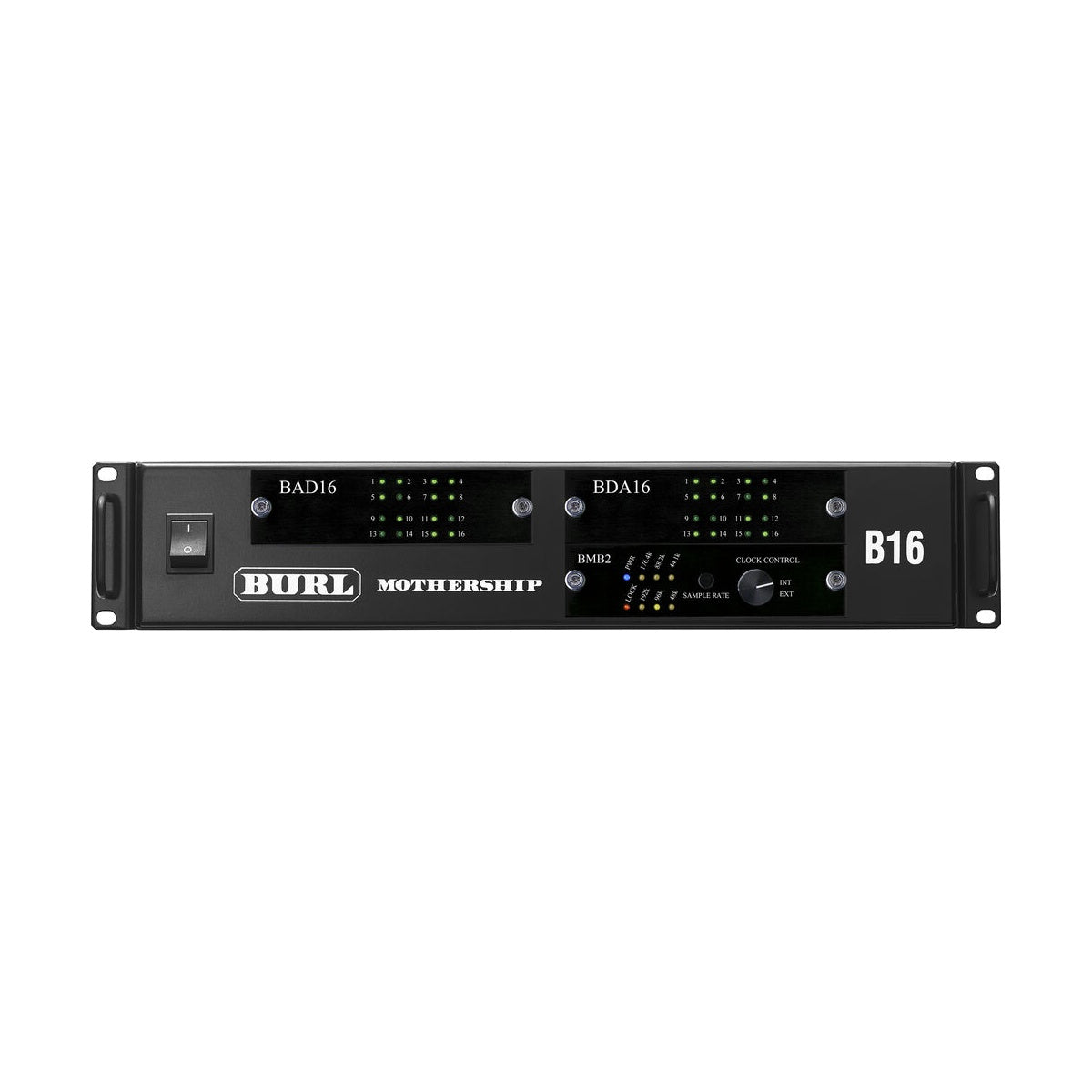

Burl Audio B16-BMB2-M3-1616 — a ready-made AD/DA system in a B16 Mothership 3 chassis, fitted with a BMB2 MADI motherboard and a matched pair of BAD16 and BDA16 cards, giving sixteen analog inputs and sixteen analog outputs in a single two-slot 2U unit.

Input conversion runs through transformer-coupled, discrete class-A circuitry with the BX8 transformer, while output conversion uses a discrete class-A path with the BOPA14 op-amp. The BMB2 motherboard provides two optical MADI ports carrying up to 64 I/O channels at 44.1, 48 or 96kHz, and up to 32 channels at 176.4 or 192kHz.

Long, lossless runs over MADI

Working over long distances between a control room and a conversion rack, as in large studios or live systems, often leaves analog or network cabling prone to noise and interference. The BMB2 addresses this with two optical MADI ports that carry multichannel digital audio over long distances with no signal loss and no risk of electromagnetic interference, interfacing with any ASIO or Core Audio PCIe MADI card. That puts BURL Audio's analog conversion quality directly into an existing MADI infrastructure.

A ready 16-in, 16-out set with no card shopping

Configuring a Mothership system from scratch means separately selecting a motherboard, input and output cards, and checking they all match up. This set removes that step, combining the B16 chassis, a BMB2 motherboard, and BAD16 and BDA16 cards into one ready sixteen-in, sixteen-out system, housed in two rack units with an internal power supply. It works equally well as a compact project studio interface or as a remote conversion point in a larger MADI system.

KEY FEATURES

  • Complete set: B16 Mothership 3 chassis, BMB2 motherboard, BAD16 and BDA16 cards
  • 16 ADC input channels and 16 DAC output channels
  • BMB2 motherboard with two optical MADI ports
  • Up to 64 I/O channels at 44.1/48/96kHz, up to 32 at 176.4/192kHz
  • Transformer-coupled inputs with the BX8 transformer
  • Outputs with a discrete class-A BOPA14 op-amp
  • Internal power supply, 2U chassis with two card slots
  • Compatible exclusively with MOTHERSHIP 3 architecture

TECHNICAL SPECIFICATIONS

  • Chassis: B16 Mothership 3, 2U, 2 card slots
  • Motherboard: BMB2 MADI, 2 optical ports
  • I/O channels over MADI: up to 64 at 44.1/48/96kHz, up to 32 at 176.4/192kHz
  • Input card: BAD16, 16-channel ADC, class-A, BX8 transformer
  • Output card: BDA16, 16-channel DAC, class-A, BOPA14 op-amp

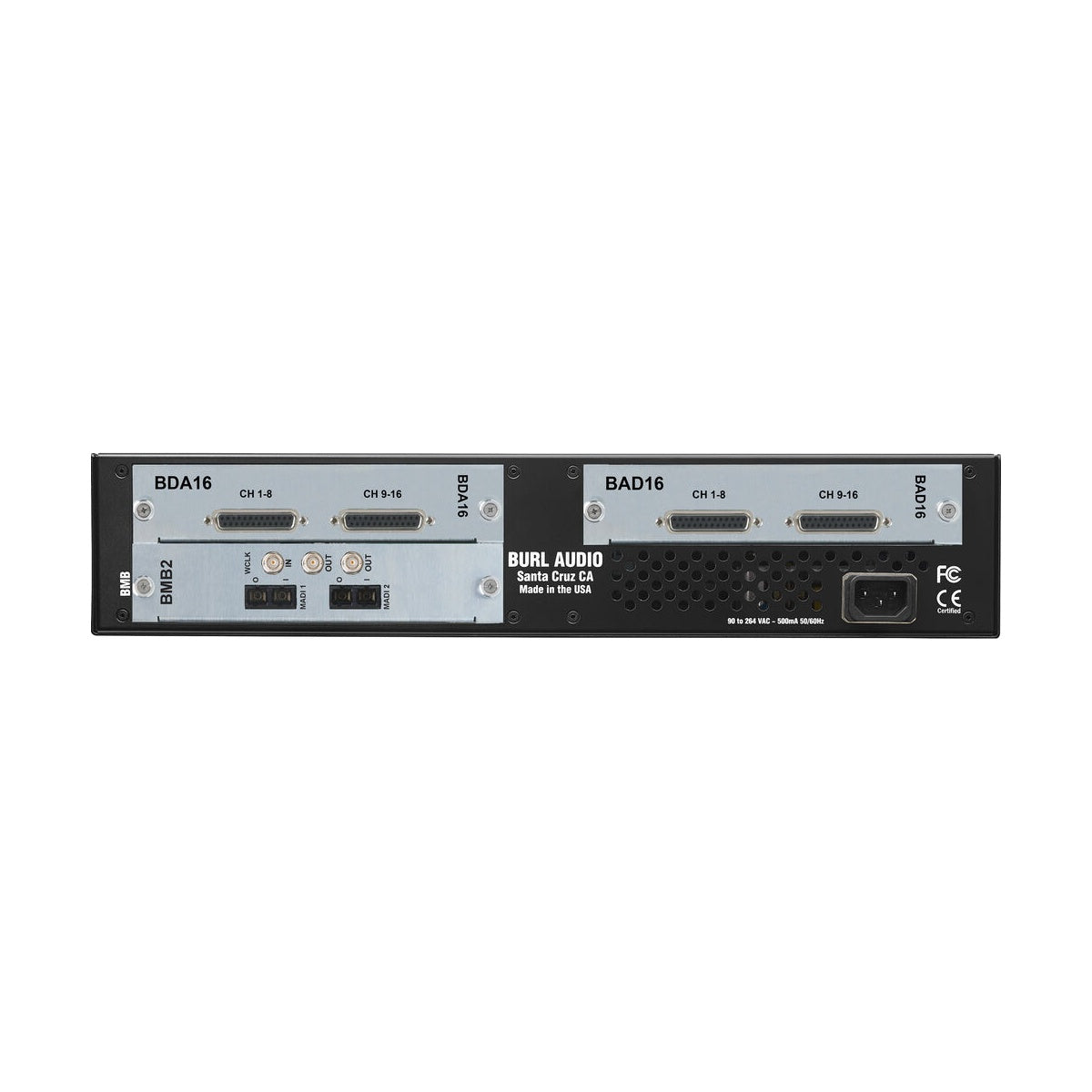

  • Card connectors: DB25 (DSUB, Tascam pinout)
  • Word clock: 1 BNC input, 2 BNC outputs
  • Power: internal power supply
  • Compatibility: MOTHERSHIP 3 only
