Burl Audio B16-BMB2-M3-1612

Sale price€8.437,00

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 60150
Quantity:
Delivery within 8-12 weeks

Contact

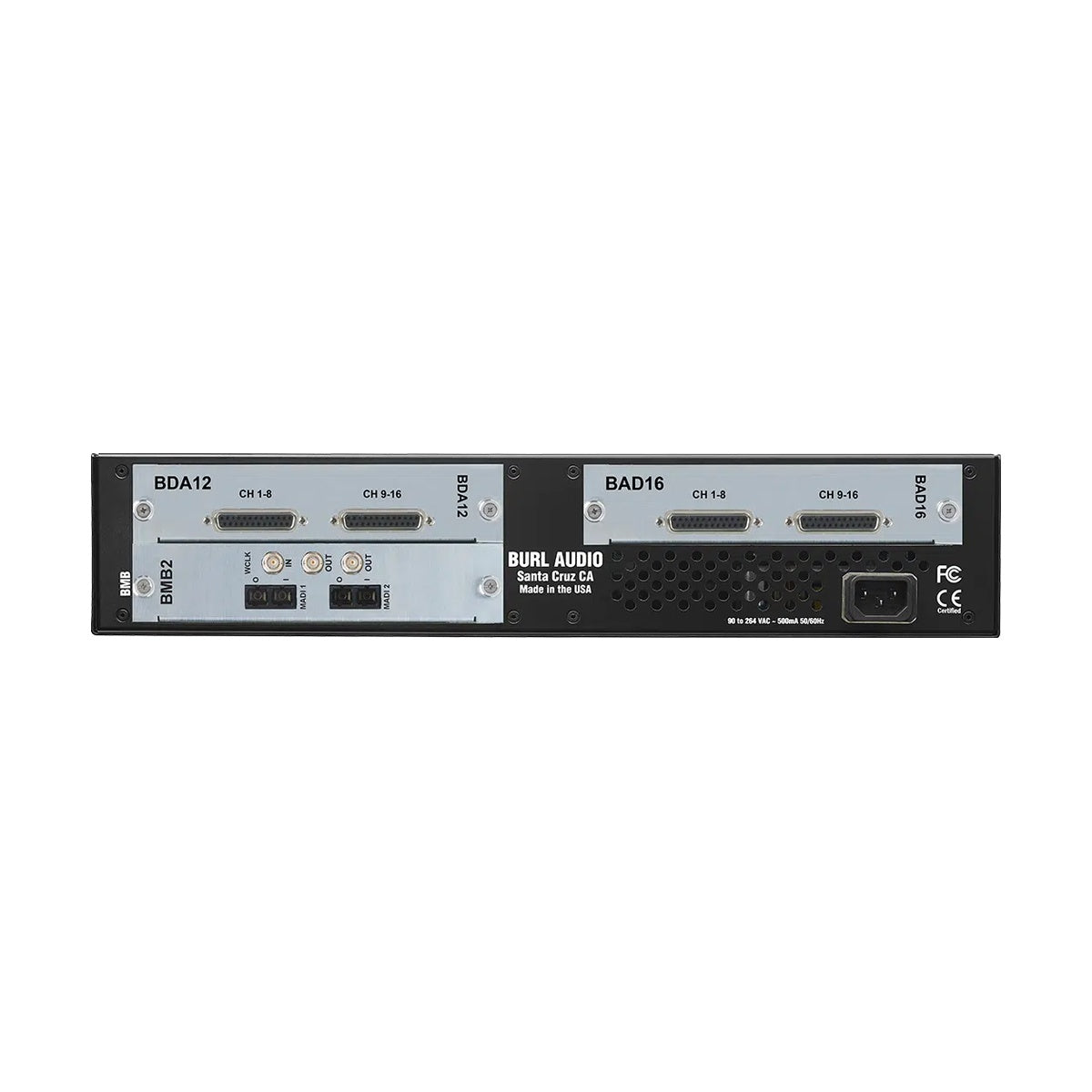

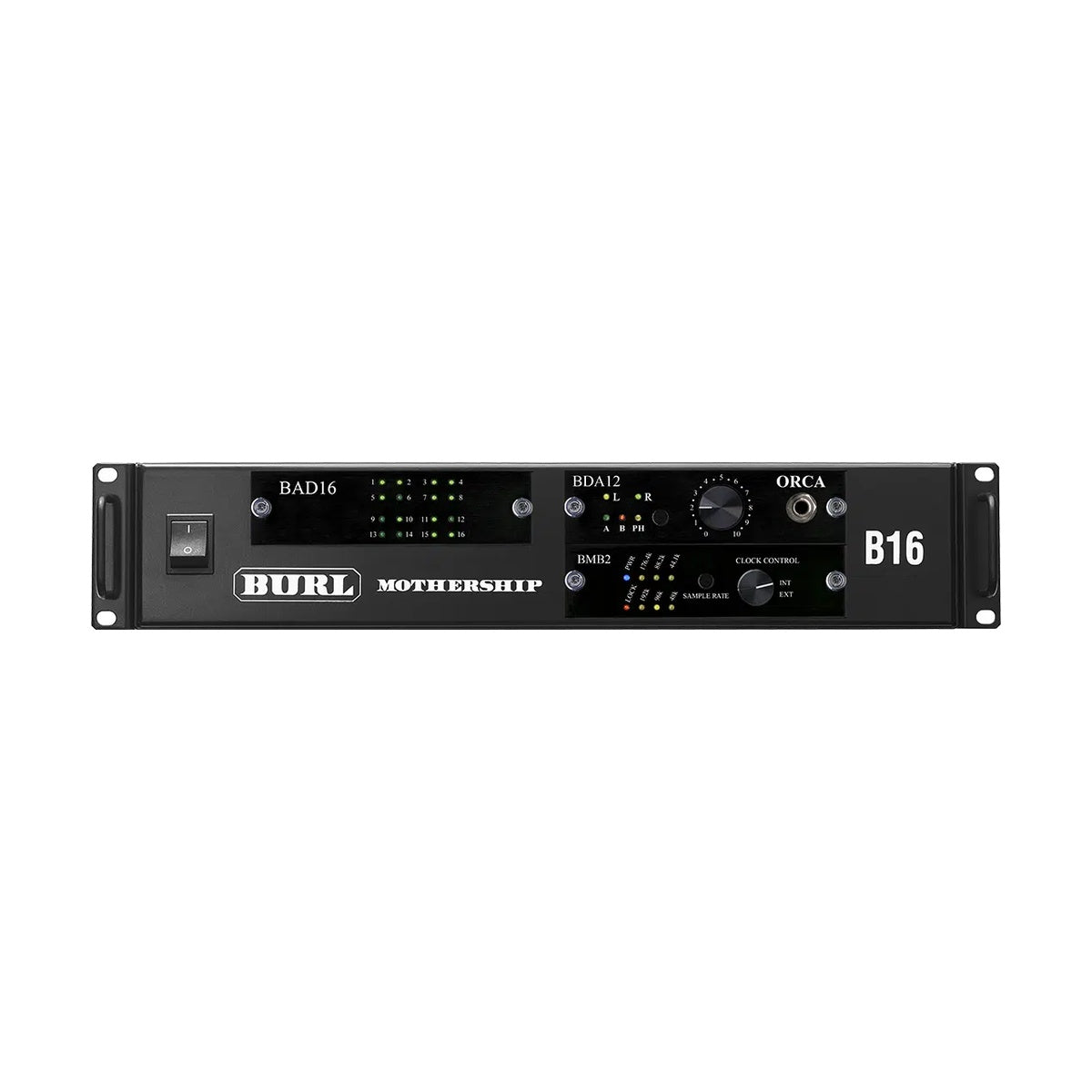

Burl Audio B16-BMB2-M3-1612 — a ready-made AD/DA system in a B16 Mothership 3 chassis, fitted with a BMB2 MADI motherboard, a BAD16 card (16-channel ADC), and a BDA12 card with twelve line outputs plus a built-in two-channel class-A monitor section.

Input conversion runs through transformer-coupled, discrete class-A circuitry with the BX8 transformer, while the line and monitor outputs use a discrete class-A path with the BOPA14 op-amp. The BMB2 motherboard provides two optical MADI ports carrying up to 64 I/O channels at 44.1, 48 or 96kHz, and up to 32 channels at 176.4 or 192kHz.

Long, lossless runs over MADI

Working over long distances between a control room and a conversion rack often leaves analog or network cabling prone to noise and interference. The BMB2 addresses this with two optical MADI ports that carry multichannel digital audio over long distances with no signal loss and no risk of electromagnetic interference, interfacing with any ASIO or Core Audio PCIe MADI card. Sixteen input channels with the BX8 transformer go straight into an existing MADI infrastructure.

A complete system with monitoring in one chassis

A compact MADI rig usually needs a separate monitor controller just to switch between speakers and headphones, adding one more box to the rack. The BDA12 card removes that step by integrating a switchable Speaker A, Speaker B and Headphones section right on the DAC card, running through the same class-A path as the twelve line outputs. That means a sixteen-in, twelve-out set with full monitor control fits in just two rack units, with no extra cabling to an outboard controller.

KEY FEATURES

  • Complete set: B16 Mothership 3 chassis, BMB2 motherboard, BAD16 and BDA12 cards
  • 16 ADC input channels, 12 line DAC channels, and a 2-channel monitor section
  • BMB2 motherboard with two optical MADI ports
  • Up to 64 I/O channels at 44.1/48/96kHz, up to 32 at 176.4/192kHz
  • Transformer-coupled inputs with the BX8 transformer
  • Outputs and monitor section with a discrete class-A BOPA14 op-amp
  • Switchable Speaker A, Speaker B, Headphones with no external controller
  • Compatible exclusively with MOTHERSHIP 3 architecture

TECHNICAL SPECIFICATIONS

  • Chassis: B16 Mothership 3, 2U, 2 card slots
  • Motherboard: BMB2 MADI, 2 optical ports
  • I/O channels over MADI: up to 64 at 44.1/48/96kHz, up to 32 at 176.4/192kHz
  • Input card: BAD16, 16-channel ADC, class-A, BX8 transformer
  • Output card: BDA12, 12 line channels plus 2 monitor channels (Speaker A/B, headphones)
  • Card connectors: DB25 (DSUB, Tascam pinout)
  • Word clock: 1 BNC input, 2 BNC outputs
  • Power: internal power supply
  • Compatibility: MOTHERSHIP 3 only
