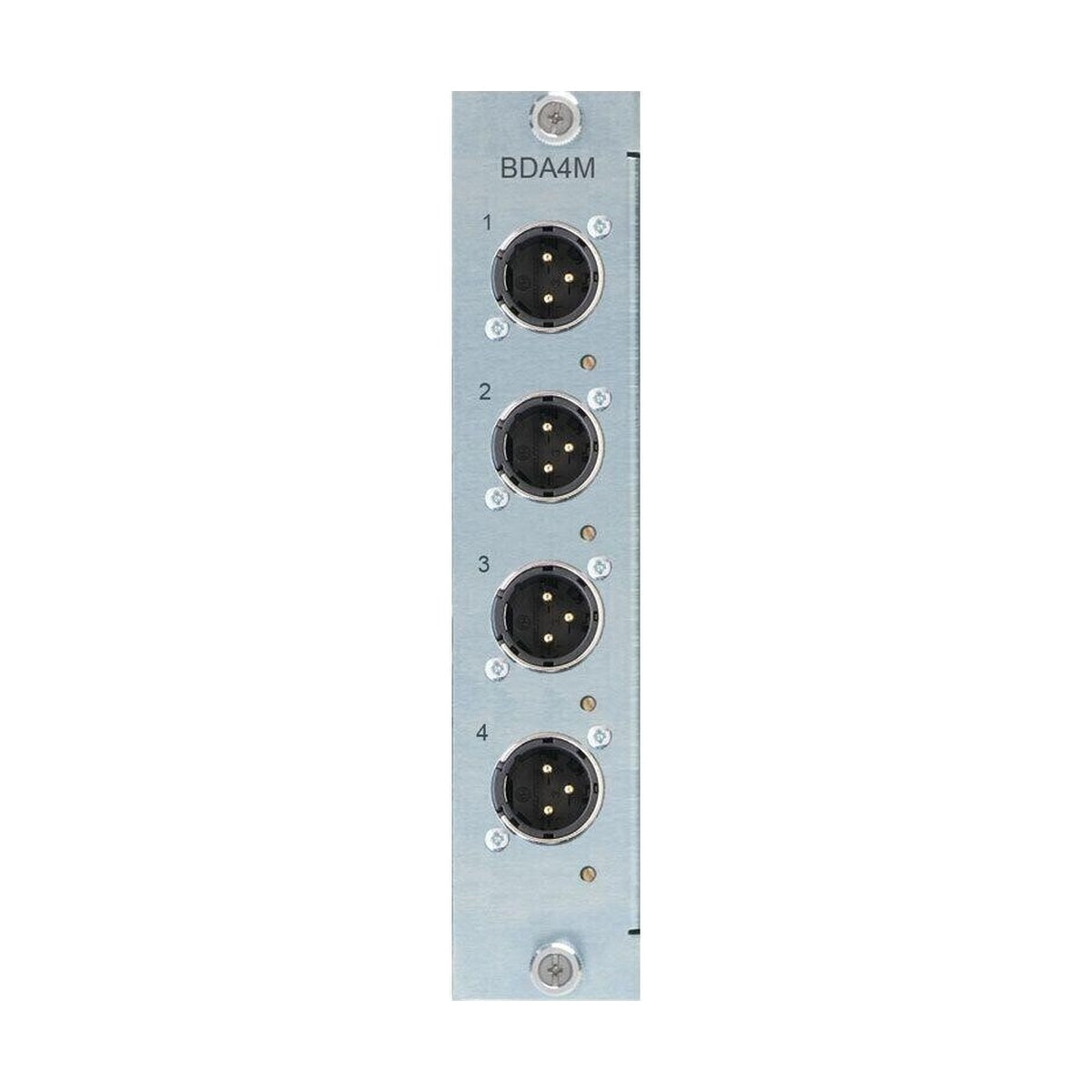

Burl Audio B16-BDA4M-1414 — a 4-channel mastering-grade DAC card for the B16 Mothership chassis, with a switchable BX5 output transformer and a B2-style stepped attenuator. The same card also fits a B80 chassis.

The signal path runs through a BOPA14 or BOPA11 op-amp from the NextGen Analog line, and its output can be routed through the BX5 transformer, the same one used in the B32 Vancouver Mix Bus, or bypassed for a cleaner, more direct path. On the digital side, the card offers a switchable DAC filter and Avid delay compensation.

Precise hardware inserts with no phase drift

Patching an outboard processor into a mix or mastering insert loop usually introduces a small but audible phase offset between the dry and processed paths. The BDA4M addresses this with Avid delay compensation, which precisely matches the output delay to the return time of an external device. Paired with a BAD4M card, it forms a complete four-channel insert loop ready for any analog mastering processor.

Tone control right from the front panel

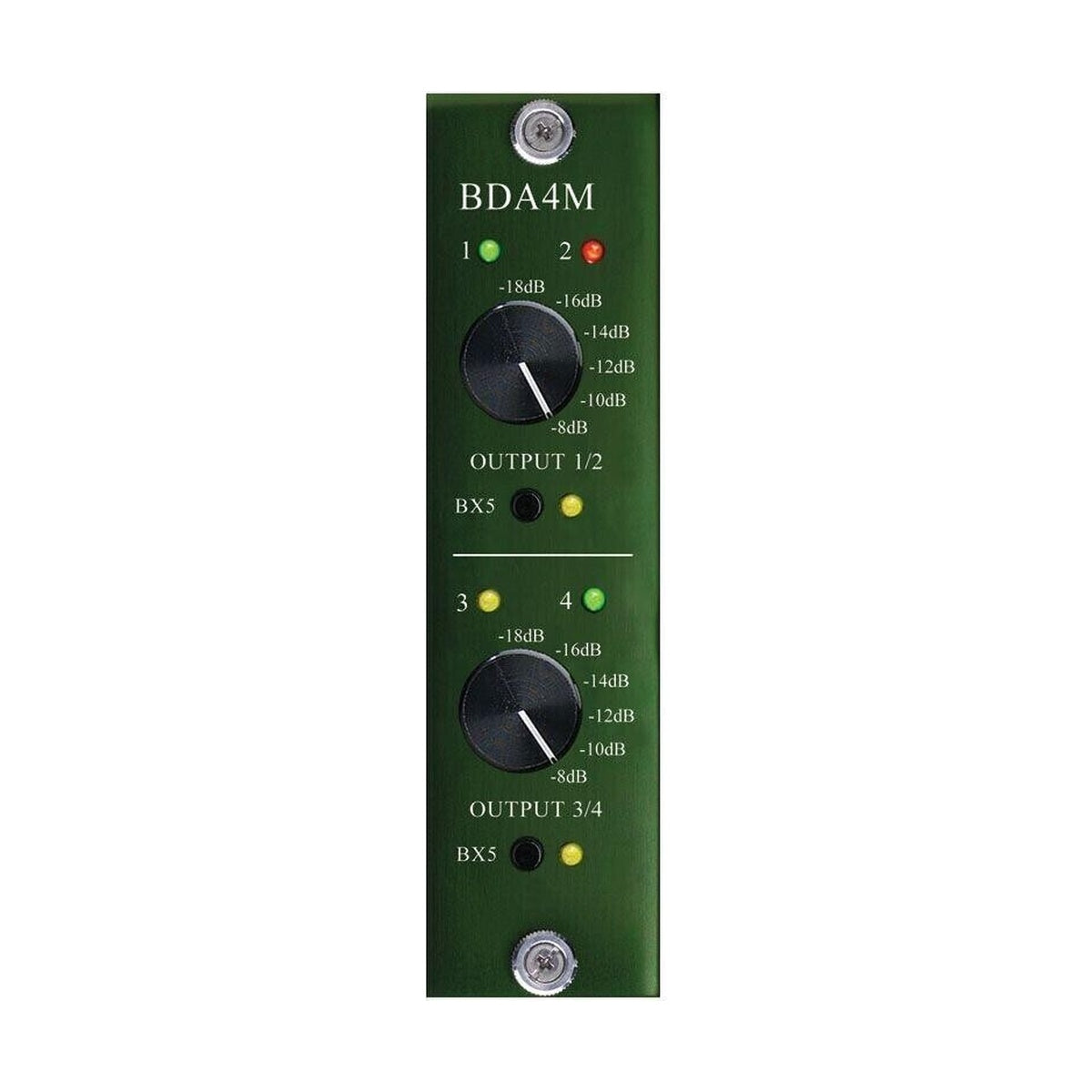

Mastering engineers often need to switch quickly between clean, transparent conversion and a more colored, analog sound, without swapping cards or repatching cables. The BDA4M addresses this with a switchable BX5 output transformer for added density and depth, a B2-style stepped attenuator for precise level control, and a switchable DAC filter that shifts tone from the classic BURL sound to a more aggressive character with a more forward midrange.

KEY FEATURES

  • 4-channel mastering-grade digital-to-analog conversion
  • XLR connectors for four channels
  • BOPA14 or BOPA11 op-amp (NextGen Analog)
  • Switchable BX5 output transformer
  • B2-style stepped attenuator
  • Switchable DAC filter (classic / more aggressive)
  • Avid delay compensation for hardware inserts
  • Compatible with B80 and B16 Mothership chassis

TECHNICAL SPECIFICATIONS

  • Channel count: 4 (DAC)
  • Connectors: 4x XLR
  • Op-amp: BOPA14 or BOPA11 (NextGen Analog)
  • Output transformer: switchable BX5 (nickel core)
  • Level control: B2-style stepped attenuator
  • DAC filter: switchable, two tonal modes
  • Delay compensation: Avid delay matching
  • Application: mixing and mastering, insert loops
  • Compatibility: B80 and B16 Mothership chassis (identical card)
