Burl Audio B16-B22-ELMA
Burl Audio B16-B22-ELMA

Burl Audio

Burl Audio B16-B22-ELMA

Sale price€2.973,00

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 21913
Quantity:
Delivery within 8-12 weeks

Contact

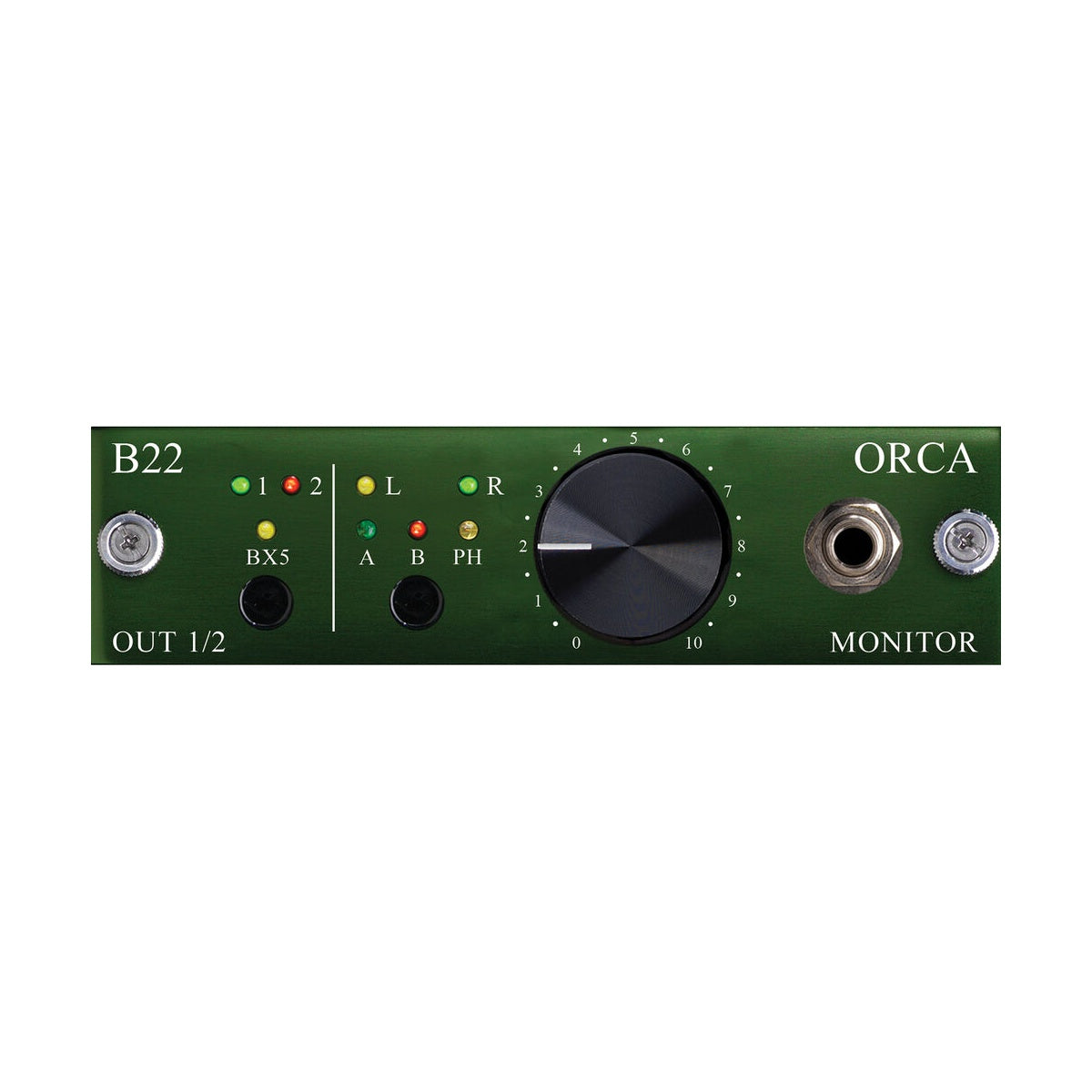

Burl Audio B16-B22-ELMA – a portable B16 Mothership interface configuration with the four-channel B22 ORCA DAC and control room monitoring card, in the precision ELMA stepped attenuator version. The two-slot B16 Mothership chassis, in a 2U format, runs the exact same B22 ORCA card found on the larger B80 model - a fully discrete Class-A analog path on BOPA14 chips, with two mix/mastering DAC channels fitted with a switchable BX5 transformer and two channels feeding the monitoring section with speaker and headphone outputs. The ELMA version replaces the standard ALPS potentiometer with a switch built on 0.1%-tolerance matched resistors, keeping the same setting precision as the larger chassis.

Stepped-switch precision in a compact chassis

Stepped level control via the ELMA switch lets you return to exactly the same monitoring setting between sessions, whether the unit lives permanently in a studio or travels between different recording locations. That matters for mobile work, where a room's acoustic conditions can vary, but repeatable reference levels across sessions remain essential for consistent mixing decisions.

A flexible setup with a second open slot

The B16 chassis' second slot can be filled with an ADC conversion card, such as a BAD4 or B4, creating a complete tracking-and-monitoring path in one small unit instead of pairing a separate recording interface with an external monitor controller. That setup cuts the number of devices in a traveling recording rig without giving up precise, analog control over monitoring level.

KEY FEATURES

  • B16 Mothership 2U chassis with two conversion card slots
  • B22 ORCA card: 4-channel DAC with a control room monitoring section
  • Two mix/mastering channels with a switchable BX5 output transformer
  • Two channels feeding stereo speaker and headphone outputs
  • ELMA stepped switch with 0.1% matched resistors
  • Second slot available for an additional ADC conversion card

TECHNICAL SPECIFICATIONS

  • System type: modular AD/DA interface, 2U chassis
  • Number of card slots: 2
  • Conversion card: B22 ORCA, 4-channel DAC with monitor controller
  • Analog path: discrete, Class-A (BOPA14), BX5 transformer
  • Dynamic range: 115 dB
  • THD+N: -96 dB, full scale output +22 dBu

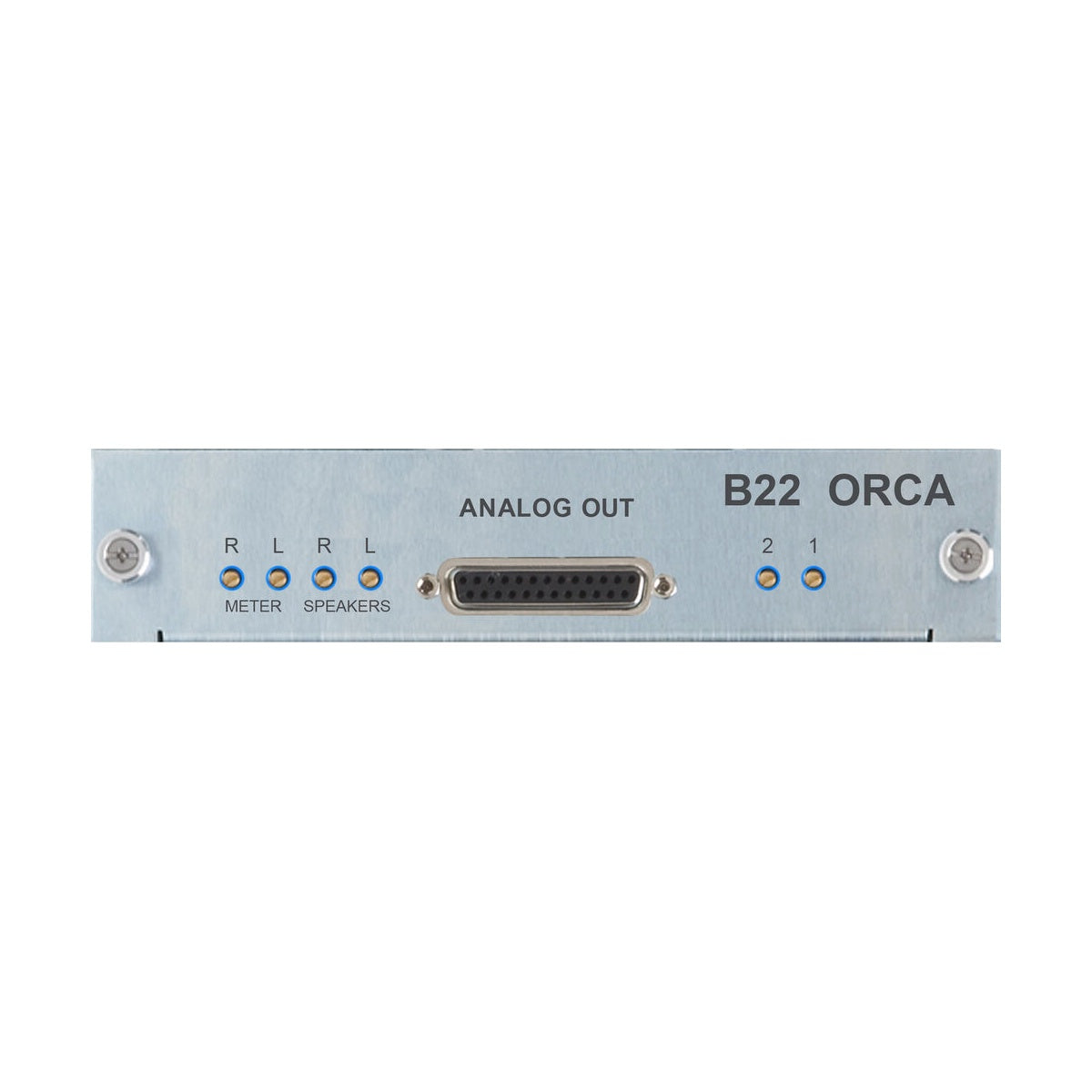

  • Card connectivity: 8-channel DB25 (Tascam style)
  • Level control: ELMA stepped switch (0.1% resistors)
