Black Lion Audio

Black Lion Revolution EXP

€906,92

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 58812
Quantity:
In stock
Pickup available at Warsaw Showroom

Black Lion Revolution EXP

Warsaw Showroom

Pickup available, usually ready in 24 hours

Nowogrodzka 6
102
00-513 Warszawa
Poland

+48573580840

Contact

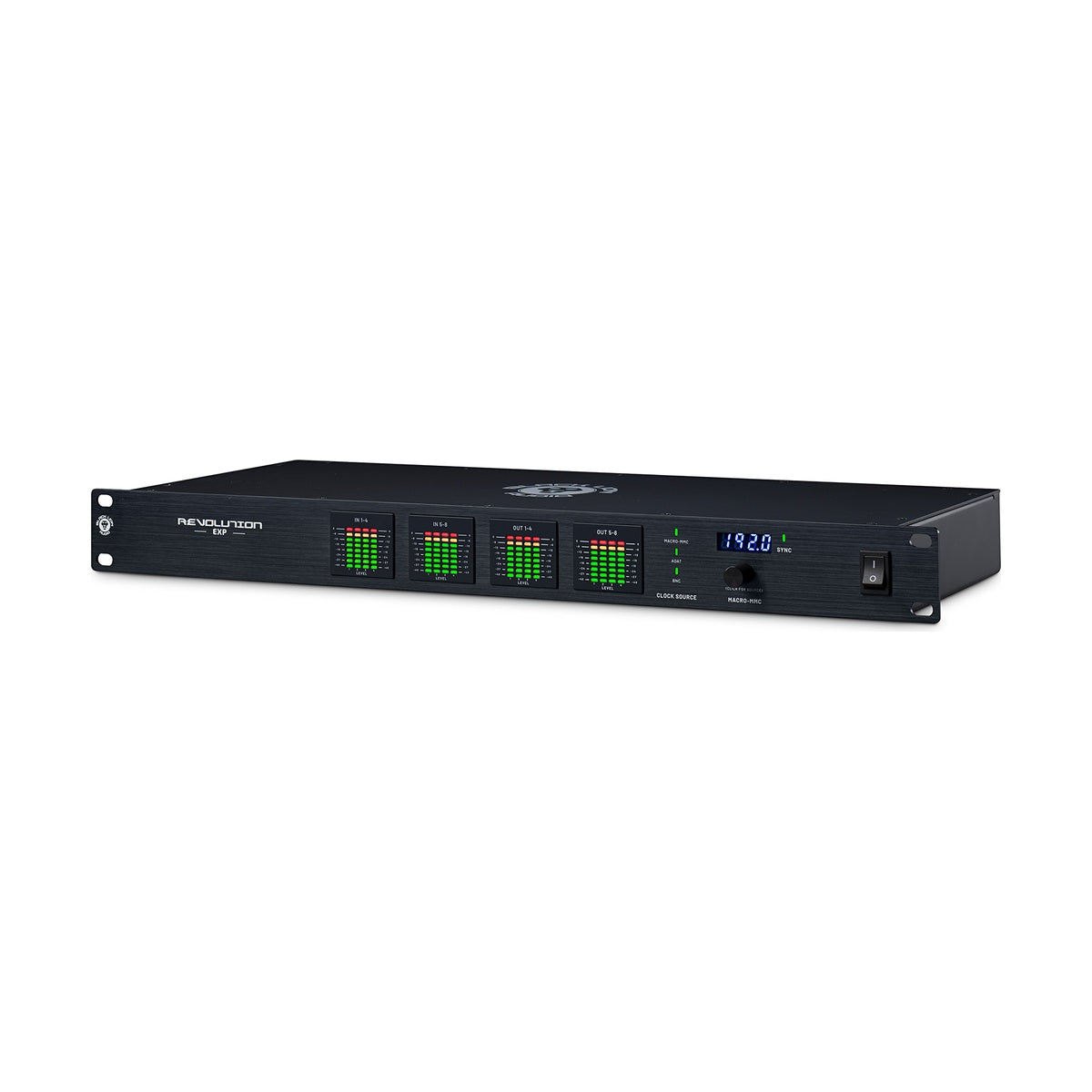

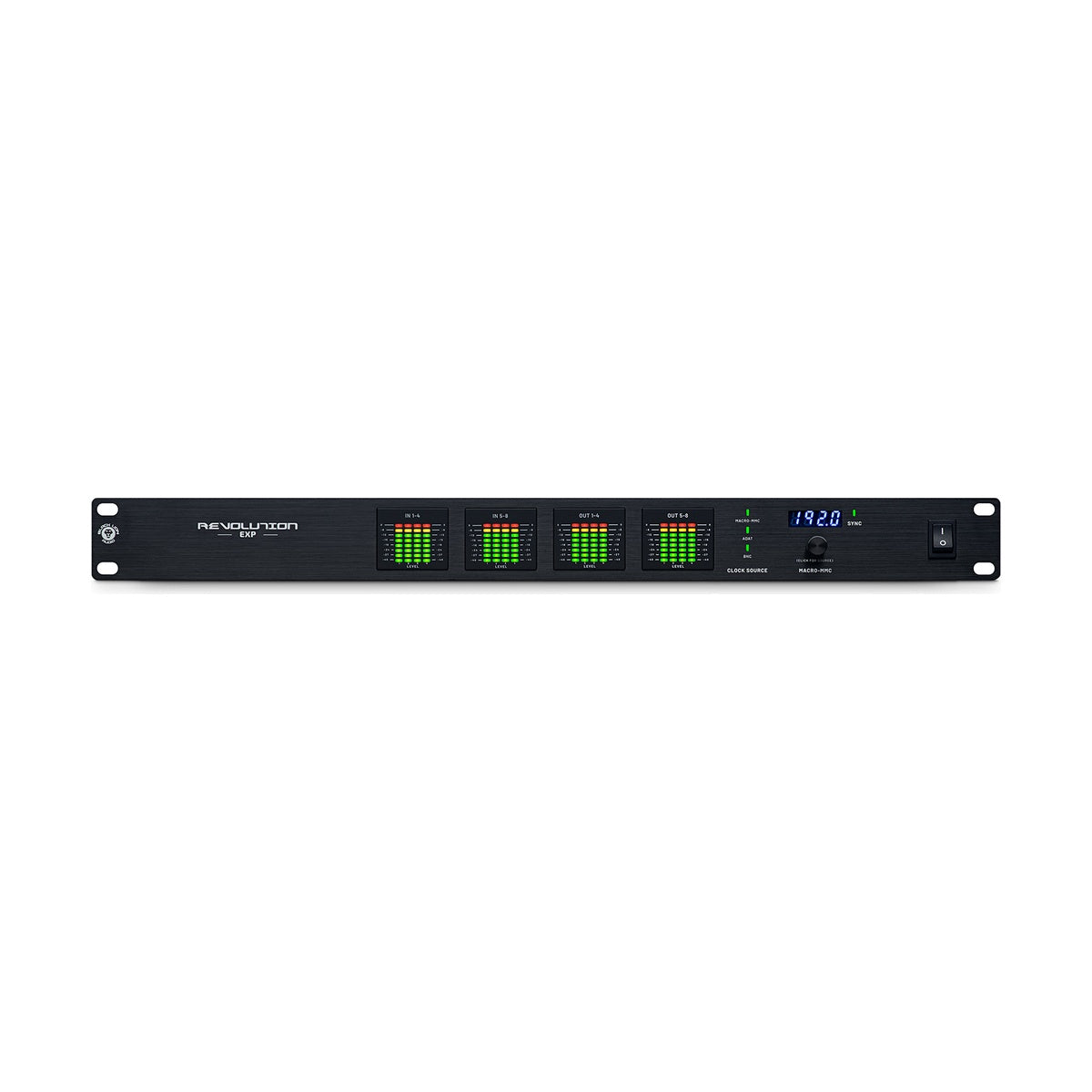

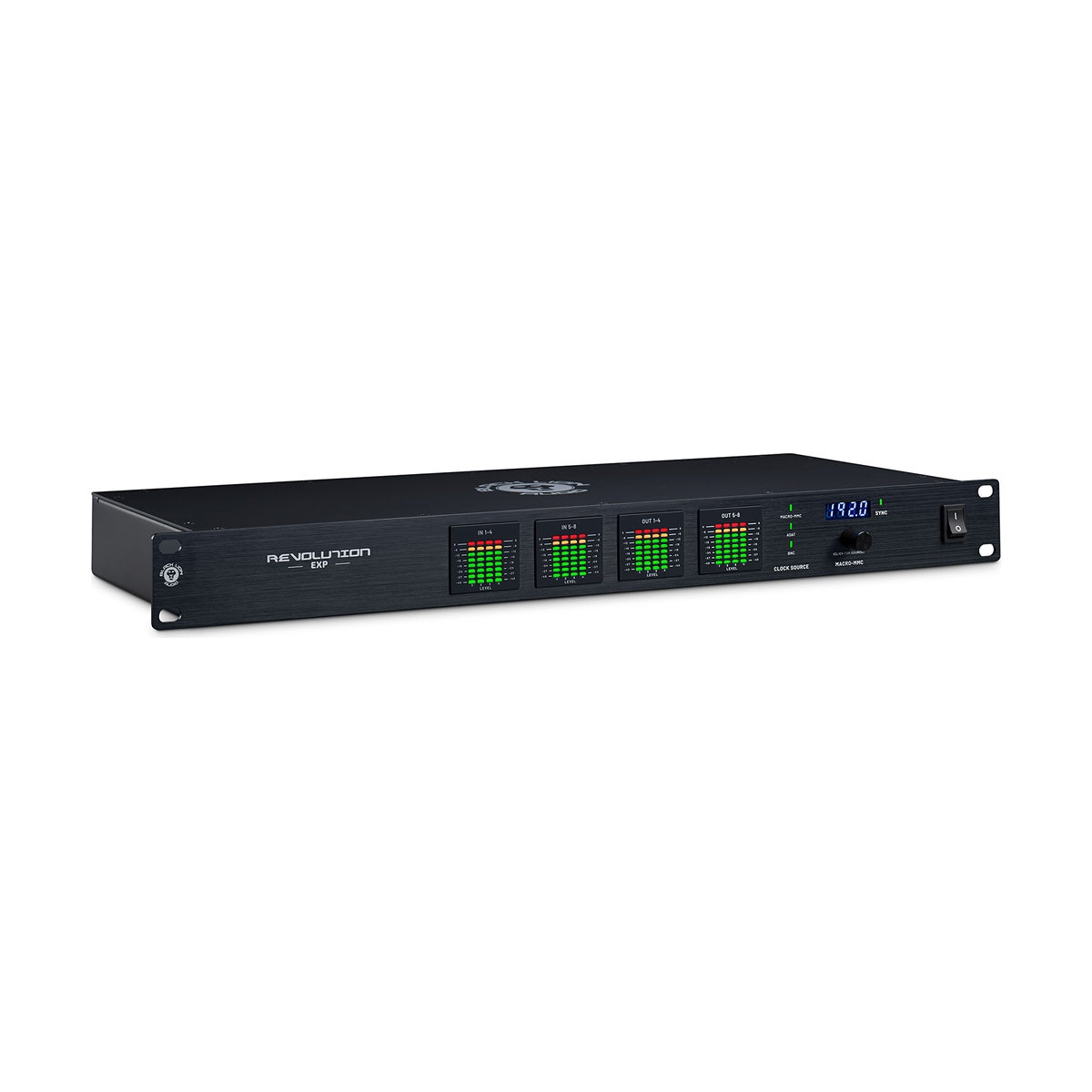

Black Lion Audio Revolution EXP is a premium 8-channel AD/DA converter with ADAT interface, designed to expand your studio's I/O capabilities while maintaining uncompromising audio quality. It features 16 analog TRS connections (8 inputs and 8 outputs) and dual ADAT ports supporting the S/MUX protocol, allowing for 8 channels of transmission even at 96 kHz (or 4 channels at 192 kHz). At the heart of the Revolution EXP lies the proprietary Macro-MMC (Master Music Clock) technology, which, thanks to ultra-low jitter, ensures crystalline high-end clarity and precise stereo imaging, capable of serving as the Master Clock for your entire studio.

The design is built around boutique components from renowned manufacturers like Nichicon, Vishay, and Wima, ensuring maximum signal integrity and minimal noise floor. Each analog input features a -10 dB Pad to handle hotter signals, while bright, 8-stage LED meters allow for precise level monitoring. Its rugged metal chassis makes it the perfect solution for expanding setups with external hardware processors (compressors, EQs), recording multi-channel drums, or mixing in Dolby Atmos systems.

KEY FEATURES

  • 8 analog inputs and 8 analog outputs on TRS connectors
  • Dual ADAT ports (S/MUX) supporting up to 192 kHz (4 channels)
  • Proprietary Macro-MMC clocking technology with ultra-low jitter
  • Boutique components (Nichicon, Vishay, Wima) for audiophile quality
  • Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
  • 8-stage LED meters for every input and output
  • Inputs with -10 dB Pad function
  • Rugged, road-worthy metal construction

TECHNICAL SPECIFICATIONS

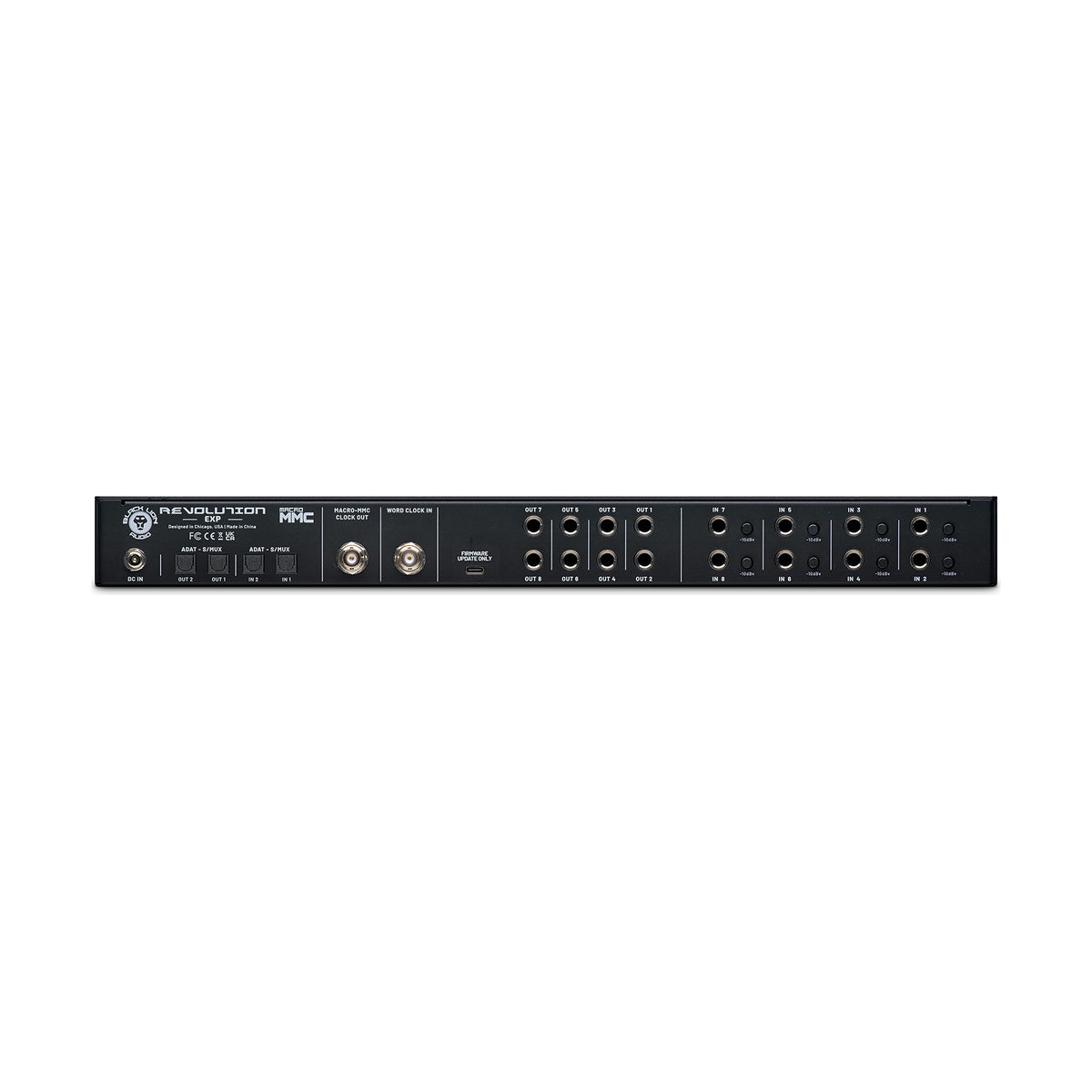

  • Analog Inputs: 8x TRS 1/4" (Balanced)
  • Analog Outputs: 8x TRS 1/4" (Balanced)
  • Digital Connections: 2x ADAT In, 2x ADAT Out (Toslink)
  • Dynamic Range (AD/DA): 112.8 dB
  • THD+N (Input): 0.00143%
  • Crosstalk: -119 dB
  • BNC Connectors: Word Clock In, Word Clock Out
  • Power: External power supply
