Black Lion Audio Micro Clock MkIII – external master clock with ultra-low jitter, syncing digital gear up to 384 kHz. Features 6 BNC outputs (up to 384 kHz), AES/EBU, coaxial/optical S/PDIF (up to 192 kHz). Macro MMC tech reduces jitter and adds harmonics for better conversion quality. Ideal for studios, enhancing clarity and detail. LED frequency display, removable rack ears, bus-powered.
The device excels in low jitter (<1 ps), galvanic isolation, and noise filtering, hand-calibrated in USA.
MAIN FEATURES
- 6 BNC outputs up to 384 kHz, AES/EBU, S/PDIF (coax/opt) up to 192 kHz
- Macro MMC: jitter reduction and harmonics for musicality

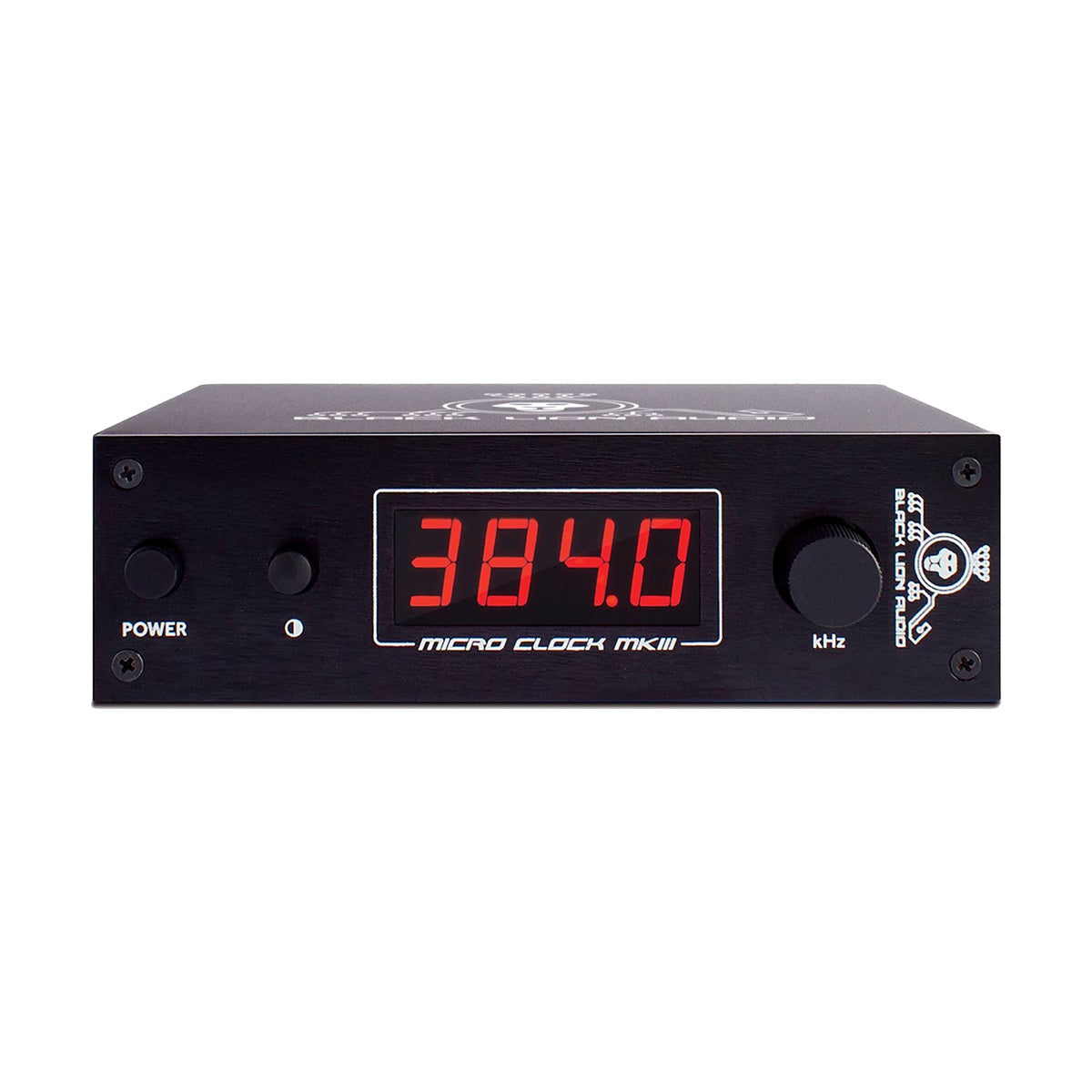

- LED frequency display, 44.1–384 kHz

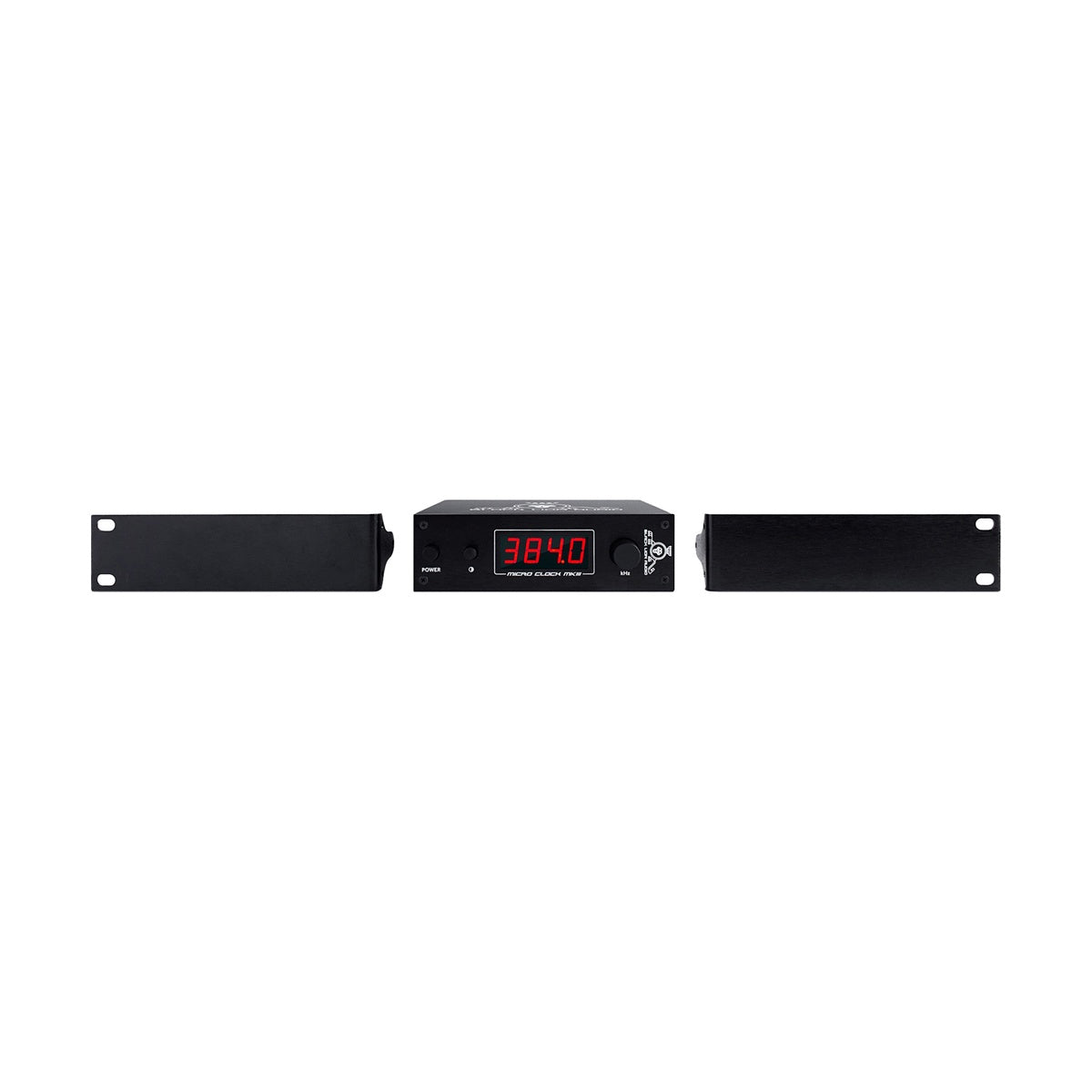

- Removable 1U rack ears, compact build
- Low power draw, stable crystal oscillators
- Improves A/D-D/A conversion in digital setups
- Galvanic isolation and noise filtering
- Hand-tested for quality
TECHNICAL SPECIFICATIONS
- Outputs: 6 x BNC (Word Clock, up to 384 kHz), 1 x AES/EBU (XLR), 1 x S/PDIF coaxial (RCA, up to 192 kHz), 1 x S/PDIF optical (TOSLINK, up to 96 kHz)
- Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
- Jitter: <1 ps RMS (BNC), low noise
- Power: External 9V DC, low consumption
- Dimensions (WxHxD): 165 x 44 x 115 mm (with rack ears: 19" 1U)
- Weight: 0.8 kg
- Housing: Anodized aluminum
- Included: Power supply, rack ears, manual
