Befaco Output V3

Befaco Output V3 – a professional output module for modular synthesizer systems, offering signal balancing and extended monitoring functions. Designed as the final stage of the audio chain before external amplification or recording, it features balanced line outputs and a dedicated headphone amplifier with independent monitoring control, making it ideal for both live and studio setups.

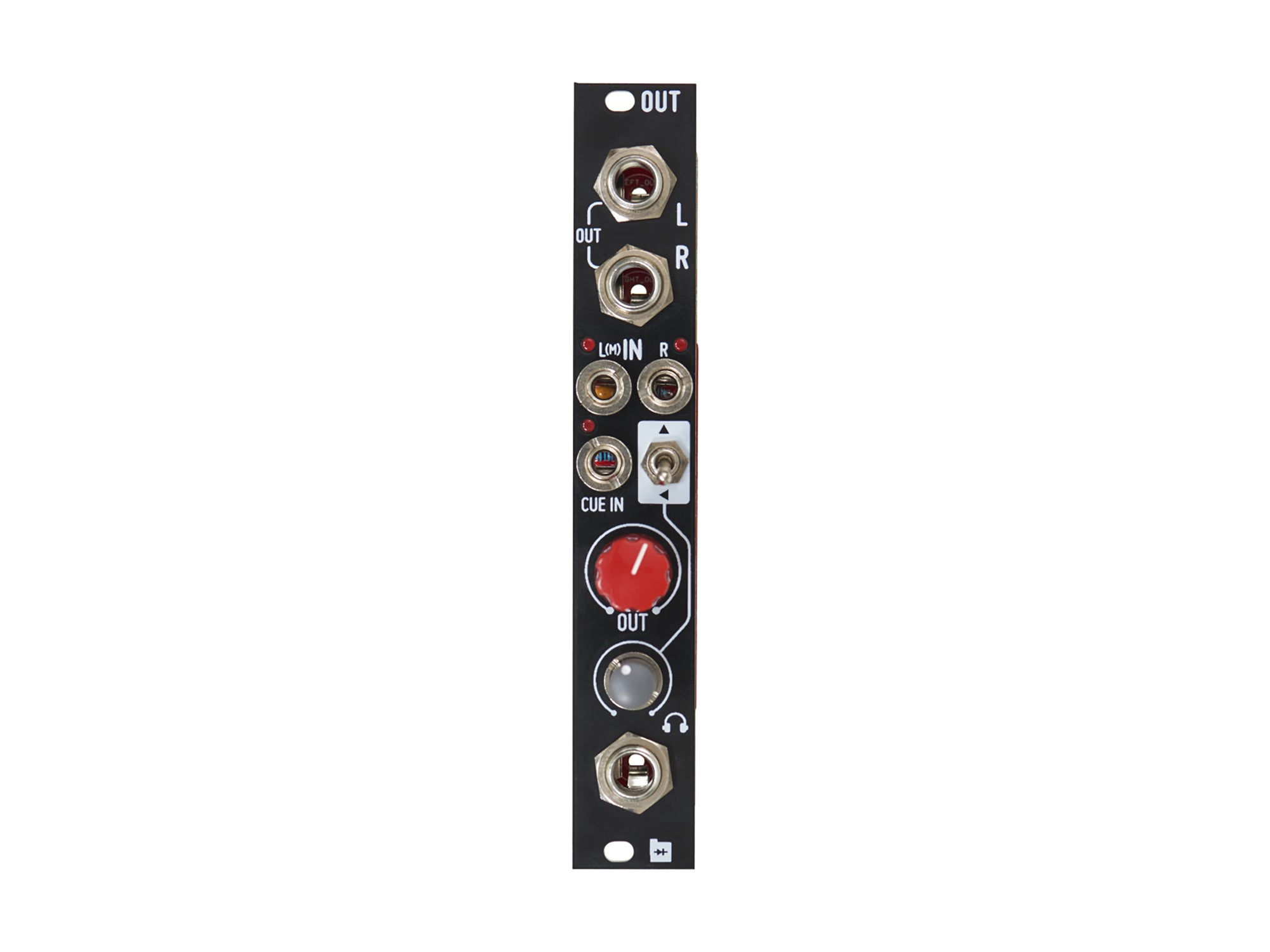

The module is equipped with balanced 6.5 mm TRS outputs for optimal signal transmission and a powerful headphone output for direct listening. LED signal indicators allow real-time volume monitoring. The Cue input function enables sending alternative signals to headphones without interrupting the main output, which is especially useful for complex patches and live performances. The robust hardened aluminum front panel ensures durability, while the compact 4HP width makes it a perfect solution for systems with limited space.

Befaco Output V3 Features

• 6.5mm TRS Balanced Line Outputs
• 6.5mm TRS Headphone Output
• LED signal monitoring for each input
• Selectable signal monitoring at the headphone output

Befaco Output V3 Specifications

• Current needs: +12V: 24mA, -12V: 26mA
• Width: 4 HP
• Depth: 40 mm (including power connector)
• Front panel material: Hardened aluminum
• Designed, DIY kits prepared, and complete modules assembled in Barcelona
