ATC

ATC SCM110ASL PRO

Sale price€20.462,19
SPECIAL ORDER

Tax included. Shipping calculated at checkout

SKU: 27720
Quantity:

This item is available on a custom order basis only. Please contact us for more details. Contact us

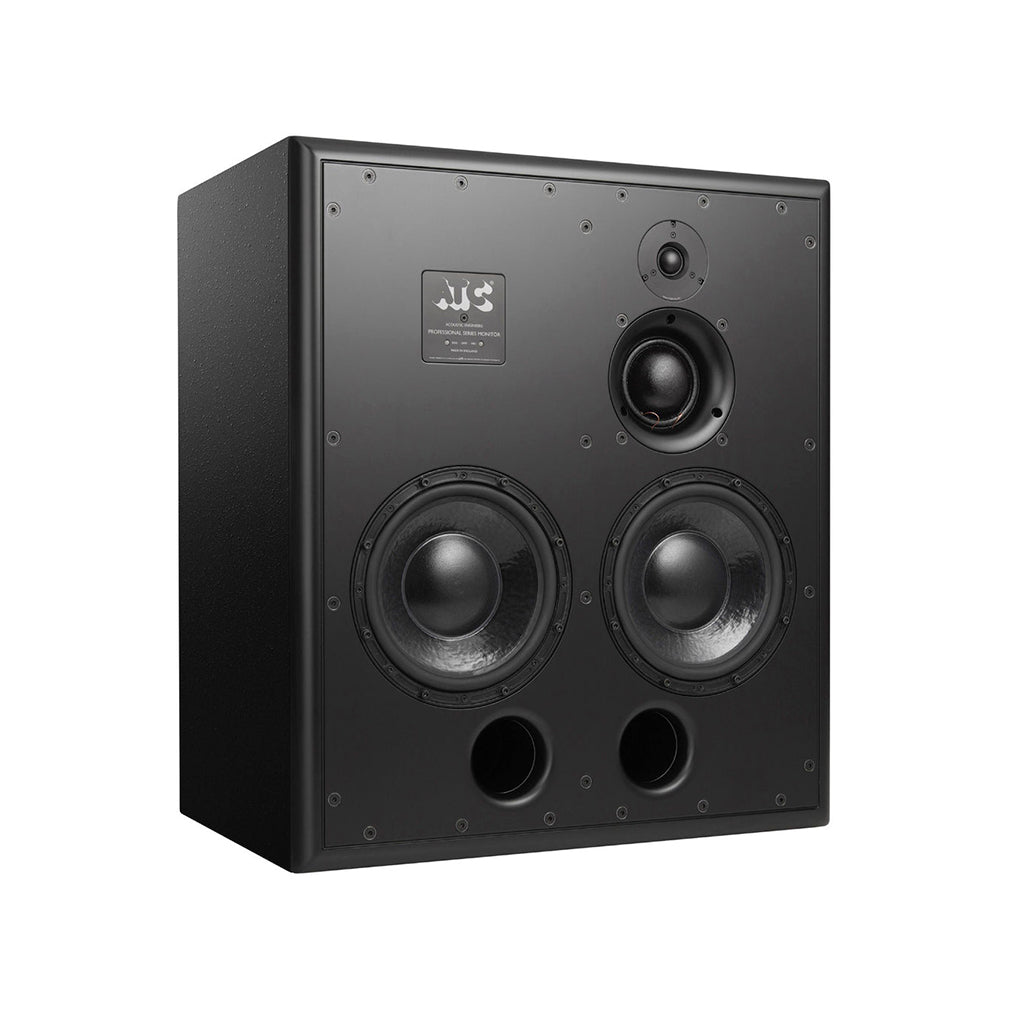

The ATC SCM110ASL Pro Studio Monitor combines extraordinary sound precision and robust power, crafted for the most discerning audio professionals. Featuring a 25mm Dual Suspension ‘S-Spec’ Tweeter, twin 9-inch “SL” bass drivers, and a 75mm “Super Dome” midrange driver, this monitor offers unmatched clarity, depth, and dynamics across the entire frequency range. Its integrated 350W tri-amplifier delivers tailored power to each driver, ensuring a balanced and cohesive audio experience.

Equipped with LF contour control for room acoustic adjustments and a clip indication feature to avoid distortion at high playback volumes, this monitor is engineered for optimal performance in any environment. Backed by a 6-year warranty, it exemplifies ATC's dedication to professional-grade quality and reliability.

Key Features

High-Precision Drivers:

  • 25mm Dual Suspension ‘S-Spec’ Tweeter for crystal-clear high frequencies.
  • 75mm “Super Dome” midrange driver for natural vocal and instrument reproduction.
  • Twin 9-inch “SL” bass drivers delivering powerful and precise low-end performance.

Tri-Amplification System:

  • Built-in grounded source amp: 200W for bass, 100W for midrange, and 50W for treble.

Enhanced Controls:

  • LF contour adjustment (+6 dB @ 40 Hz) for tuning the bass response.
  • Clip indication for overload prevention.

Acoustic Excellence:

  • Wide horizontal dispersion (±80°) and controlled vertical dispersion (±10°).
  • Even Order Critically Damped filters for seamless driver integration.

Technical Specifications

  • Frequency Range: 50 Hz – 17 kHz (±2 dB)
  • Cut-Off Frequencies: 30 Hz, 25 kHz (-6 dB, free-standing)
  • Maximum SPL: 115 dB (1 meter)
  • Crossover Points: 380 Hz, 3.5 kHz
  • Input Sensitivity: 1V, adjustable (0 dB to -6 dB)
  • Input Impedance: Balanced >10kΩ
  • Overload Protection: Active FET gain reduction and thermal tweeter protection
  • Dimensions (HxWxD): 715 x 625 x 420 mm (+3” amplifier depth)
  • Weight: 73 kg / 160.6 lbs
