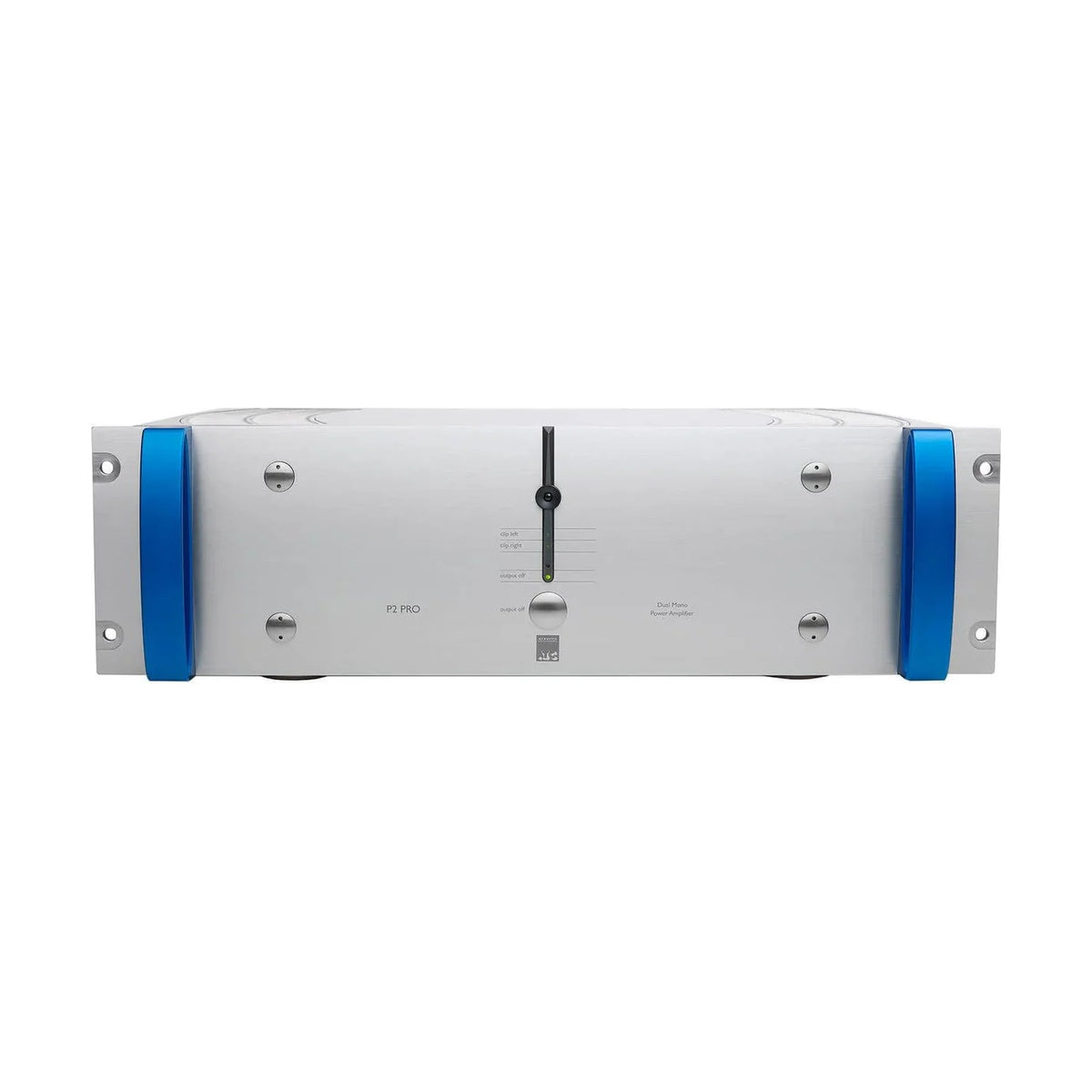

ATC P2 PRO MONOBLOCK

The ATC P2 Pro Dual-Mono Power Amplifier is a professional-grade amplifier delivering 300W per channel at 8 Ω with a true dual-mono design. This configuration ensures minimal crosstalk and consistent power output, making it an ideal choice for driving passive studio reference monitors with precision and clarity. Built into a 19” rack-mountable chassis, it combines robust construction with superior audio performance, backed by a 6-year warranty.

Designed with grounded source class A/B topology from ATC's renowned active loudspeakers, the P2 Pro offers ultra-wide bandwidth, low distortion, and exceptional dynamic range. Its high-performance power supply and efficient cooling system guarantee reliability and stability under demanding conditions. With a frequency response spanning from <2Hz to >400kHz and a damping factor exceeding 400, the amplifier ensures unmatched tonal accuracy and perfectly timed transients, meeting the exacting standards of professional audio environments.

Key Features

• 300W Per Channel: Delivers continuous, consistent power at 8 Ω across both channels.
• True Dual-Mono Design: Maximizes channel separation and minimizes crosstalk for pristine audio.
• Class A/B Circuit Topology: Ensures high fidelity, dynamic range, and tonal accuracy.
• Ultra-Wide Bandwidth: Covers <2Hz to >400kHz (-3dB) for exceptional detail.
• Precision Engineering: Minimal THD (>0.002%) and high damping factor (>400 at 8 Ω).
• Durable Construction: Built with a reliable power supply and effective cooling for long-term use.
• UK Handcrafted Quality: Manufactured with care and supported by a 6-year warranty.

Specifications

• Output Power: 300W per channel (8 Ω, 1kHz, continuous, avg., both channels driven)
• Input Sensitivity: 2V RMS (ref. 150W out)
• Input Impedance: 10kΩ/leg
• Frequency Response: <2Hz – >400kHz (-3dB)
• Signal-to-Noise Ratio: >115dB (IEC 'A')
• Crosstalk: >100dB (10Hz – 20kHz)
• THD: >0.002%/-95dB (8 Ω, 1kHz, -1dB below full power)
• Damping Factor: >400 (8 Ω)
• Dimensions: 141.1 mm (H) × 482.6 mm (W) × 365.6 mm (D) (3U height without feet)
• Weight: 24kg (52.8lbs)
• Chassis: 19” rack-mountable, convection cooled
