ATC

ATC P1 PRO MONOBLOCK

Sale price€3.546,78
SPECIAL ORDER

Tax included. Shipping calculated at checkout

SKU: 27716
Quantity:

This item is available on a custom order basis only. Please contact us for more details. Contact us

The ATC Loudspeakers P1 Pro is a professional-grade Class A/B power amplifier designed to drive passive studio monitors. Its true dual-mono construction delivers full power simultaneously on both channels, ensuring exceptional signal separation and minimal crosstalk. This amplifier features an incredibly wide frequency response, low distortion, and high dynamic range, guaranteeing tonal accuracy and precise transient reproduction.

Equipped with robust power supplies, large heat sinks, and advanced protection mechanisms, the ATC Loudspeakers P1 Pro ensures stable performance and durability. With versatile balanced and unbalanced inputs, as well as the ability to link multiple amplifiers, this model is the perfect choice for demanding professional audio setups.

Key Features

  • True Dual-Mono Design: Maximum channel separation, minimized crosstalk, and elimination of intermodulation.
  • Class A/B Topology: The same technology used in ATC’s active monitors, ensuring low distortion levels.
  • Wide Frequency Response: From <2 Hz to >400 kHz (-3 dB) for unmatched tonal accuracy.
  • Advanced Stability: High-quality power supplies, large heat sinks, and overload protection.

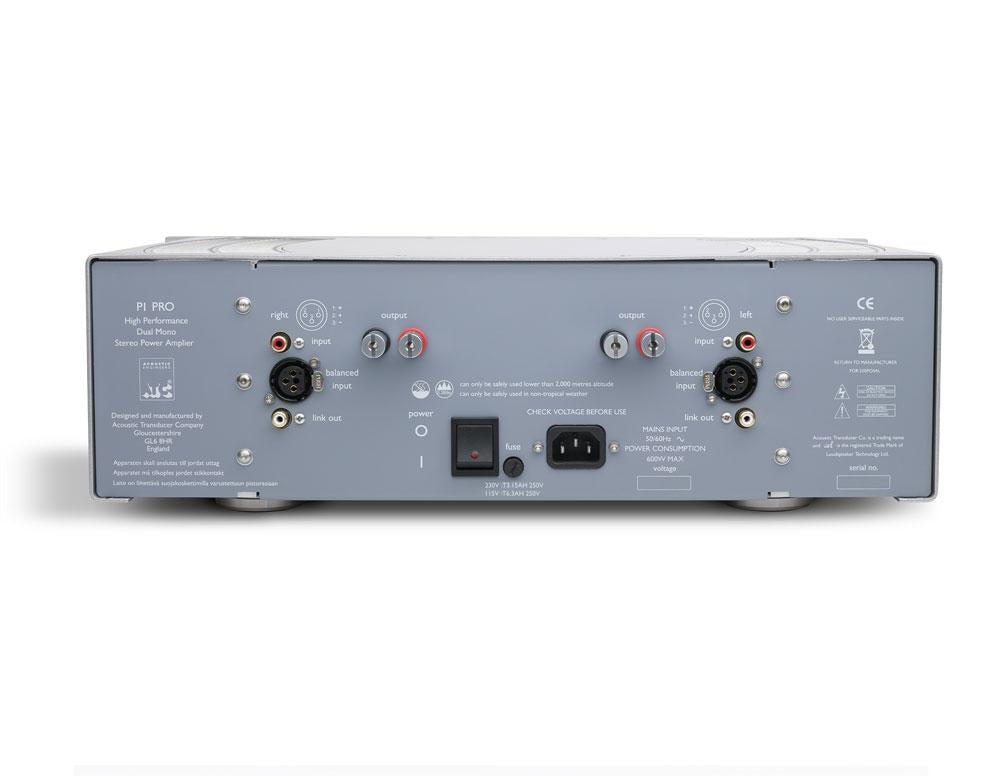

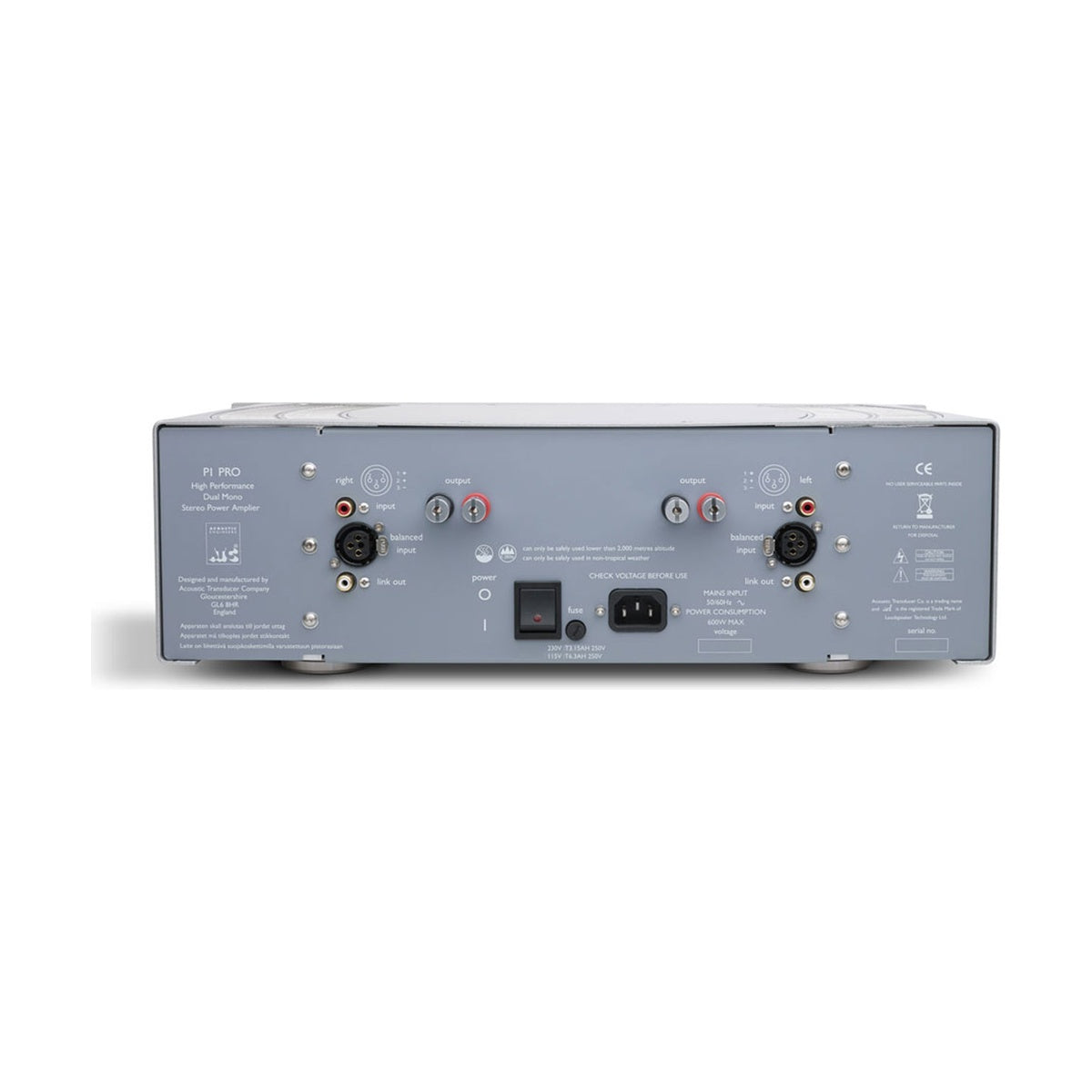

  • Flexible Input Options: Balanced XLR, unbalanced RCA, and connectivity for subwoofers.

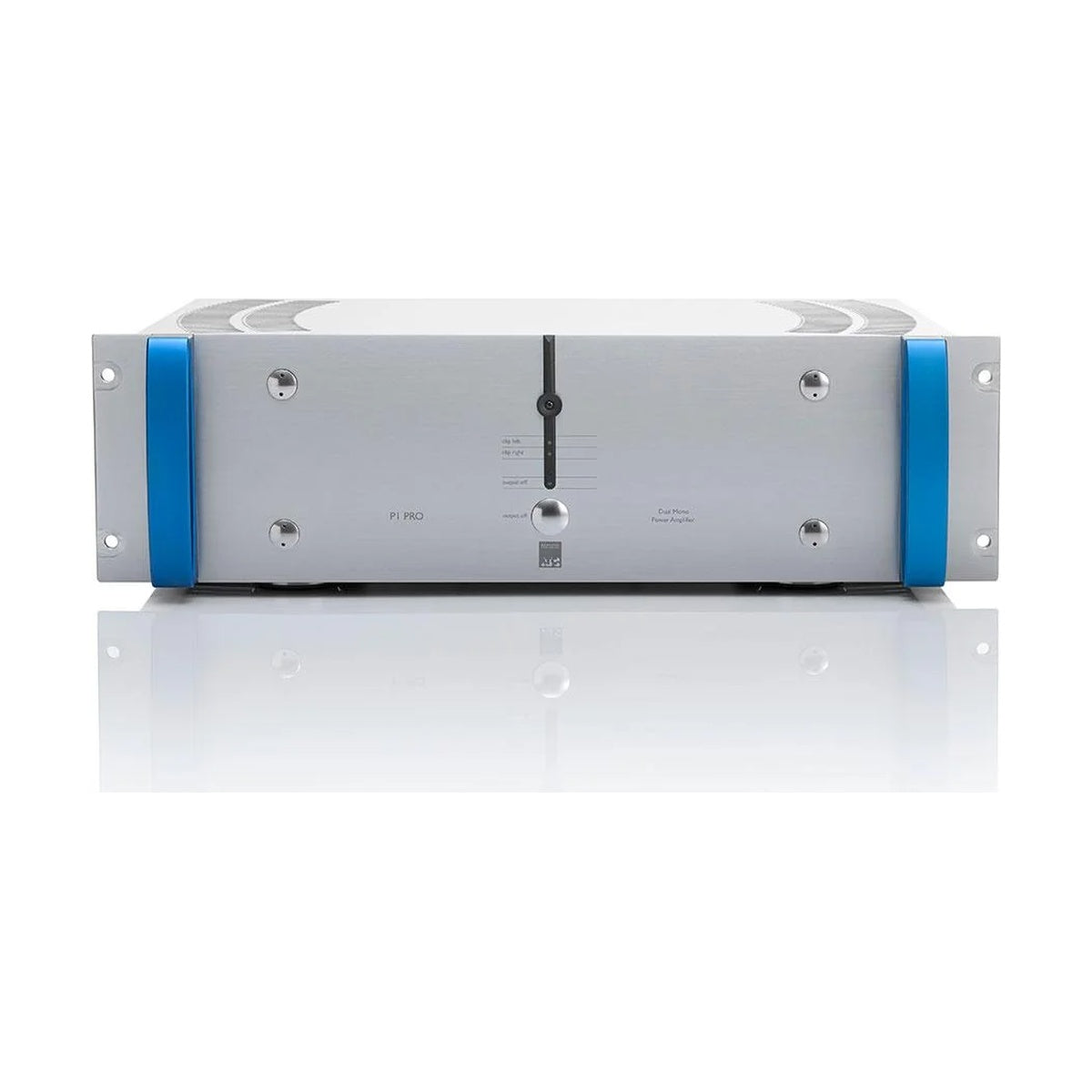

  • Rack-Mountable 19" Design: Compact 3U chassis, ideal for professional audio systems.
  • Handcrafted in the UK: Precision engineering and exceptional reliability.

Specifications

  • Output Power: 150 W per channel (8 Ω, 1 kHz, both channels driven).
  • Input Sensitivity: 2 V RMS (for 150 W output).
  • Input Impedance: 10 kΩ/leg.
  • Frequency Response: <2 Hz – >400 kHz (-3 dB).
  • Signal-to-Noise Ratio: >115 dB (IEC ‘A’).
  • Crosstalk: >100 dB (10 Hz – 20 kHz).
  • THD: >0.002%/-95 dB (8 Ω, 1 kHz, -1 dB full power).
  • Damping Factor: >400 (8 Ω).
  • Dimensions: 141.1 x 482.6 x 365.6 mm (excluding feet).
  • Weight: 20 kg (44 lbs).
  • Chassis: 19" rack-mountable, 3U height.
  • Warranty: 6 years.
