API Audio 3124MV
API Audio 3124MV
API Audio 3124MV

API Audio

API Audio 3124MV

Sale price€4.333,00

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 40568
Quantity:
Delivery within 6-8 weeks

Contact

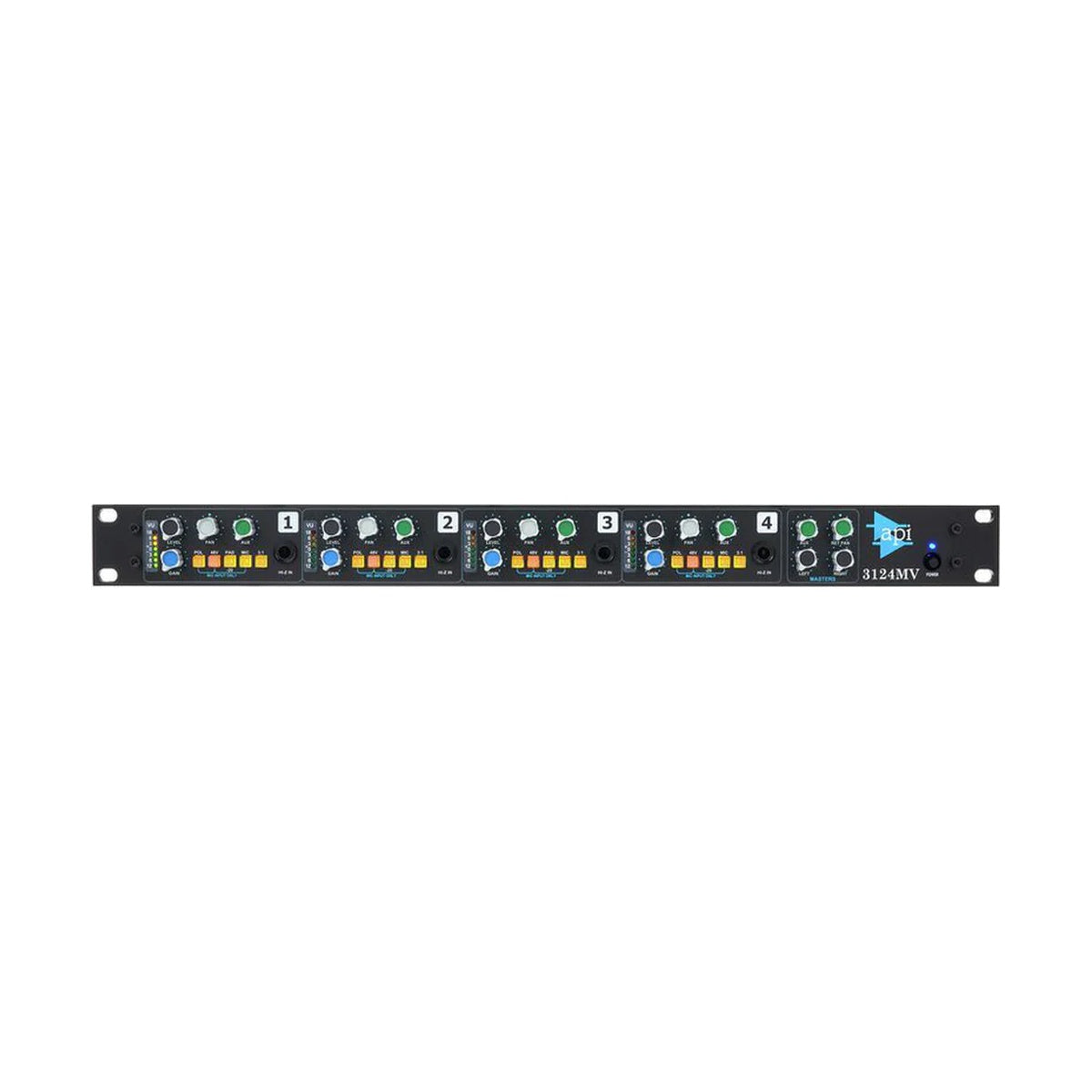

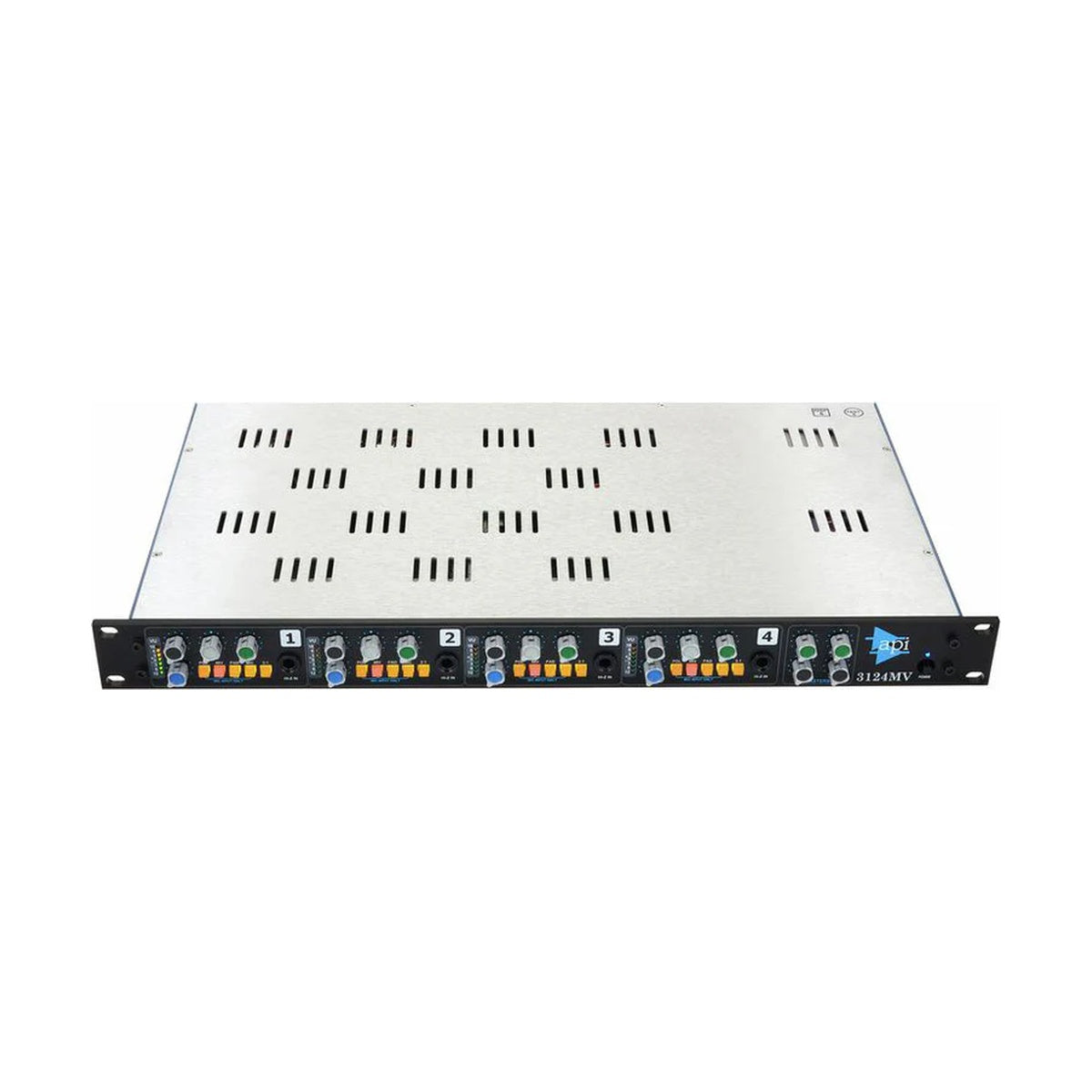

API Audio 3124MV – 4-channel mic/line preamp with integrated audio mixer for professional studios. Classic API 2520 op-amps and transformers deliver punchy, high-headroom sound. Variable output, 3:1 transformer tap, Hi-Z inputs for instruments.

Per-channel switches: polarity, 20dB pad, mic/line, 48V phantom. Stereo panner, post-fader aux send, stereo aux return for mixing flexibility. VU meter calibrated for outputs.

1U rackmount suits control rooms, stages, trucks. Up to 65dB gain, balanced XLR outputs.

MAIN FEATURES

  • 4 API 2520 mic pres with Hi-Z inputs
  • Integrated stereo mixer with panner/aux
  • 3:1 output transformer tap
  • Per-channel: pad, phantom, polarity, inserts
  • VU metering
  • Transformer-balanced mixer output

TECHNICAL SPECIFICATIONS

  • Inputs: 4 x XLR mic (1500Ω), 4 x 1/4" unbalanced (470kΩ)
  • Outputs: 4 x XLR channel (+4dBu), stereo balanced (+4dBu)/unbalanced (-2dBu)
  • Gain: Mic 10-65dB, Unbalanced 14-50dB
  • Frequency Response: +0/-5dB 10Hz-20kHz
  • THD: 0.03% @ +4dBu
  • Power: 19.2W
  • Dimensions (W x H x D): 19 x 1.75 x 10.5 in (1U)
  • Weight: 11.54 lbs
  • Included: 3124MV, power cord
  • Product Code: 3124MV
