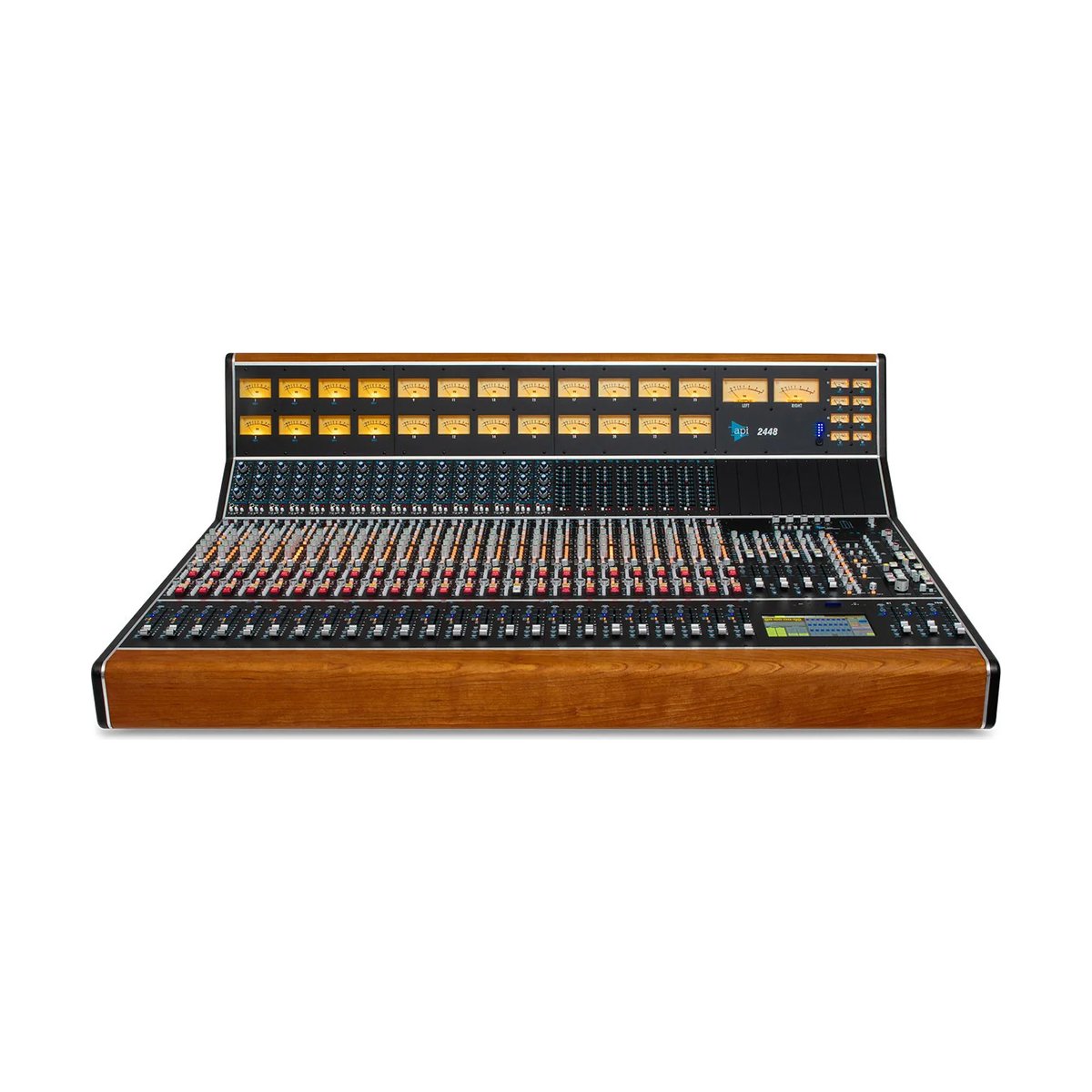

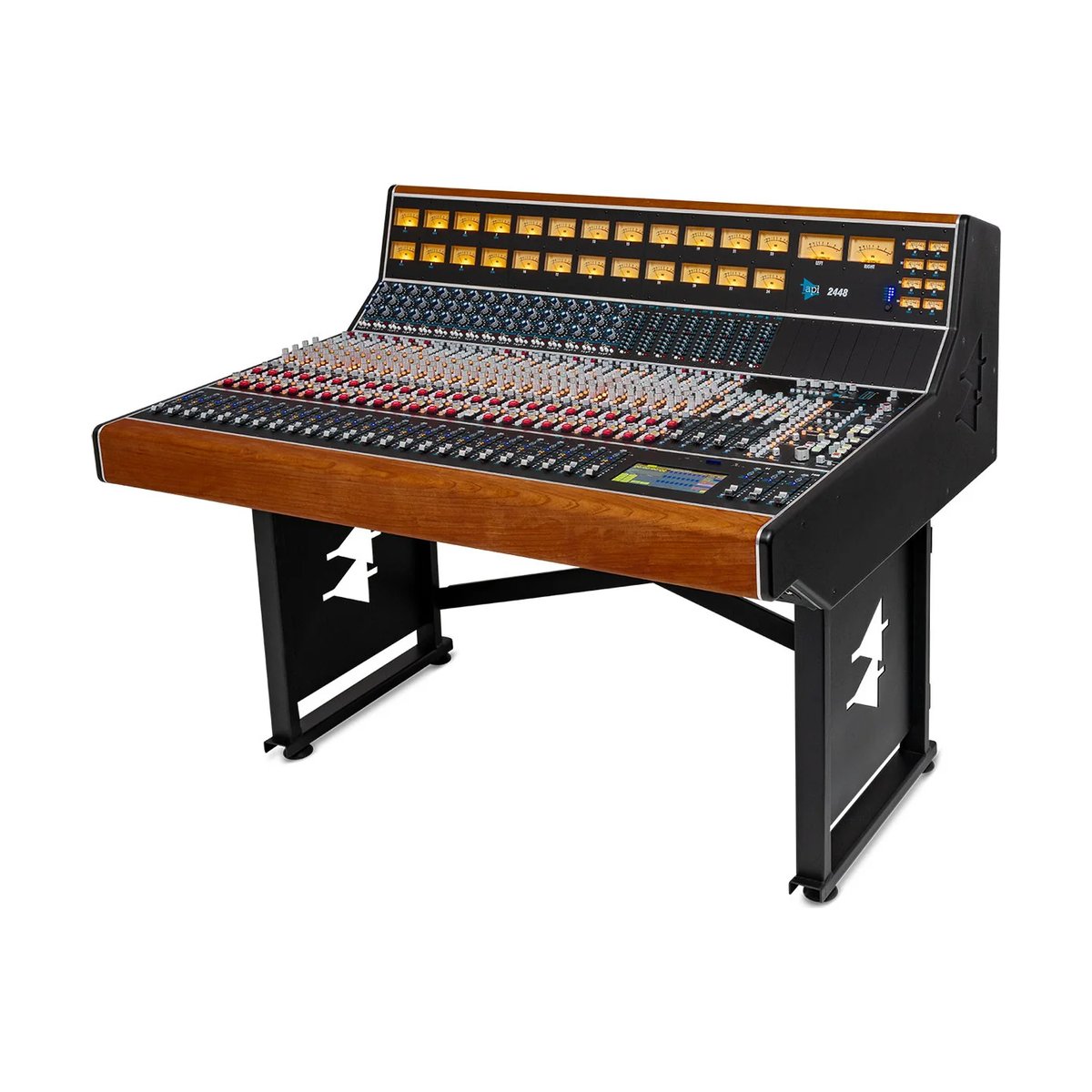

API Audio 2448 48 Channel Recording Console (Manual) is a large-format, uncompromising studio and recording equipment piece featuring an in-line architecture, crafted for engineers who demand a purely tactile, hands-on tracking and mixing experience without software overhead.
In-line Architecture and Massive Headroom
Tracking large ensembles requires pristine signal routing and zero-latency monitoring. The 48-channel in-line topology solves critical studio bottlenecks by providing two distinct signal paths (Main and Small fader) per channel, enabling simultaneous recording and mixing without repatching. Driven by API's proprietary 2520 discrete op-amps and custom transformers, the desk delivers an immense analog headroom. With an extreme clipping point of +28 dBu, it gracefully handles transient-heavy material, imparting dense, punchy harmonic saturation that effectively eliminates the sterility of in-the-box digital mixing.
Immediate Tactile Workflow and Modularity
By omitting motorized faders and automation systems, this manual configuration prioritizes raw, immediate interaction with your audio. It frees engineers from synchronization setups, allowing for pure, instinct-driven mixing. Furthermore, integrated 500 Series slots on every main input channel provide instant, patch-free access to hardware EQ shaping directly from the sweet spot. Coupled with an advanced 5.1 Center Section, the console acts as an incredibly robust, ultra-low noise hub for organic analog summing and multitrack routing.
KEY FEATURES
- 48 in-line channels providing dual signal paths (Main and Small Fader) for highly efficient tracking and monitoring.
- Fully manual 100mm faders for immediate, pure analog mixing and uninterrupted tactile control.
- Built entirely on API’s renowned discrete analog circuitry utilizing custom 2520 operational amplifiers.
- Integrated 500 Series slots on every main input channel for modular, customizable EQ processing.
- Comprehensive Center Section designed for advanced stem management and integrated 5.1 surround monitoring.
TECHNICAL SPECIFICATIONS
- Channel Count: 48 (In-line architecture, yielding up to 96 inputs at mixdown)
- Fader System: 100mm manual faders (Non-automated configuration)
- Circuit Design: Fully discrete analog topology
- Mixing Buses: 8x Multitrack Buses, 8x Aux Sends, 4x Stereo Returns
- 500 Series Integration: 48 slots (1 slot per main input channel)
- Max Output Level: +28 dBu

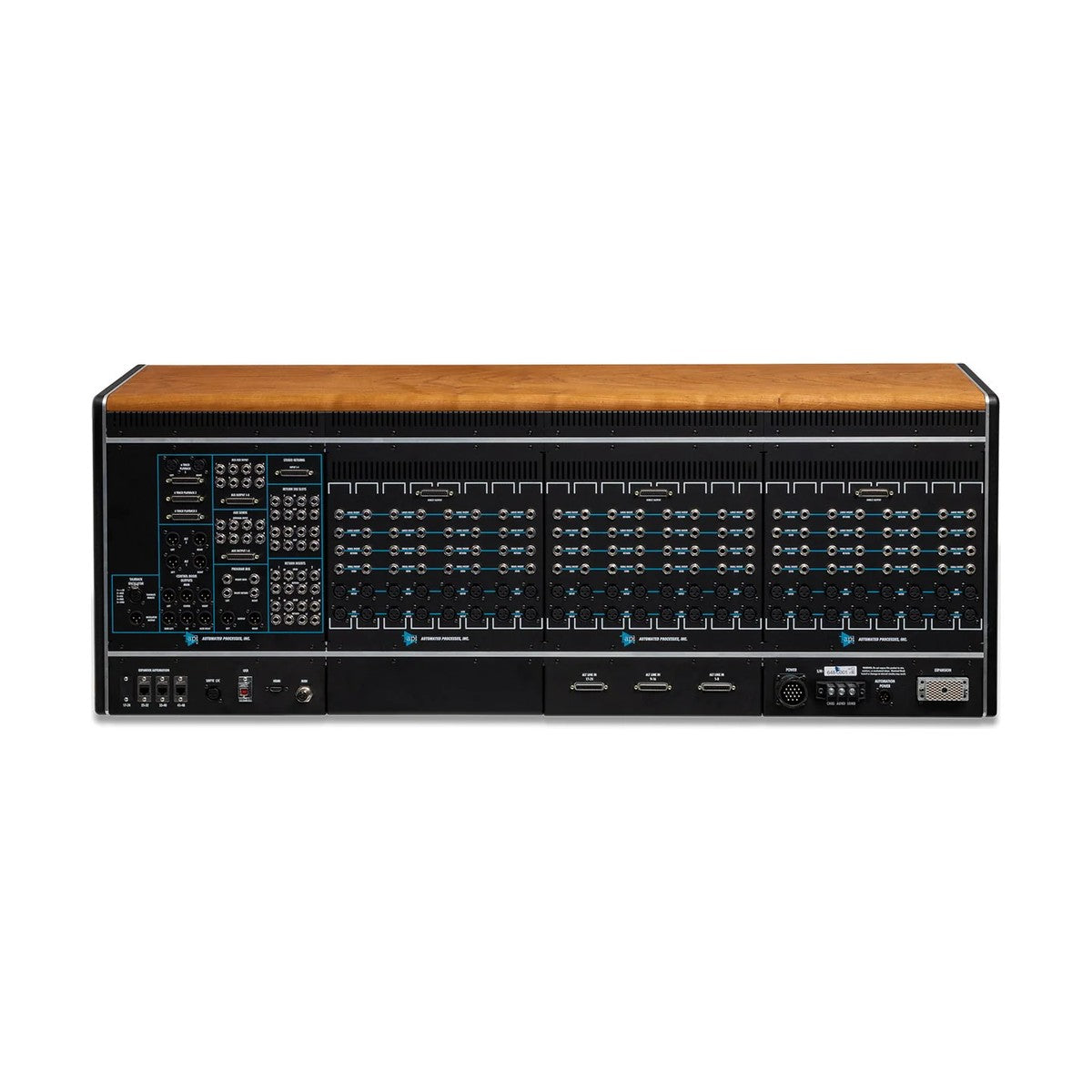

- Connectivity: Comprehensive rear-panel D-Sub and balanced XLR I/O
