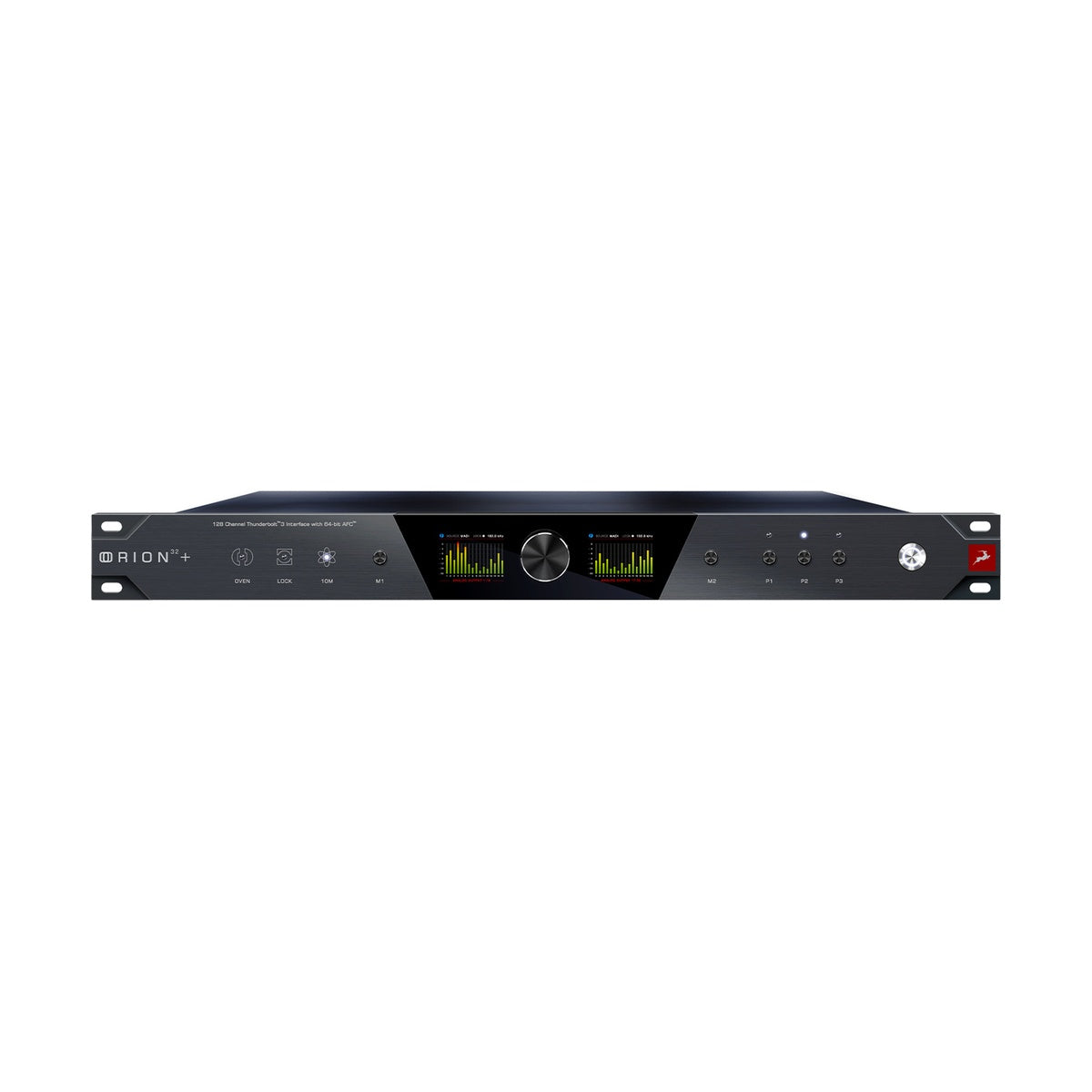

Antelope Audio Orion32+ | Gen 4
Antelope Audio Orion32+ | Gen 4

Antelope Audio

Antelope Audio Orion32+ | Gen 4

€3.173,86

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 51629
Quantity:
In stock

Contact

Special offer

Antelope Audio Spring Promo - 3 Months of Cosmos for Free!

From April 1 to June 30, 2026, when purchasing select Antelope Audio interfaces -Zenith 2, Zen Quadro Synergy Core, Discrete 8 Oryx Synergy Core and more - you will receive 3 months of Antelope Cosmos access and a Bitwig Studio Essentials license completely free. Activate your device by July 15 and discover over 75 studio plugins at no extra cost. This is a limited-time offer - don't wait!

Antelope Audio Orion 32+ | Gen4 is an enhanced version of the world's first 32-channel AD/DA converter, now offering even more precise conversion, 128 channels over Thunderbolt and MADI, redesigned software and hardware interfaces, and real-time FPGA FX processing. Designed for professional studios, DJs, and producers seeking pristine audio quality and workflow flexibility, the Gen4 builds on Antelope's legacy of transparent sound and high-end clocking.

KEY FEATURES

  • Real-time FPGA FX processing with iconic studio gear emulations
  • 128 channels of 24-bit / 192 kHz streaming via Thunderbolt™ and MADI
  • 32 channels over USB with backward compatibility
  • Comprehensive connectivity: Thunderbolt™, MADI, USB, ADAT, S/PDIF, 8x DB25
  • Pristine 64-bit fourth-generation AFC clocking with advanced jitter management
  • Fully customizable color-coded routing matrix and four independent mixers
  • Remote control from multiple networked computers via macOS and Windows
  • Updated software control panel with floating and scalable interface windows
  • Optional support for Antelope Audio’s MRC monitor controller
  • Compatible with stereo to Dolby Atmos 9.1.6 speaker calibration workflows
  • External power supply and modern front panel design

TECHNICAL SPECIFICATIONS

  • ANALOG SECTION
  • Inputs: 4 x D-SUB 25 (32 channels total), +24 dBu max, 11.2 kOhm
  • Outputs: 4 x D-SUB 25 (32 channels total), +24 dBu max, 56 Ohm
  • Monitor Out: 2 x 1/4" TRS
  • D/A converters (monitor out): Dynamic range 130 dB, THD+N -115 dB
  • A/D converters (line in): Dynamic range 122 dB, THD+N -116 dB
  • D/A converters (line out): Dynamic range 130 dB, THD+N -115 dB
  • DIGITAL SECTION
  • Inputs: 1 x MADI (128 channels), 1 x ADAT (8 channels), 1 x S/PDIF
  • Outputs: 1 x MADI (128 channels), 1 x ADAT (8 channels), 1 x S/PDIF
  • Thunderbolt 3: 128 channels I/O
  • USB 2.0 (type-B): 32 channels I/O
  • USB I/O: USB 3 (type-C) or USB 2.0 (type-B), streaming up to 480 Mbps for 192 kHz
  • CLOCKING
  • Word Clock Input: 1 x BNC @ 75 Ohm, 3Vpp, 32–192 kHz
  • Word Clock Output: 2 x BNC @ 75 Ohm, 3Vpp, 32–192 kHz
  • 10M Atomic Clock Input: 1 x BNC @ 75 Ohm, 1Vpp
  • Clock System: 64-bit DDS AFC Gen4 with temperature-controlled crystal oscillator
  • Clock Stability: < ±0.02 ppm @ 64.5°C
  • Clock Aging: < 1 ppm/year
  • Calibration Accuracy: < ±0.001 ppm
  • Sampling Rates: 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz
  • GENERAL
  • Operating Temperature: 0–50°C
  • Weight: 3.4 kg
  • Dimensions: 483 mm (W) x 44 mm (H) x 220 mm (D)
  • AC Input: Universal 95–245 V
  • Power Consumption: Max 20W
