Acme Audio Opticom XLA-3 MKII

ACME

Acme Audio Opticom XLA-3 MKII

Sale price€2.999,00

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 27615
Quantity:
This item is available on a custom order basis only

Contact

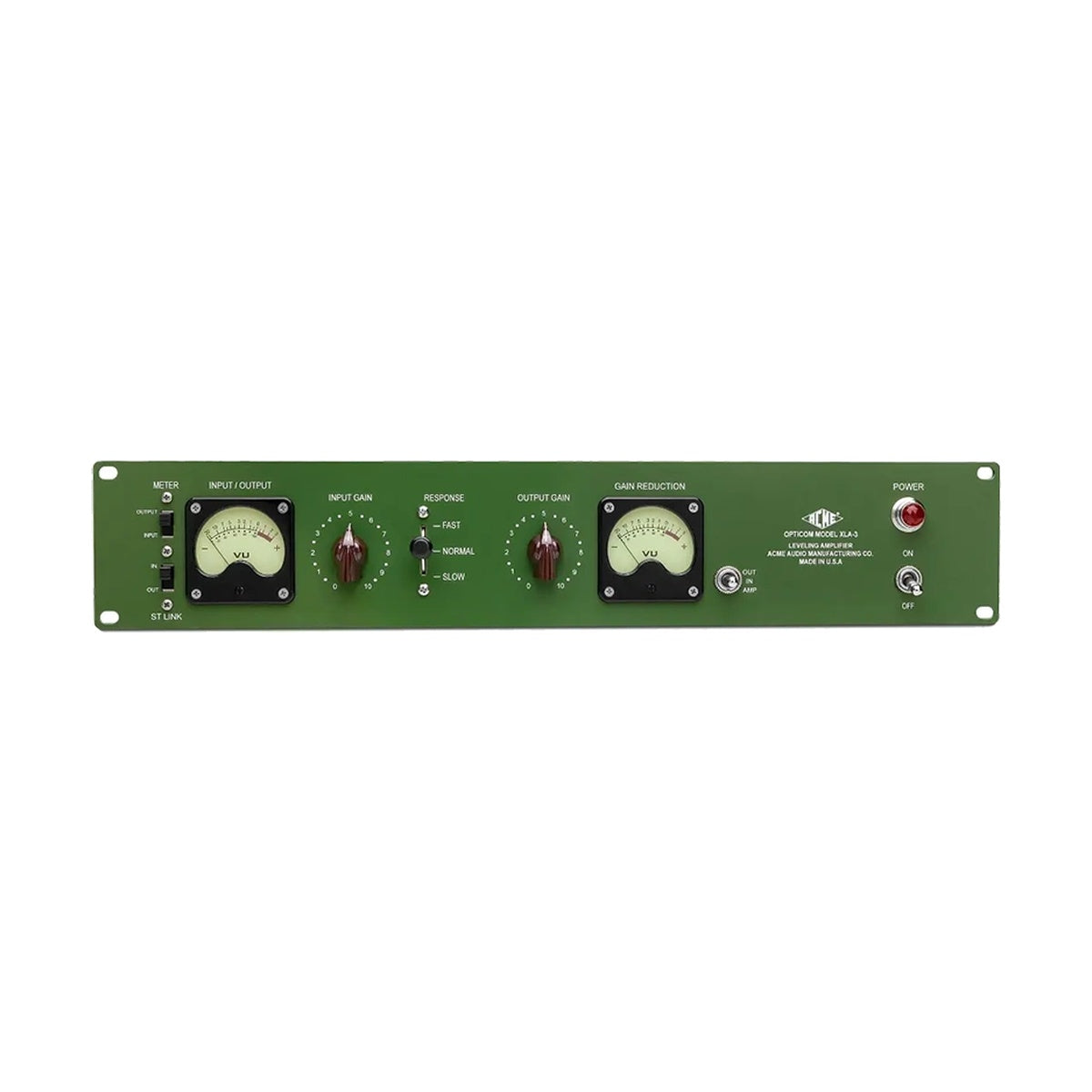

Acme Audio Opticom XLA-3 MKII is a single-channel all-tube optical limiter built on the Teletronix LA-2A idea but with three compression curves instead of one. The circuit is point-to-point wired inside a 16-gauge solid steel chassis.

Three compression curves instead of one speed

The core limitation of a classic opto is its single fixed time constant: either it suits the material or it does not. The XLA-3 offers Normal, Fast and Slow modes driven by a triple optoelectronic circuit with CdSe photocells. In Slow mode transients pass through largely intact; in Fast the unit starts behaving closer to a FET design.

Tone set by how hard you drive the input

The Cinemag input transformer and the tube gain stage respond to level: run it politely and the path stays clean, push it and saturation and density arrive, pulling a vocal in front of the rest of the mix. A 15 dB pad lets you choose the operating point regardless of source level. Gain reduction reaches 29 dB and make-up gain 34 dB, so the unit covers both gentle levelling and aggressive drum bus compression. A stereo link connector pairs two units.

KEY FEATURES

  • Single-channel optical limiter with an all-tube circuit
  • Triple optoelectronic circuit using CdSe photocells
  • Normal, Fast and Slow modes plus an Amp mode with no dynamics reduction
  • Cinemag input transformer
  • Switchable 15 dB input pad
  • Hand-wired two-stage bypass and stereo link connector
  • 16-gauge steel chassis, point-to-point wiring, Bakelite knobs

TECHNICAL SPECIFICATIONS

  • Type: tube optical limiter, single channel
  • Detection: triple optoelectronic circuit, CdSe photocells
  • Modes: Normal, Fast, Slow
  • Frequency response: 20 Hz - 20 kHz, +/- 1.4 dB
  • Maximum gain reduction: 29 dB
  • Make-up gain: 34 dB
  • Input pad: 15 dB, switchable
  • Input transformer: Cinemag
  • Connectors: Neutrik XLR input and output, stereo link
  • Metering: full-sized backlit panel meters
  • Tube sockets: Micalex
  • Power: 115/230 V AC via IEC inlet
