Phoenix Audio N-8 DI
Configurer
Phoenix Audio N-8 DI packs eight channels of discrete Class-A DI into a single 1U chassis. Every channel runs a transformerless input at 10 megohms and a DSOP-2 output stage with a custom-wound DB694 transformer.
Eight instruments instead of eight boxes under the desk
A session with synths, bass guitar and hardware modules usually ends in a pile of single DI boxes and a tangle of wall warts. The N-8 DI collects all of that into one rack space: eight jack inputs on the front, eight through sockets to pass the signal on to an amp, and eight channels that behave identically. The 10 megohm input does not load a guitar pickup or a synth output, so the top end stays where it belongs instead of disappearing into the cable.
Settings you recall click for click
Up to 30 dB of gain per channel sits on a stepped switch rather than a continuous pot, so a week later you return to exactly the same level. Each channel also carries an illuminated 15 dB pad, phase reverse and ground lift, which is the full toolkit for a ground loop hum when there is no time to hunt down the cause. Main and monitor outputs are carried on two D-sub connectors wired to the Tascam DA88 standard, so connecting to an interface is one cable for eight channels.
KEY FEATURES
- Eight channels of discrete Class-A DI in a 1U chassis
- Transformerless inputs at 10 megohms
- Up to 30 dB of gain on a stepped switch per channel
- Illuminated 15 dB pad on every channel
- Phase reverse on every channel with an illuminated switch
- Ground lift on every channel with an illuminated switch

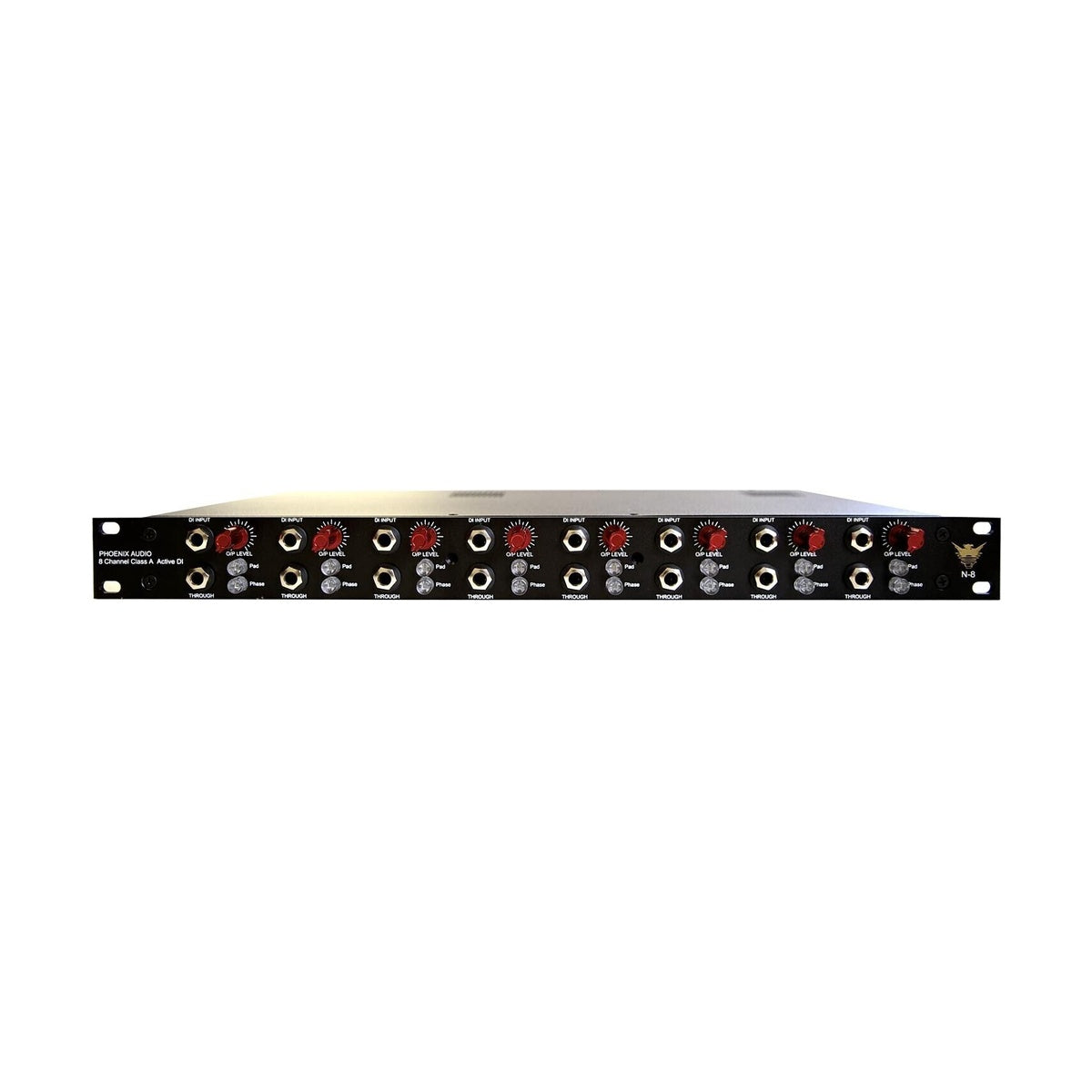

- TS jack input and through socket on the front panel
- Eight main outputs on D-sub wired to Tascam DA88
- Eight monitor outputs on a separate D-sub
- DSOP-2 Class-A output stage
- Custom-wound DB694 output transformer
- PTFE insulated, silver plated military grade wiring
TECHNICAL SPECIFICATIONS
- Channels: 8
- Input impedance: 10 megohms
- Gain range: 30 dB
- Pad: 15 dB per channel
- Frequency response: 20 Hz to 20 kHz (±0.5 dB)
- Maximum output: +26 dBu at 1 kHz
- Noise floor: -90 dB (22 Hz to 22 kHz)

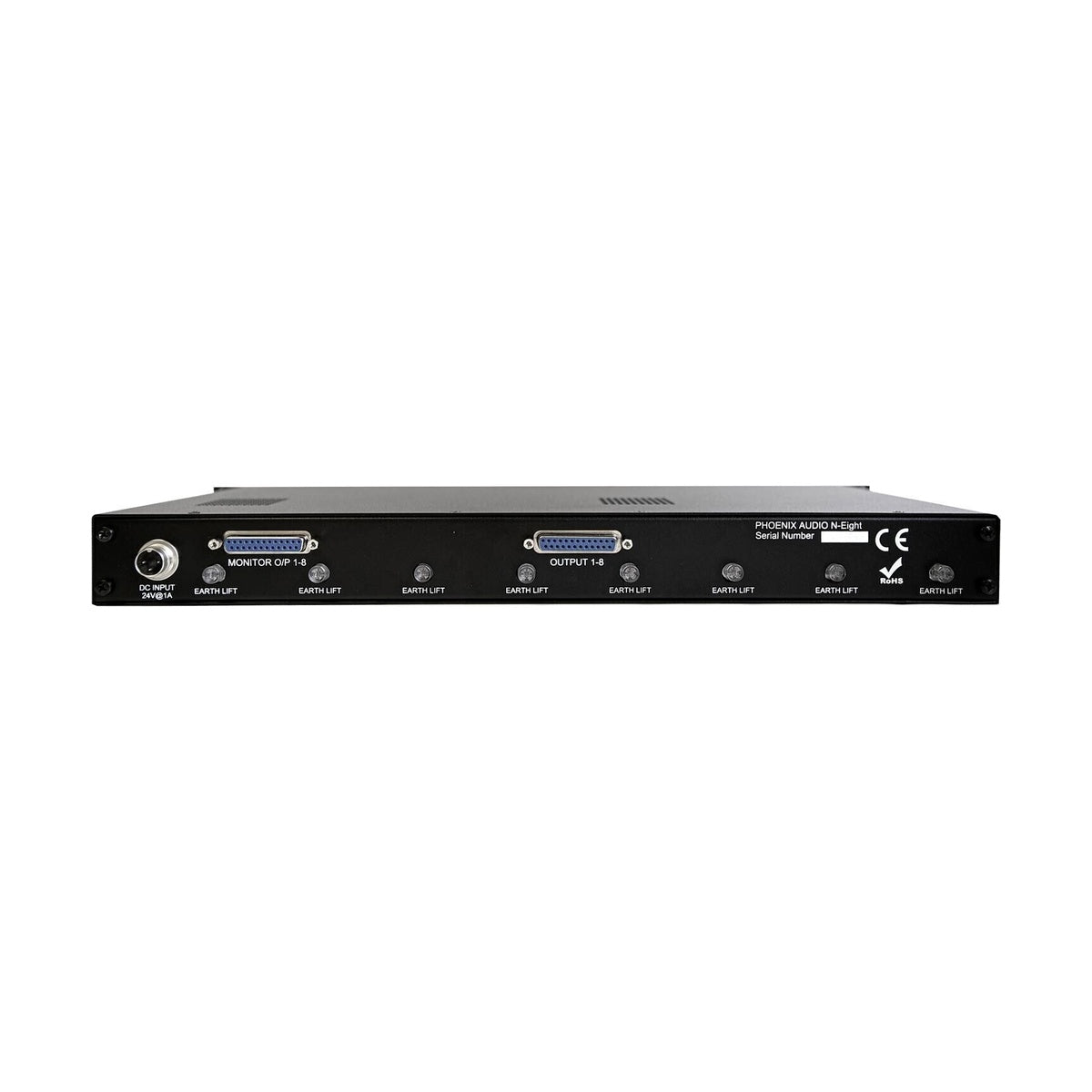

- Outputs: 2 x D-sub, main and monitor
- Power: external 24 V PSU with lockable connector
- Format: 1U for a standard 19 inch rack
