MOTU M2 vs M4: when is the upgrade actually worth it?

The MOTU M2 and M4 look like two sizes of the same interface because that is exactly what they are. Both give you two mic preamps, colour meters, MIDI, loopback, direct monitoring and recording up to 24-bit/192kHz. The M4 is not an M2 with a secret better-sounding circuit hidden under the desk. It buys you more ways in, more ways out and a quicker monitor balance.

That makes this comparison refreshingly practical. Count the sources that need to stay connected, count the destinations that need separate signals, and ignore anyone describing USB interfaces as if they were vintage wine.

What the M2 and M4 share

Start with the part that gets lost in most comparisons: the M2 already has nearly every headline feature people associate with the M Series. Its two front combo sockets accept microphones, balanced or unbalanced line sources, and guitars. Each input has up to 60dB of gain, switchable 48V phantom power and hardware direct monitoring.

The full-colour 160 × 120 display shows proper long meters rather than a traffic-light LED. Both boxes include MIDI DIN input and output, one independently controlled headphone socket, USB bus power, balanced DC-coupled monitor outputs and mirrored RCA outputs. Both can use loopback channels through MOTU's M Series driver for streaming, screen capture or recording a remote caller.

The official M Series user guide also gives the same 2.5ms round-trip latency example for the family at 96kHz with a 32-sample buffer on macOS and Windows. Treat that as a controlled driver example, not a promise for every computer: your DAW, plug-ins and CPU still get a vote.

MOTU's current M4 product page is the other useful reference for the model itself; the manual is better when you need to know what a button or socket really does.

So if your entire session is one vocal mic and one guitar, the M4 does not unlock a higher tier of recording quality. It gives the same two front recording channels more neighbours.

What the extra €30 actually buys

The M4 adds two rear line inputs. They do not have mic preamps, phantom power or front-panel gain knobs. They are made for sources that already produce line level: a stereo synthesizer, drum machine, groovebox, keyboard, mixer output or external preamp. This is the most useful difference for electronic musicians. Your synth can stay wired to inputs 3–4 while inputs 1–2 remain available for a vocal and guitar.

You also get four independent balanced line outputs. A DAW can send one signal to outputs 1–2 and something different to 3–4: a hardware effects loop, a second monitor path, a cue feed or stems for a live set. The RCA sockets mirror their matching TRS outputs, so they add connector choice rather than extra USB playback channels.

Finally, the Input Monitor Mix knob blends computer playback with hardware-monitored live inputs. It is faster than opening a mixer app when the backing track is too loud, but it does not create a second headphone mix. Both the M2 and M4 still have one headphone output carrying the main monitor signal.

Choose by studio setup

Solo vocal, guitar or voice-over: choose the M2. It records two microphones, a stereo source, or one microphone plus one instrument. The M4 does not give you a third mic preamp. Put the money towards the microphone, headphones or room treatment instead.

Podcast with two people: the input count on either interface works, because both have two mic preamps. The limitation is monitoring: there is only one headphone socket. A simple headphone amp solves shared listening. If each person needs a completely different cue mix, neither model is the clean answer.

One hardware synth plus vocals: choose the M4. A stereo synth uses inputs 3–4 while the front stays ready for two microphones or instruments. MIDI DIN handles notes and clock without adding another USB MIDI box. This is where “4-in” becomes useful instead of decorative.

Two synths: it depends. Two stereo instruments already consume four line channels, leaving no analogue input free on the M4. You can record one at a time, use a small line mixer, or move to a larger interface. If you are planning the whole room, our guide to what a DAW needs around it helps separate essential connections from attractive desk furniture.

One monitor pair: either model. Connect powered studio monitors to balanced outputs 1–2 and control them from the large front knob. The DC-coupled outputs can also send control voltage, but check the target device and levels before treating an audio output as a modular-synth utility.

External effects or a second output path: choose the M4. Outputs 3–4 can feed a hardware processor or separate destination while 1–2 remain on your monitors. For a true one-button A/B speaker comparison, however, the M6 is the model that adds dedicated switching.

Streaming: it is a tie. The M Series driver provides loopback on both. Windows requires the driver; on macOS, basic audio is class-compliant, but MOTU's driver adds loopback and its lower-latency features. Do not pay for the M4 just to get loopback. The M2 is already in the meeting.

When the M4 still is not enough

The MOTU M6 costs €491, so this is a larger step than the M2-to-M4 upgrade. It earns the difference with four combo mic/line/Hi-Z inputs, two more line inputs, four balanced outputs and two independently controlled headphone sockets. One headphone output can monitor outputs 3–4, letting your DAW create a separate performer mix.

The M6 also has an A/B mode for switching between two monitor pairs. That makes it the sensible M Series choice for four-mic sessions, a band demo, two listeners who need separate feeds, or a room with two speaker systems. It is overkill for one vocal mic and one synth. Empty sockets do not improve a mix; they mainly collect unusually expensive dust.

If you expect the studio to grow beyond six analogue inputs, think past the whole M Series rather than buying twice. An interface with ADAT expansion may fit that plan better. That is where a broader guide to preamps and expansion becomes more useful than another M2-vs-M4 chart.

Three alternatives worth comparing

MOTU is not the only sensible answer around €200–€300. These three alternatives change the workflow enough to deserve a place on the shortlist:

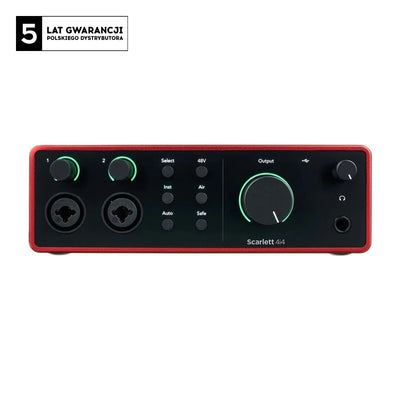

• Focusrite Scarlett 4i4 4th Gen — €256. The closest M4 rival here. Choose it for Auto Gain, Clip Safe and software-controlled routing. Choose the M4 if hardware meters and the front-panel monitor blend matter more.
• Audient iD14 MKII — €201. It trades MIDI DIN and the MOTU display for Audient's two preamps, a JFET instrument input and ADAT input. That optical expansion is valuable if eight more inputs may appear later.
• Universal Audio Volt 4 — €247. A straightforward 4-in/4-out choice with UA's Vintage preamp mode. Pick it when you want that recording flavour and a simple panel rather than MOTU's meter-and-routing package.

Prices are close enough that features should decide. Write down every source and destination that must work simultaneously. Then add one realistic future device, not an imaginary orchestra. If the list says two in and two out, the M2 wins. If it says stereo synth plus two front inputs or a separate output pair, the M4 earns its place.

Every product at Wired Tunes includes a 36-month warranty and a 30-day return window, and we ship across Poland and the EU. For help mapping the connections in your own setup, visit our showroom at Nowogrodzka 6A/102 in Warsaw or call +48 573 580 840.

Straight answers

The M2 is the smarter purchase for a clean two-source desk. The M4 becomes the easy choice as soon as a stereo line instrument or separate output path enters the plan. Pay for connections you can name, and you will keep the interface longer than if you buy by adjectives.
