Shure Axient AD4DE-A Dual AD (470-636MHz)

Thanks to its revolutionary digital transmission mode, the spectral efficiency of the Axient Digital system allows for 23 channels per 8 MHz TV channel or up to 63 channels in high-density mode, satisfying ever-increasing frequency requirements.

Articulated around a common platform comprising an AD4D two-channel receiver and an AD4Q four-channel receiver, Axient Digital is offered with two transmitter families the AD series naturally replacing the UHF-Rs and the ADX series incorporating all of the innovative technology and features of the Axient analog system.

With its very wide switching band, identical for both transmitters and receivers, Axient Digital facilitates fleet management and frequency coordination on tour.

The Axient Digital system is compatible with the Axient AXT600 Spectrum Manager, and with most existing Shure accessories.

Because of its scalable nature, the Axient Digital series provides a true answer to today's constraints and tomorrow's requirements.

High Performance RF

Innovative digital modulation process ensures robust transmission and long signal range.

Measurement and display of transmitted digital signal quality for added safety

Performance comparable to an analog system in noisy environments and at range limits

Combined digital True Diversity ensuring stronger resistance to stalls and other anomalies

Quadversity function allowing four receiving antennas to be assigned to a channel to increase coverage or cover two areas (AD4Q only)

High density mode drastically increasing the number of compatible channels

Audio Quality

Fully transparent and musical sound: uniform frequency response - dynamic range 120 dB ensuring excellent transient response

Very low 2 ms delay between capsule and analog output (standard mode)

Dante digital audio network (AES67 compatible)

AES3: 96 kHz or 48 kHz

AES-encryption.256 for secure transmission

Management and Control

Wireless Workbench 6 frequency coordination and network management software

ShurePlus Channel iOS app for mobile control and monitoring

AXT600 spectrum manager providing real-time spectrum monitoring and backup frequency distribution to various systems

Dante Browse function allowing listening to any channel Dante in the network

Dante Cue function for monitoring all channels from a single AD4D or AD4Q receiver

Power management through different networked chargers

Equipment and Scalability

Single platform of two receivers compatible with both AD and ADX series transmitter families

Extra wide RF bandwidth up to 184 MHz for all transmitters and receivers

Shure system using existing accessories: Antennas, Antenna Distributor, Access Point, Spectrum Manager, Chargers

General Specifications

- RF Bandwidth: 166 MHz (Transmitters and Receivers)

- Number of Compatible Channels per 8 MHz TV Channel:

- 23 in standard mode

- 63 in high density mode

- Group and channel frequency scanning

- Interference detection with alerts

- AES-256 format encryption

- Transmitter sync via IR link

- Frequency response: 20 Hz to 20 kHz

- A/D and D/A conversion: 24-bit - 48 kHz

- Analog output audio dynamic range: 120 dB A-weighted

- Dante/AES output audio dynamic range: 130 dB A-weighted

- Latency: 2 ms (standard mode) - 2.9 ms (high density mode)

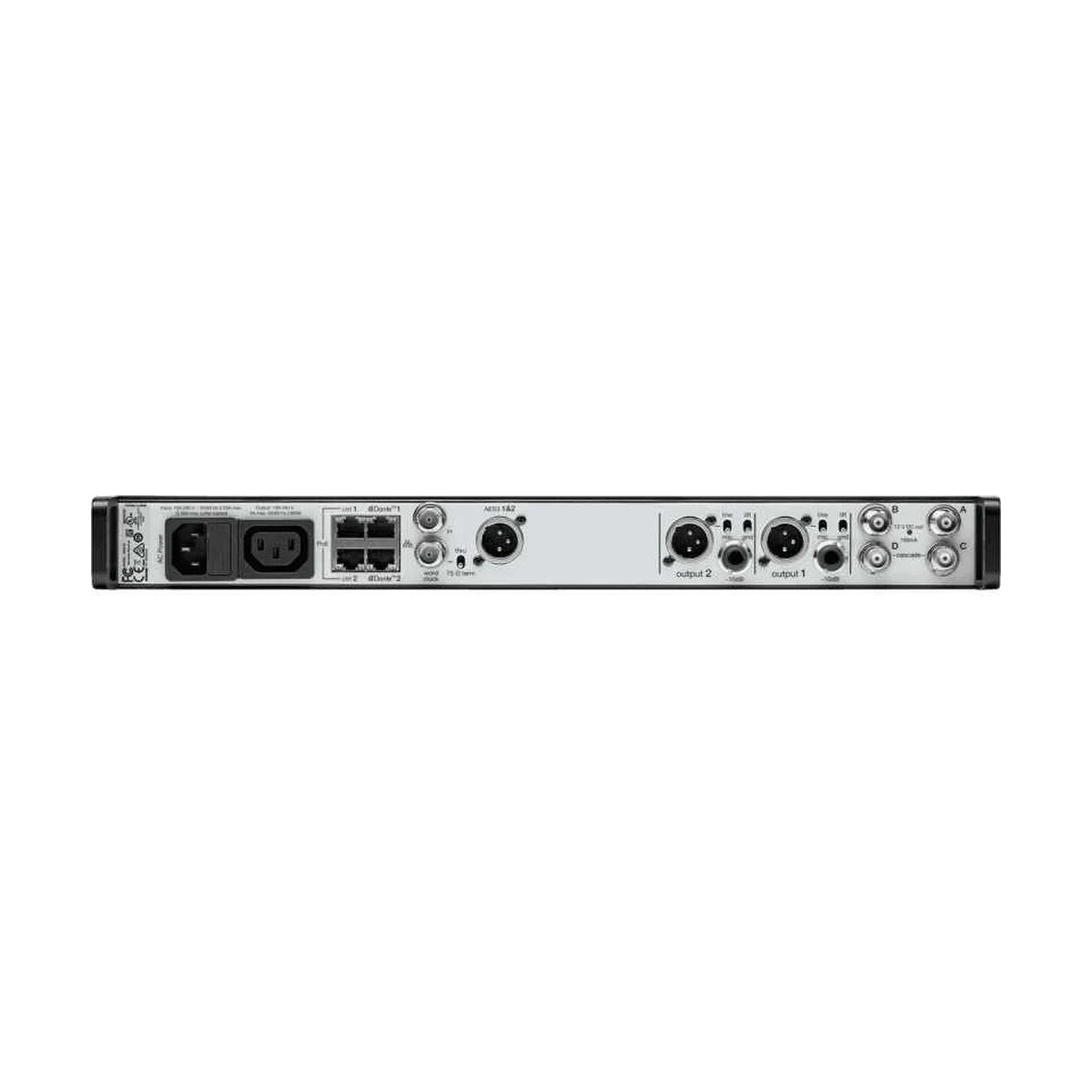

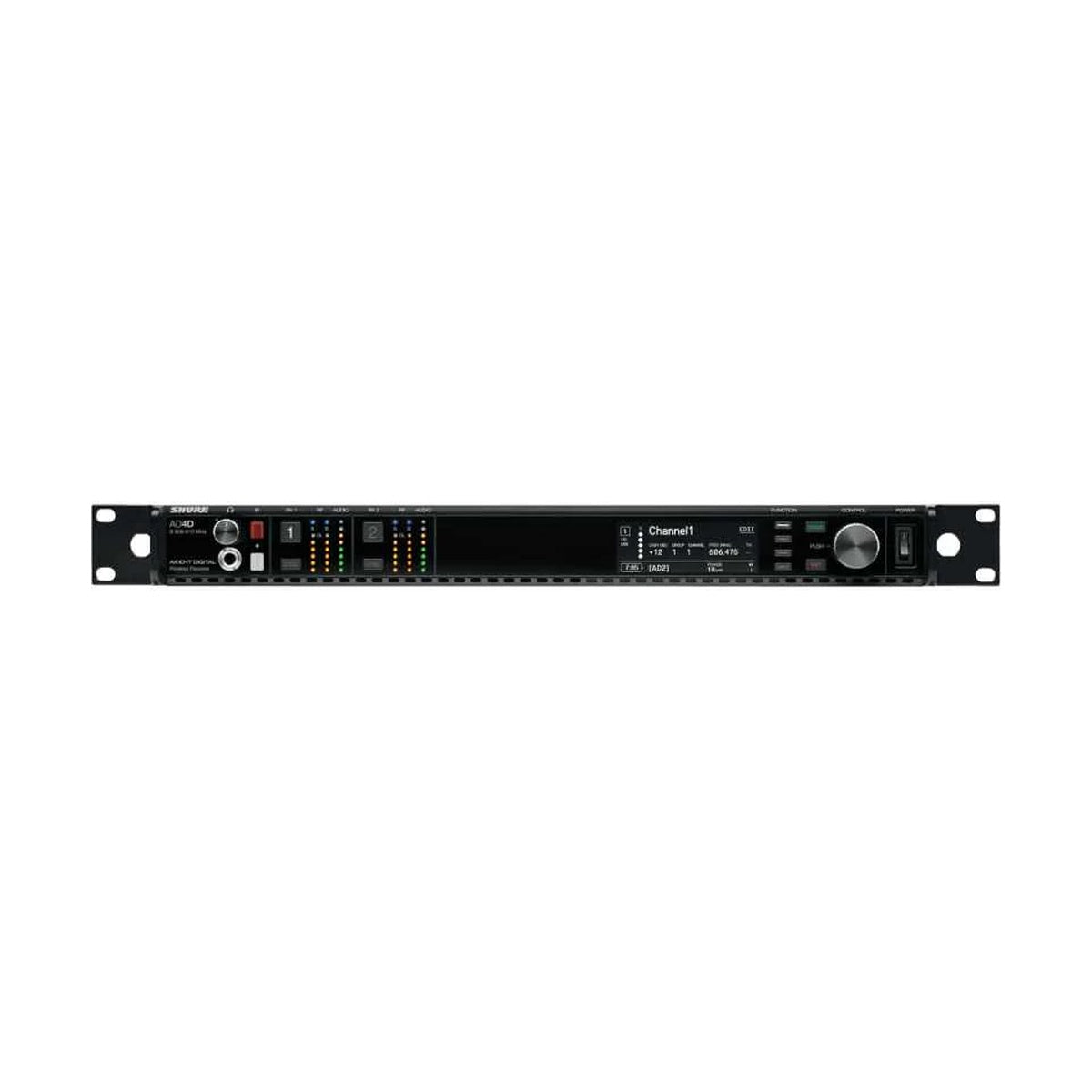

True Diversity two-channel digital receiver in 1U/19-inch form factor with universal internal power supply. Switchable analog XLR mic/line outputs. Power and control lockout. Single display for centralized information with three views Advanced headphone monitoring circuitry with CUE and BROWSE functions.

It comes with front panel antenna carryover, Ethernet cable, 4 BNC straps , locking power cord, male-female power strap and a pair of wave wideband antennas.

- Interchangeable Capsule: No

- Display Screen: No

- Additional Specs:

General Specifications

- RF Bandwidth: 166 MHz (Transmitters and Receivers)

- Number of Compatible Channels per 8 MHz TV Channel:

- 23 in standard mode

- 63 in high density mode

- Group and channel frequency scanning

- Interference detection with alerts

- AES-256 format encryption

- Transmitter sync via IR link

- Frequency response: 20 Hz to 20 kHz

- A/D and D/A conversion: 24 bits - 48 kHz

- Analog output audio dynamics: 120 dB A-weighted

- Dante/AES output audio dynamics: 130 dB A-weighted

- Latency: 2 ms (standard mode) - 2,9 ms (high density mode)

Features of AD4D and AD4Q receivers

- Compatible with AD and ADX series transmitters

- Combined digital True Diversity reception

- High density mode for more frequencies

- Interference avoidance (ADX transmitters)

- Frequency diversity function (AD1, ADX1, ADX1M transmitters, ADX2FD)

- Audio and RF bar graph with peak indication

- Digital RF signal quality indication

- Talk Switch function (ADX transmitters)

- Cue functions allowing monitoring via the Dante network of the different channels

- Browse functions allowing monitoring of any Dante device on the network

- Password access control

- 400 Hz / 1000 Hz audio generator with level control

- Analog audio outputs: Isolated balanced on XLR transformer and 6.35 mm jack

- Digital audio outputs: AES and Dante (with or without redundancy)

- Word Clock input/output: 48 kHz or 96 kHz frequency

- RF cascade ports

- Quadversity function: Cascade ports switched to C and D inputs (AD4Q only)

- Configurable 4-port Gigabit switch including 2 PoE ports

- Split redundant mode: 2 Ethernet ports / 2 Dante ports

- Switched mode: 4 Ethernet / Dante ports

- Networking with Wireless Workbench and ShurePlus Channels

- Optional AC/DC 24V power supply
