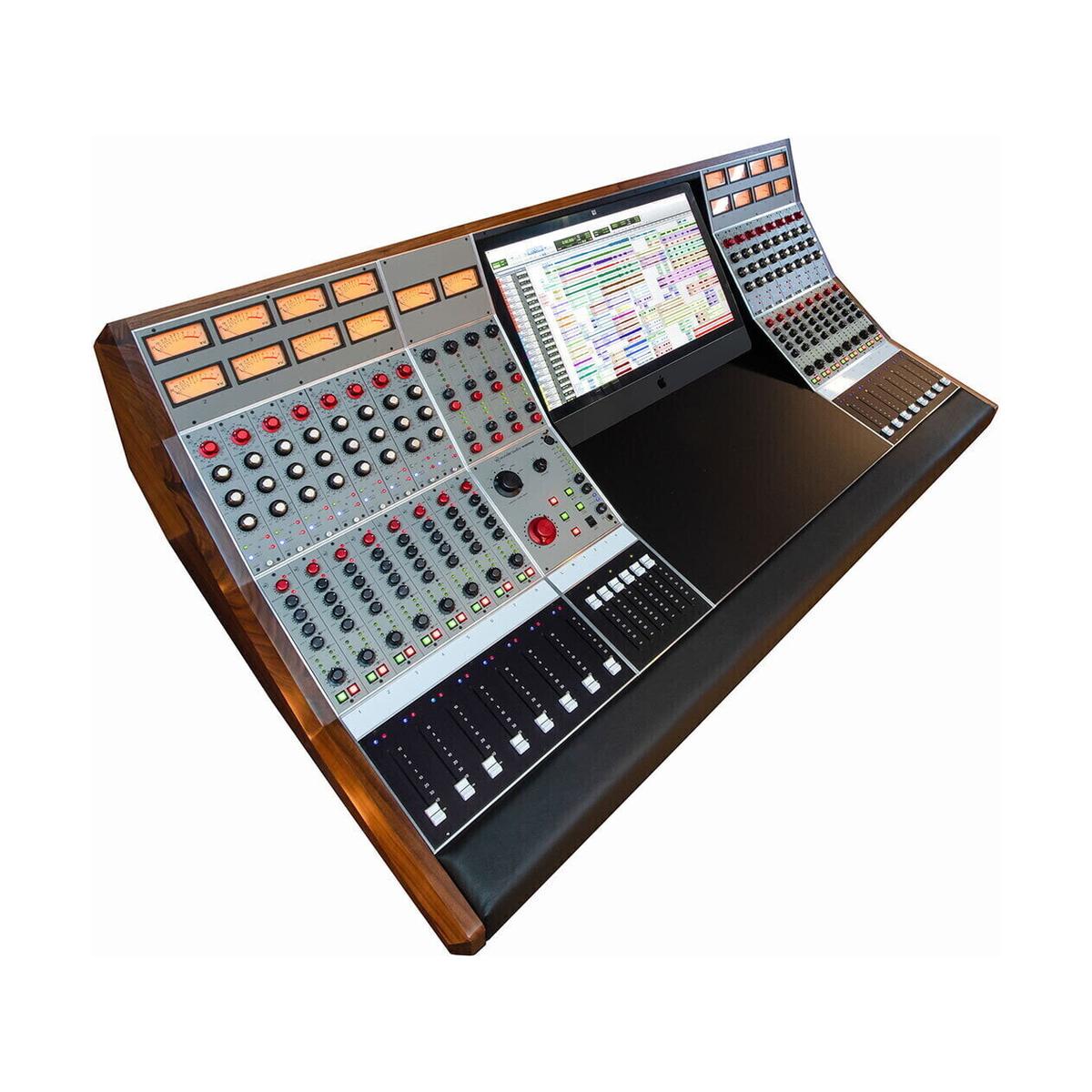

Wunder Audio Wunder Audio Wunderbar Console - 16 channel, 24 monitors, 1 Powerbar PSU, Exquisite Trim

Wunder Audio Wunderbar Console — 16 Channel, 24 Monitors, 1 Powerbar PSU, Exquisite Trim

The 16-channel Wunderbar with 24 monitor paths is the smallest configuration in the lineup that still delivers the complete Wunderbahn architecture — three independent stereo buses, fully discrete Class-A signal path, and transformer balancing at every point in the circuit. A single Powerbar PSU runs this frame with fully isolated DC voltage and audio paths. For project studios and smaller commercial rooms where real estate behind the desk is limited, this configuration keeps the full technical and sonic capability of the larger frames intact, scaled to a manageable physical footprint.

Complete Wunderbahn Architecture at Compact Scale

Regardless of frame size, every Wunderbar shares the same core summing design: the Fully Balanced Busing Scheme buffers ground out of the audio path, delivering a direct increase in dynamic range and a reduction in residual noise. The stereo bus section provides three independent amplifier flavors — Wunder, Neve 1272, and API 312 — each usable in isolation or cascaded simultaneously, with proportions adjusted by six master faders in the center section. All 16 channels carry transformer-balanced Direct Outputs and Insert Send/Return loops. The 1046 Routing Modules are fully transformer-balanced Class-A Discrete, with a flip-able monitor fader, six group buses with illuminated switches, four aux sends switchable pre/post, Pan Defeat, 48V phantom power, and Opto Silent Mute per channel.

Right-Sized for Project and Boutique Commercial Rooms

Sixteen input channels and 24 monitor paths cover a full standard tracking setup — drums, bass, guitars, keys, and a lead vocal — without requiring submixing upstream of the console. The channel strip EQ is configurable as PEQ2 or PEQ4 four-band modules, or a mixed combination of both within the same frame. Exquisite Trim covers the end caps, meter bridge, and armrest in 1.5" solid hardwood (Oak, Walnut, or Roasted Coffee Bean Birch) with an inlaid logo, finished with Black or Brown Top Grain leather along the full armrest. Every unit is assembled by hand to the client's exact specifications by a team of over a dozen specialists, with a 50% non-refundable deposit required to initiate the build.

KEY FEATURES

• Wunderbahn system: three independent stereo buses — Wunder, Neve 1272, API 312 — separable or cascaded
• 16 input channels, 24 monitor paths
• 1x Powerbar PSU with isolated DC voltage and audio paths
• PEQ2 or PEQ4 four-band EQ modules — mixed configurations supported within one frame
• Transformer-balanced Direct Outputs and Insert loops on every channel
• 1046 Routing Modules: Class-A Discrete, 6 group buses, 4 pre/post auxes, Pan Defeat, 48V phantom, Opto Silent Mute
• Flip-able monitor fader on every channel strip
• Exquisite Trim: 1.5" solid hardwood, Top Grain leather armrest
• Fully custom hand-built to order

TECHNICAL SPECIFICATIONS

• Input channels: 16
• Monitor paths: 24
• Power supply: 1x Powerbar PSU
• Signal path: fully discrete Class-A, transformer balanced throughout
• Frequency response: 8 Hz – 120+ kHz (flat)
• Signal-to-noise ratio: better than 105 dB
• Stereo buses: 3 (Wunder, 1272, 312)
• Aux sends: 4 (pre/post switchable)
• Group buses: 6 (illuminated switches)
• Transformers: Western Electric 618-style, NICO core (Ni/Fe/Co)
• Potentiometers: Vishay audio-grade conductive plastic (1,000,000 cycle rated)
• Switches: custom Greyhill
• Trim: 1.5" solid hardwood (Oak / Walnut / Roasted Coffee Bean Birch), Top Grain leather
• Options: internal patchbay (8x 19"), Cinema Display section 27"/32", Insert Enable/Defeat panel, Stereo Bus Inserts, Black Hammerite stand
