Waves SOUNDGRID Titan Server is an ultra‑powerful SoundGrid DSP server designed to run hundreds of Waves plug‑ins in real time with ultra‑low latency down to about 0.8 ms at 44.1–96 kHz. It is built for large‑scale live sound, broadcast and high‑end studio environments where maximum plug‑in power and reliability are essential.

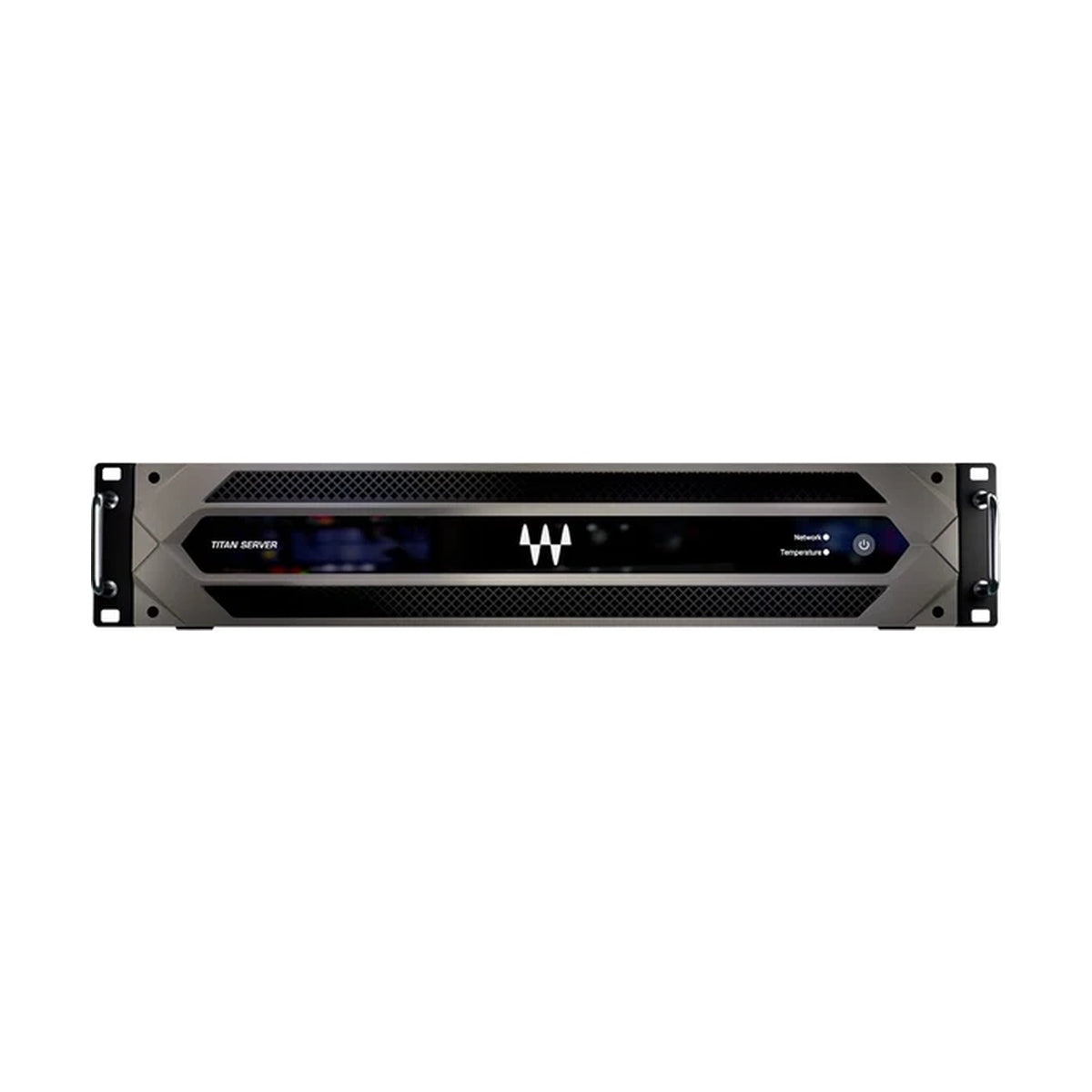

Titan is powered by an Intel Core i9 CPU and 16 GB of RAM, delivering roughly 30% more processing power than Extreme SoundGrid servers. The server comes in a rugged 2U 19" rackmount chassis with integrated rack ears, ready to drop straight into any professional rack. Its sleek industrial design, quiet fan, and LED indicators for network and temperature monitoring make it equally at home on tour and in fixed installations.
With the Waves SOUNDGRID Titan Server, you can offload heavy plug‑in processing from your host computer when using eMotion LV1, SuperRack and other SoundGrid hosts. Titan works with any SoundGrid I/O interface and can also be used with standard ASIO/Core Audio interfaces via SoundGrid Connect, making it easy to expand the DSP power of existing setups. Functionally, it is identical to the Titan‑R SoundGrid Server but features a single power supply instead of dual redundant PSUs.
KEY FEATURES
- High‑end SoundGrid DSP server for massive plug‑in sessions
- Approximately 30% more processing power than Extreme SoundGrid Servers
- Ultra‑low latency, as low as about 0.8 ms at 44.1–96 kHz
- Intel Core i9 CPU (10th generation or newer, depending on revision) with 16 GB RAM
- Full‑size 2U 19" rackmount chassis with built‑in rack ears
- Quiet cooling design with minimal fan noise
- LED indicators for easy monitoring of network and temperature status
- Sturdy RAM mounting for enhanced long‑term reliability
- Compatible with any SoundGrid I/O and with ASIO/Core Audio interfaces via SoundGrid Connect
- Ideal for demanding live sound, broadcast and top‑tier studio workflows
TECHNICAL SPECIFICATIONS
- CPU: Intel Core i9 (e.g. i9‑10900K or newer in current versions)
- RAM: 16 GB
- Motherboard: Gigabyte W480‑series or similar professional‑grade board
- Network: Intel controller with RJ45/EtherCon port for SoundGrid networking
- Supported sample rates: 44.1, 48, 88.2, 96 kHz
- Typical system latency: around 0.8 ms (depending on SoundGrid configuration)
- Form factor: 2U, 19" rackmount
- Dimensions: length approx. 48.2 cm / 19", height approx. 8.8 cm / 3.5", depth approx. 39.2 cm / 15.4"
- Device weight: approx. 7 kg / 15.4 lb
- Power consumption: around 140 W, 100–240 V AC, 50/60 Hz
- Operating temperature: approx. 10–35 °C, max. around 40 °C
- Applications: touring rigs, large live systems, broadcast facilities, high‑end recording studios
