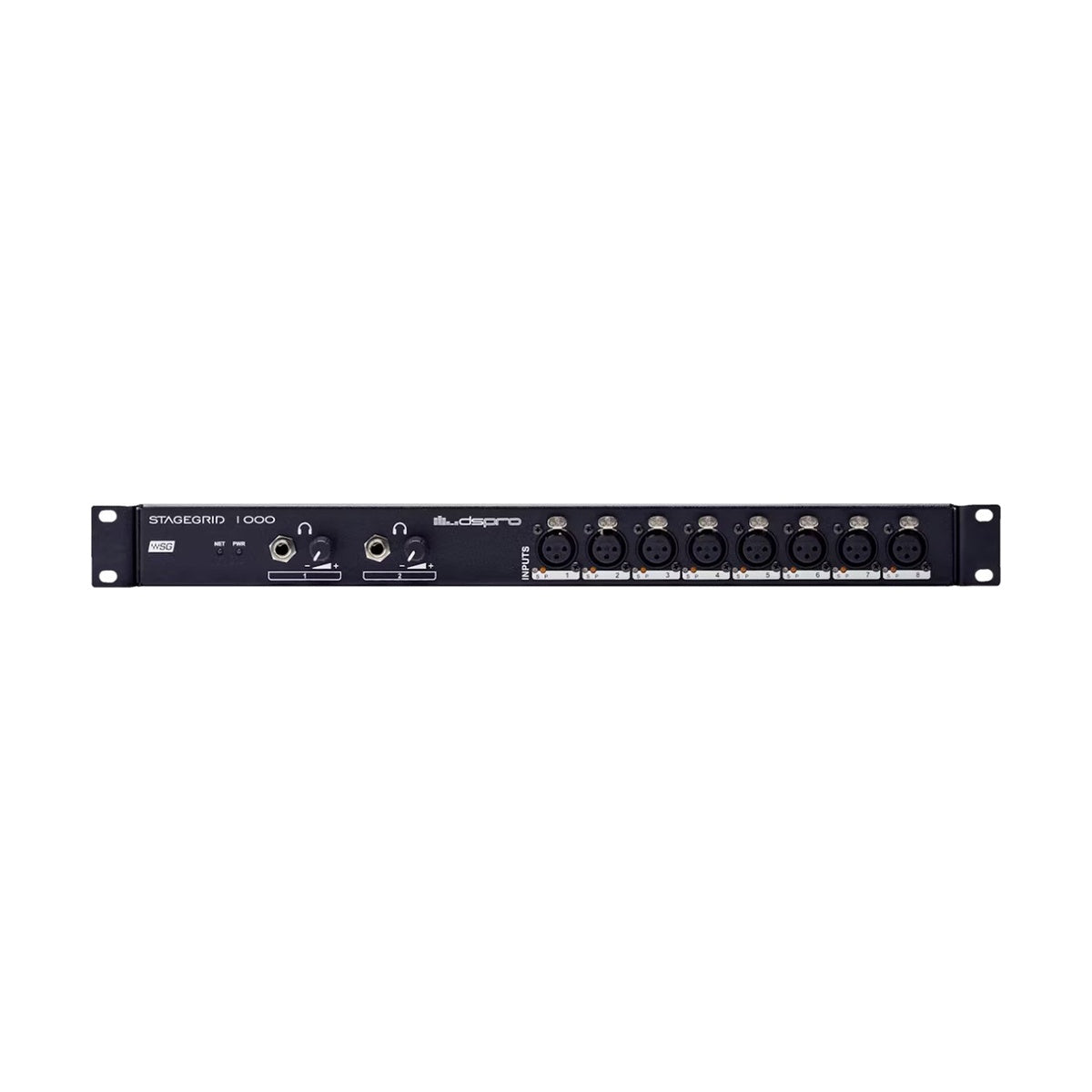

Nous contacterWaves SOUNDGRID DSPRO StageGrid 1000 is a compact SoundGrid stagebox / I/O unit designed for eMotion LV1 live mixing systems. It is perfect for placing near your console at FOH or in the monitor world, or on stage when you need high‑quality inputs and outputs within the Waves SoundGrid network at ultra‑low latency.

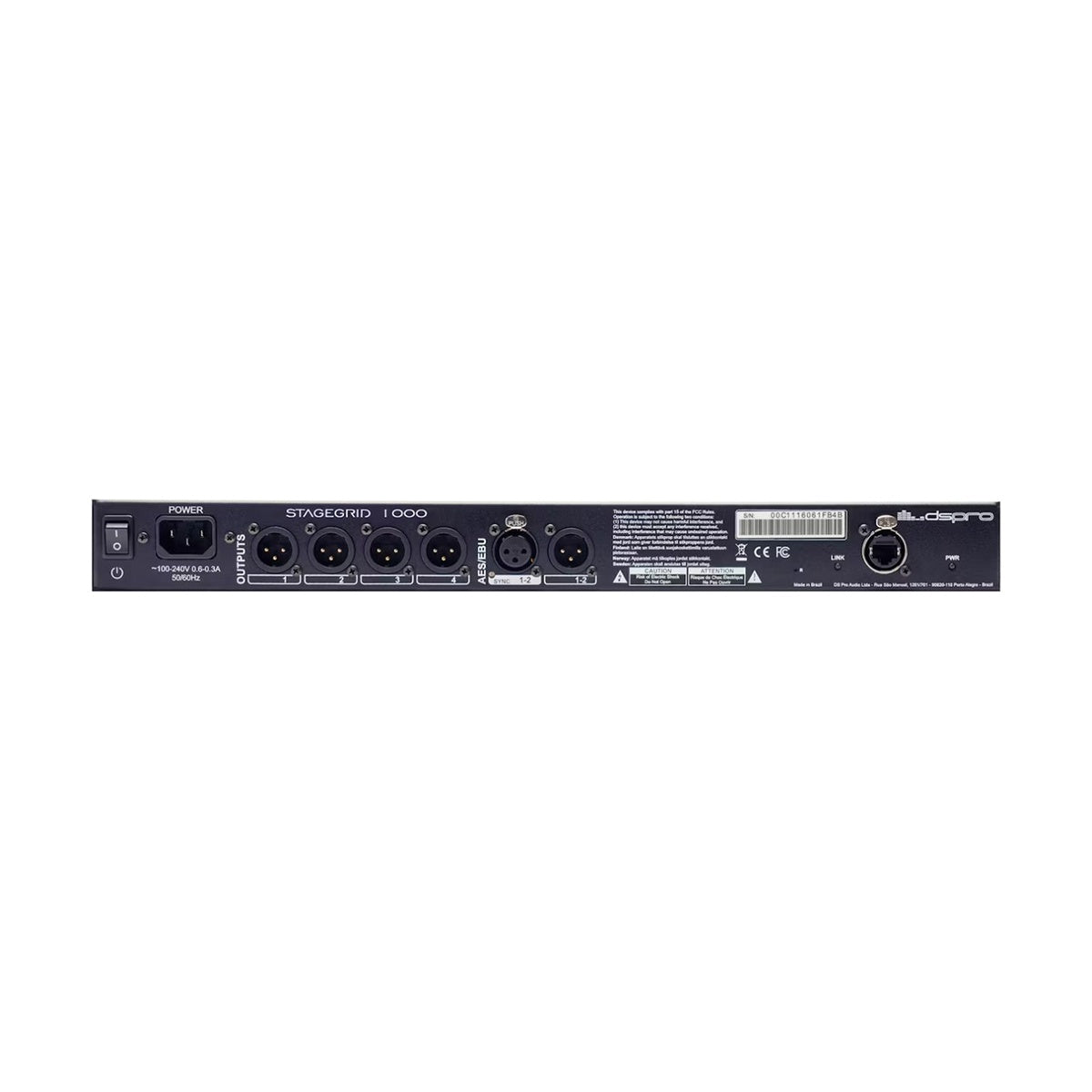

StageGrid 1000 provides 8 premium mic/line analog inputs, 4 balanced XLR line outputs, a stereo AES/EBU input and output, plus 2 independent headphone outputs with their own volume controls. Operating at sample rates from 44.1 to 96 kHz, it connects via a gigabit SoundGrid Ethernet port (Neutrik EtherCON) and shares the same proven audio interface design as the larger DSPRO StageGrid 4000, while remaining a 1U rackmount unit.
The rugged, road‑ready construction of the DSPRO StageGrid 1000 makes it ideal for touring and fixed installations alike. Fully compatible with the Waves SoundGrid ecosystem, it serves as a flexible I/O node at FOH, for monitor systems, on stage, or in hybrid setups together with Waves servers and plug‑ins running in real time.
KEY FEATURES
- Compact SoundGrid stagebox / I/O device for eMotion LV1 live systems
- 8 high‑quality analog mic/line inputs on XLR connectors
- 4 balanced analog line outputs on XLR connectors
- 1 stereo AES/EBU digital input and 1 stereo AES/EBU digital output
- 2 headphone outputs with independent analog volume controls
- Full SoundGrid compatibility via Gigabit Ethernet (Neutrik EtherCON port)
- Configurable sample rates: 44.1, 48, 88.2 and 96 kHz
- Ultra‑low latency when used with a SoundGrid host and Waves server
- Rugged 1U rackmount chassis designed for touring and installations
- Ideal for FOH, monitor world, stage I/O expansion and modular SoundGrid infrastructures
TECHNICAL SPECIFICATIONS
- Analog inputs (mic/line): 8 × XLR
- Input impedance: approx. 2.86 kΩ
- Gain range: approx. -4 dB to +60 dB (1 dB steps)
- Max input level: approx. +28 dBu (at -4 dB gain)
- Input dynamic range: approx. 115 dB (A‑weighted, 20 Hz–20 kHz)
- Input THD: approx. 0.002% (-1 dBFS, 20 dB gain, 1 kHz, A‑weighted)
- Analog outputs: 4 × balanced XLR
- Output impedance: approx. 50 Ω
- Max output level (0 dBFS): approx. +24 dBu
- Output dynamic range: approx. 115 dB (A‑weighted)
- Digital I/O: 1 × stereo AES/EBU IN, 1 × stereo AES/EBU OUT (AES3, 44.1–96 kHz, 110 Ω)
- Headphone outputs: 2 × with individual level control, up to approx. 150 mW into 16 Ω, dynamic range around 100 dB
- SoundGrid network: 1 × Gigabit Ethernet port, Neutrik EtherCON
- Form factor: 1U, 19" rackmount
- Dimensions (H × W × D): approx. 44 mm × 430 mm × 300 mm (excluding connectors)
- Weight: approx. 2.9 kg (6.4 lb)
- Power: 110–240 VAC, 50/60 Hz, typical consumption approx. 25–60 W
- Environmental: operating temperature 0–40 °C, relative humidity up to 90% non‑condensing
