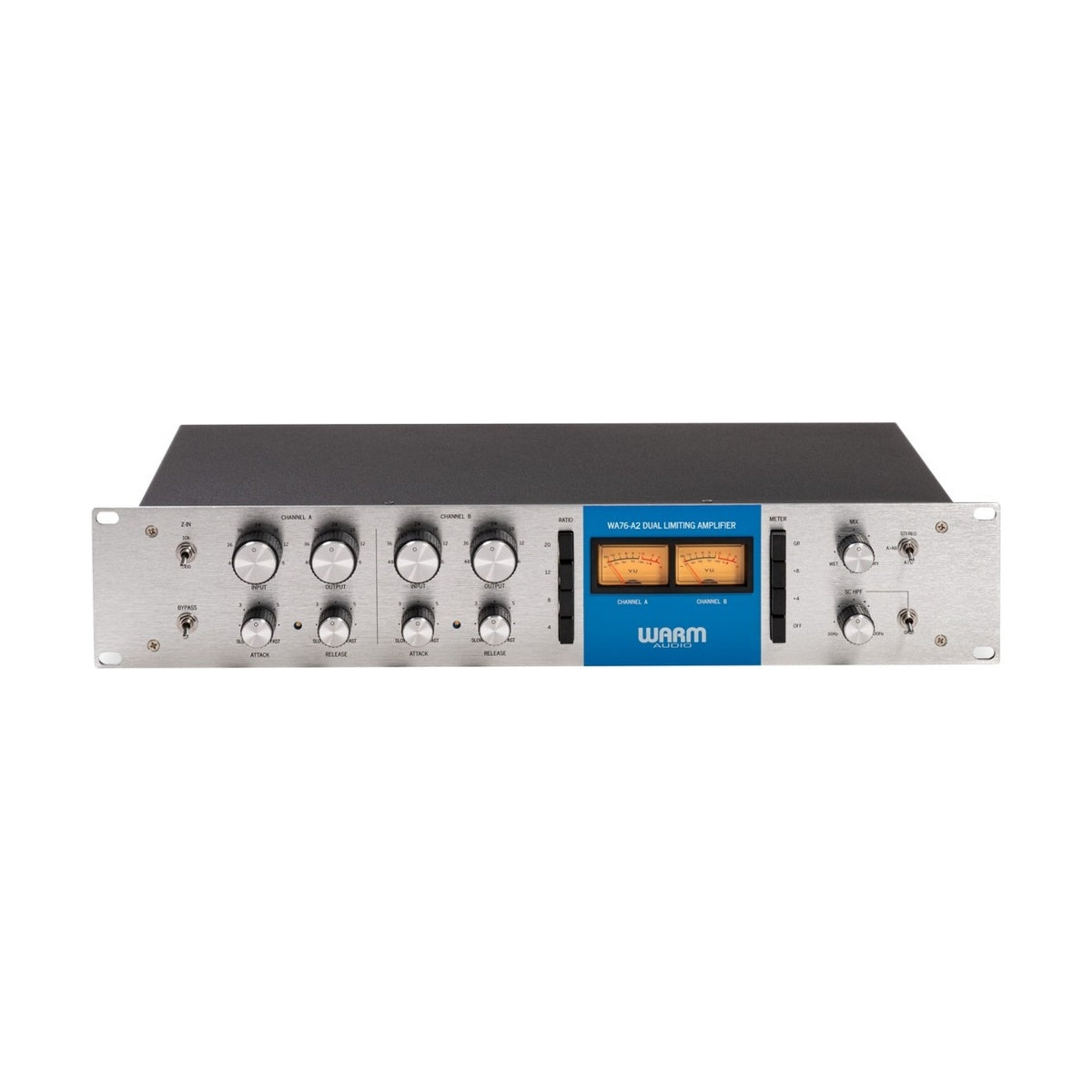

Warm Audio WA76-A2 – dual-channel discrete FET compressor inspired by classic UREI 1176 Rev A "Blue Stripe". Delivers ultra-fast dynamic control with vintage character, harmonic saturation, and high headroom. Features CineMag O-12 input and 5002 output transformers, stereo link modes, parallel compression (dry/wet), active/true bypass, and switchable input impedance (600Ω/10kΩ). Ideal for vocals, drums, and mixing, with operating modes: Stereo, Dual Mono, Mid-Side.
The device excels in authentic "Blue Stripe" tone, low noise, and flexible options for modern studio workflows.
MAIN FEATURES
- Dual-channel FET compressor with stereo link and operating modes (Stereo, Dual Mono, Mid-Side)
- CineMag transformers for vintage warmth and harmonic distortion
- Dry/wet knob for parallel compression
- Active/true bypass for signal coloration
- Switchable input impedance (600Ω/10kΩ) for interface compatibility
- Classic controls: Attack, Release, Ratio (4:1, 8:1, 12:1, 20:1, All-Buttons), Input/Output
- Hand-tested with premium components
- "All-Buttons" mode for aggressive hard-limiting
TECHNICAL SPECIFICATIONS
- Channels: 2 (stereo/dual mono)
- Type: Discrete FET, 24-bit/192 kHz compatible
- Ratio: 4:1, 8:1, 12:1, 20:1, All-Buttons
- Attack/Release: 20-800 µs / 50-1100 ms
- Max gain: +30 dB

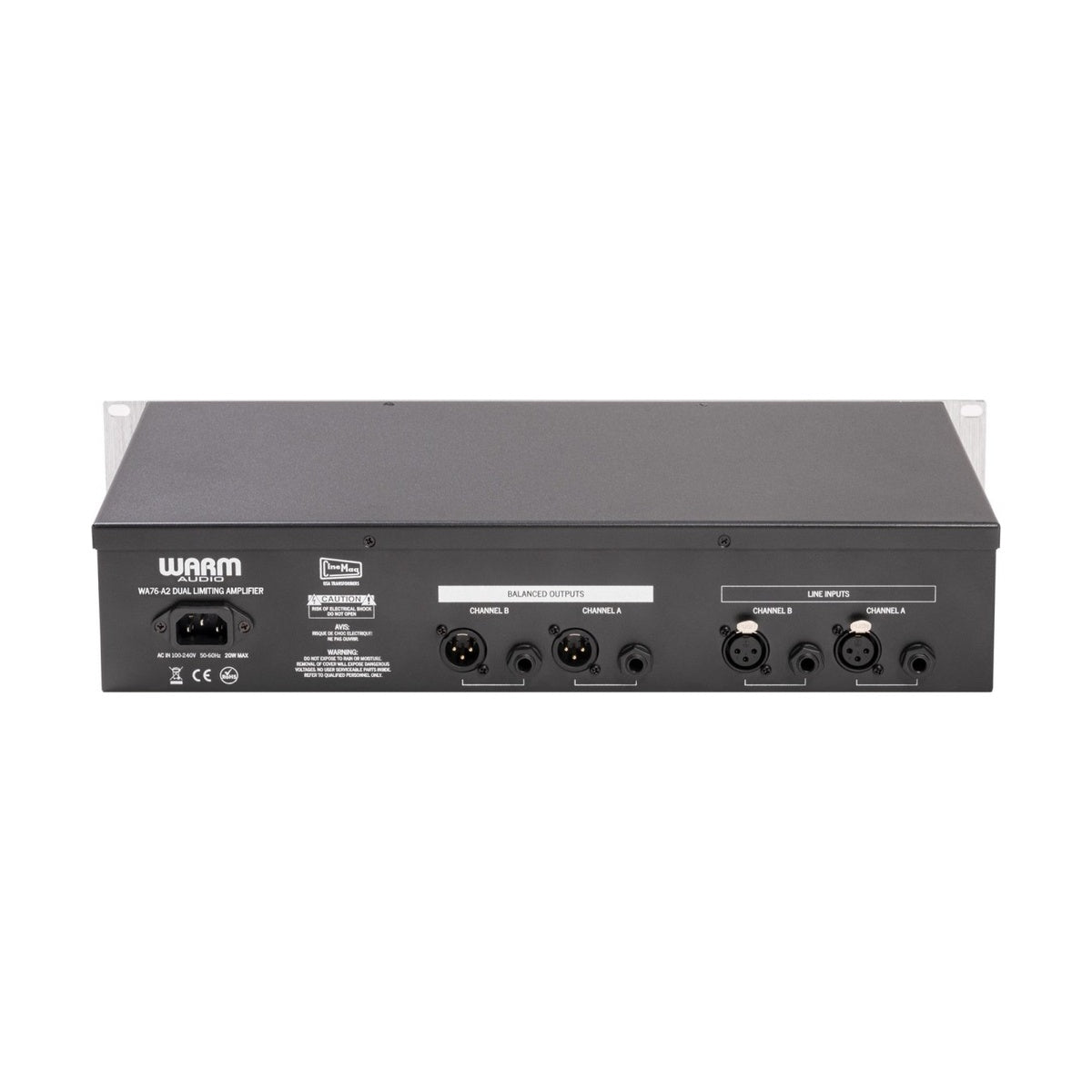

- Connections: XLR input/output, stereo link jacks
- Power: Internal, 115/230V AC
- Dimensions (WxHxD): 483 x 44 x 266 mm (19" 1U)
- Weight: 5.4 kg
