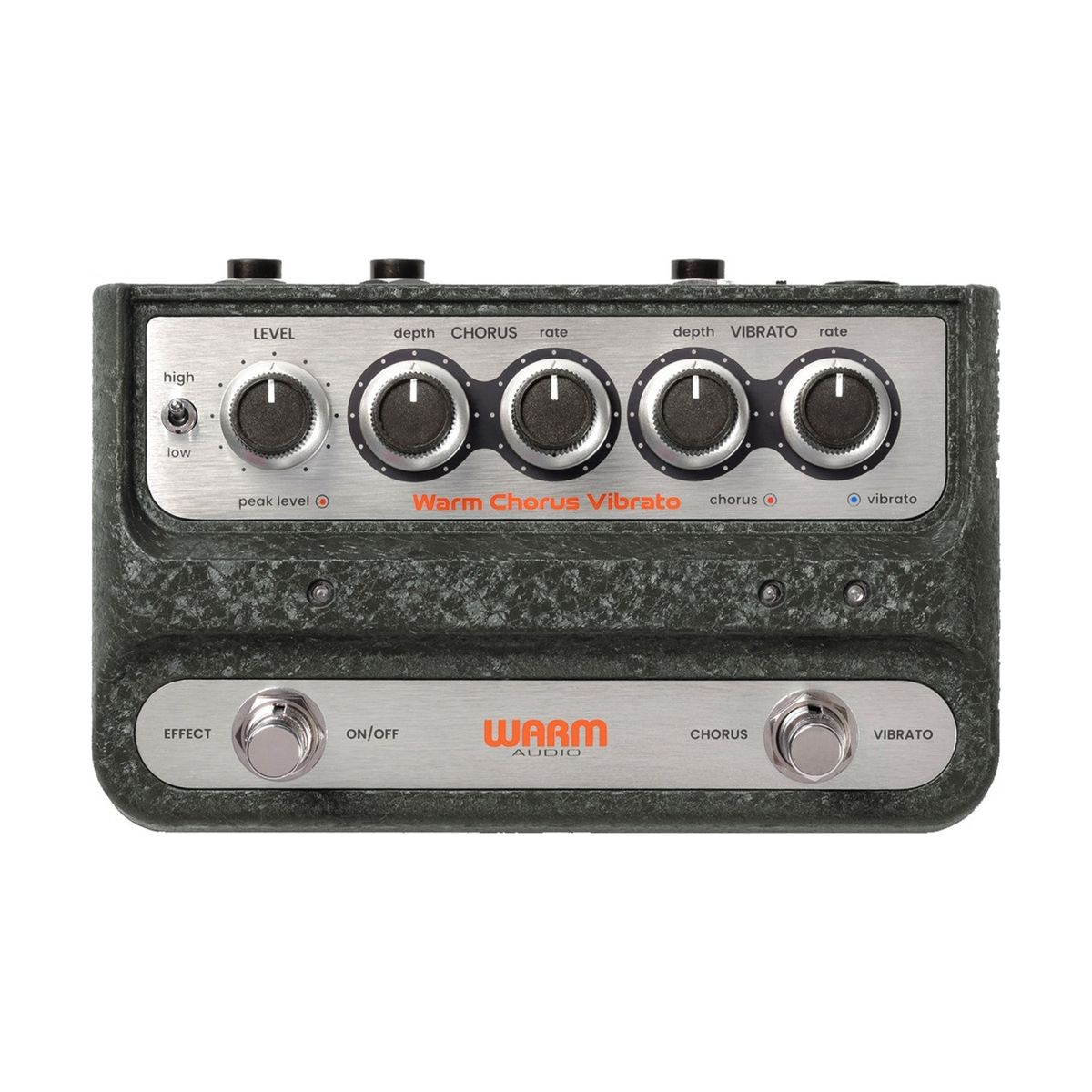

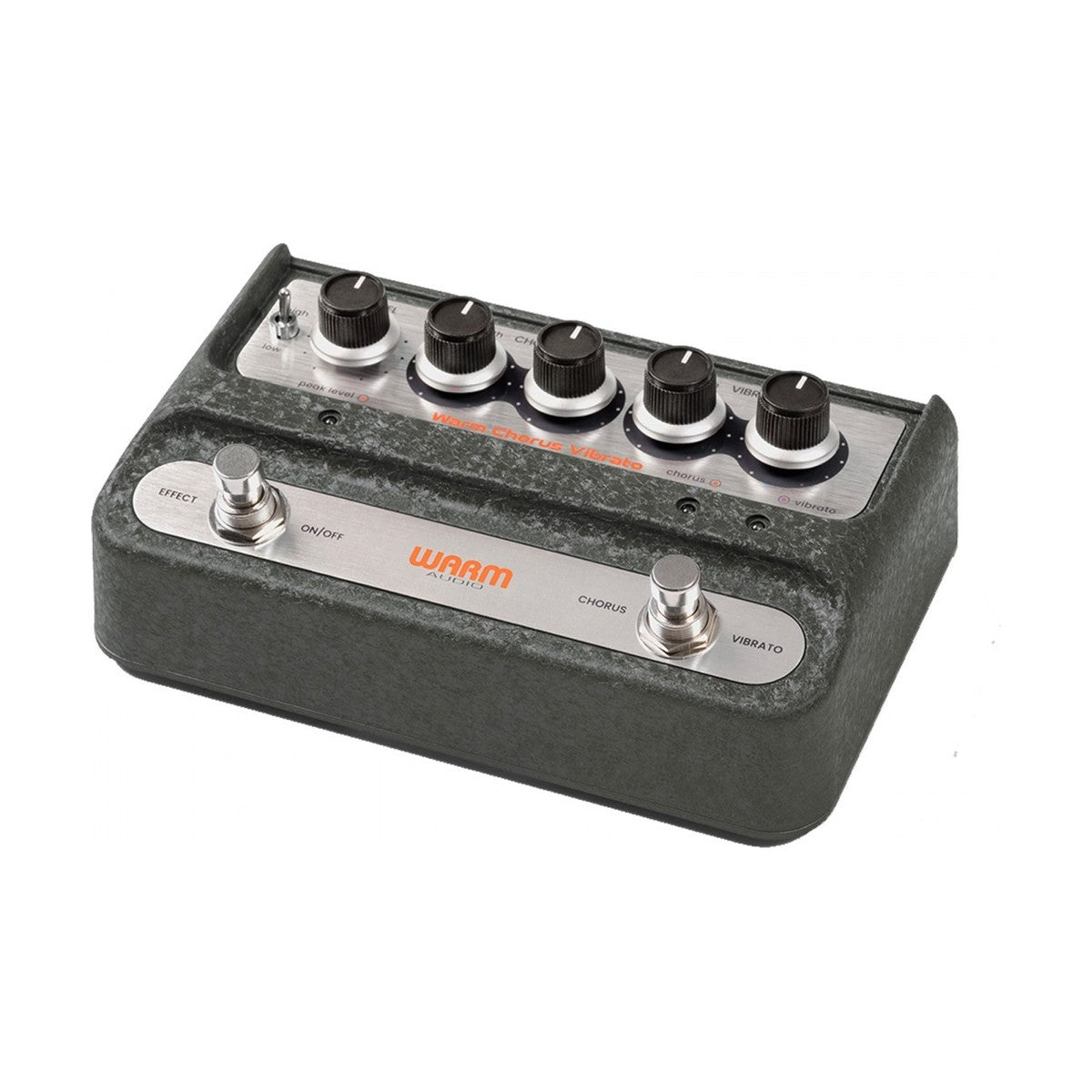

Warm Audio WA-C1 Warm Chorus Vibrato – fully analog guitar effect pedal delivering classic chorus and vibrato modulation based on BBD circuitry. It recreates the lush, dimensional movement and organic character of vintage modulation effects.
Independent chorus and vibrato control
The WA-C1 features dedicated chorus and vibrato sections with independent Depth and Rate controls, allowing precise shaping from subtle modulation to deep, pulsing textures. A dedicated footswitch enables instant switching between chorus and vibrato modes, while the Level control adjusts output signal.
BBD circuit with integrated preamp
The pedal is built around an analog Bucket Brigade Device circuit, delivering rich modulation depth and detail. An always-on analog preamp enhances harmonic content and improves dynamic response. Input sensitivity switching and Hi-Z mode provide optimal matching for different instruments.
KEY FEATURES
- Fully analog chorus and vibrato pedal
- BBD (Bucket Brigade Device) circuit
- Independent Depth and Rate controls for both effects
- Level control for output adjustment
- Dedicated chorus/vibrato footswitch
- Always-on analog preamp
- Input sensitivity switch (Hi/Low)
- Hi-Z mode for impedance matching
- Stereo outputs (2x 6.3 mm jack)
- LED indicators for mode and modulation rate
TECHNICAL SPECIFICATIONS
- Type: chorus / vibrato
- Signal path: fully analog
- Circuit: BBD (Bucket Brigade Device)
- Controls: Level, Chorus Depth, Chorus Rate, Vibrato Depth, Vibrato Rate
- Switches: Hi/Low input, chorus/vibrato

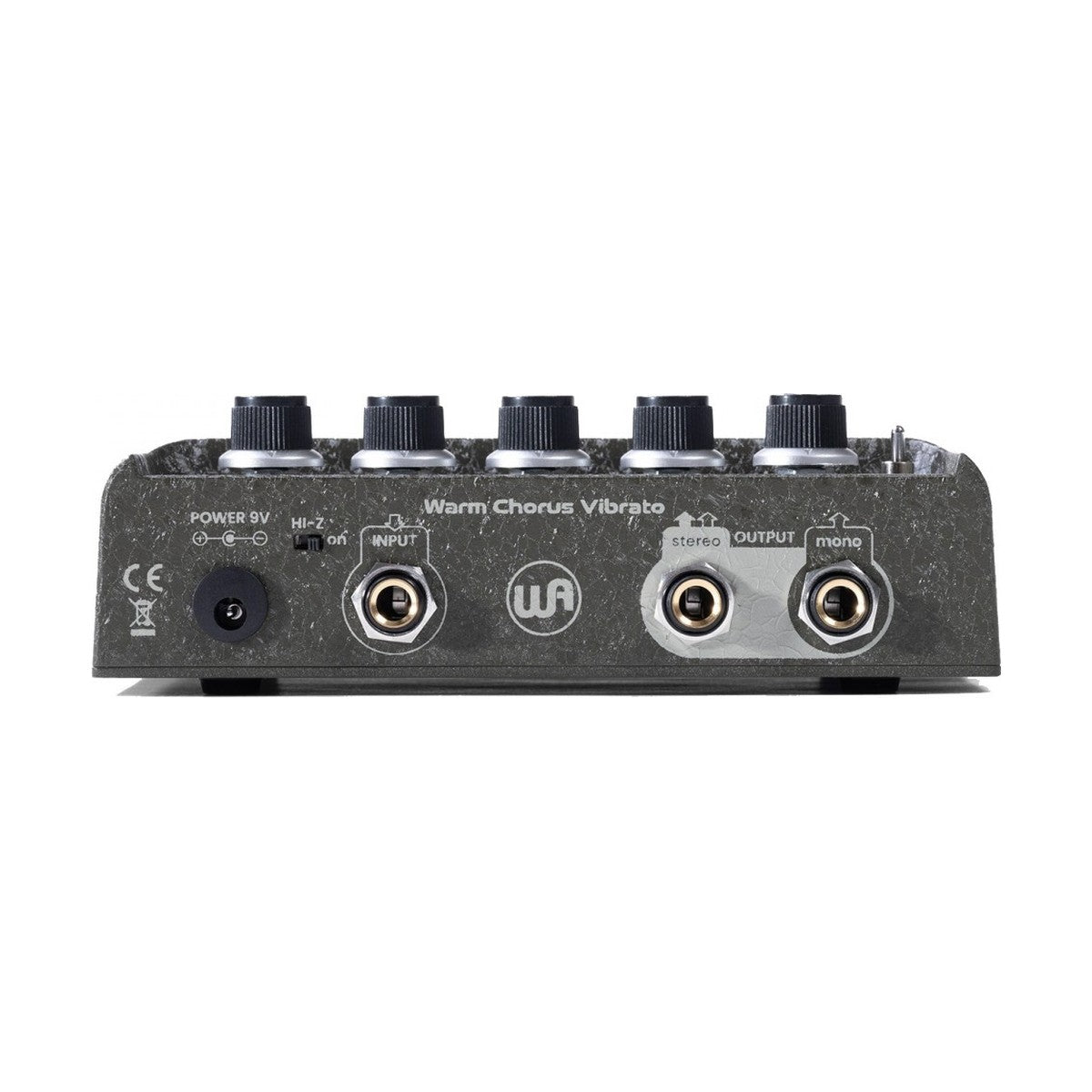

- Inputs: 1x 6.3 mm jack
- Outputs: 2x 6.3 mm jack (stereo)
- Bypass: footswitch on/off
- Power: 9V DC or 9V battery
- Dimensions: approx. 165 x 96 x 40 mm
- Weight: approx. 0.86 kg
