VERTIGO SOUND VSM-2 Mix Satellite Basic Version
Configurer

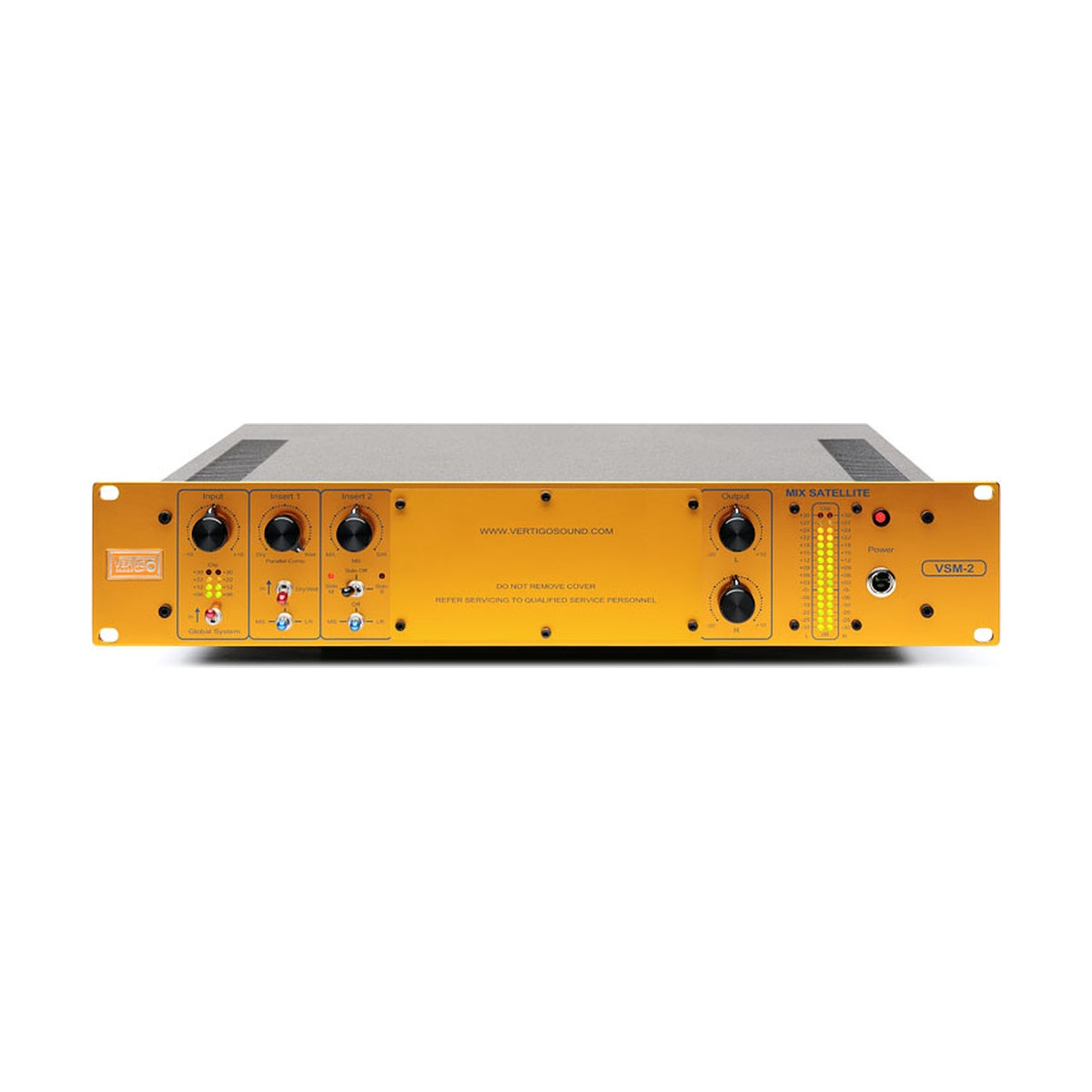

Vertigo Sound VSM-2 Mix Satellite Basic Version is the analogue hub of a mastering chain in a 2U chassis. The Basic version carries the MS matrix, two balanced inserts, parallel compression and stereo width control, but leaves out the harmonic generators, so it adds no character of its own to the signal.
Your outboard works in MS without extra boxes
The compressor and equaliser already in your rack are stereo devices. The VSM-2 Basic changes that with one switch: an insert in MS mode routes M to channel A and S to channel B of the connected unit, so you can set time constants for kick and vocal separately from guitars and ambience. The level of the S signal is compensated internally, which means you do not have to correct the compressor threshold by hand. Both inserts have a hardwire bypass, so an A/B against the unprocessed signal takes a second.
Parallel compression and stereo width under control
Insert 1 has a dry/wet control that blends a heavily compressed copy back into the original signal. Instead of choosing between dynamics and density, you set the ratio between them. Insert 2 in MS mode engages the stereo width control, while in LR mode the same knob acts as a stereo balance. The scale zooms around the centre, so finding the balance point is a single move. AFL solo of M and S shows exactly what your processing is doing to the centre and the sides of the mix.
KEY FEATURES
- MS encoding and decoding across the whole signal path

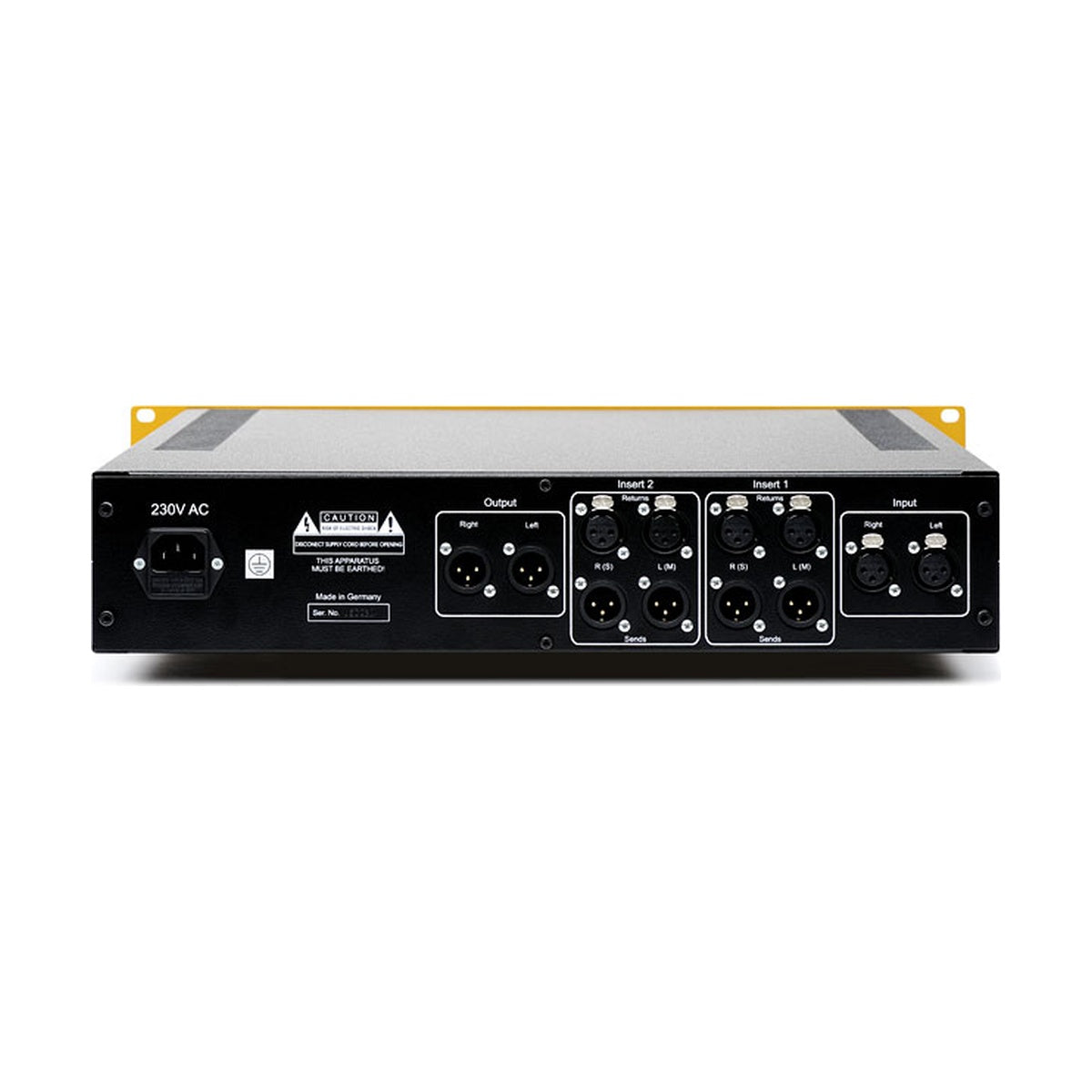

- Two balanced XLR inserts switchable to LR, MS or Off
- Parallel compression on Insert 1 with dry/wet control
- Stereo width control with a zoom around the centre
- Stereo balance on the same knob in LR mode
- AFL solo of M and S taken after the output section
- Automatic level compensation for the S signal
- Input level trim ahead of all following stages
- Fast input and output metering with clip LEDs
- Global System hardwire bypass for the entire unit
- No harmonic generators: the path stays neutral
- Full recall thanks to stepped pots and switches
TECHNICAL SPECIFICATIONS
- Design: fully analogue, 2U chassis
- All inputs and outputs electronically balanced and fully floating
- Dynamic range: 128 dB
- Frequency response: 10 Hz to 70 kHz (±1 dB)
- Maximum output level: +30 dBu
- THD at +28 dBu: below 0.003%
- Signal to noise ratio at +6 dBu: 104 dB (20 Hz-20 kHz, unweighted, RMS)
- Noise: -98 dBu (20 Hz-22 kHz, unweighted, RMS) at 0 dB unity gain
- Minimum output load: 600 Ohm
- Linear power supply with toroidal transformer
- Power consumption: max 30 W
