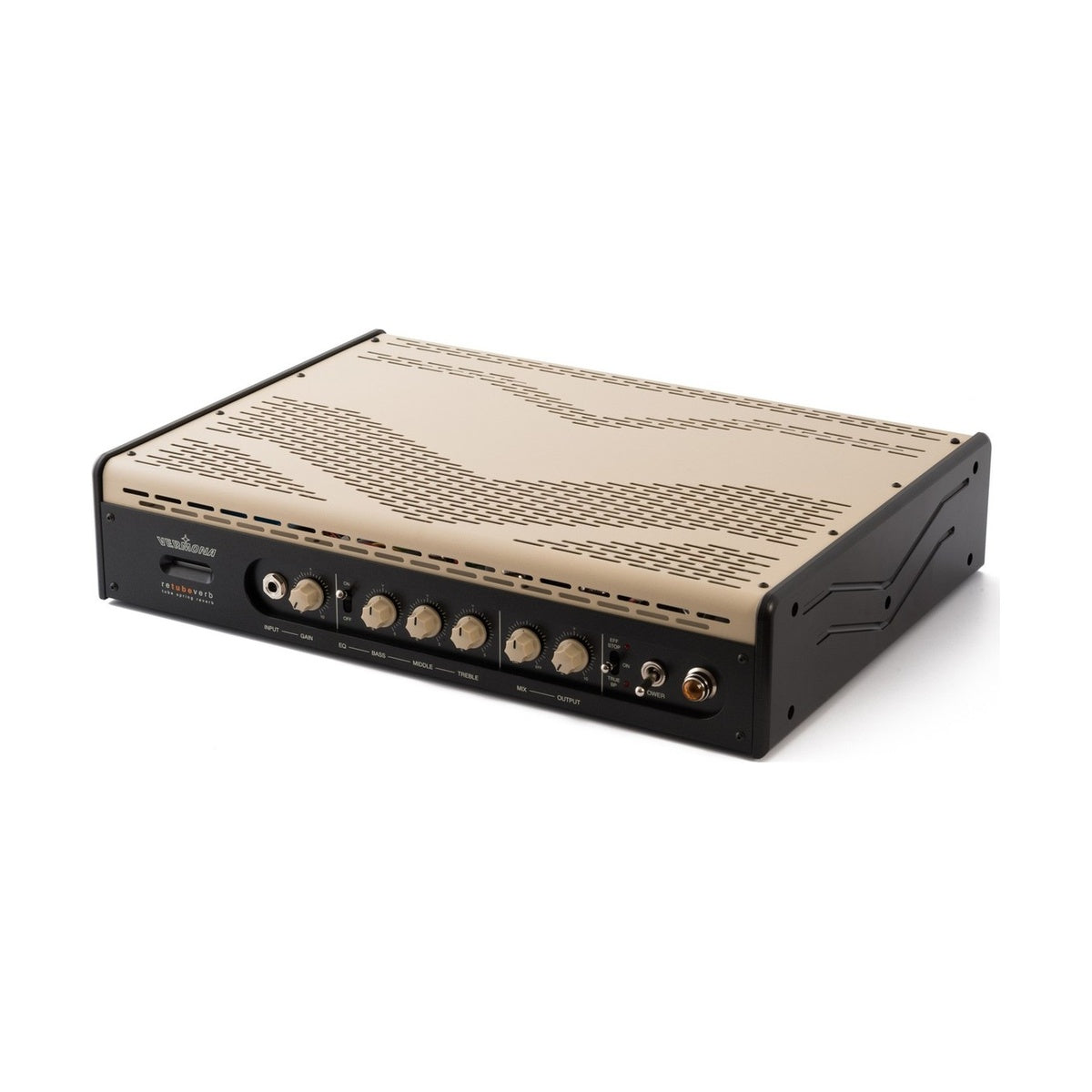

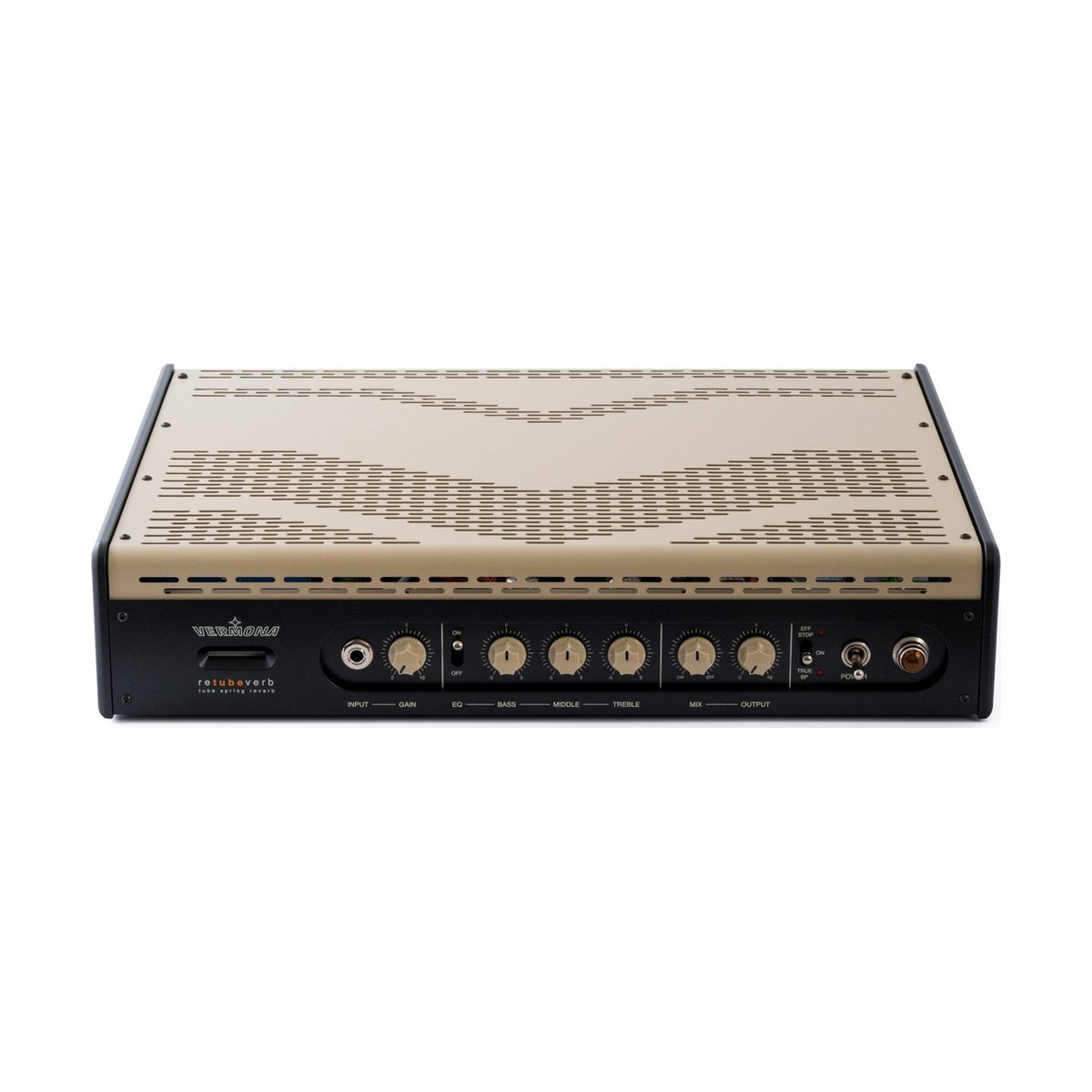

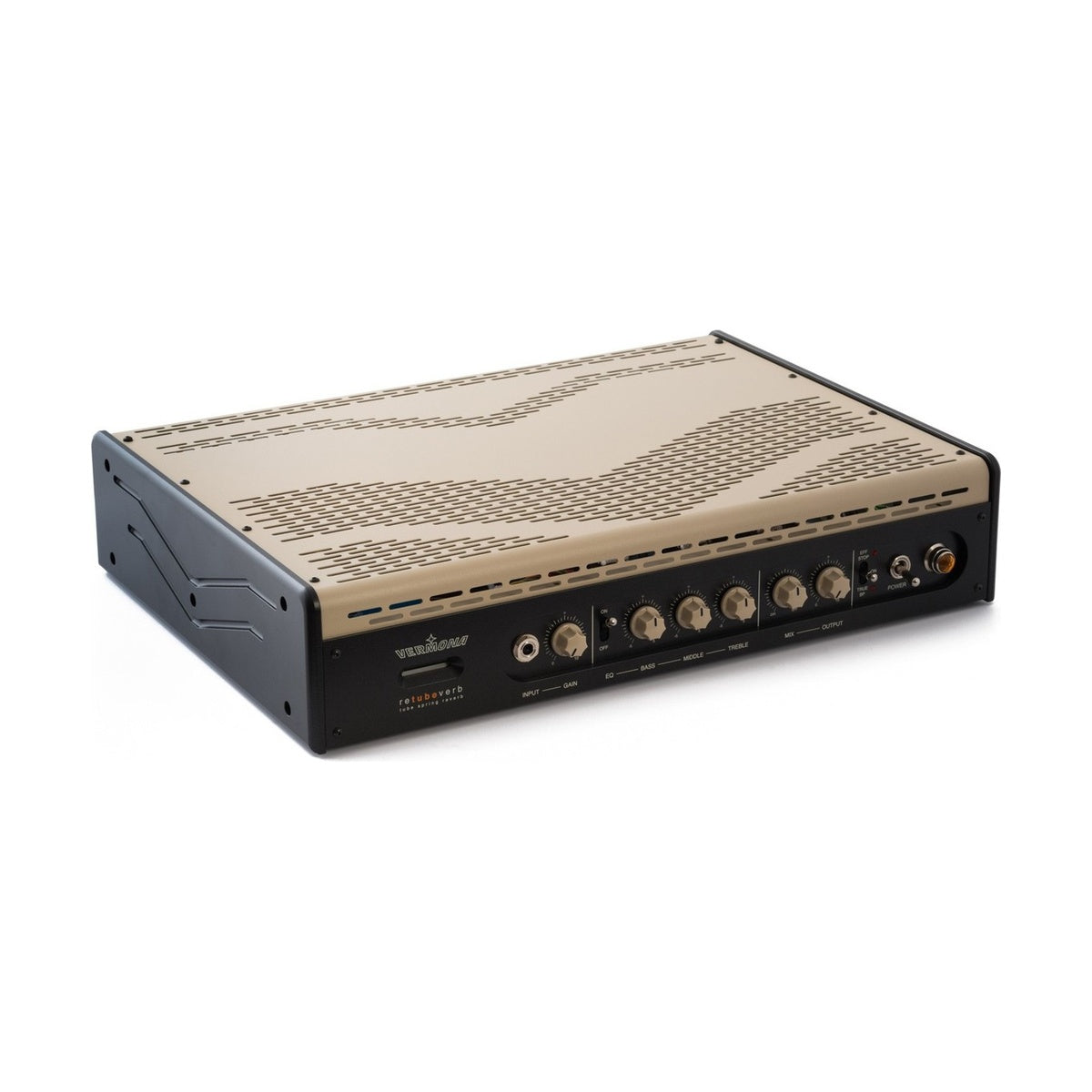

Vermona ReTubeVerb is a tube spring reverb that combines valve circuitry with mechanical spring reverberation in a 2U rack unit. It is assembled by hand and goes through extensive quality control before it ships.
Valve stage in front of the spring
The signal passes through four tubes: two ECC 83, one ECC 81 and one EM 84. The valve stage drives the spring, so the reverb takes on the tone and saturation of the tube circuit, a sound that suits guitars, keyboards, vocals and drums in a vintage mix. A three-band equalizer at 80 Hz (bass), 700 Hz (mid) and 6.5 kHz (treble) shapes the result.
Inputs for any source

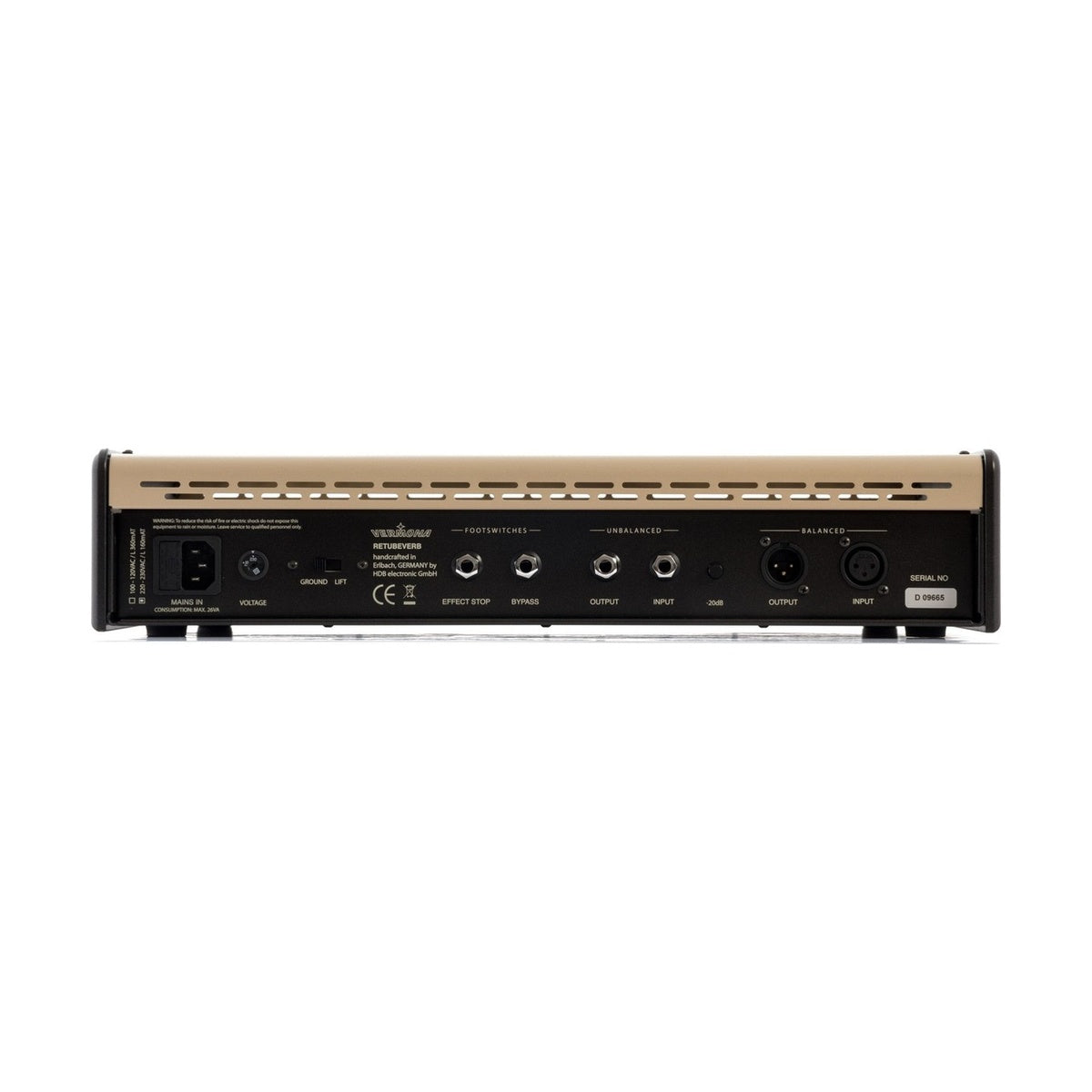

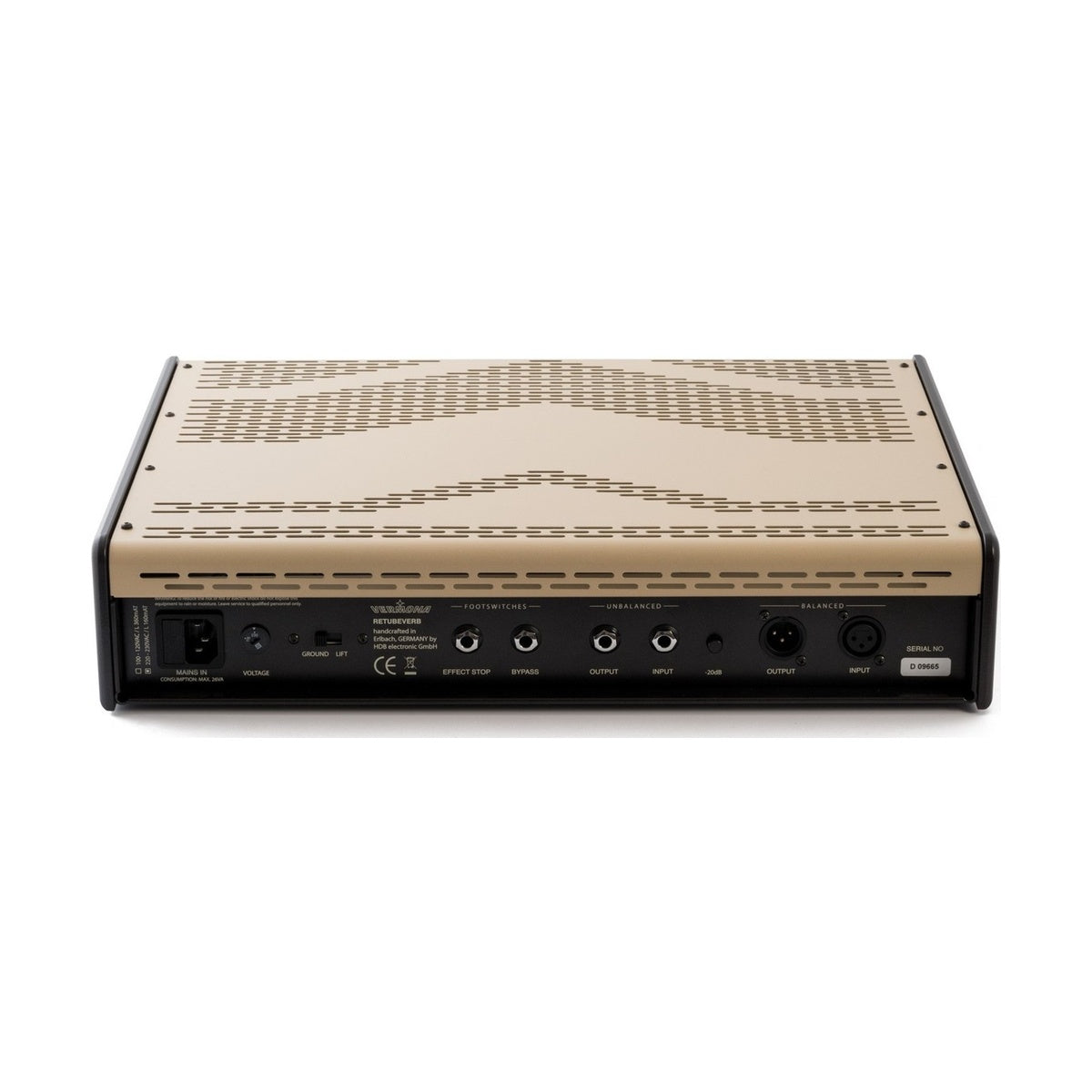

A front 6.3 mm jack (1 MOhm, -20 dBu nominal) takes instruments directly. On the rear there is a 6.3 mm jack (100 kOhm) and an XLR input (600 ohm), both switchable between -20 and 0 dB, so the unit works with instruments, mixer sends and line-level sources. Outputs are on jack (1.2 kOhm) and XLR (200 ohm) with a maximum level of +12 dBu.
KEY FEATURES
- Tube spring reverb with hand-assembled circuitry
- Tubes: 2 x ECC 83, 1 x ECC 81, 1 x EM 84
- Three-band EQ at 80 Hz, 700 Hz and 6.5 kHz
- Front jack, rear jack and XLR inputs
- Internal power supply
TECHNICAL SPECIFICATIONS
- Inputs: front jack 1 MOhm, rear jack 100 kOhm, XLR 600 ohm
- Maximum output level: +12 dBu
- Format: 19" rack, 2U, 455 x 340 x 95 mm
- Weight: 7 kg
- Power: internal supply, 100 - 120 V or 220 - 240 V AC
