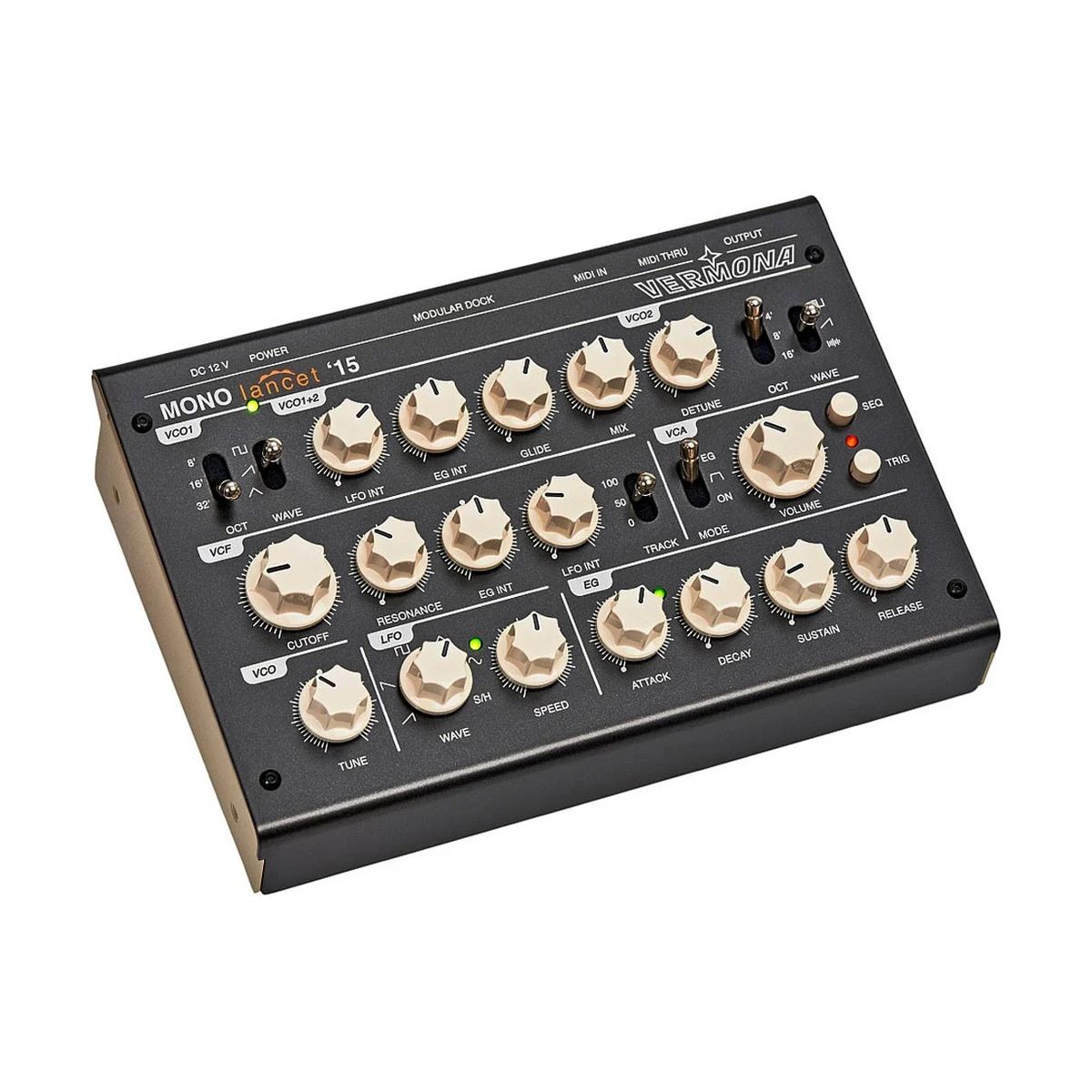

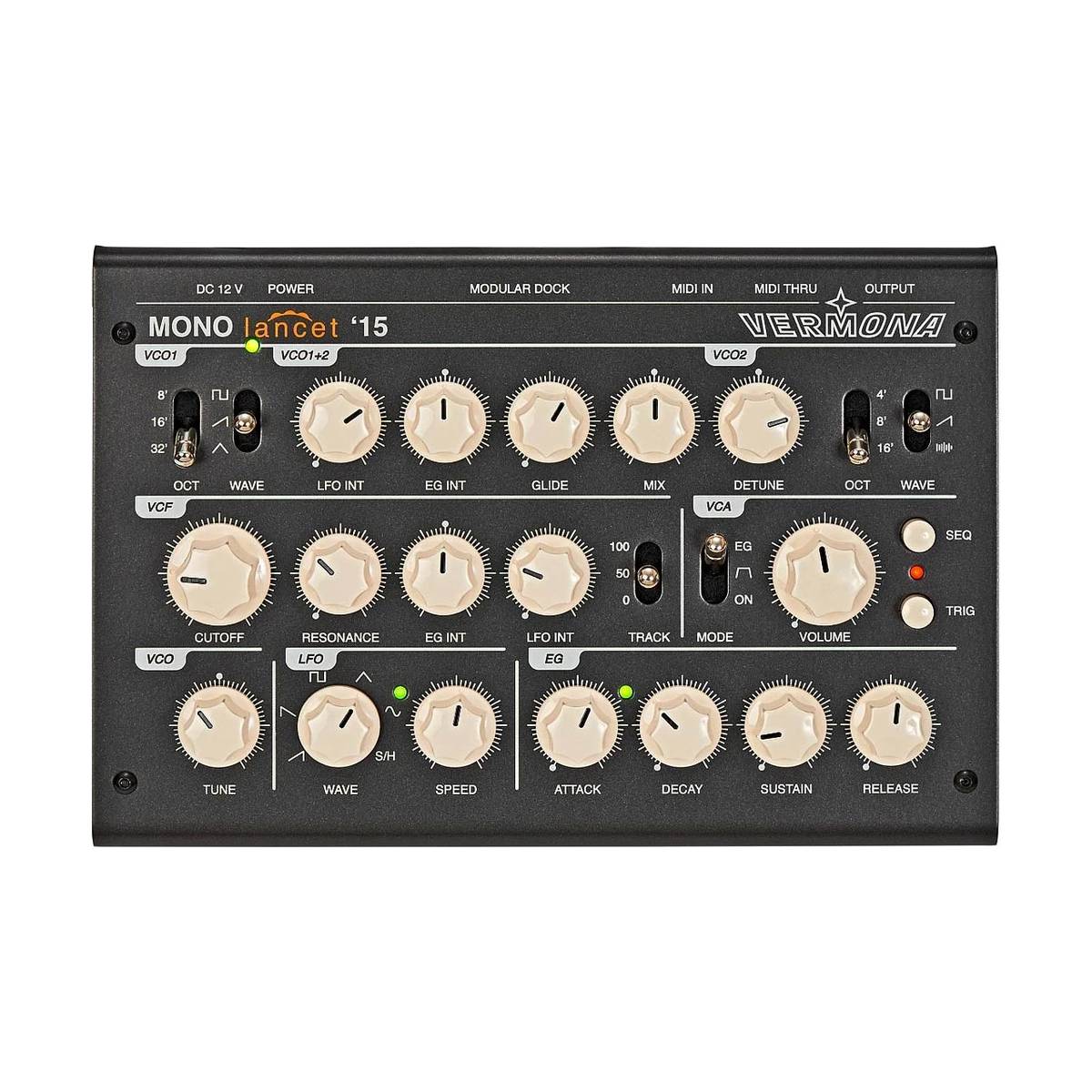

Vermona Mono Lancet '15 is a monophonic analog desktop synthesizer for lead, bass and effect sounds, built in the Vogtland region of Germany. It has two oscillators, a 24 dB per octave low-pass filter, an ADSR envelope and an LFO, all with direct knob control.
Two oscillators with wide tuning options
VCO 1 offers square, sawtooth and triangle waves in 8', 16' and 32' octaves. VCO 2 offers square and sawtooth in 4', 8' and 16' with a detune of ±7 semitones, and it includes a white noise generator. Both oscillators accept LFO and envelope modulation of pitch and have glide, and the pulse width can be controlled over MIDI.
Filter, VCA and MIDI
The low-pass filter resonates over about 2.5 octaves and has switchable keytracking at off, 50% and 100%. The VCA works in envelope, gate-envelope or constant-on mode. Note on and off, pitch bend, modulation wheel, aftertouch, velocity, auto-glide and legato are all supported over MIDI. The LFO has six waveforms and runs from about 0.05 Hz to 250 Hz.
KEY FEATURES
- Two VCOs with 32', 16', 8' and 4' ranges
- 24 dB/oct low-pass filter with keytracking
- ADSR envelope and six-waveform LFO
- Full MIDI implementation
- Expandable with the Modular Dock
TECHNICAL SPECIFICATIONS
- VCO 2 detune: ±7 semitones, plus white noise
- Filter: 24 dB/oct low-pass, keytrack off/50%/100%
- LFO: about 0.05 - 250 Hz
- Dimensions: about 21 x 14.5 x 5.5 cm; weight about 0.75 kg
- Power: external 12 V DC / 1000 mA adapter
