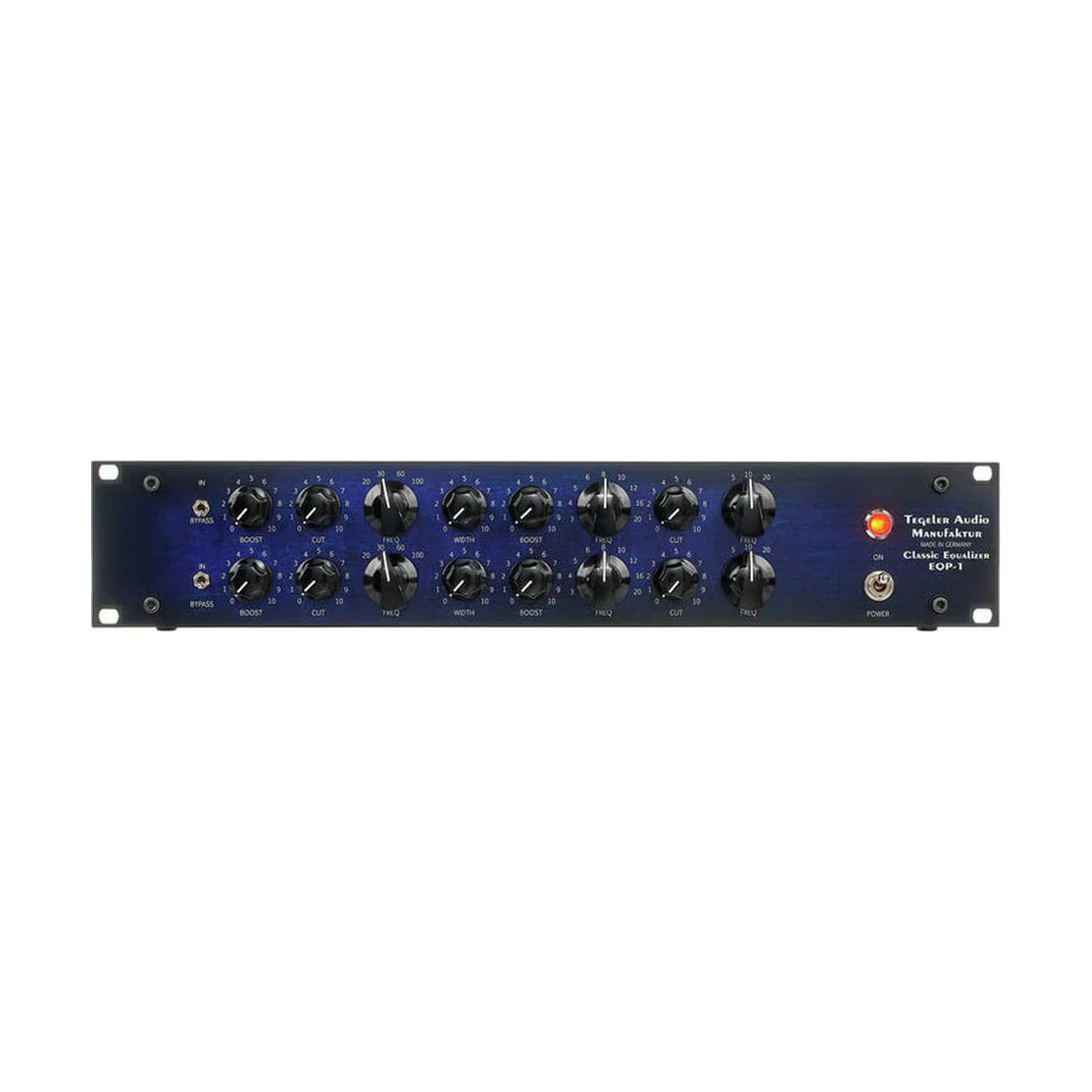

Tegeler Audio Manufaktur Classic Equalizer EQP-1 – Égaliseur à lampe passif

Tegeler Audio Manufaktur Classic Equalizer EQP-1 – passive tube equalizer inspired by legendary Pultec EQP-1A, for mastering/mixing. Delivers musical, rich sound with transformers/ECC83 tubes for harmonic warmth. Ideal for finalizing mixes, adding depth/air. 2U enclosure (483 x 89 x 250 mm, 5 kg) with aluminum panels.

EQP-1 features low boost/cut (20/30/60/100 Hz), high boost/atten (3/4/5/8/10/12/16 kHz), simultaneous boost/cut for phase effects. Switches: bypass, output gain. Balanced XLR I/O, VU metering. Hand-soldered in Germany for quality.

As Pultec tribute, blends vintage character with precision, ready for mastering without compromise.

MAIN FEATURES

• Passive EQ with ECC83 tube amp
• Low boost/cut: 20/30/60/100 Hz (±12 dB)
• High boost: 3/4/5/8/10/12/16 kHz (±12 dB)
• High atten: 5/10/20 kHz (±12 dB shelf)
• Simultaneous boost/cut for phase effects
• Balanced XLR I/O
• Bypass/output gain
• Hand-soldered

TECHNICAL SPECIFICATIONS

• Inputs/Outputs: Balanced XLR stereo
• Low Boost: 20/30/60/100 Hz, 0-12 dB
• Low Cut: 20/30/60/100 Hz, 0-12 dB
• High Boost: 3/4/5/8/10/12/16 kHz, 0-12 dB (broad Q)
• High Atten: 5/10/20 kHz, 0-12 dB (shelf)
• Frequency Response: 20 Hz–20 kHz (±0.5 dB)
• THD + N: < 0.1% @ 1 kHz
• Noise EIN: < -90 dBu
• Power Supply: 100-240 V AC
• Dimensions (W × H × D): 483 x 89 x 250 mm (2U)
• Weight: 5 kg
• Included: EQP-1, manual
• Product Code: TEG-EQP1
